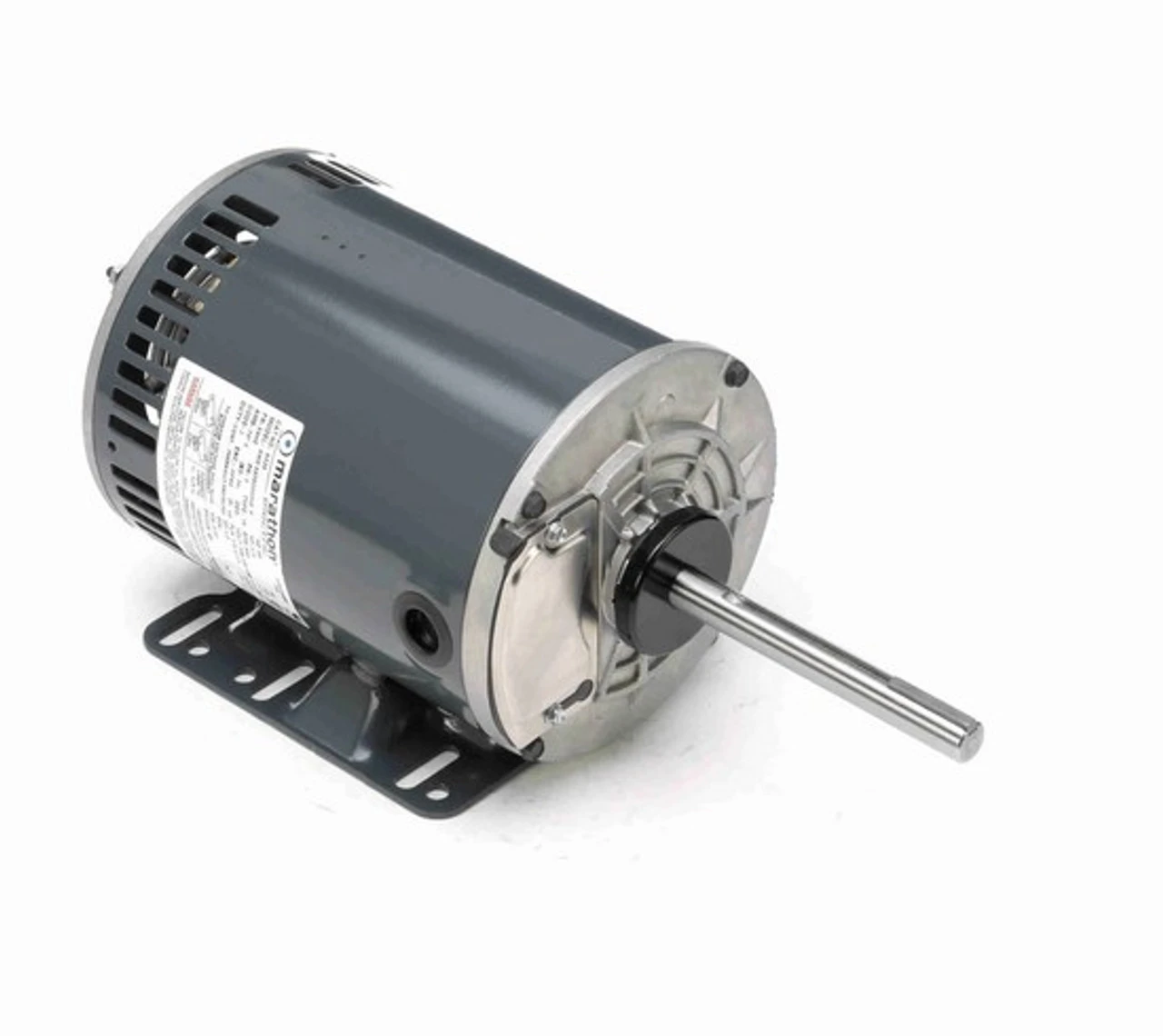

X529 Marathon 1/2 Hp 3-phase 208-230/460V 825 RPM OPAO 56HZ Frame Condenser Fan Motor
X529 Marathon 1/2 Hp 3-phase 208-230/460V 825 RPM OPAO 56HZ Frame Condenser Fan Motor - Image 2
X529 Marathon 1/2 Hp 3-phase 208-230/460V 825 RPM OPAO 56HZ Frame Condenser Fan Motor - Image 3
X529 Marathon 1/2 Hp 3-phase 208-230/460V 825 RPM OPAO 56HZ Frame Condenser Fan Motor - Image 4

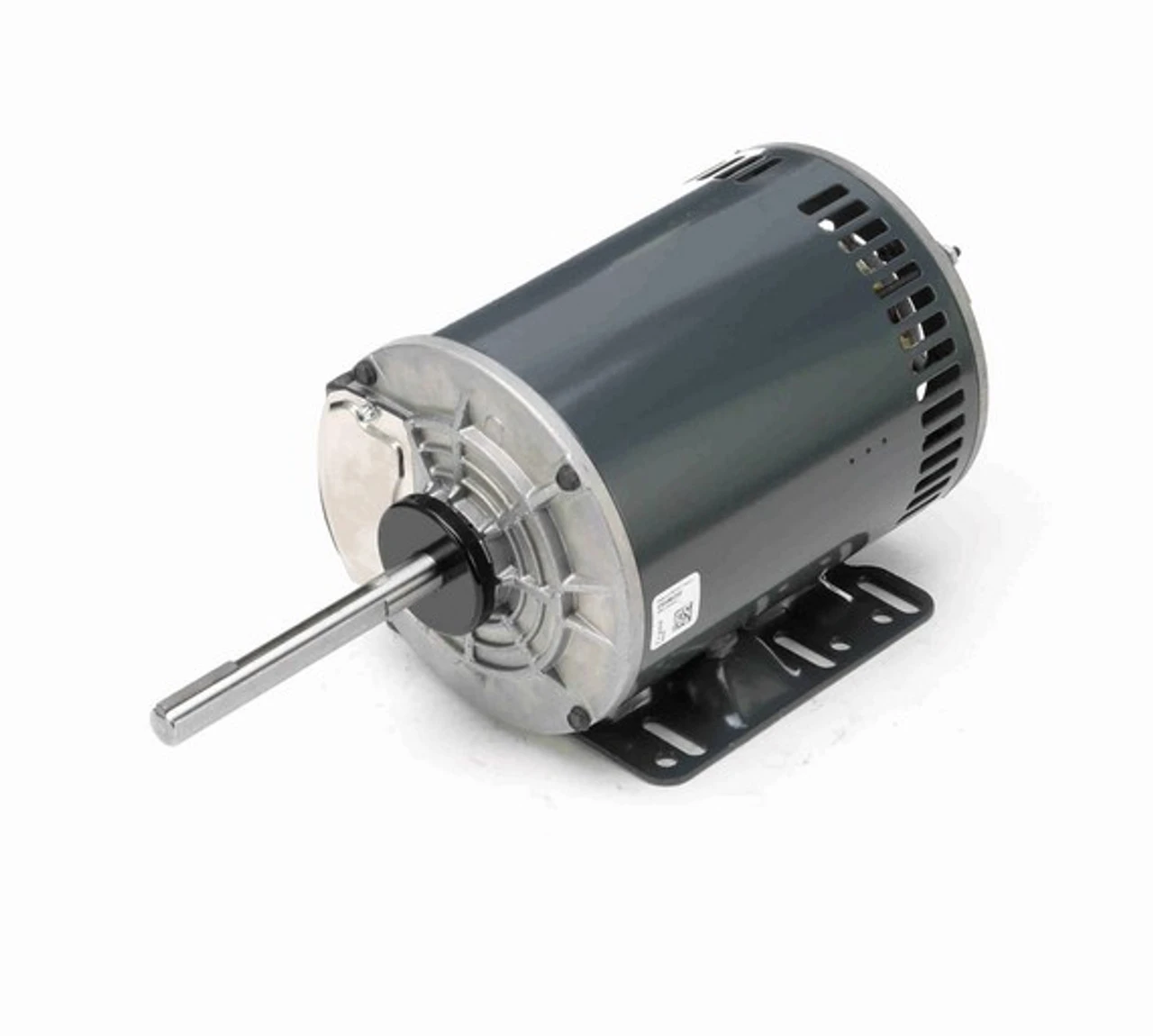

X529 Marathon 1/2 Hp 3-phase 208-230/460V 825 RPM OPAO 56HZ Frame Condenser Fan Motor -MotorHub Shop 529 left 21956.1626367415

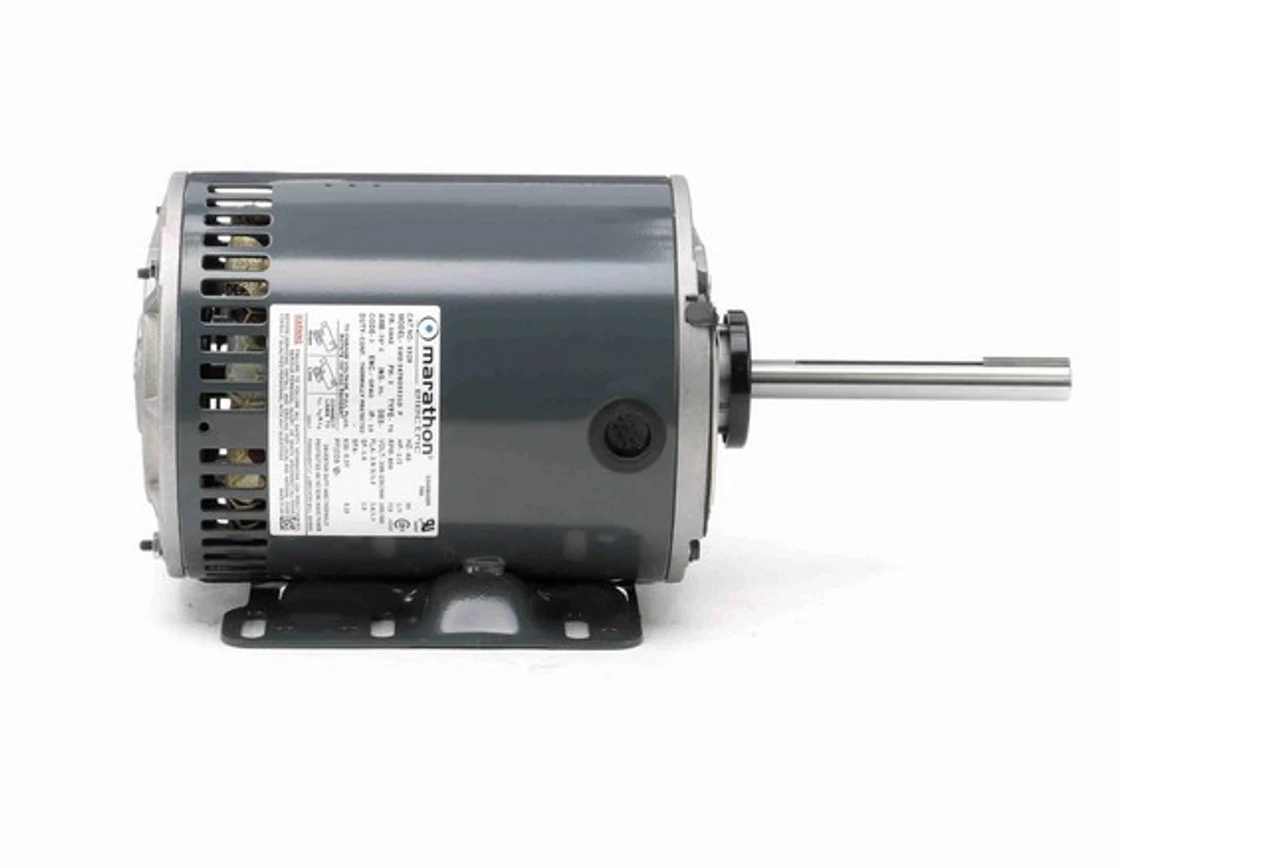

X529 Marathon 1/2 Hp 3-phase 208-230/460V 825 RPM OPAO 56HZ Frame Condenser Fan Motor -MotorHub Shop 529 side 27903.1626367421

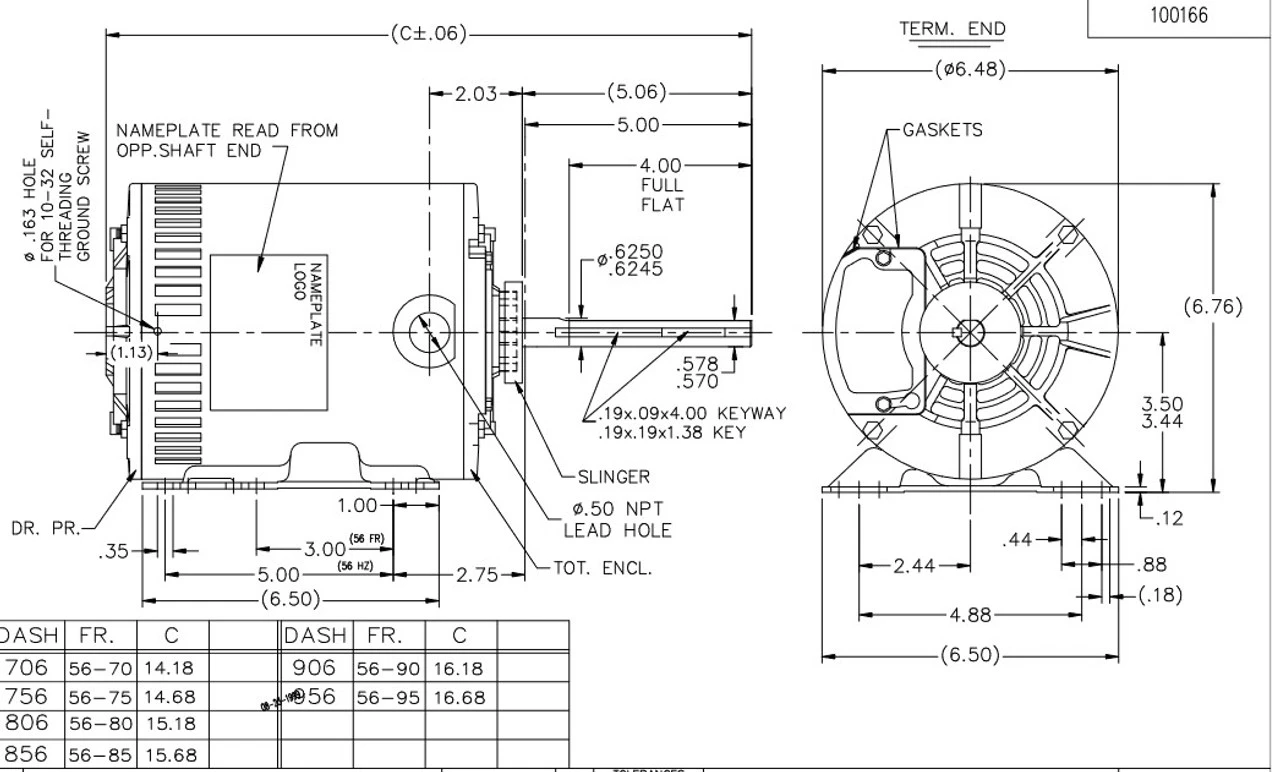

X529 Marathon 1/2 Hp 3-phase 208-230/460V 825 RPM OPAO 56HZ Frame Condenser Fan Motor -MotorHub Shop 529 line 94719.1626367428

X529 Marathon 1/2 Hp 3-phase 208-230/460V 825 RPM OPAO 56HZ Frame Condenser Fan Motor

$342.00 Original price was: $342.00.$98.99Current price is: $98.99.

Buy Now
SKU: ZWXLY 1698667412 Category: HVAC Motors & Draft Inducers Tag: Marathon
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 1/2 hp 825 RPM, 2.9-3.0/1.5 amps, 208-230/460 Volts 60 Hz, 3-Phase
  • NEMA 56HZ Frame Keyed Shaft 5/8″ Diameter x 5″
  • Service Factor = 1.0, Thermal Protection = Automatic
  • Rigid Base, Reversible, Ball Bearings, Class B insulation
  • 1 Year Manufacture Warranty

Condenser Fan Motors are used in air conditioning coolant condenser units usually found outdoors. Shaft may be vertical or horizontal. OPAO = Open Air-Over so motor must be in air-stream. 056T8O5531
