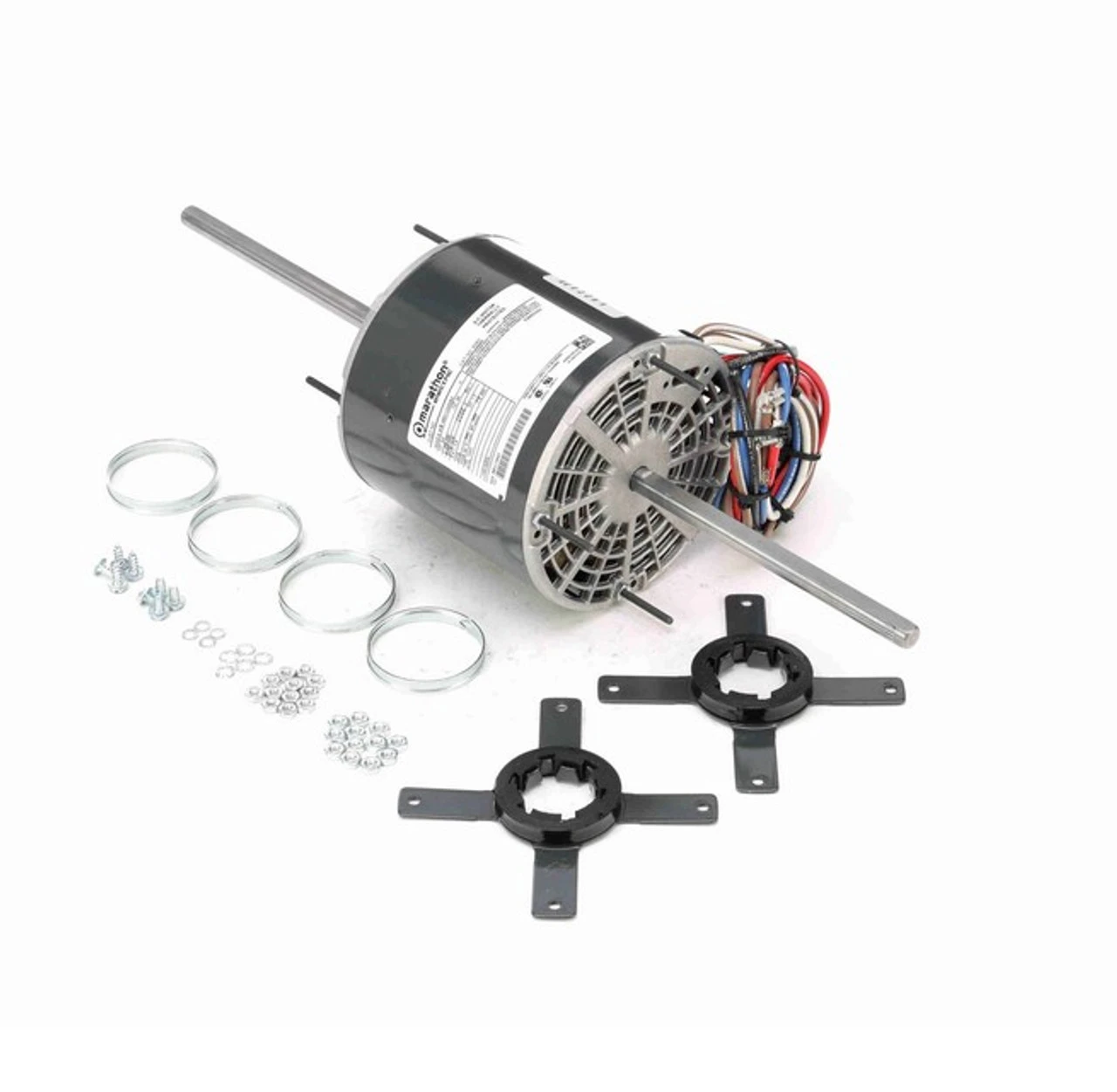

X063 Marathon 3/4 Hp 208-230V 1075 RPM (3 Speed) OPAO 48Y Frame Double-Shaft Blower Motor
X063 Marathon 3/4 Hp 208-230V 1075 RPM (3 Speed) OPAO 48Y Frame Double-Shaft Blower Motor - Image 2
X063 Marathon 3/4 Hp 208-230V 1075 RPM (3 Speed) OPAO 48Y Frame Double-Shaft Blower Motor - Image 3
X063 Marathon 3/4 Hp 208-230V 1075 RPM (3 Speed) OPAO 48Y Frame Double-Shaft Blower Motor - Image 4

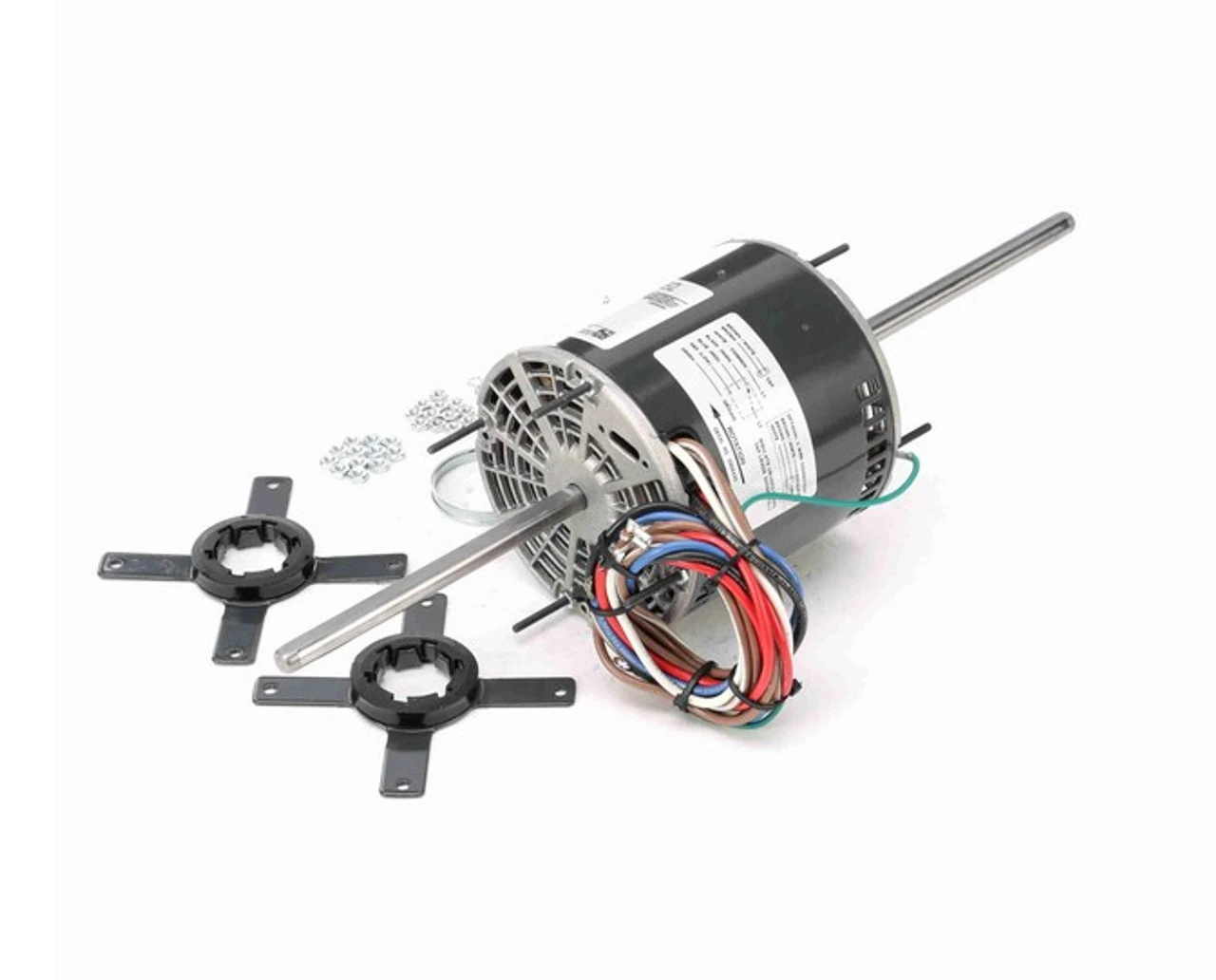

X063 Marathon 3/4 Hp 208-230V 1075 RPM (3 Speed) OPAO 48Y Frame Double-Shaft Blower Motor -MotorHub Shop 63 left 04246.1628002114

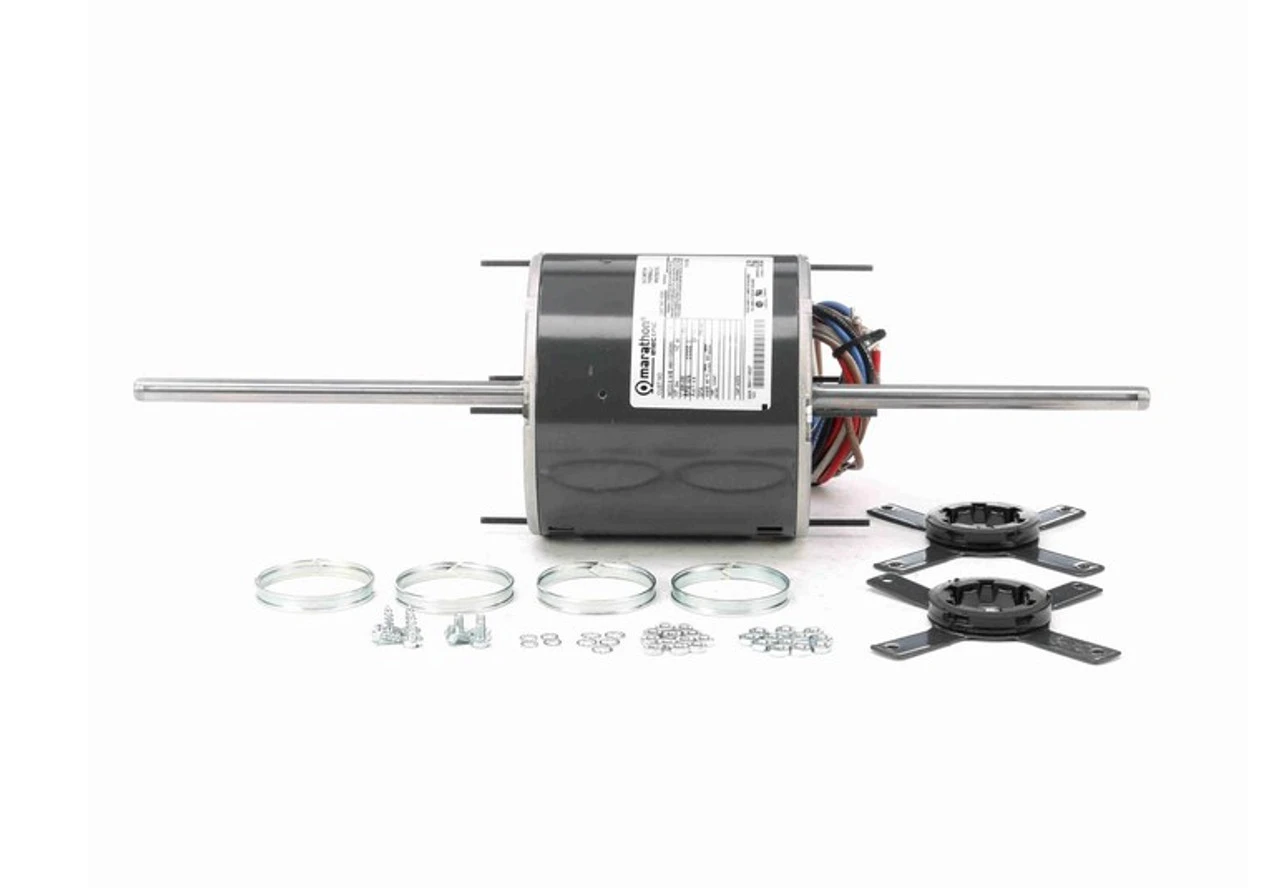

X063 Marathon 3/4 Hp 208-230V 1075 RPM (3 Speed) OPAO 48Y Frame Double-Shaft Blower Motor -MotorHub Shop 63 side 52654.1628002119
X063 Marathon 3/4 Hp 208-230V 1075 RPM (3 Speed) OPAO 48Y Frame Double-Shaft Blower Motor -MotorHub Shop 63 line 02392.1628002124

X063 Marathon 3/4 Hp 208-230V 1075 RPM (3 Speed) OPAO 48Y Frame Double-Shaft Blower Motor

$237.80 Original price was: $237.80.$95.99Current price is: $95.99.

Buy Now
SKU: ZWXLY 1698670136 Category: HVAC Motors & Draft Inducers Tag: Marathon
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 3/4 hp 1075 RPM, 5.7-4.8 amps, 208-230 Volts 60 Hz, Permanent Split Capacitor (PSC)
  • NEMA 48Y Frame flat Shaft 8″ x 1/2″ Diameter x 8″, 3 speed
  • Service Factor = 1.0, Thermal Protection = Automatic
  • No Base, CCW rotation lead end, Ball Bearings, Class B insulation
  • 1 Year Manufacture Warranty

Blower motors are used to blow air inside of buildings. Shaft may be vertical or horizontal. OPAO = Open Open Air Over so motor must be in air-stream. 048A11O2028
