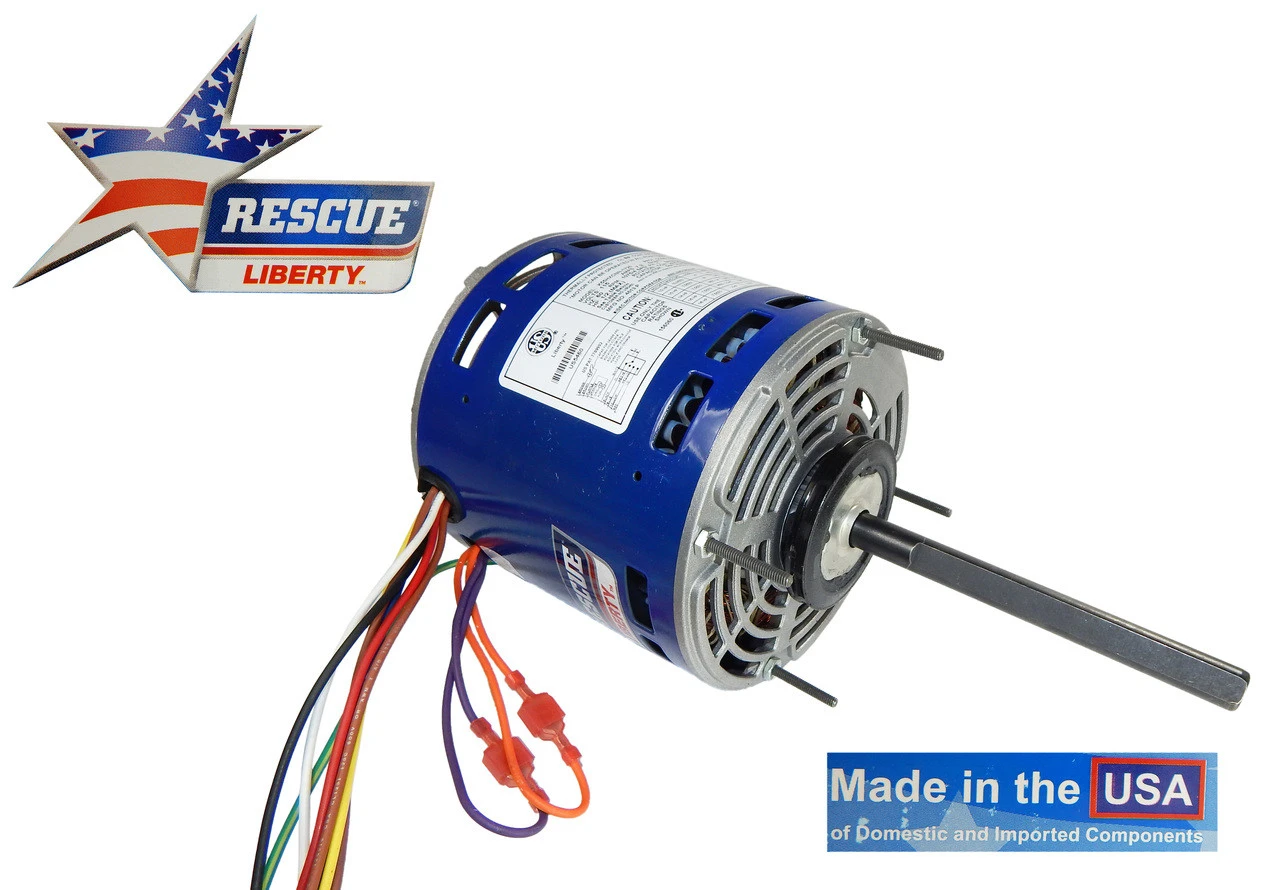

US5461 Nidec | 1/2-1/6 Hp 1075 RPM 4-Speed 5 5/8″ 208-230V Direct Drive Furnace Motor

Original price was: $173.50.Current price is: $95.99.

Protect Your Information, Shop with Safe Payments

Buy quality, buy with us.

Efficiency meets excellence in customer care.

Top-Notch Quality

1/2 – 1/6 hp 1075 RPM, 3.6 amps 208-230V 60hz.
4-Speed
5.6″ Diameter Motor
Multifit motor will replace 1/6 thru 1/2 hp motor
Includes 10 MFD 370V Capacitor for 1/2 hp
Includes 5 MFD 370V Capacitor for 1/3-1/6 hp
Motor Body Length 5.25″
Shaft 1/2″ x 5″, Rotation Reversible
40º Ambient Temp
2.5″ Diameter Rings
Sleeve Bearings
36″ Wire Leads
Rheem Shell Holes
MADE IN USA of domestic & imported components
1 Year Manufacture Warranty.

Standard Efficiency Continuous Duty – Air Over; Permanent Split Capacitor. These motors will work in most “Belly Band Applications” meaning if the motor is mounted via a strap/clamp around the body of the motor or mounts with the motor “thru-bolts. Belly band brackets available: Torsion Flex Bracket (3-Prong) # 2MEY7, Torsion Flex Bracket (4-Prong) # FM554, Welded 3-Ring Bracket # 2MEV4.

Rescue Liberty Multi fit motor will replace 1/6, 1/4, 1/3, 1/2 hp direct drive blower motors.

Nidec RESCUE Motors Permanent Split Capacitor Furnace Blower Motor
