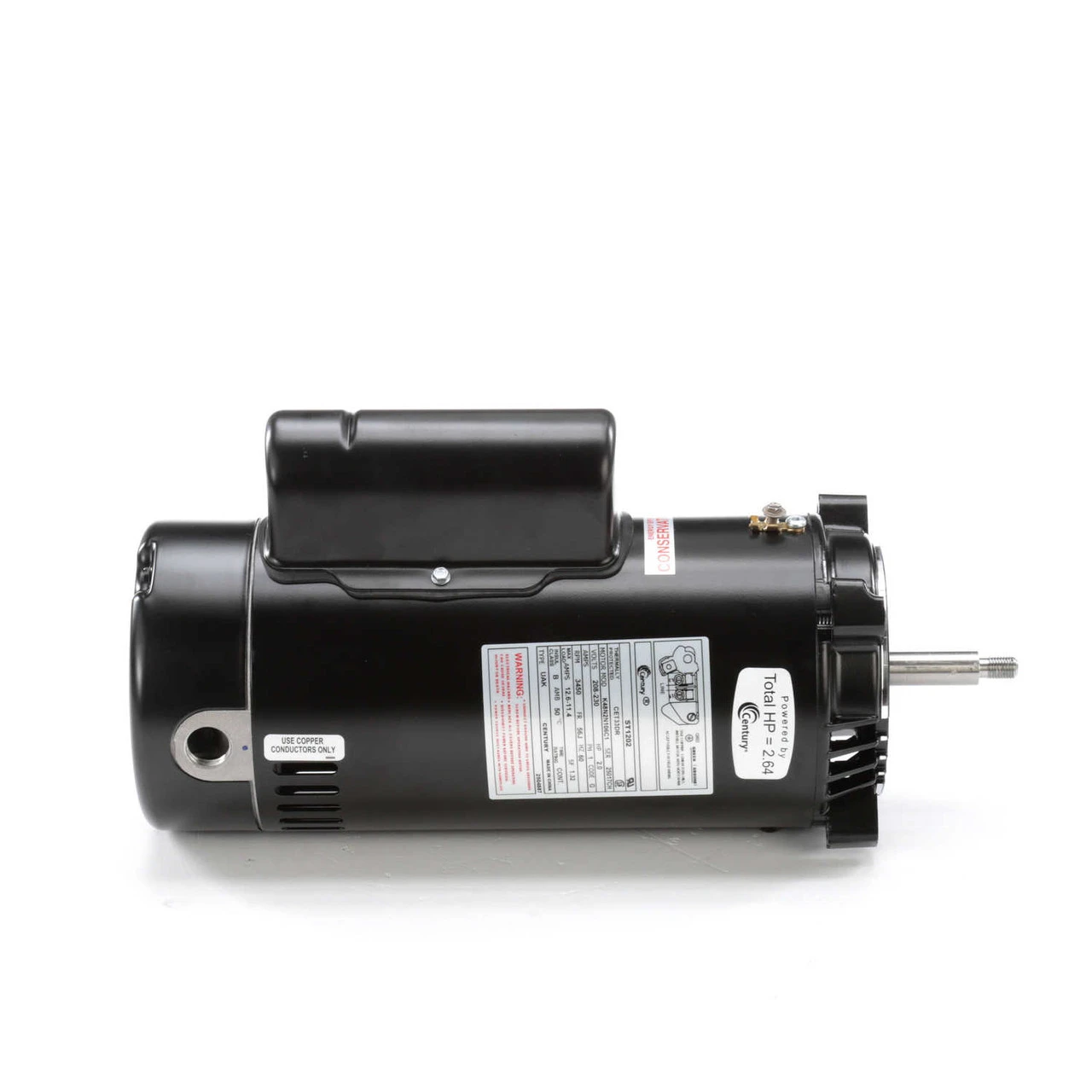

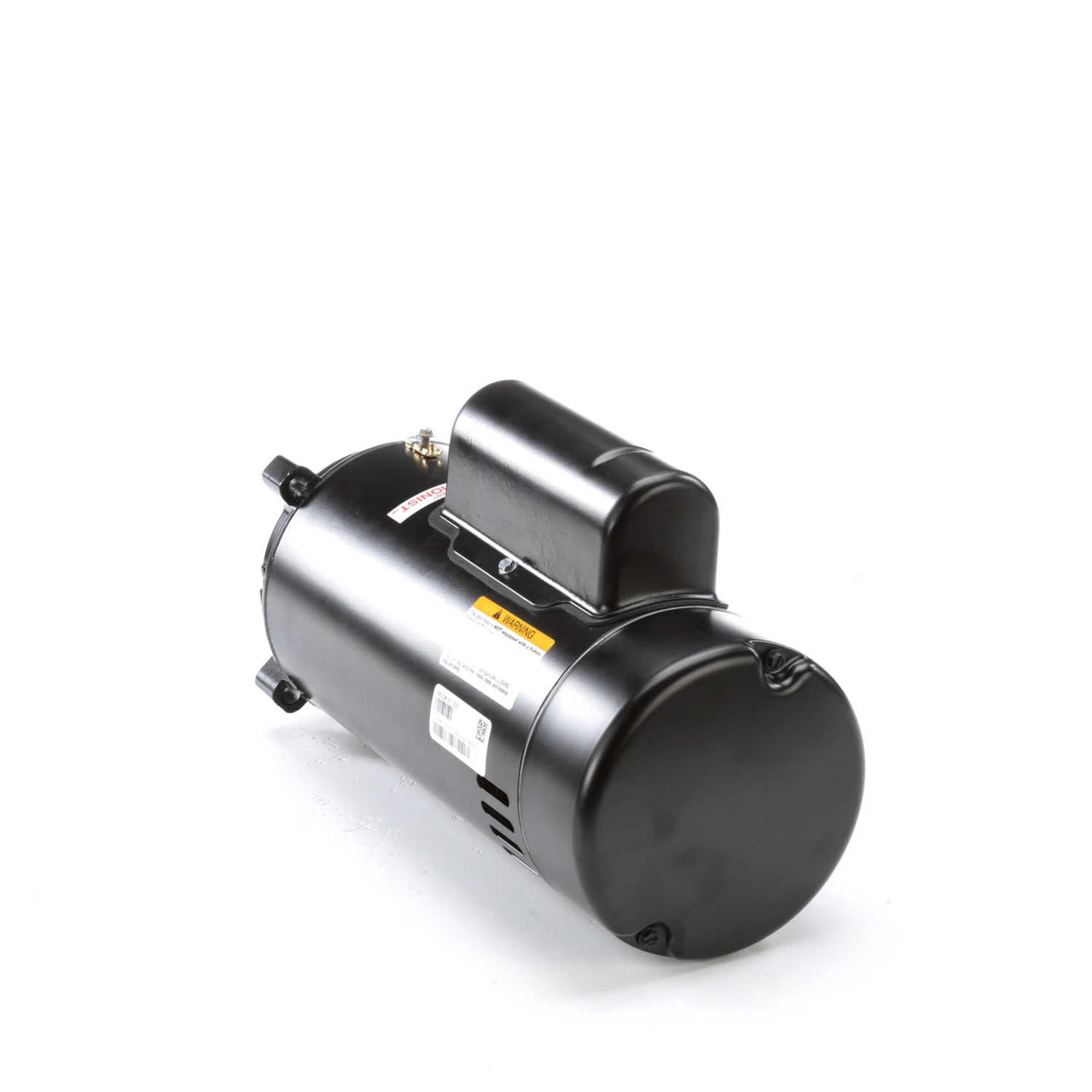

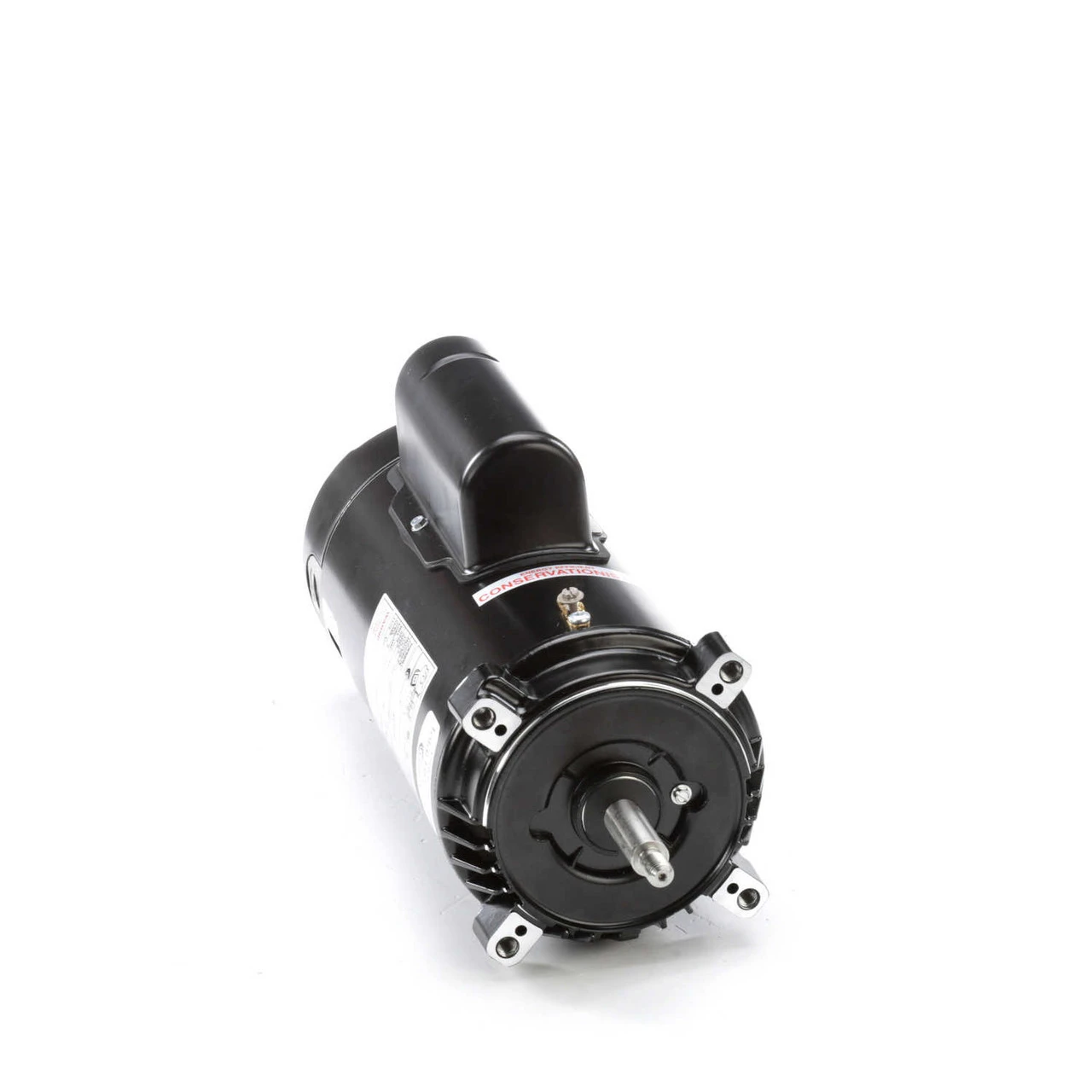

ST1202 Century 2 Hp 3450 RPM 56J Frame 208-230V Energy Efficient Swimming Pool Motor

Original price was: $393.00.Current price is: $97.99.

Protect Your Information, Shop with Safe Payments

Buy quality, buy with us.

Efficiency meets excellence in customer care.

Top-Notch Quality

Single Speed, Energy Efficient

2 HP 3450 RPM 56J, 11.2 amps, 230V 60hz.
Automatic Overload Protection – Service Factor 1.30
Non-Reversible – CCW Rotation facing the shaft
C-Face Mount, Round Body-no base
56-J Frame; 5/8″ diameter threaded stainless steel shaft

Swimming pool pump motor. Capacitor Start/Capacitor Run. Commonly found on inground pool pumps such as Hayward Super Pump, Maxflo, Super II and many other pumps requiring a 56J frame motor. This is an Energy Efficient rated motor with a High Service factor. Amps are stated based on the full service factor. Century motors are found on most swimming pool pumps. Standard 1081 pump duty motor. Stainless steel shaft. Sealed ball bearings. Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate. 1 year manufacture warranty. US Electric Equivalent EST1202
