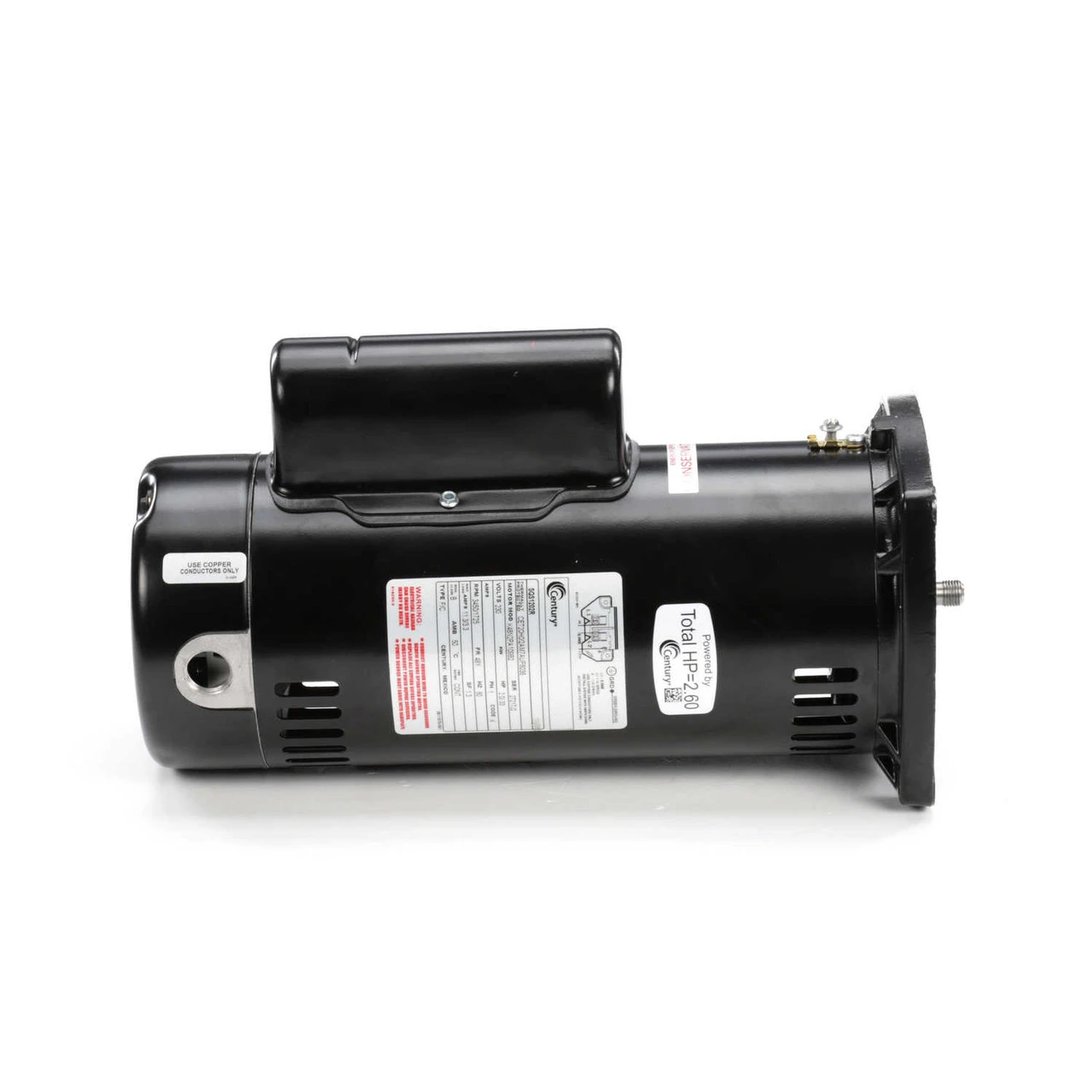

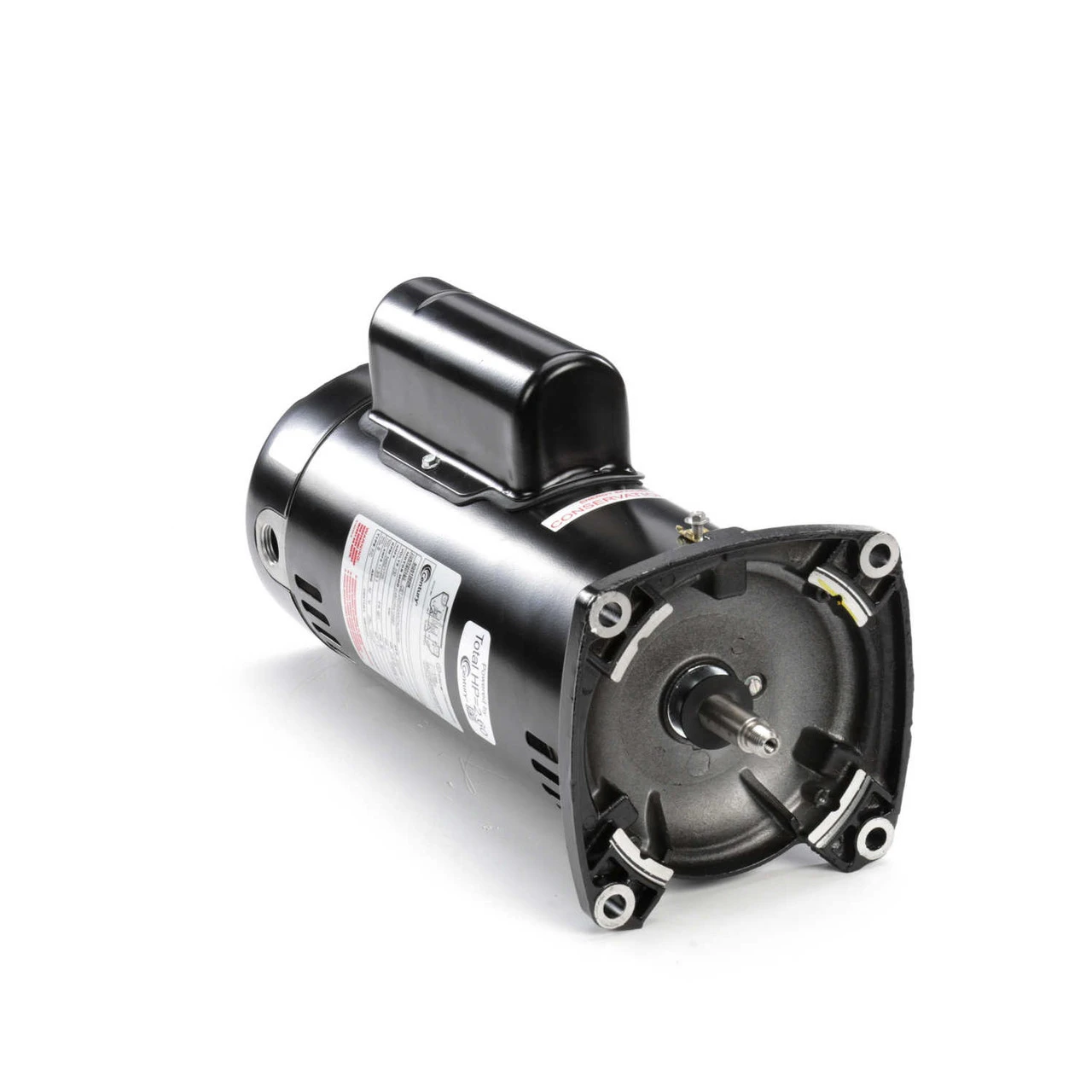

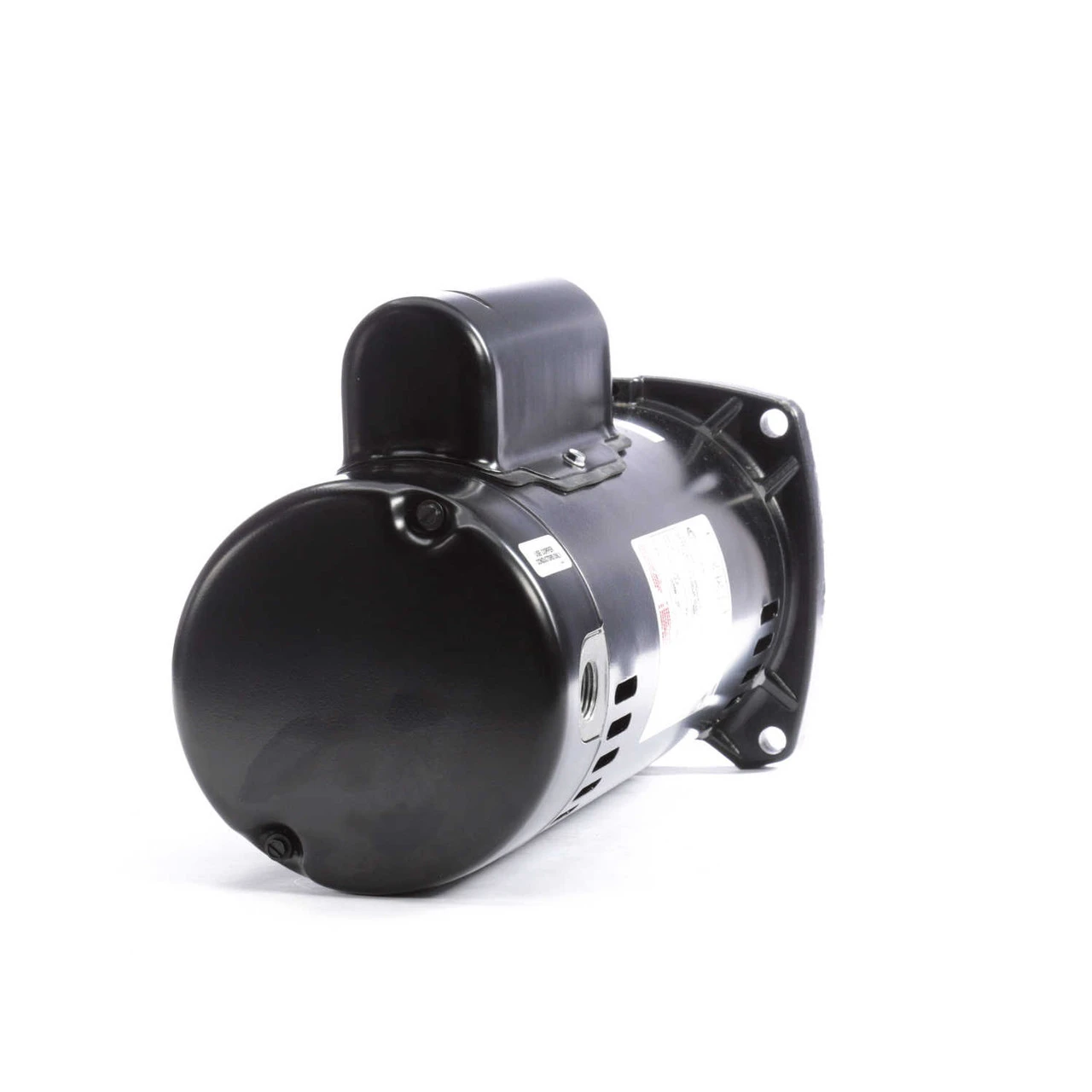

SQS1202R Century 2 Hp 2-Speed 48Y Frame 230V Square Flange Pool Motor

Century 48Y Square Flange – Energy Efficient – Two Speed Pool Motor

• 2 HP 3450/1725 RPM – High/Low Speed
• 11.3/3.3 amps, 230 Volts, Single Phase, 60hz
• Automatic Overload Protection – Service Factor 1.30
• Energy Efficient High and Low Speed
• Non-Reversible – CCW Rotation facing the shaft
• Open Drip Proof – Ball Bearings
• 5/8″ diameter threaded stainless steel shaft
• Meets California Energy Commission Appliance Regulations 2008

Does Not come with power cord or High/Low toggle switch

Square Flange replacement inground pool pump motor. This is a 2 speed motor. Motor fits many in ground pool pumps such as PacFab Challenger, Whisperflo, Pentair
Wiring diagram on motor name plate
1 year warranty

Century Mod No. K48N2PA109, K48N2PA109B2
Replaces AO Smith/Century UQS1202R
