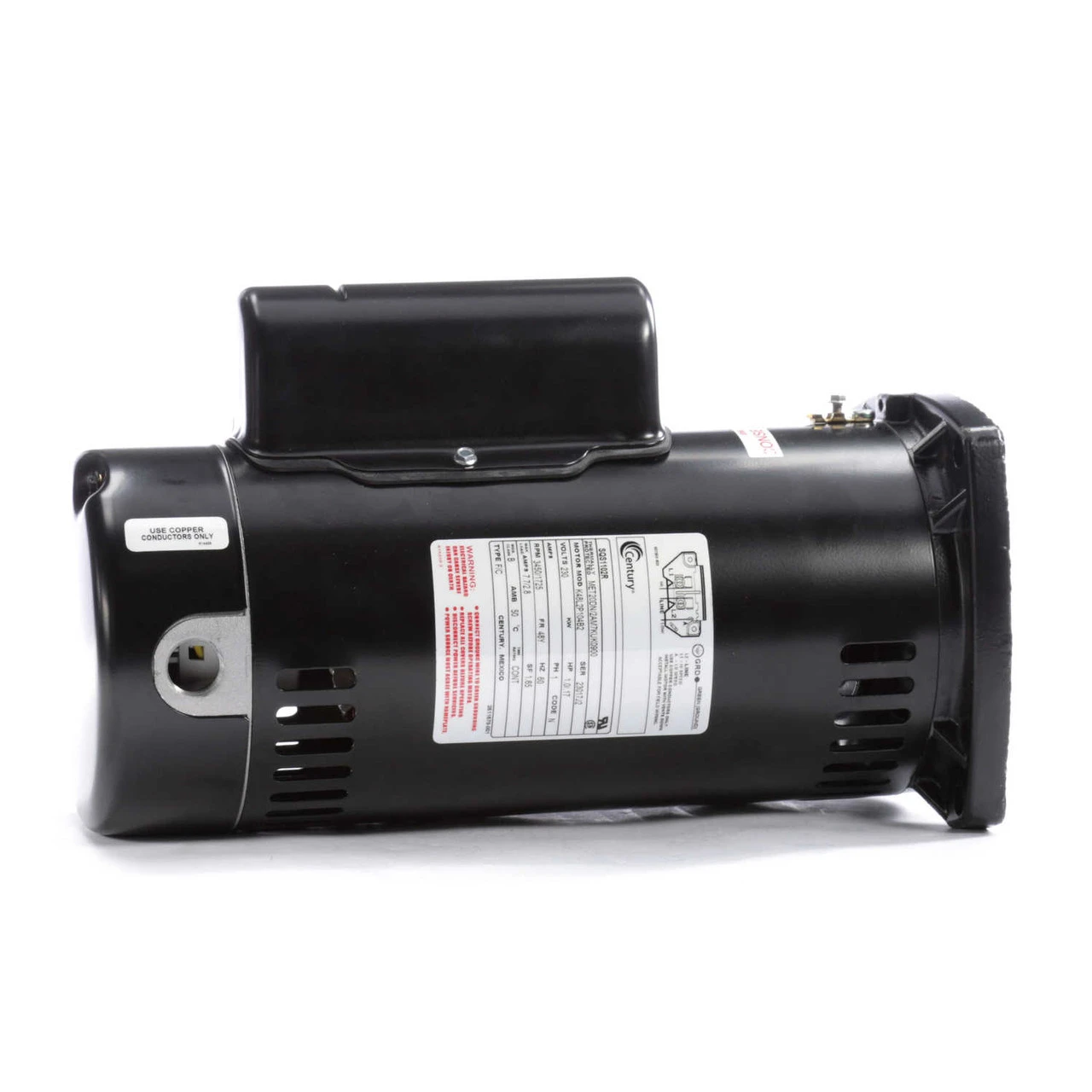

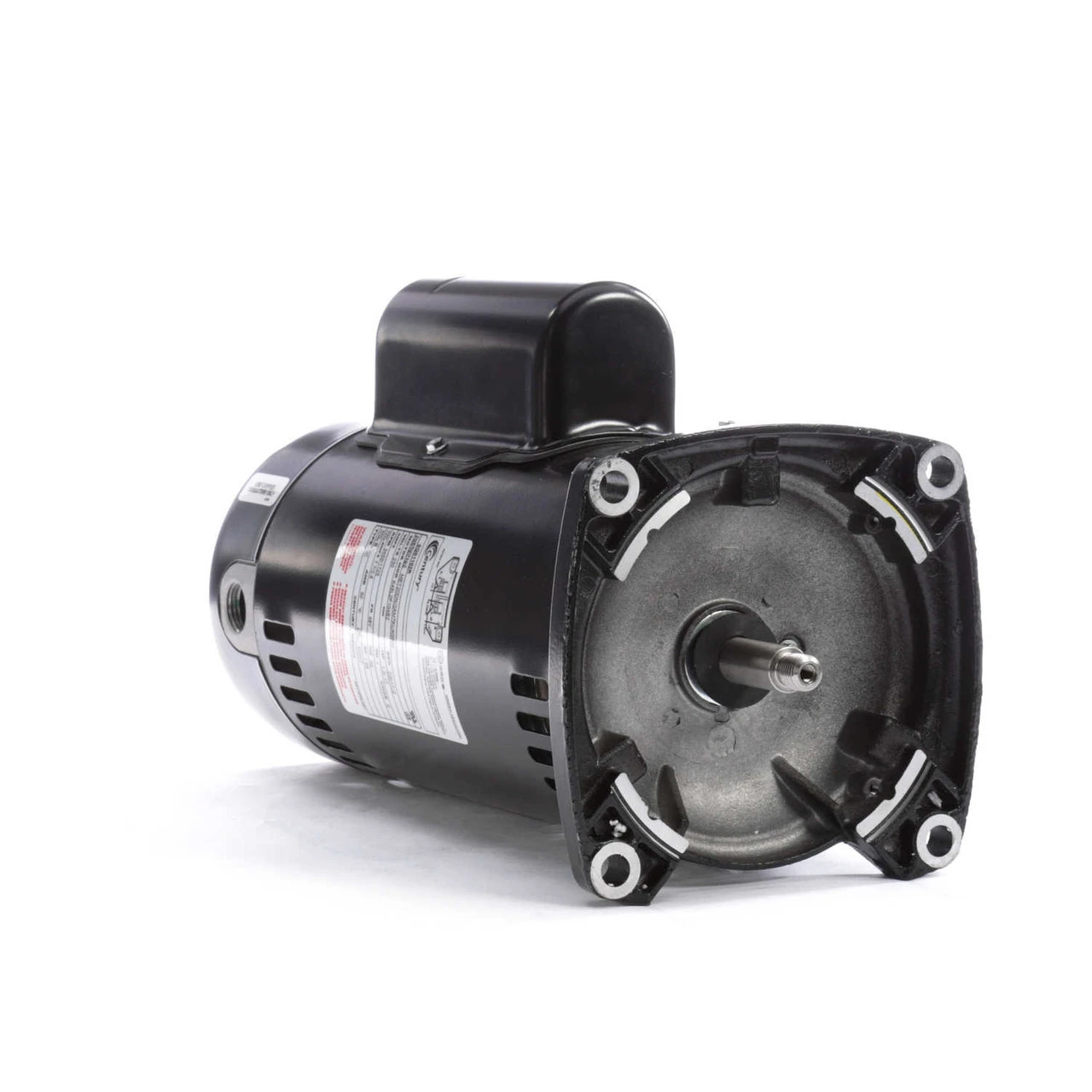

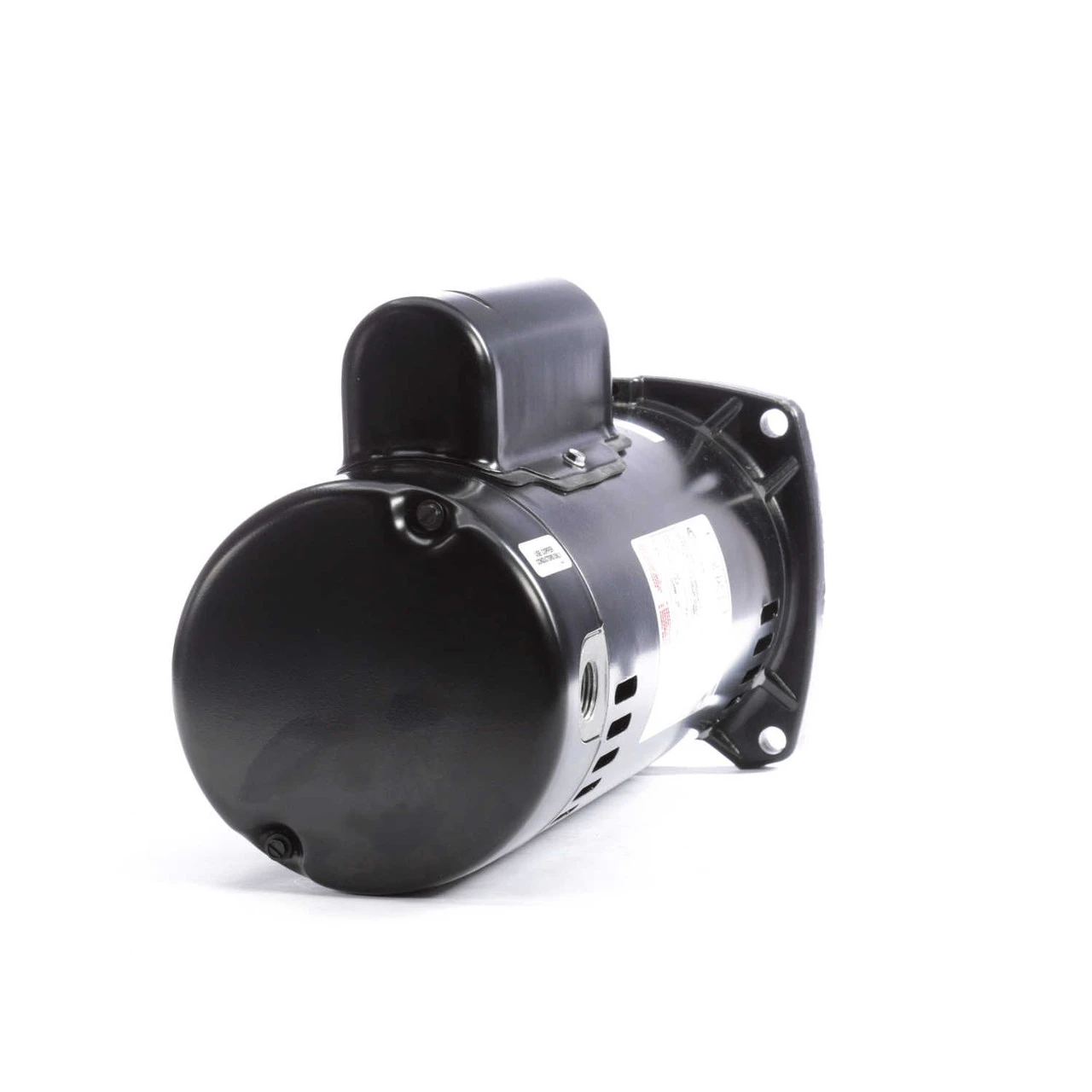

SQS1102R Century 1 Hp 2-Speed 48Y Frame 230V Square Flange Pool Motor Century # SQS1102R

Century 48Y Square Flange – Energy Efficient – Two Speed Pool Motor

• 1 HP 3450/1725 RPM – High/Low Speed
• 7.7/2.8 amps, 230 Volts, Single Phase, 60hz
• Automatic Overload Protection – Service Factor 1.65
• Energy Efficient High and Low Speed
• Non-Reversible – CCW Rotation facing the shaft
• Open Drip Proof – Ball Bearings
• 5/8″ diameter threaded stainless steel shaft
• Meets California Energy Commission Appliance Regulations 2008

Does Not come with power cord or High/Low toggle switch

Square Flange replacement inground pool pump motor. This is a 2 speed motor. Motor fits many in ground pool pumps such as PacFab Challenger, Whisperflo, Pentair
Wiring diagram on motor name plate
1 year warranty

Century Mod No. K48L2PA104, K48L2PA104B2
