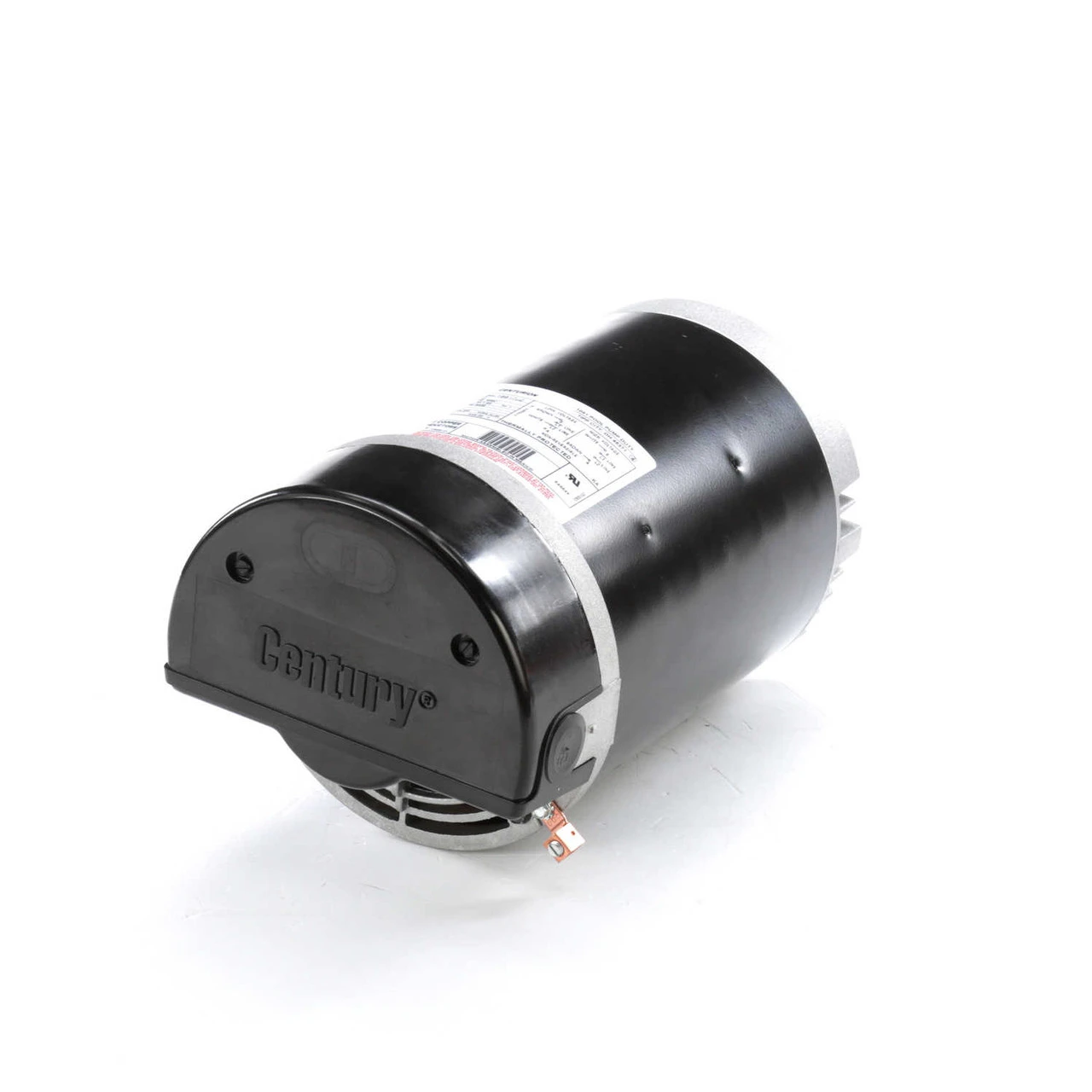

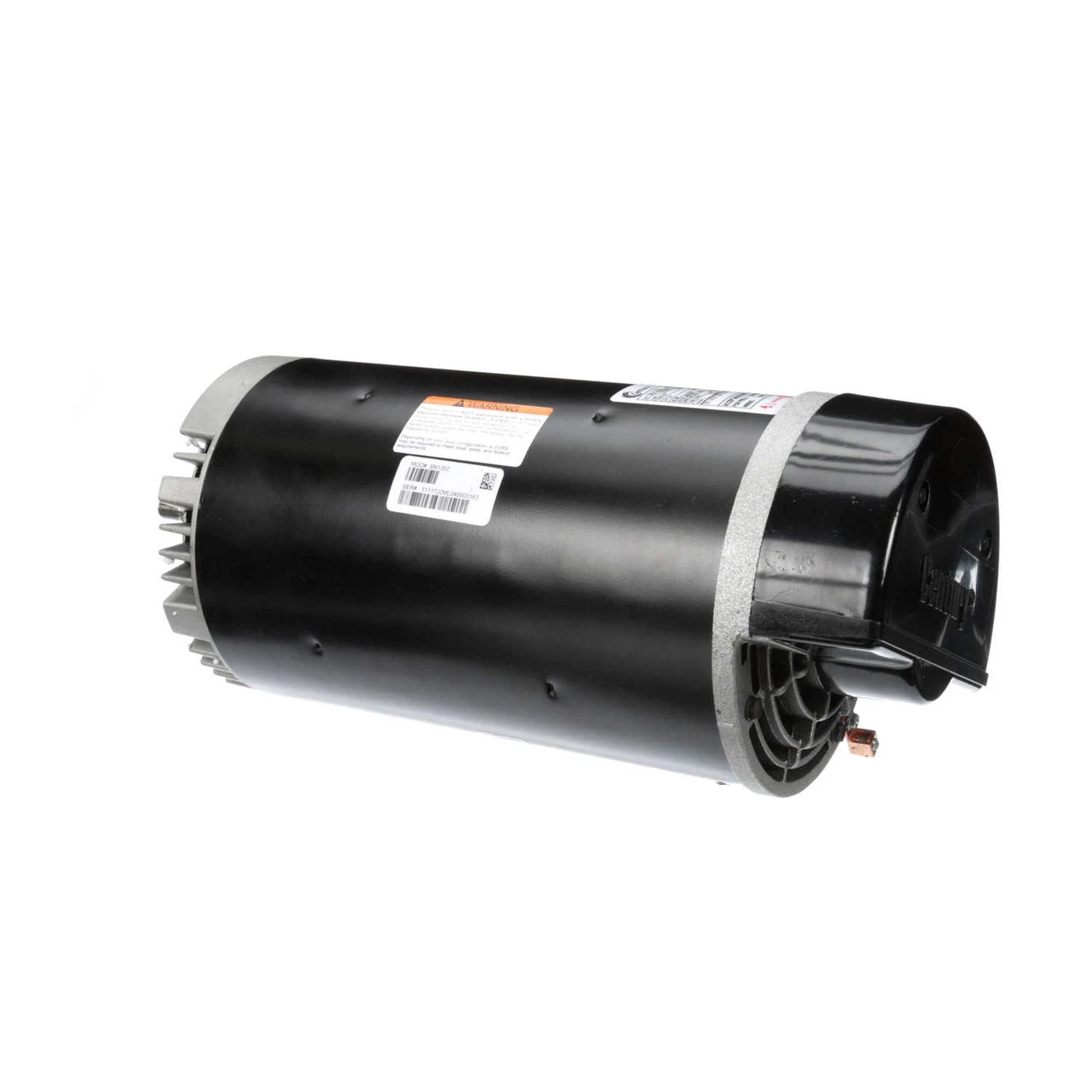

SN1302 Century 3 Hp 3450 RPM 56J 208-230V Northstar Swimming Pool Pump Motor Century # SN1302

Original price was: $390.00.Current price is: $98.99.

Protect Your Information, Shop with Safe Payments

Buy quality, buy with us.

Efficiency meets excellence in customer care.

Top-Notch Quality

HAYWARD NORTHSTAR REPLACEMENT MOTOR
HAYWARD PART NO. SP1630Z1BNSC

3 HP 3450 RPM, 19.0 amps, 208-230V 60hz.
Automatic Overload Protection – Service Factor 1.60
Non-Reversible – CCW Rotation facing the shaft
C-Face Mount, Round Body-no base
56-J Frame; 5/8″ diameter threaded stainless steel shaft
1 Year Manufacture Warranty

This is the motor Hayward uses on the Northstar inground pool pump. This is an Energy Efficient, full rated motor with a High Service factor. Amps are stated based on the full service factor. Stainless steel shaft, sealed ball bearings, switchless, E-Coated main frame for superior corrosion resistance.
Motor has 4 threaded bolt holes on face for mounting the pump to the motor.
Bolt holes are 5 7/8″ on center measured across the shaft.
Wiring diagram on motor name plate.

US Electric Equivalent ESN1302
