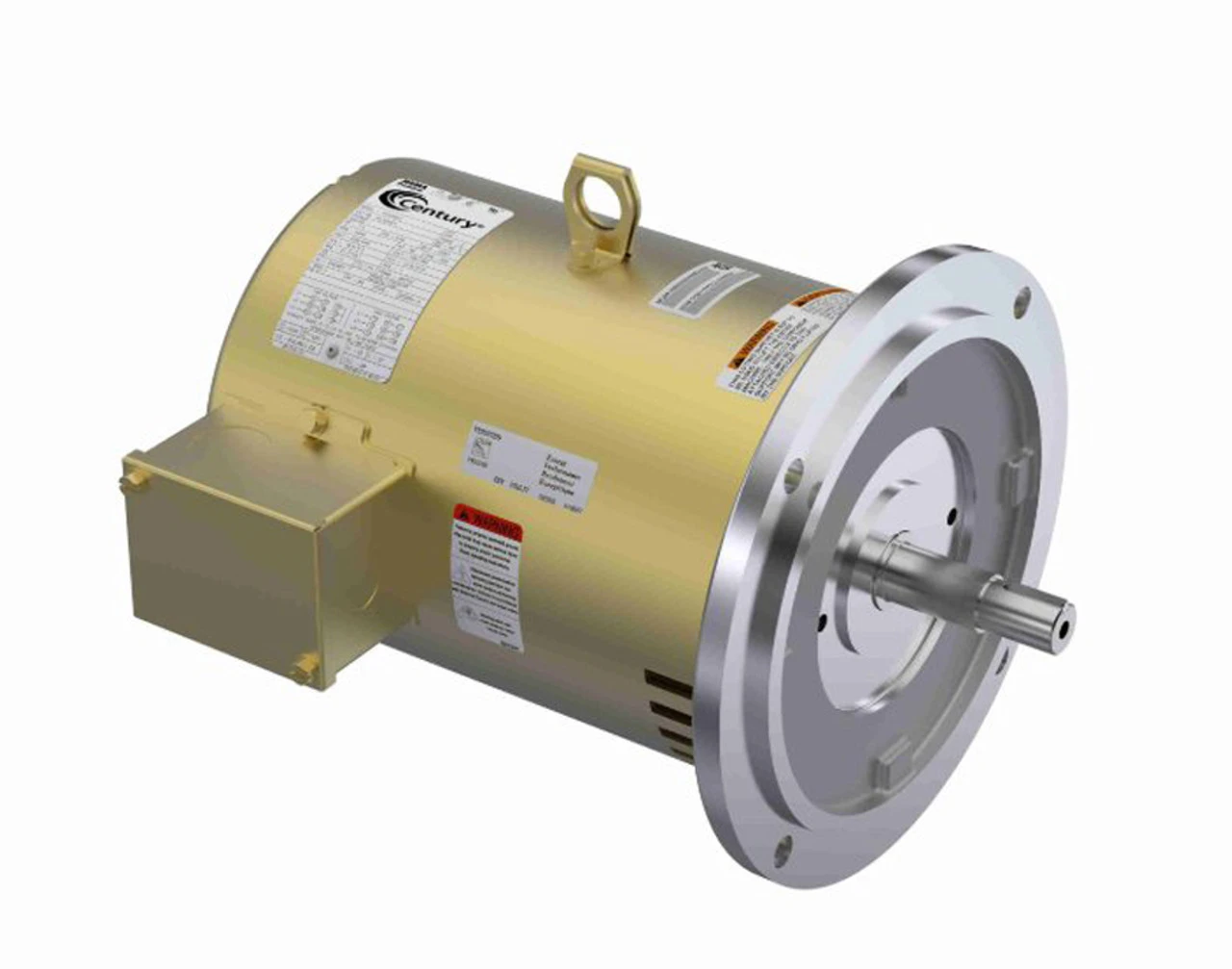

R232M2A Century Purex 7.5 Hp 3450 RPM 184TY Frame 208-230/460V Three Phase Century Pump Motor

Hydrotech (Purex) “C” Series Commercial Pump Motor
Fits Aurora Pump 293-0156

• 7.5 HP 3450 RPM
• 18.6/9.3 Amps, 208-230/460V 50/60hz
• Three Phase; Service Factor 1.15, Reversible
• 184TY, 184TDZ Frame Size
• D-Flange Mount, Round Body-no base
• Open Drip Proof – Ball Bearings
• Pump Series: C (Keyed Shaft)
• 1 Year Manufacture Warranty

Wiring diagram on motor name plate.

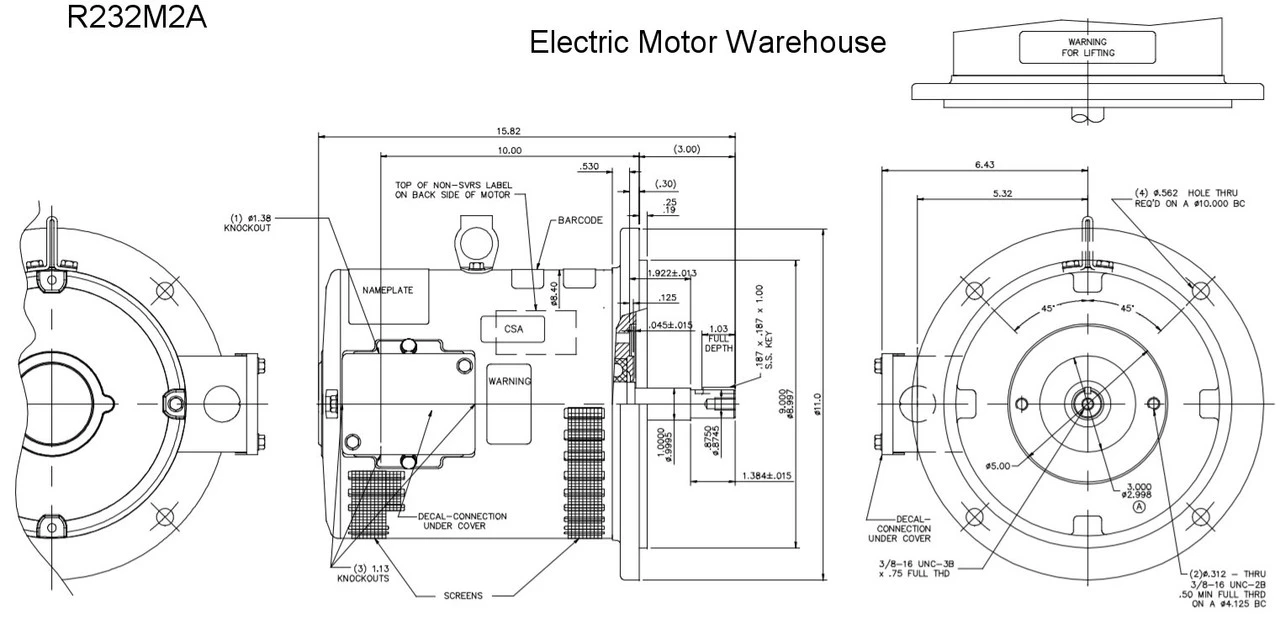

Motor has 4 non-threaded bolt holes on flange for mounting the pump to the motor.
Bolt holes are 10″ on center measured across the shaft.

Replaces R232, R232M2
