Home / HVAC Motors & Draft Inducers / Dayton Ventilator Replacement Motors
  • Model 4YU40 Century 2 Hp Belt Drive Blower 3 Phase Motor 1725 RPM 208-230/460V Dayton 4YU40 -MotorHub Shop 4YU39 30828.1463311146
  • 4YU23 Dayton 1/6 HP Direct Drive Blower Motor 1140 RPM 115V -MotorHub Shop 4YU23 10656.1461344229
-65%

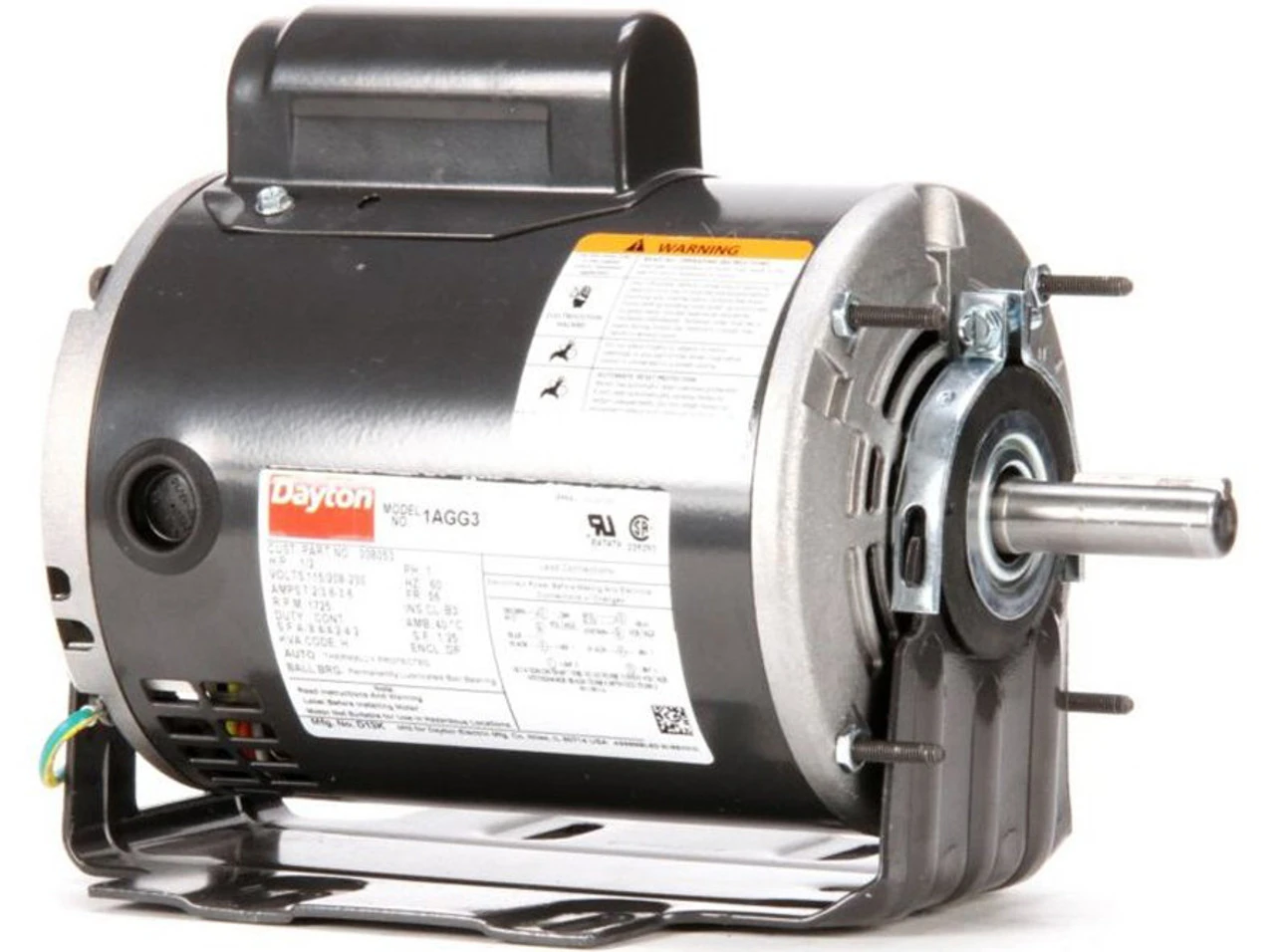

Model 1AGG3 Century 1/2 Hp Belt Drive Blower Cap Start Motor 1725 RPM 115/208-230V Dayton 1AGG3
Model 1AGG3 Century 1/2 Hp Belt Drive Blower Cap Start Motor 1725 RPM 115/208-230V Dayton 1AGG3 - Image 2
Model 1AGG3 Century 1/2 Hp Belt Drive Blower Cap Start Motor 1725 RPM 115/208-230V Dayton 1AGG3 - Image 3

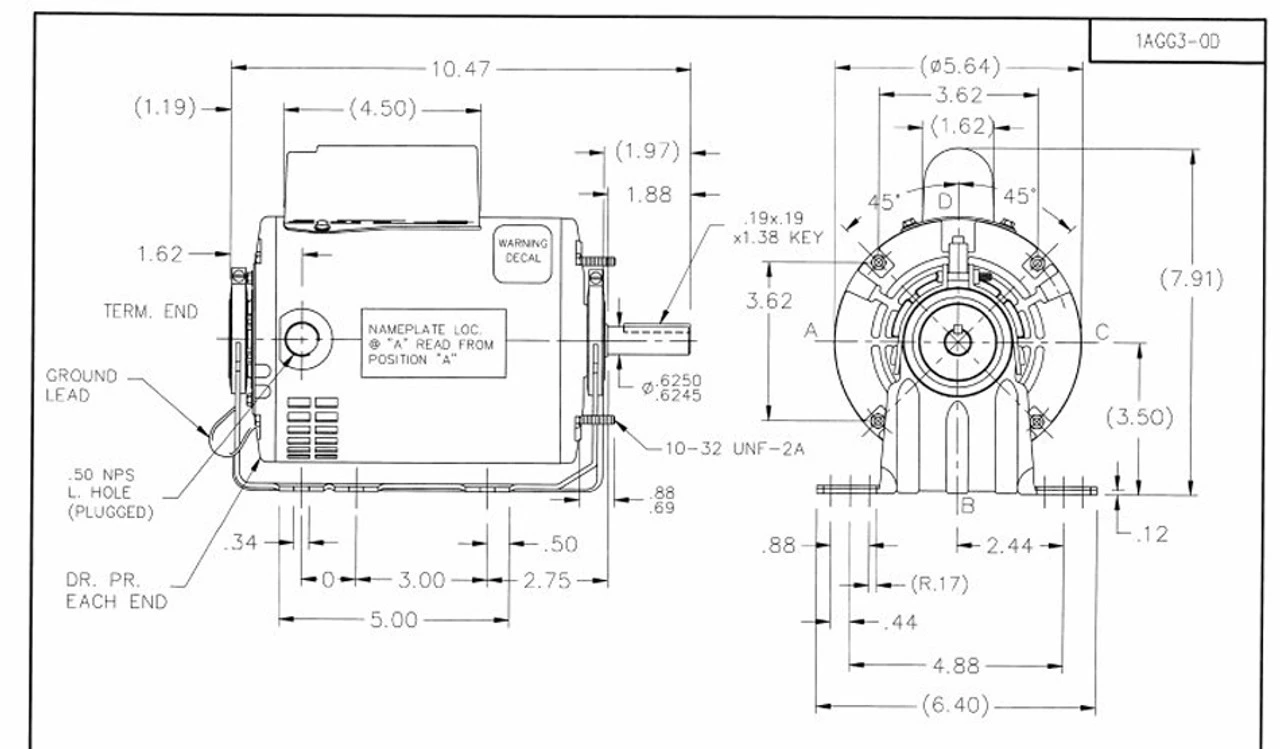

Model 1AGG3 Century 1/2 Hp Belt Drive Blower Cap Start Motor 1725 RPM 115/208-230V Dayton 1AGG3 -MotorHub Shop 1AGG3DIM 58802.1463164121

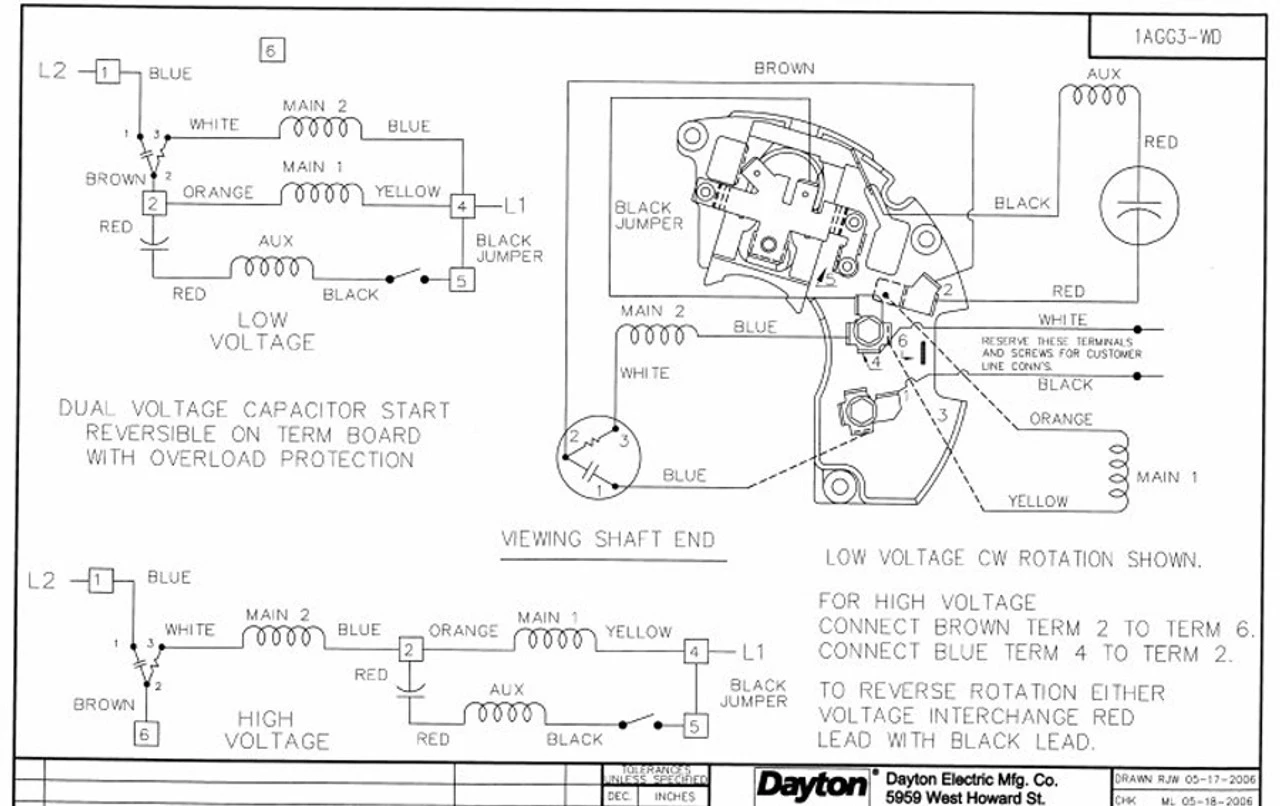

Model 1AGG3 Century 1/2 Hp Belt Drive Blower Cap Start Motor 1725 RPM 115/208-230V Dayton 1AGG3 -MotorHub Shop 1AGG3WIRE 03741.1463164125

Model 1AGG3 Century 1/2 Hp Belt Drive Blower Cap Start Motor 1725 RPM 115/208-230V Dayton 1AGG3

$289.00 Original price was: $289.00.$99.99Current price is: $99.99.

Buy Now
SKU: ZWXLY 1698668267 Categories: Dayton Ventilator Replacement Motors, HVAC Motors & Draft Inducers Tag: Dayton
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 1/2 hp 1725 RPM, 7.2/3.6 amps, 115/208-230 Volts 60 hz.
  • 1-Speed
  • Capacitor Start Motor
  • Shaft 5/8″ x 1 7/8″
  • 56 Frame
  • 5 5/8″  Diameter Motor
  • Rotation – Reversible
  • Ball Bearings
  • Automatic Overload Protection
  • Extended thru bolts shaft end
  • Service Factor 1.25
  • Continuous Duty, Open Drip Proof, Class B Insulation
  • Length Less Shaft 8 19/32″
  • CSA Certified
  • 1 Year Manufacture Warranty

Suggested replacement reference for:
Greenheck Motor 308053
Dayton Ventilator 1MBE8, 2RB63, 2RB64, 3ATT8, 3HFL7
