Home / HVAC Motors & Draft Inducers / HVAC-OEM Blower Motors
  • D40P2D Nidec | 40 Hp 1800 RPM 324T Frame 208-230/460V ODP Electric Motor Nid -MotorHub Shop Nidec D5PA2A 43237.1591361928
  • D7P1G Nidec | 7.5 Hp 3600 RPM 184T Frame 575V ODP Motor Electric Motor Nidec -MotorHub Shop Nidec D5PA2A 84840.1588251208
-47%

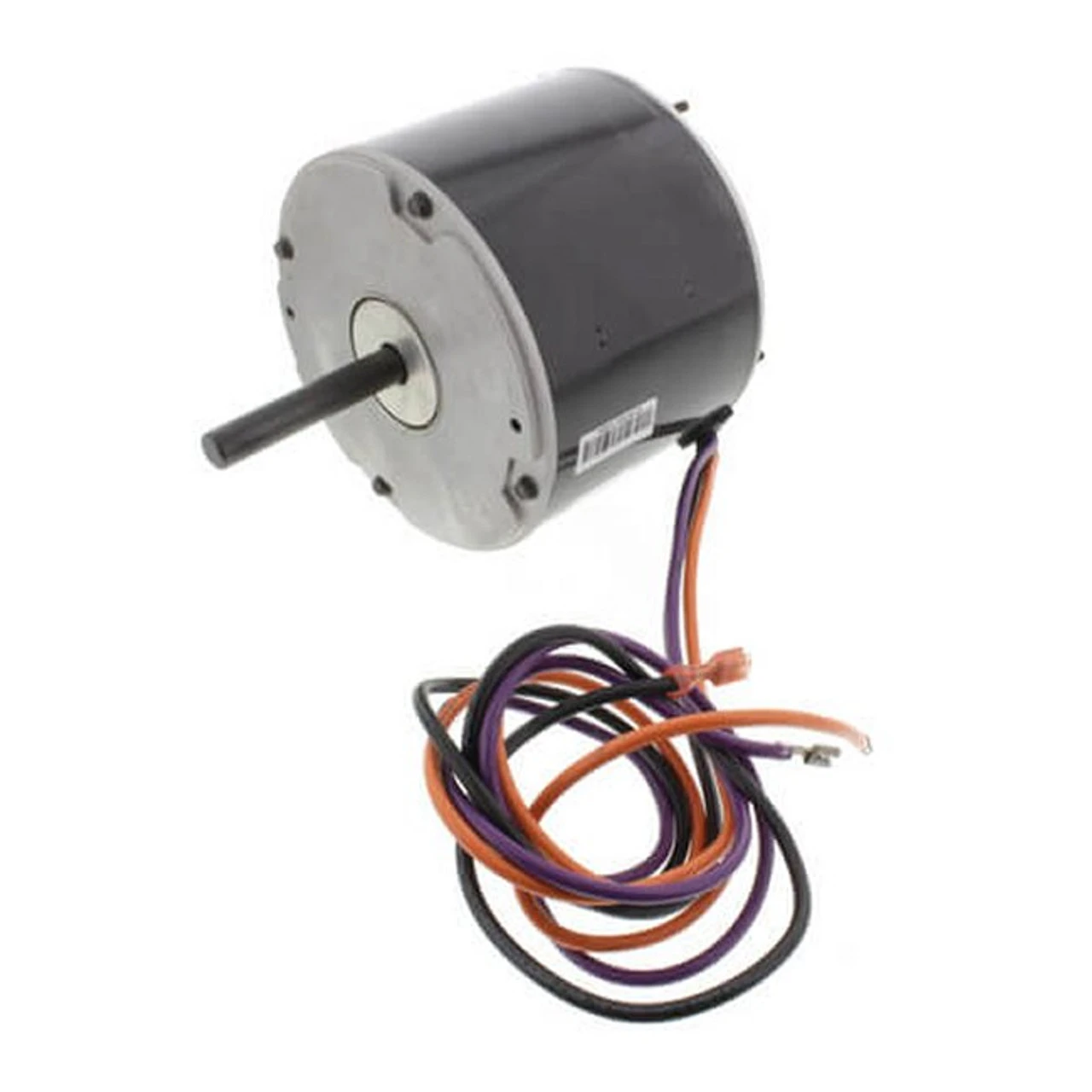

LX7932 Nidec | 1/3 Hp 1075 RPM 1-Speed 208-230V; 5.6" Condenser Fan Motor
LX7932 Nidec | 1/3 Hp 1075 RPM 1-Speed 208-230V; 5.6" Condenser Fan Motor - Image 2

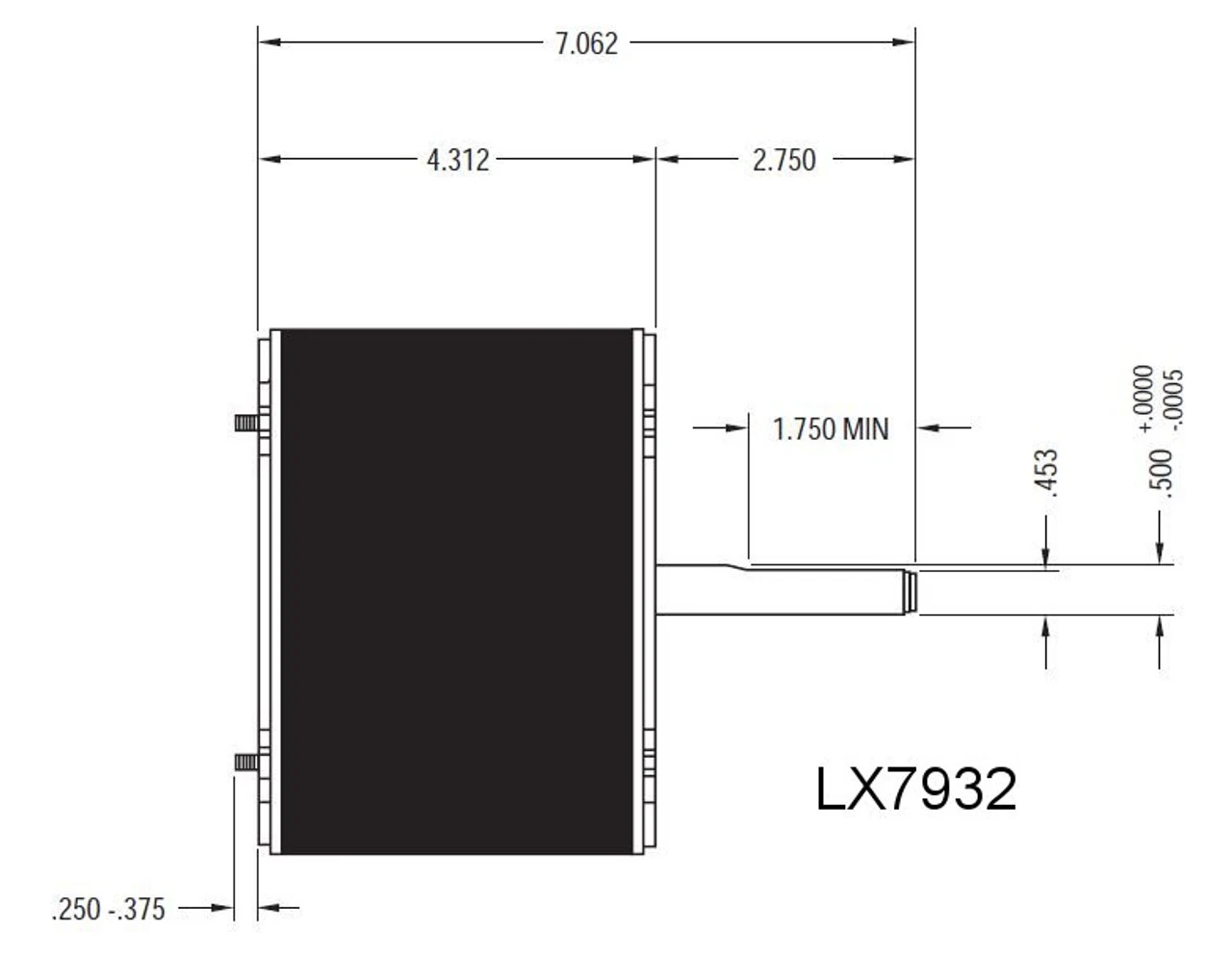

LX7932 Nidec | 1/3 Hp 1075 RPM 1-Speed 208-230V; 5.6" Condenser Fan Motor -MotorHub Shop LX7932 dim 30693.1571326744

LX7932 Nidec | 1/3 Hp 1075 RPM 1-Speed 208-230V; 5.6″ Condenser Fan Motor

$187.70 Original price was: $187.70.$99.99Current price is: $99.99.

Buy Now
SKU: ZWXLY 1698669862 Categories: HVAC Motors & Draft Inducers, HVAC-OEM Blower Motors Tag: Nidec
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 1/3 hp 1075 RPM 1-Speed 208-230V 1.7 amps
  • Shaft 2 3/4″ x 1/2″
  • Rotation CW shaft end
  • 5.6″ Diameter
  • Motor case length 4.321″
  • 35″ Leads
  • Sleeve Bearings
  • Includes 10 MFD 2-prong capacitor
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Totally Enclosed Air Over Enclosure; Class B Insulation; 40C Ambient Temperature. Application Lennox condenser fan motors. K055DVD1268011B, Suggested after market replacement for 97M6201, K55HXLTC-248, K55HXKVD1268
