KBWC-28 | KB Electronics Solid State Variable Speed AC Electric Motor Control 8.0 Max Amps 230V
Original price was: $31.99.$22.39Current price is: $22.39.
- Protect Your Information, Shop with Safe Payments
- Buy quality, buy with us.
- Efficiency meets excellence in customer care.
- Top-Notch Quality

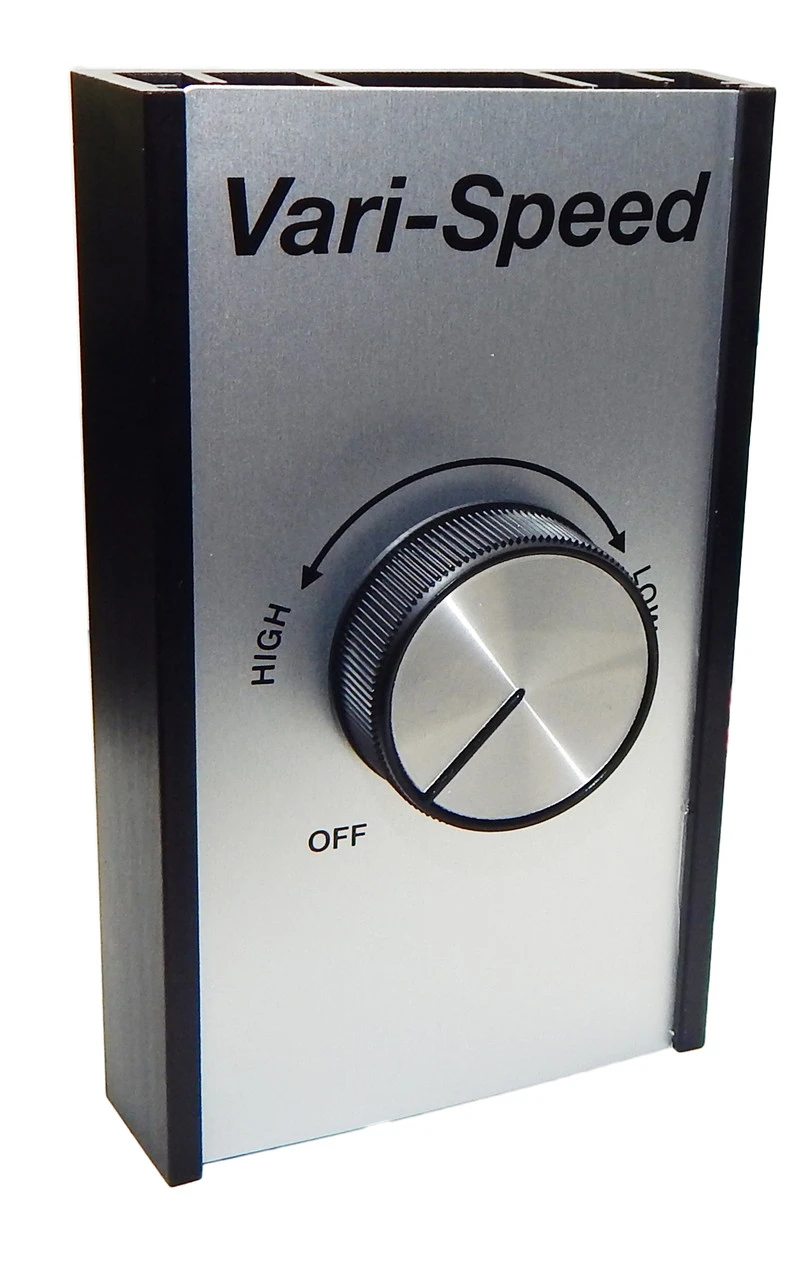

KBWC-28 KB ELECTRONICS SPEED CONTROL
Applications: Fans, Blowers, Fireplace Blowers, Attic Fans, Humidifiers, Ventilators
- Designed for Standard 2″ x 4″ Electrical Wall Box
This switch has a built in heat sink, when mounted to the wall box the heat sink will be mounted on the outside of the box and flat against the wall.

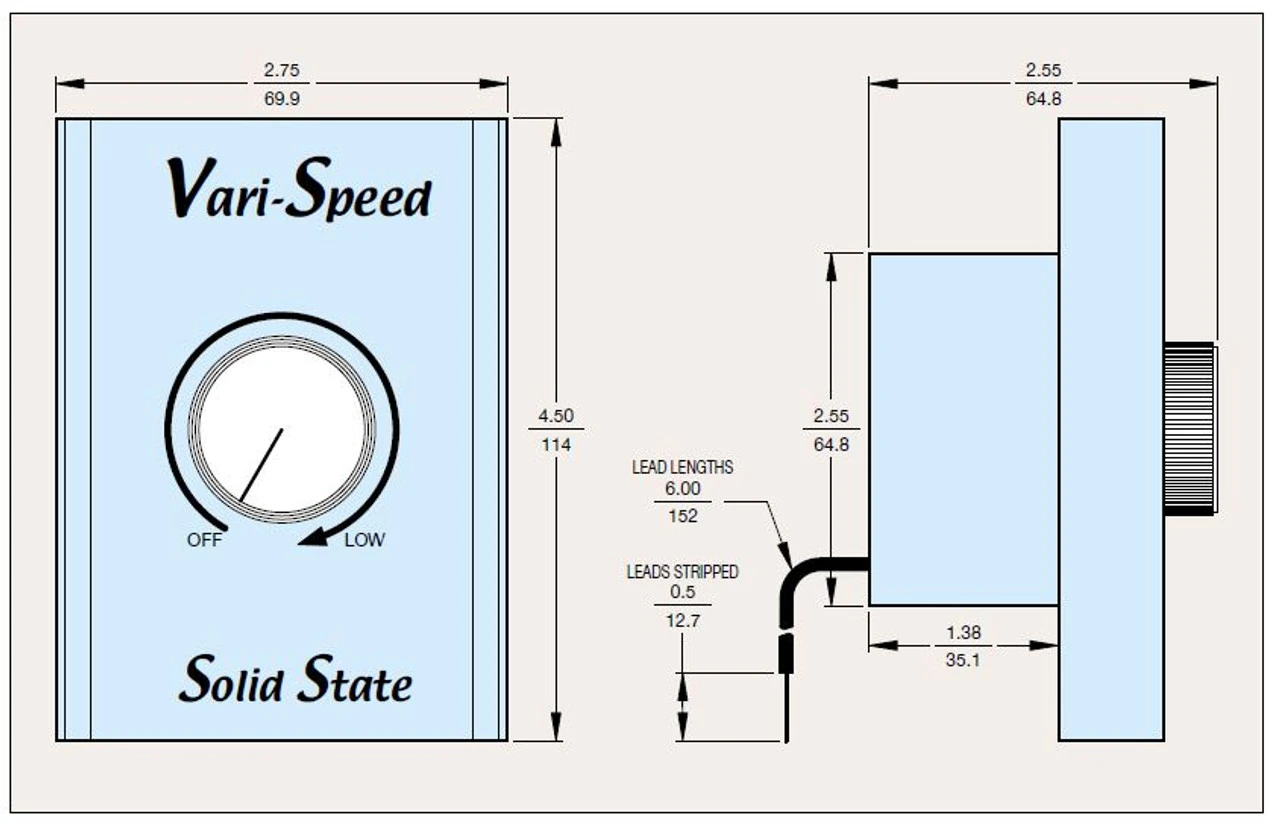

Heat sink measures 2.75 x 4.5 x .75 (inches) - 8.0 Max amps 230 Volts
- Ambient Temperature (40ºC )
- UL & CSA Approved
- Not to be used with Capacitor Start or Capacitor Run Motors
- Mounting kit that includes dial plate, knob, mounting screws, wire connectors and instructions
Model No. KBWC-28, KBWC-28K
Control provides infinite variable speed for shaded pole and PSC motors. Max amps means that the rated motor name plate amperage can not exceed this rating or you will damage the control and motor. Motor must be run with sufficient torque to prevent stalling. A motor not turning will burn up. Not to be used with gear motors. Controls that have been installed are not returnable
