Home / Electric Motors / Leeson/Marathon Electric Motors
  • I147 Marathon 2 Hp (1 Speed) 115/208-230V 1800 RPM ODP 56H Frame Cap Start/Run Resilient Base Motor -MotorHub Shop 147 front 22603.1632845179
  • H173 Marathon 1/3 Hp (2 Speed) 115V 1800/1200 RPM ODP 56 Frame Resilient Base Blower Motor -MotorHub Shop 173 front 72449.1629806908
-69%

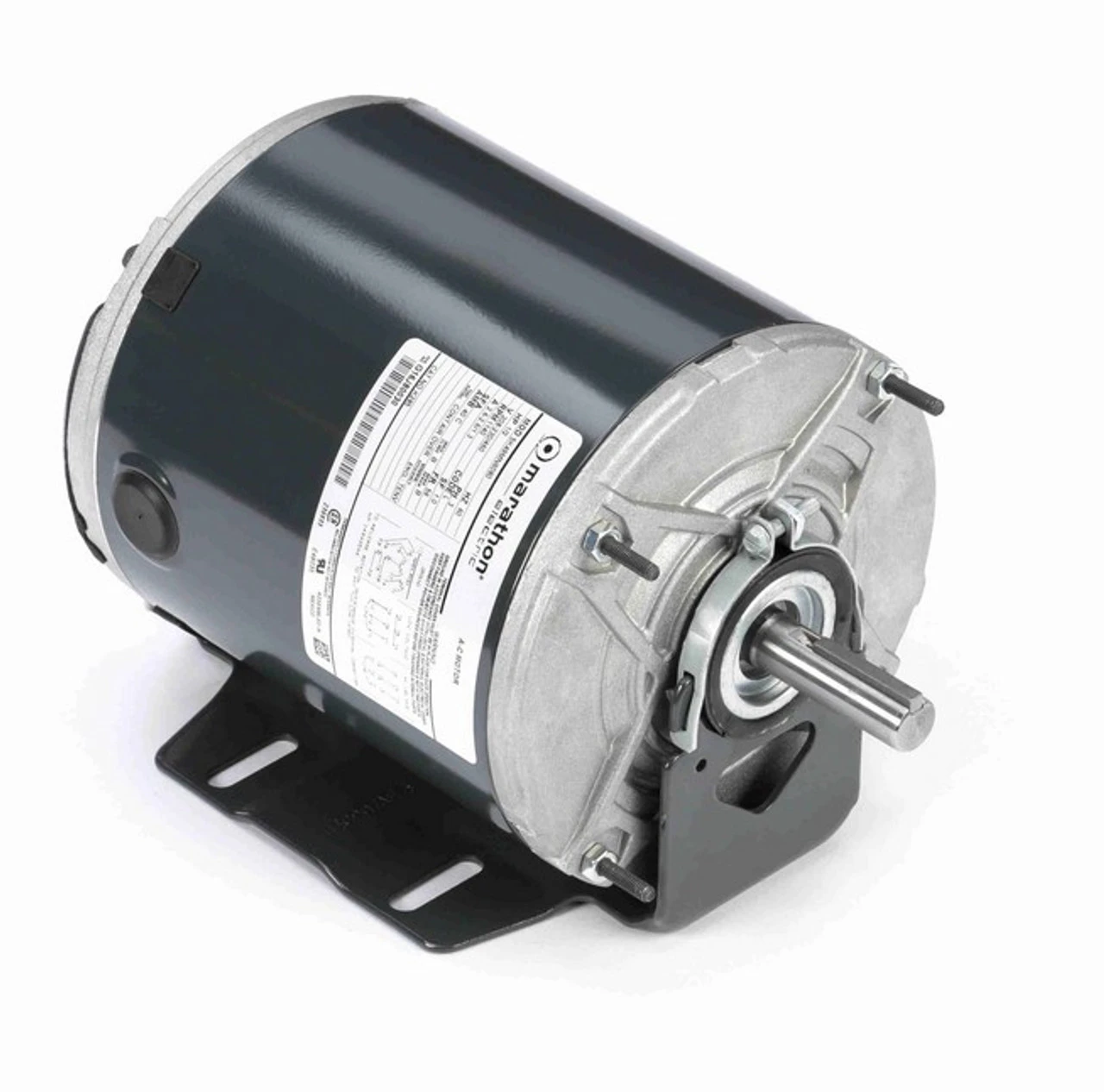

K285 Marathon 1/2 Hp (1 Speed) 208-230/460V 1200 RPM TENV 56 Frame 3 Phase Resilient Base Motor
K285 Marathon 1/2 Hp (1 Speed) 208-230/460V 1200 RPM TENV 56 Frame 3 Phase Resilient Base Motor - Image 2
K285 Marathon 1/2 Hp (1 Speed) 208-230/460V 1200 RPM TENV 56 Frame 3 Phase Resilient Base Motor - Image 3
K285 Marathon 1/2 Hp (1 Speed) 208-230/460V 1200 RPM TENV 56 Frame 3 Phase Resilient Base Motor - Image 4

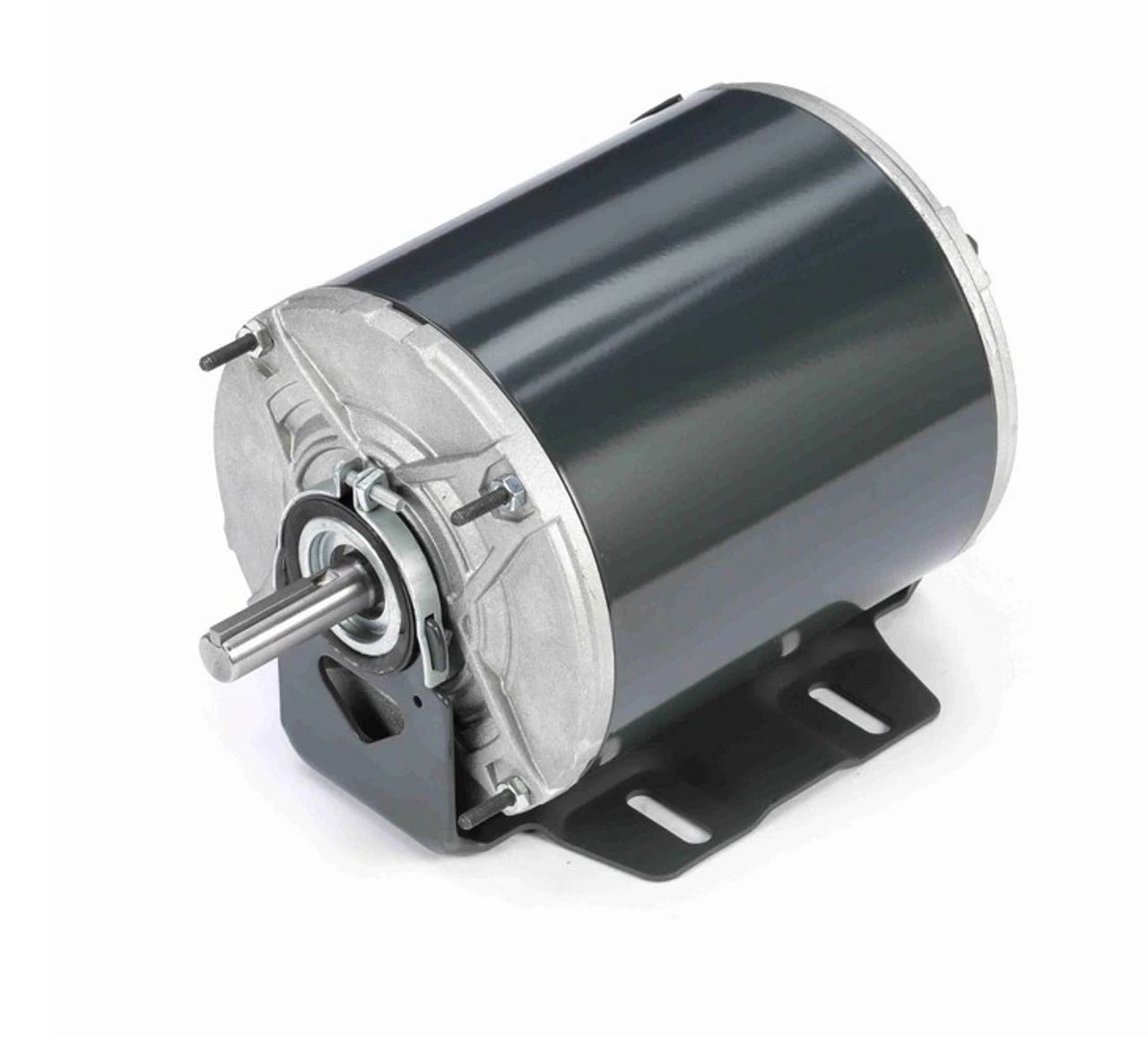

K285 Marathon 1/2 Hp (1 Speed) 208-230/460V 1200 RPM TENV 56 Frame 3 Phase Resilient Base Motor -MotorHub Shop 285 left 25878.1633457276

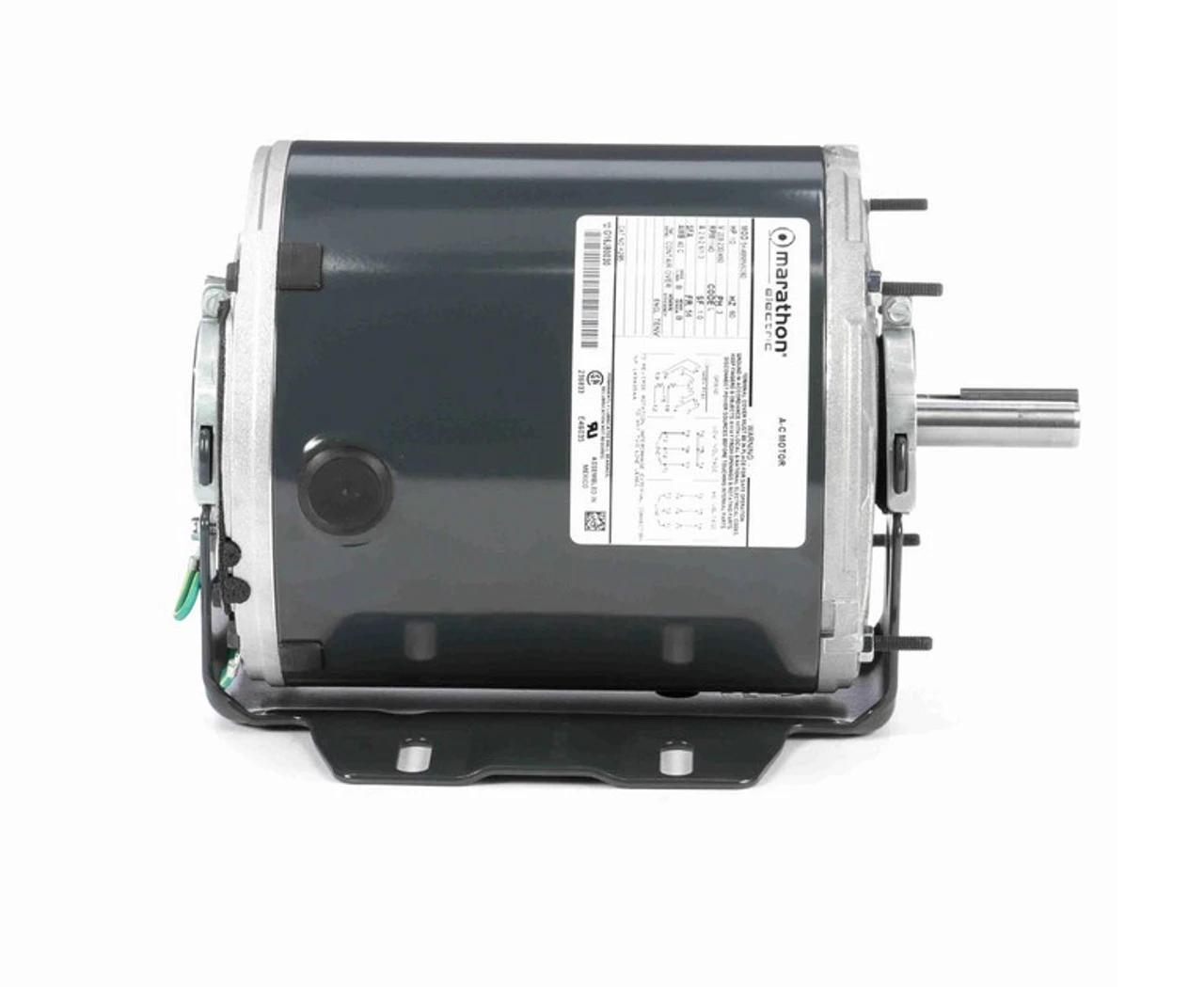

K285 Marathon 1/2 Hp (1 Speed) 208-230/460V 1200 RPM TENV 56 Frame 3 Phase Resilient Base Motor -MotorHub Shop 285 side 41661.1633457282

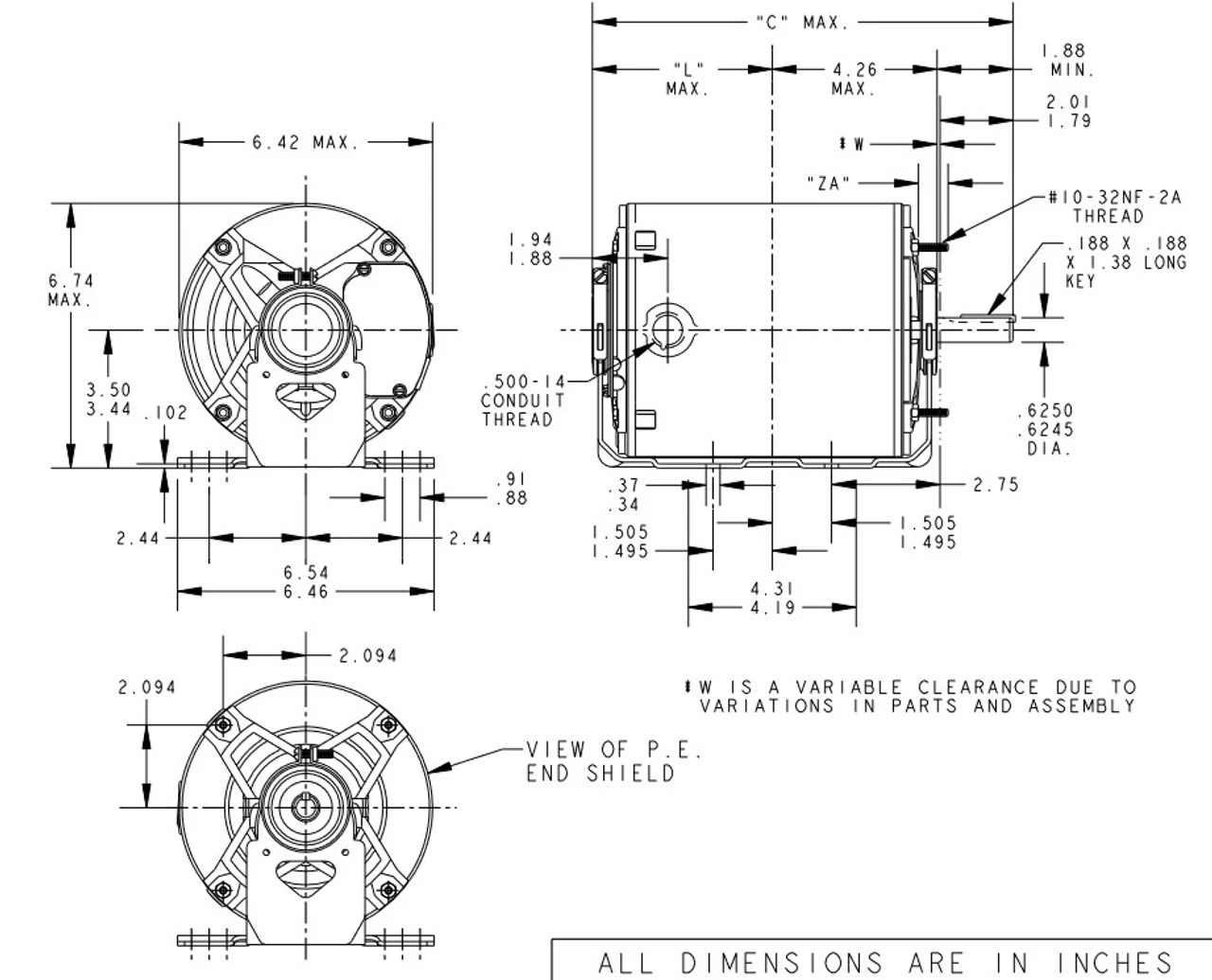

K285 Marathon 1/2 Hp (1 Speed) 208-230/460V 1200 RPM TENV 56 Frame 3 Phase Resilient Base Motor -MotorHub Shop 285 line 05912.1633457287

K285 Marathon 1/2 Hp (1 Speed) 208-230/460V 1200 RPM TENV 56 Frame 3 Phase Resilient Base Motor

$308.00 Original price was: $308.00.$95.99Current price is: $95.99.

Buy Now
SKU: ZWXLY 1698655861 Categories: Electric Motors, Leeson/Marathon Electric Motors Tag: Marathon
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 1/2 hp 1200 RPM, 2.6-2.6/1.3 amps, 208-230/460 Volts 60 Hz, 3 Phase
  • NEMA 56 Frame Keyed Shaft 1 7/8″ x 5/8″ Diameter, 1 speed
  • Service Factor = 1.0, Thermal Protection = None
  • Resilient Base, Reversible, Ball Bearings, Class B insulation
  • 1 Year Manufacture Warranty

Blower motors are used to blow air inside of buildings. Shaft may be vertical or horizontal. TENV = Totally Enclosed Non-Ventilated.

Marathon Model: 5K49MN6080
Replaces Century H1029
