EV115 US Motors 1/15 Hp 1725 RPM 48 Frame 115V Thru-Bolt Spa Motor

Original price was: $125.90.Current price is: $88.13.

Protect Your Information, Shop with Safe Payments

Buy quality, buy with us.

Efficiency meets excellence in customer care.

Top-Notch Quality

1/15 HP 1725 RPM, 1.3 amps, 115V 60hz. 7.5 MFD Permanent Split Capacitor (PSC)
NEMA 48Y Open Frame, 1/2″ diameter stainless steel shaft with 3/8″ dia. end thread
1.0 Service Factor, Auto Overload Thermal Protection, Class B insulation
Non-Reversible – CCW Rotation facing the shaft
Base Mount, Ball Bearings, 3 1/2 shaft height

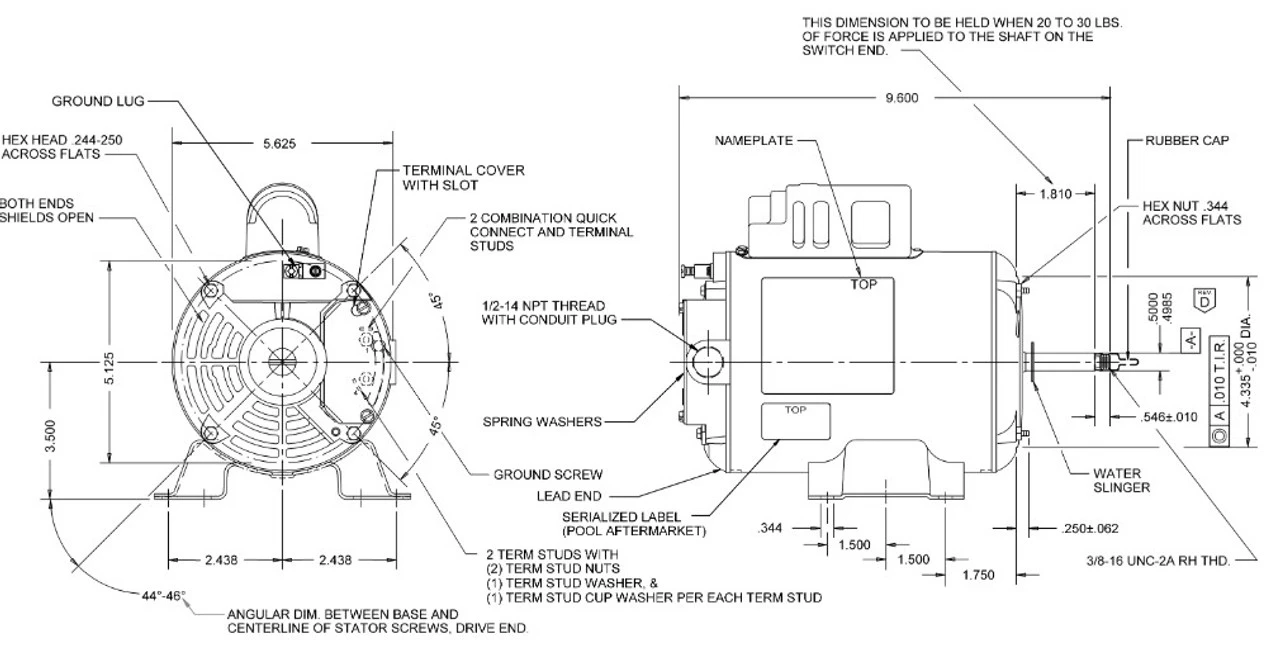

Above ground swimming pool and spa motors. 48Y frame motors thru bolt dimension is 5 1/8″ on center measured across the shaft. Wiring connection diagram on motor name plate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps. 1 Year Manufacture Warranty. K055NSW1167013J
