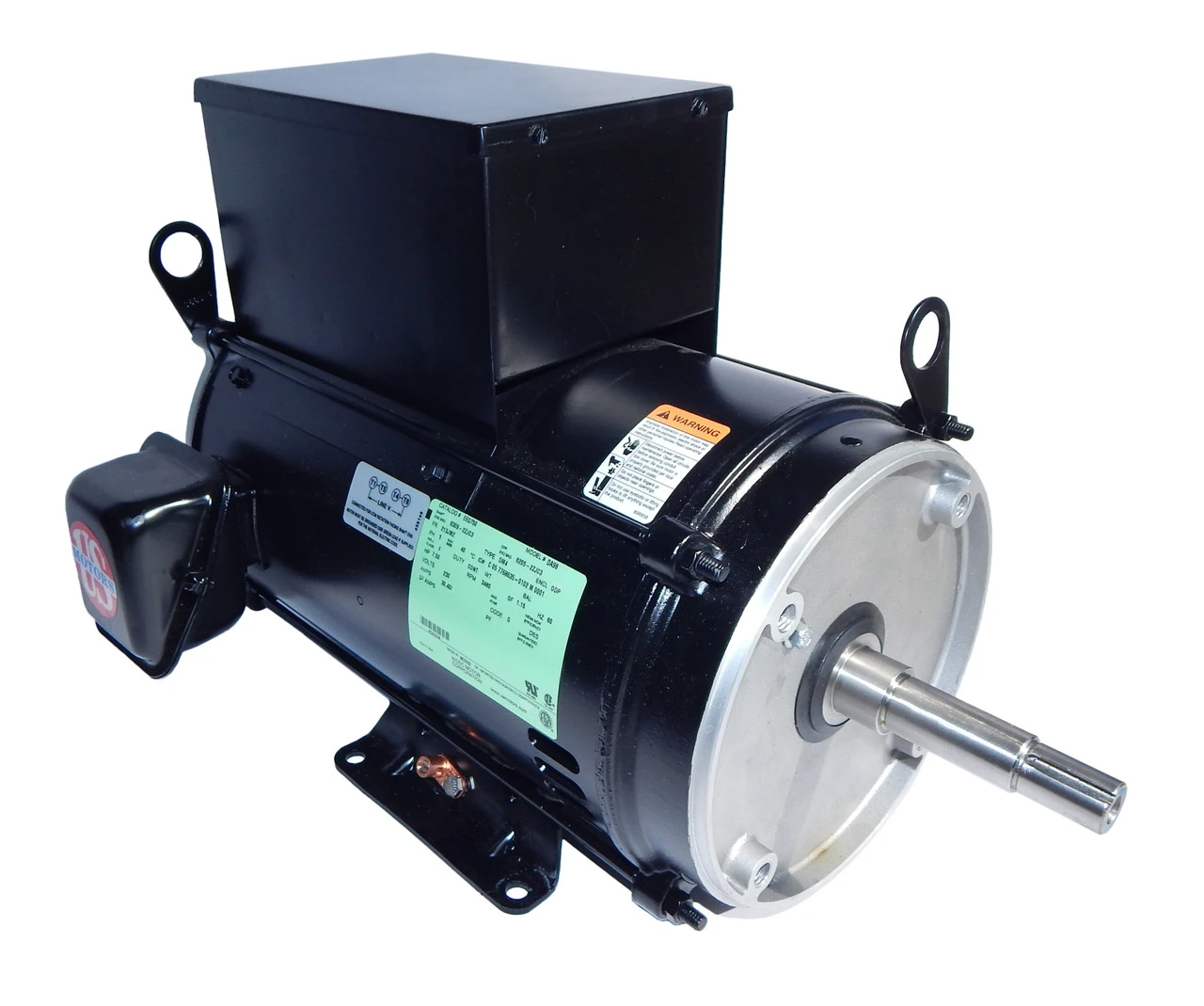

PENTAIR EQ SERIES PUMP – DIRECT REPLACEMENT MOTOR
- 7 1/2 HP 3450 RPM, 30.4 amps
- 230V 60hz. Single Phase. Capacitor Start
- NEMA 213JMZ ODP Frame, Special dimension stainless steel shaft
- ODP = Open Drip Proof
- 1.15 Service Factor, Auto Overload Thermal Protection, Class F insulation
- Non-Reversible – CCW Rotation facing the shaft
- Rigid JMZ Base, Ball Bearings, Black paint
- 1 Year Manufacture Warranty
US Motor Model No. DA98
Nidec Catalog No. EEQ750
Commercial Replacement Pool Pump Motor
Replaces Pentair Motor No. 357066
Fits Pentair Pump Model No. EQ750
