Home / Electric Motors / Dayton Gear Motors
  • Dayton Model 52JE11 Gear Motor 3/8" Shaft 4 RPM CW 115V (pellet Stove) -MotorHub Shop 5CFL0 91781.1430252283
  • Dayton Model 1LPN4 Gear Motor 7 RPM 1/10 Hp 115V With Brake -MotorHub Shop 1LPL7 40469.1435076933
-30%

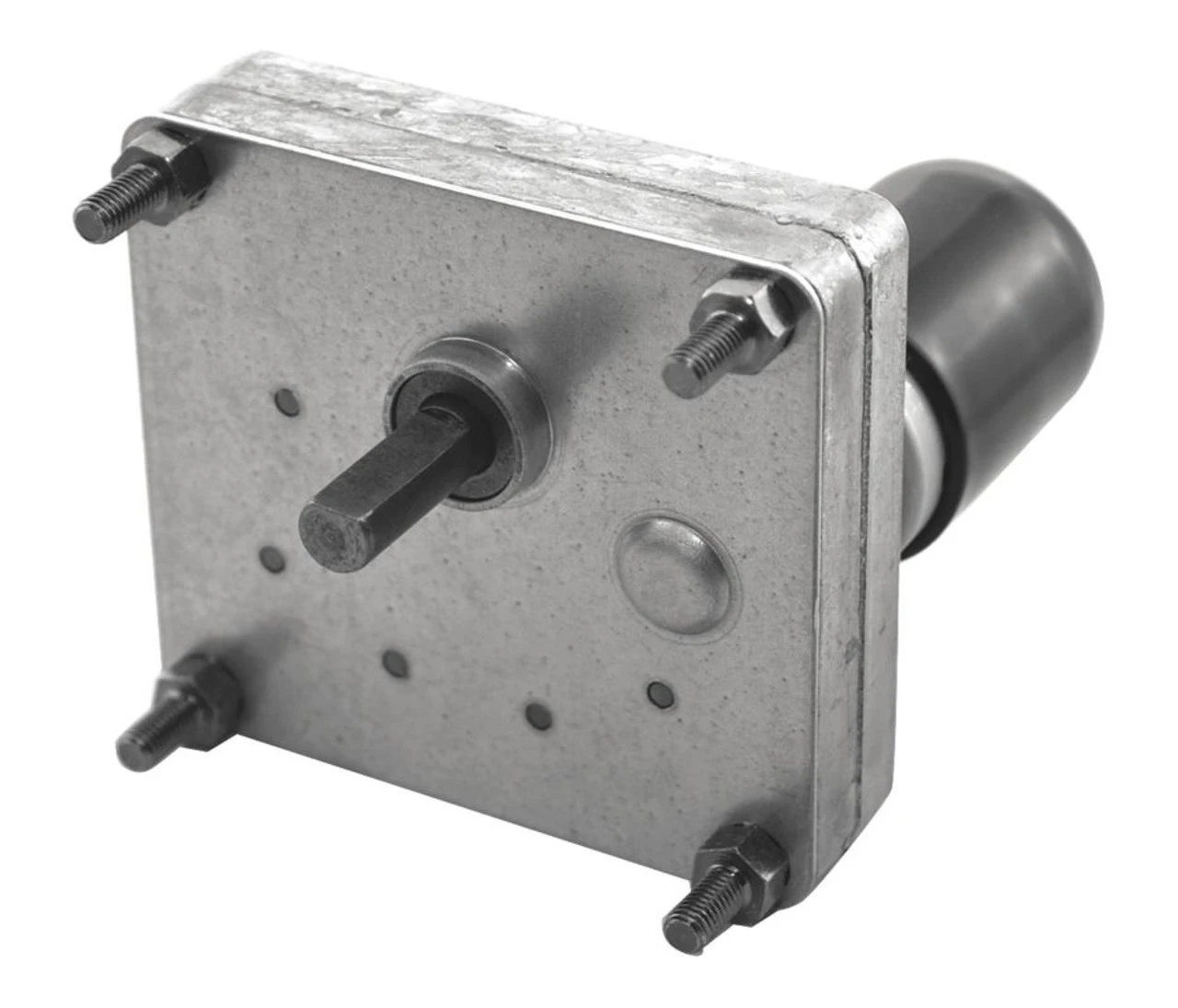

Dayton Model 52JE46 DC Gear Motor .50 RPM 1/2800 Hp 12VDC
Dayton Model 52JE46 DC Gear Motor .50 RPM 1/2800 Hp 12VDC - Image 2

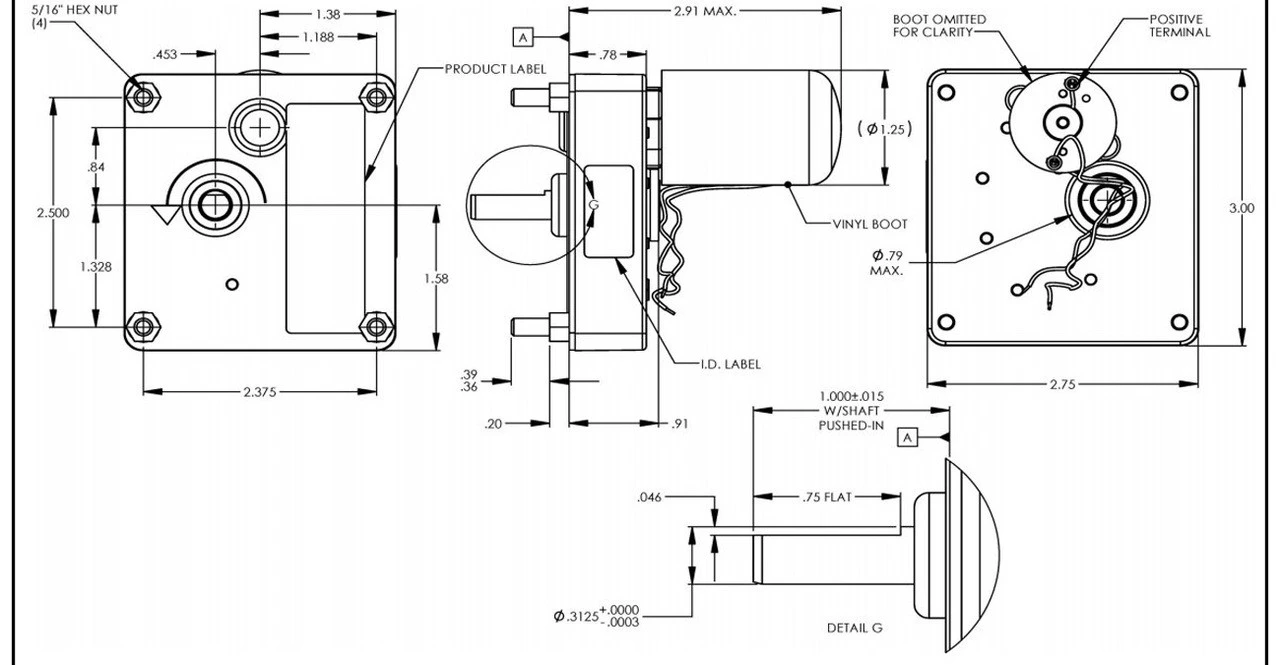

Dayton Model 52JE46 DC Gear Motor .50 RPM 1/2800 Hp 12VDC -MotorHub Shop 52JE46 dim 87323.1486304522

Dayton Model 52JE46 DC Gear Motor .50 RPM 1/2800 Hp 12VDC

$102.90 Original price was: $102.90.$72.03Current price is: $72.03.

Buy Now
SKU: ZWXLY 1698662812 Categories: Dayton Gear Motors, Electric Motors Tag: Dayton
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 1/2800 hp, .50 RPM, 0.10 amps, 12 Volts DC
  • 50 Torque inch pounds
  • Shaft 5/16″ x 1, with flat
  • Rotation = Reversible
  • Over Hung Pounds = 30
  • Sleeve Bearings
  • Thermal Protection = None
  • Mounting: All Position
  • Continuous Duty
  • One Year Manufacture Warranty

Mfgr Model CHM-1201-1; Replaces Dayton 2L003
