  • Dayton Model 52JE54 DC Gear Motor 50 RPM 1/125 Hp 12VDC -MotorHub Shop 52JE46 52147.1486309019
  • 6K352 Dayton AC Parallel Shaft Split Phase Gear Motor 27 RPM 1/4 Hp 115V -MotorHub Shop 6Z399 29387.1435077205
-30%

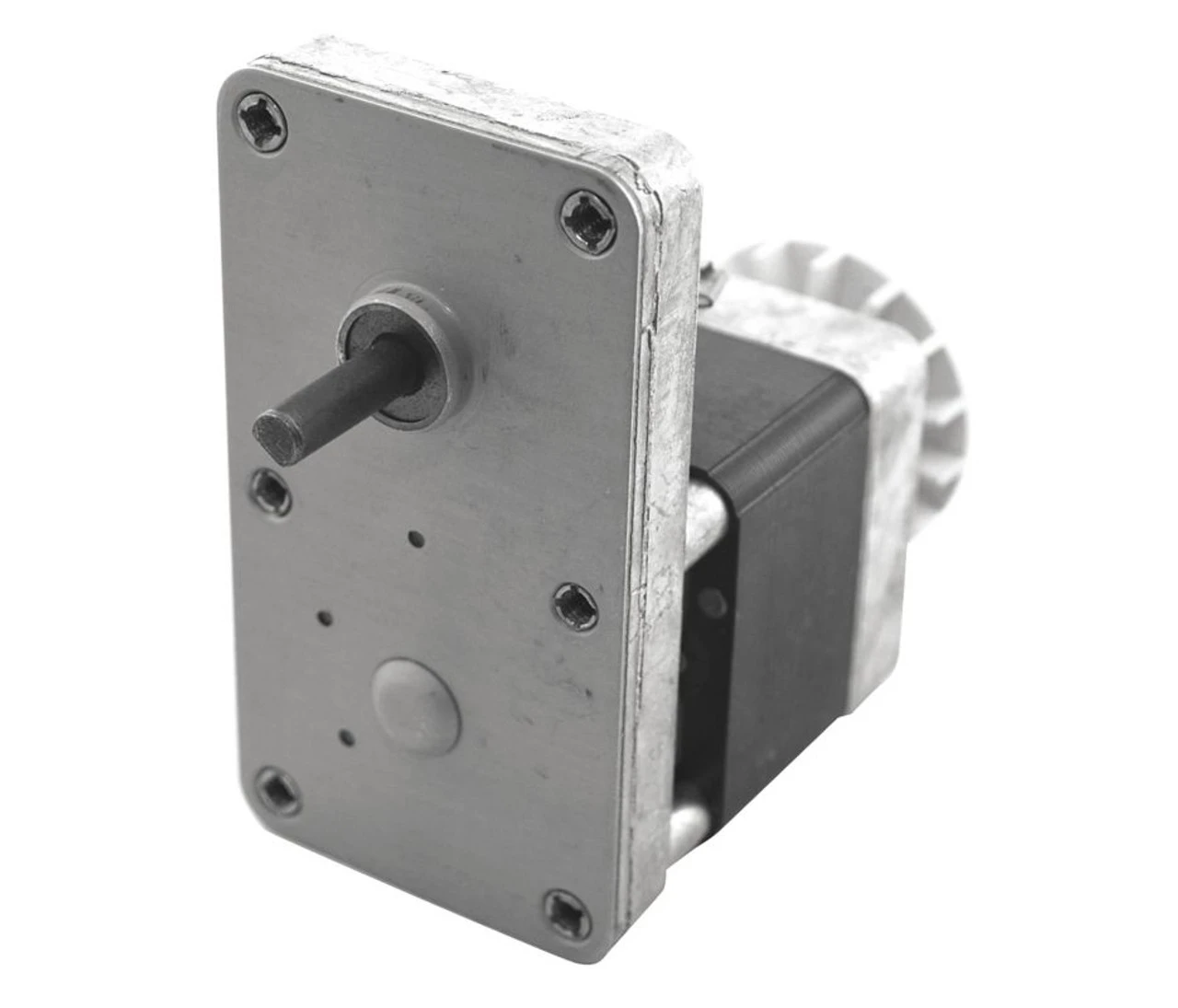

Dayton Model 52JE39 Gear Motor 4 RPM 1/150 Hp 115V With Brake
Dayton Model 52JE39 Gear Motor 4 RPM 1/150 Hp 115V With Brake - Image 2
Dayton Model 52JE39 Gear Motor 4 RPM 1/150 Hp 115V With Brake - Image 3

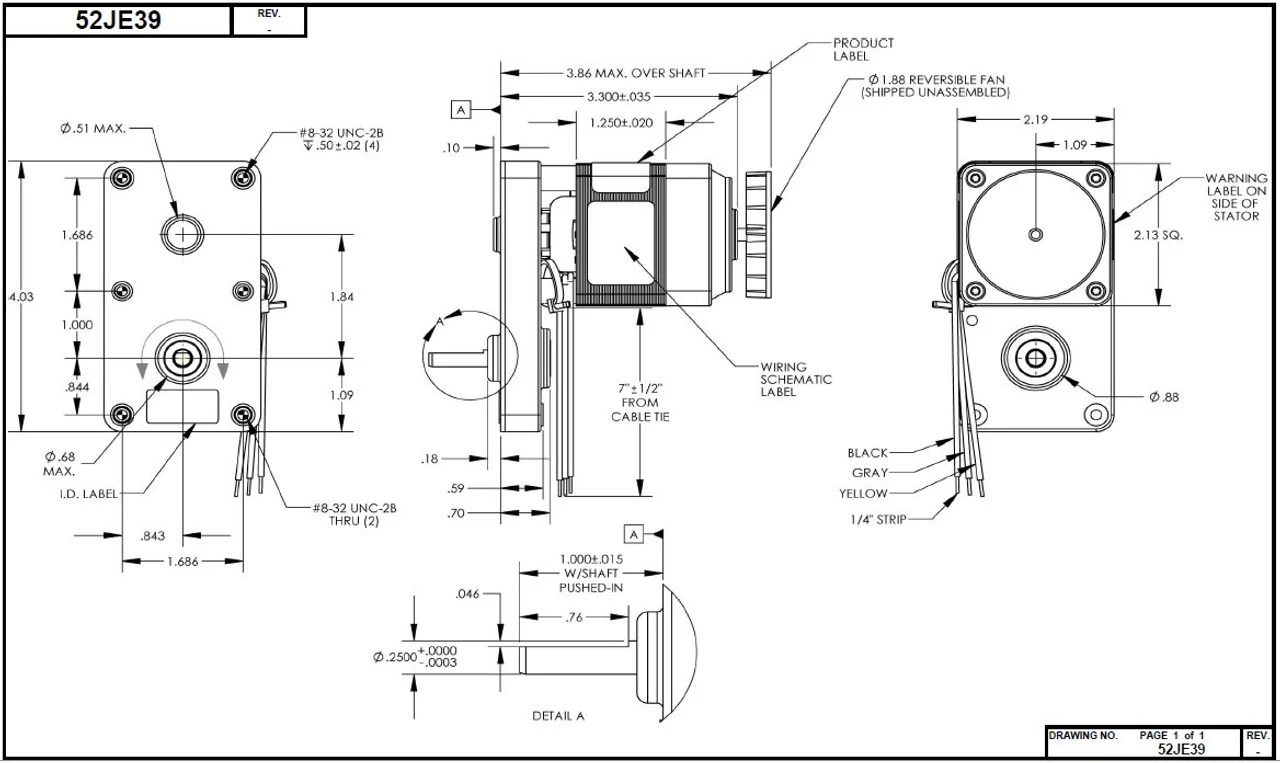

Dayton Model 52JE39 Gear Motor 4 RPM 1/150 Hp 115V With Brake -MotorHub Shop 52JE39 dim 75412.1485541179
Dayton Model 52JE39 Gear Motor 4 RPM 1/150 Hp 115V With Brake -MotorHub Shop gr mtr connection 56486.1435076906

Dayton Model 52JE39 Gear Motor 4 RPM 1/150 Hp 115V With Brake

$127.30 Original price was: $127.30.$89.11Current price is: $89.11.

SKU: ZWXLY 1698663420 Categories: Dayton Gear Motors, Electric Motors Tag: Dayton
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 1/150 hp, 4 RPM, 0.35 amps, 115 volts 60hz.
  • Run torque 26 inch pounds
  • Rotation = Reversible
  • Shaft: 1/4″ x 1″
  • Over Hung Pounds = 30
  • Cone Brake
  • Permanent Split Capacitor Motor
  • Sleeve Bearings
  • One Year Manufacture Warranty

QGM-5004-3 Requires 4MFD 370 volt capacitor (included). Mounting = Output Shaft Horizontal Only. Thermal Protection = Auto
Replaces Dayton 4Z452
