Home / Electric Motors / Dayton Gear Motors
  • Dayton 2H610 Gear Motor 30 RPM 1/2 Hp 115/230V -MotorHub Shop 2H610 LG 40836.1435077151
  • Dayton Model 52JE37 Gear Motor 10 RPM 1/100 Hp 115V 60hz. -MotorHub Shop 52JE32 00448.1486218988
-67%

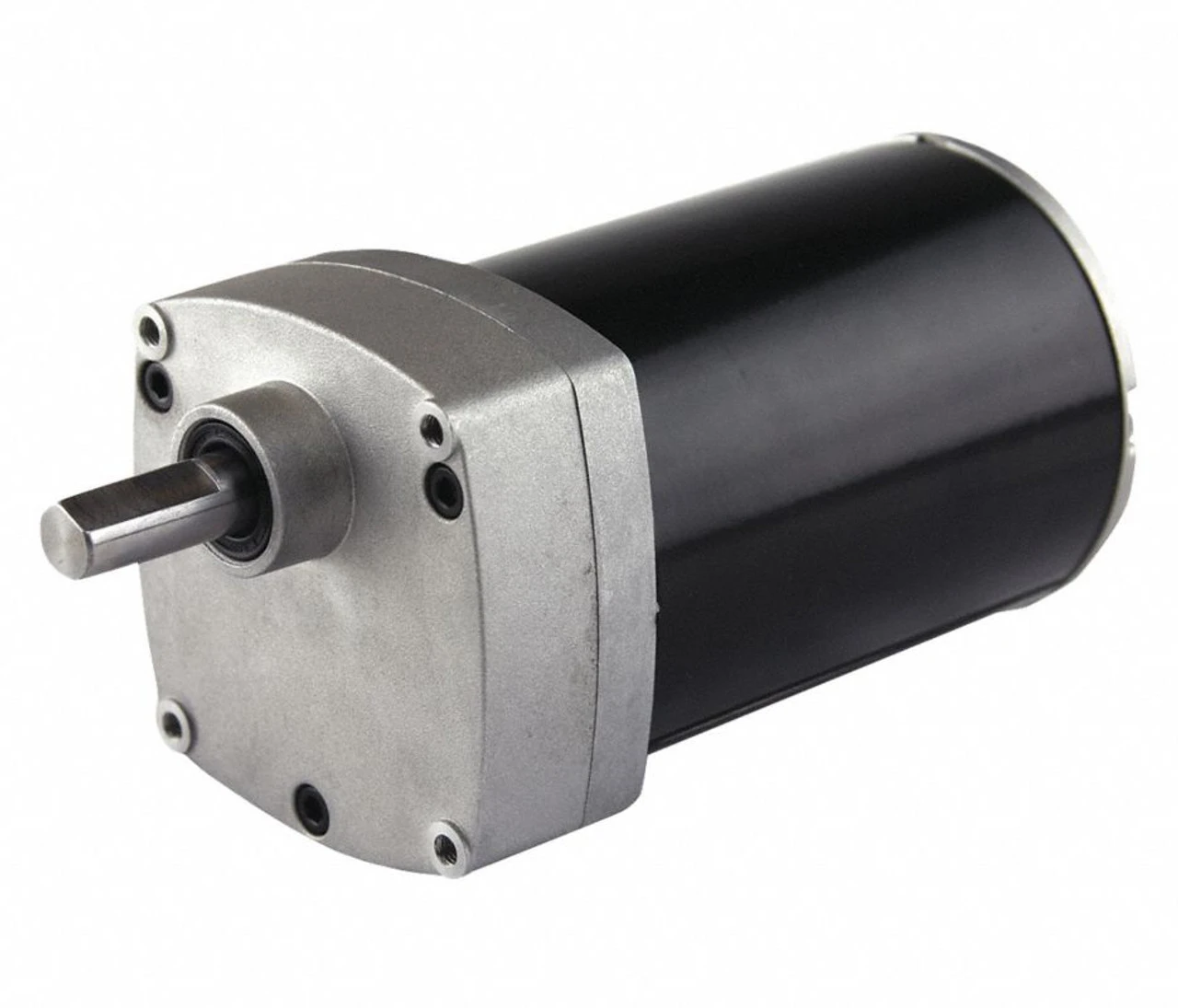

Dayton Model 453R98 Gear Motor 164 RPM 1/25 Hp 115V 60/50HZ
Dayton Model 453R98 Gear Motor 164 RPM 1/25 Hp 115V 60/50HZ - Image 2
Dayton Model 453R98 Gear Motor 164 RPM 1/25 Hp 115V 60/50HZ - Image 3
Dayton Model 453R98 Gear Motor 164 RPM 1/25 Hp 115V 60/50HZ -MotorHub Shop 4Z062 connection 70425.1572533587

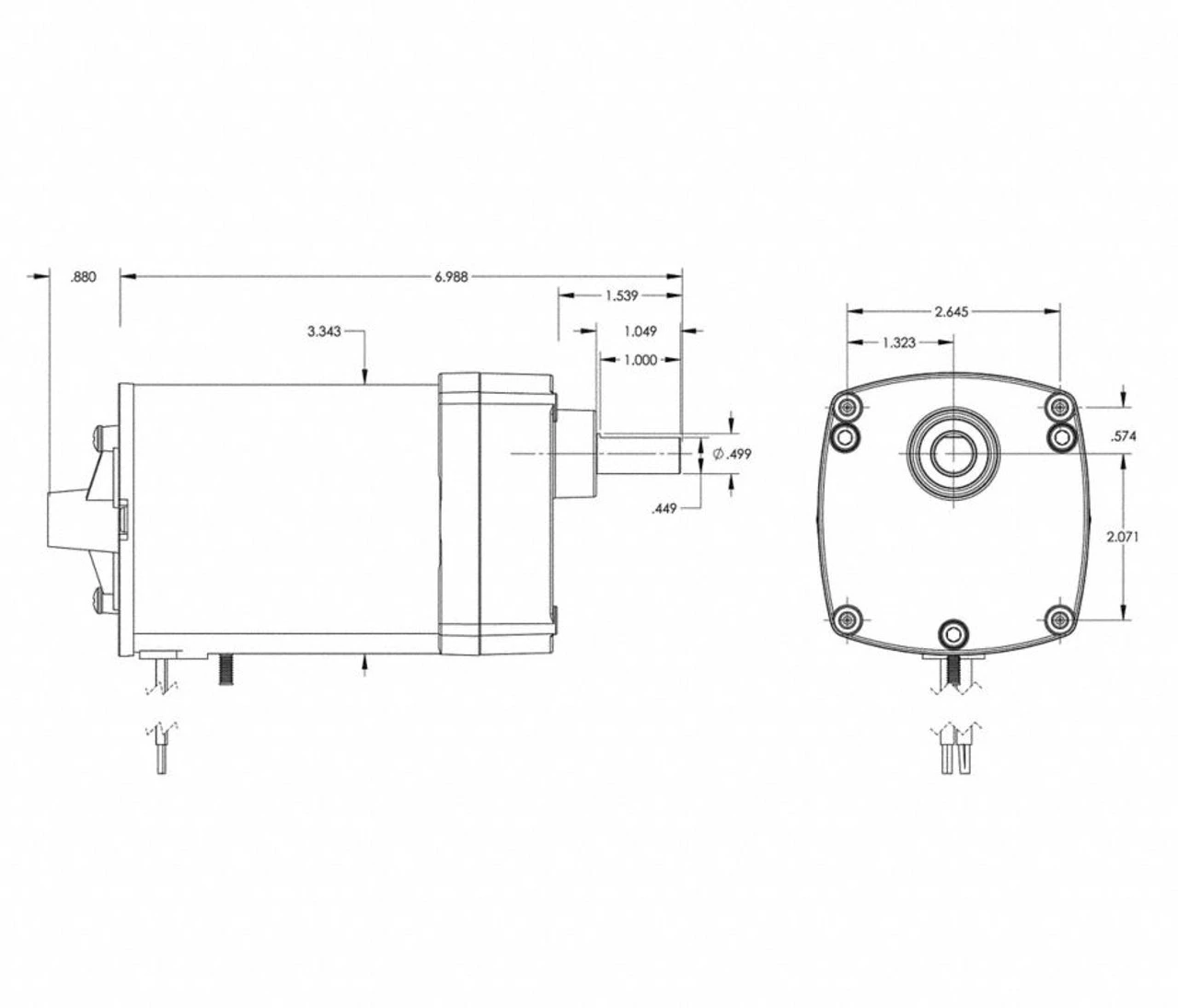

Dayton Model 453R98 Gear Motor 164 RPM 1/25 Hp 115V 60/50HZ -MotorHub Shop 453R SERIES DIMS 36339.1572533690

Dayton Model 453R98 Gear Motor 164 RPM 1/25 Hp 115V 60/50HZ

$299.00 Original price was: $299.00.$99.99Current price is: $99.99.

Buy Now
SKU: ZWXLY 1698663158 Categories: Dayton Gear Motors, Electric Motors Tag: Dayton
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 1/25 hp, 164 RPM, 0.52 amps, 115 volts, 60/50HZ
  • Run Torque 12 inch pounds
  • Rotation = Reversible
  • Shaft: 1/2″ x 1″
  • Over Hung Pounds = 50
    This is how much weight can hang directly down off the shaft before it will be damaged internally
  • Thermal Protection = None
  • TENV Enclosure
  • Includes 5 MFD 370 volt capacitor
  • One Year Manufacture Warranty

Cross Reference Models:
EM5RH-154-1
Dayton Model 4Z613

Optional Mounting Bracket 2A754
Optional Magnetic Disc Brake 5X400
