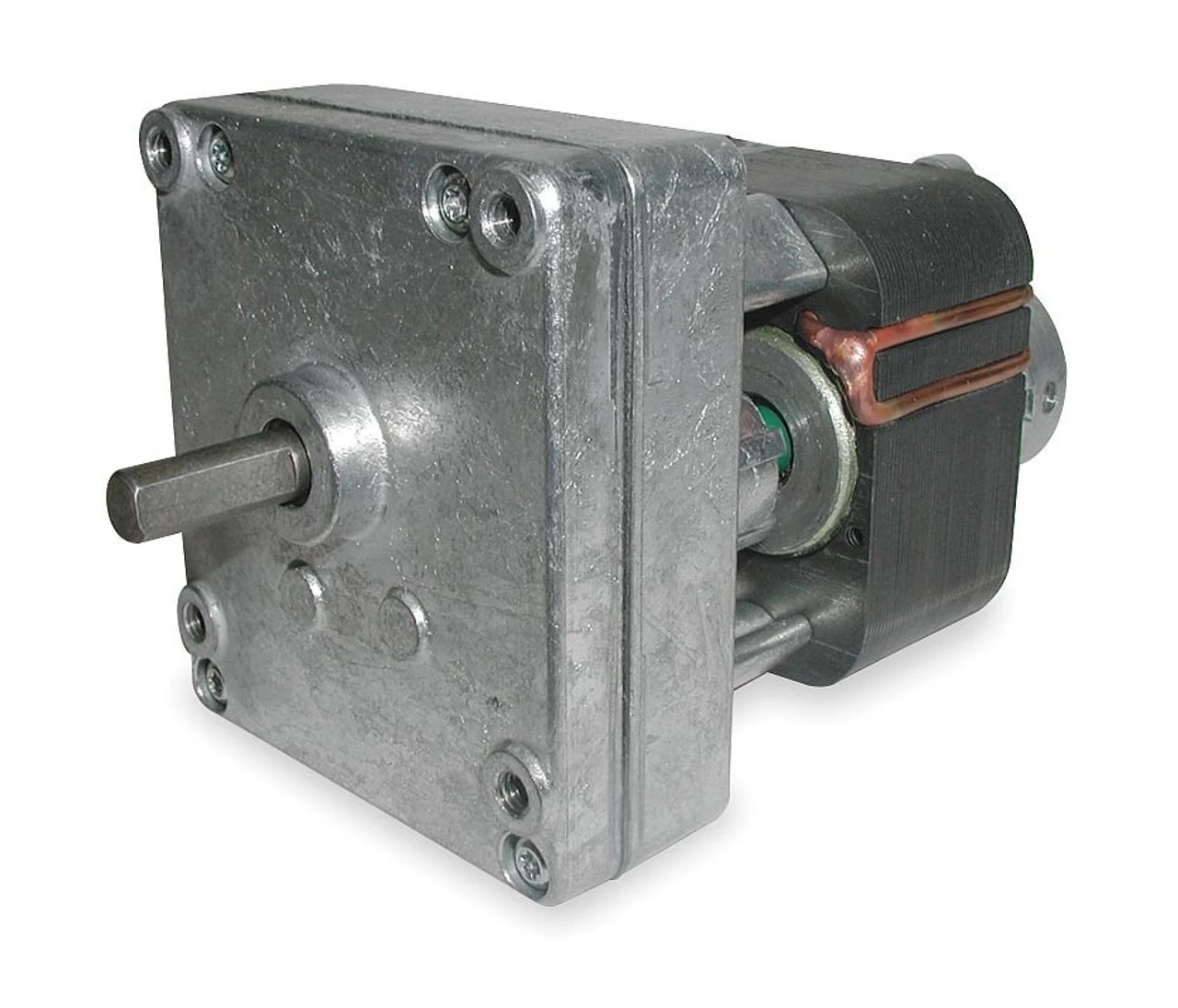

Dayton Model 1MBF5 Gear Motor 6.6 RPM 1/229 Hp 115V (Old Model 2Z806)
Dayton Model 1MBF5 Gear Motor 6.6 RPM 1/229 Hp 115V (Old Model 2Z806) - Image 2

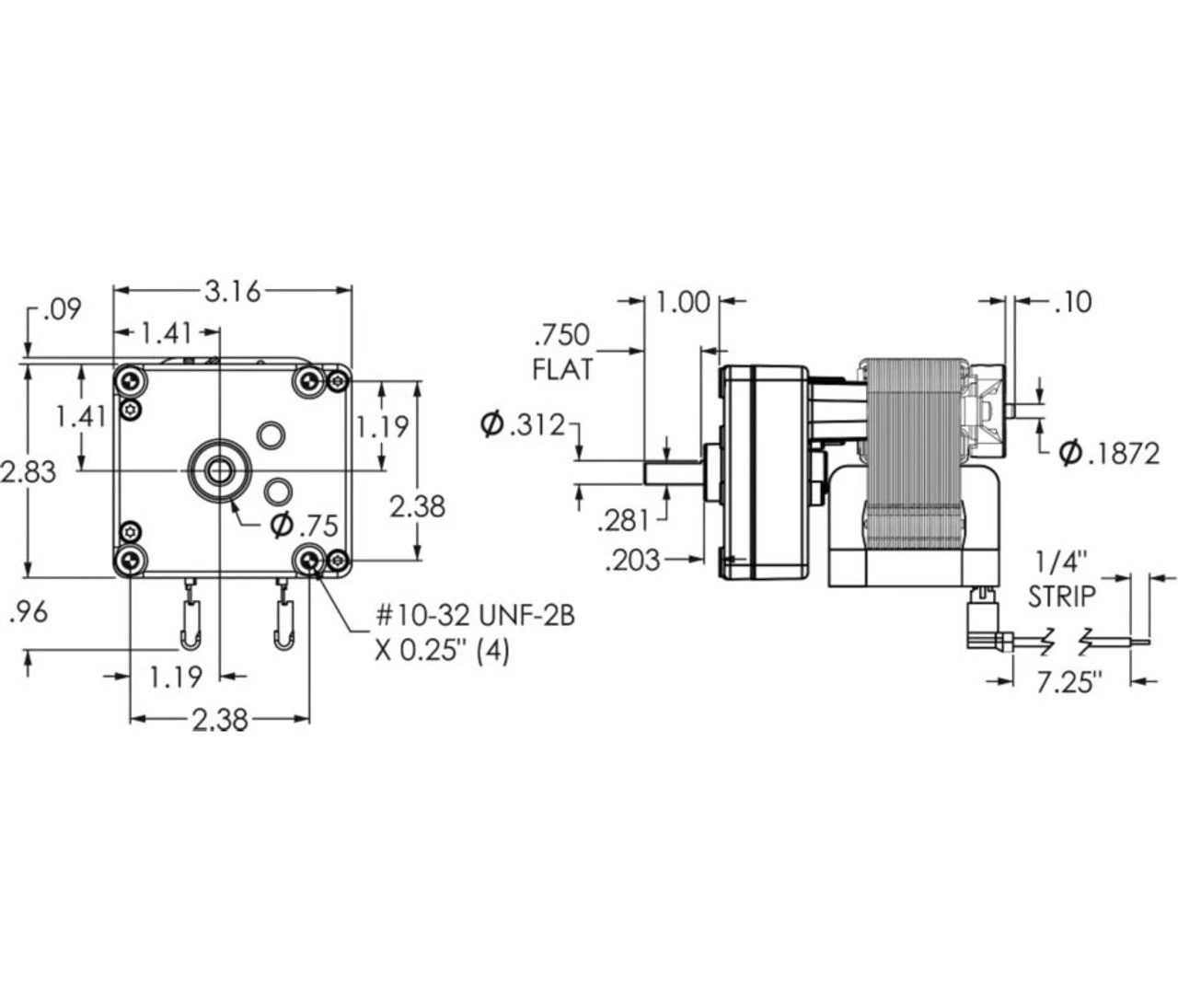

Dayton Model 1MBF5 Gear Motor 6.6 RPM 1/229 Hp 115V (Old Model 2Z806) -MotorHub Shop 2Z804 diagram 47554.1435076813

Dayton Model 1MBF5 Gear Motor 6.6 RPM 1/229 Hp 115V (Old Model 2Z806)

$135.00 Original price was: $135.00.$94.50Current price is: $94.50.

Buy Now
SKU: ZWXLY 1698662838 Categories: Dayton Gear Motors, Electric Motors Tag: Dayton
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 1/229 hp, 6.6 RPM, 0.38 amps, 115 volts 60hz.
  • Run Torque 25
  • Rotation – CW Facing Shaft
  • Shaft 5/16″ x 3/4″
  • Over Hung Pounds = 41
  • One Year Manufacture Warranty.

Reference: V00212AF11

Note: This is the motor used to make flying ghosts and other holiday items.
Original 2Z806 model has been discontinued, replacement model is 1MBF5
