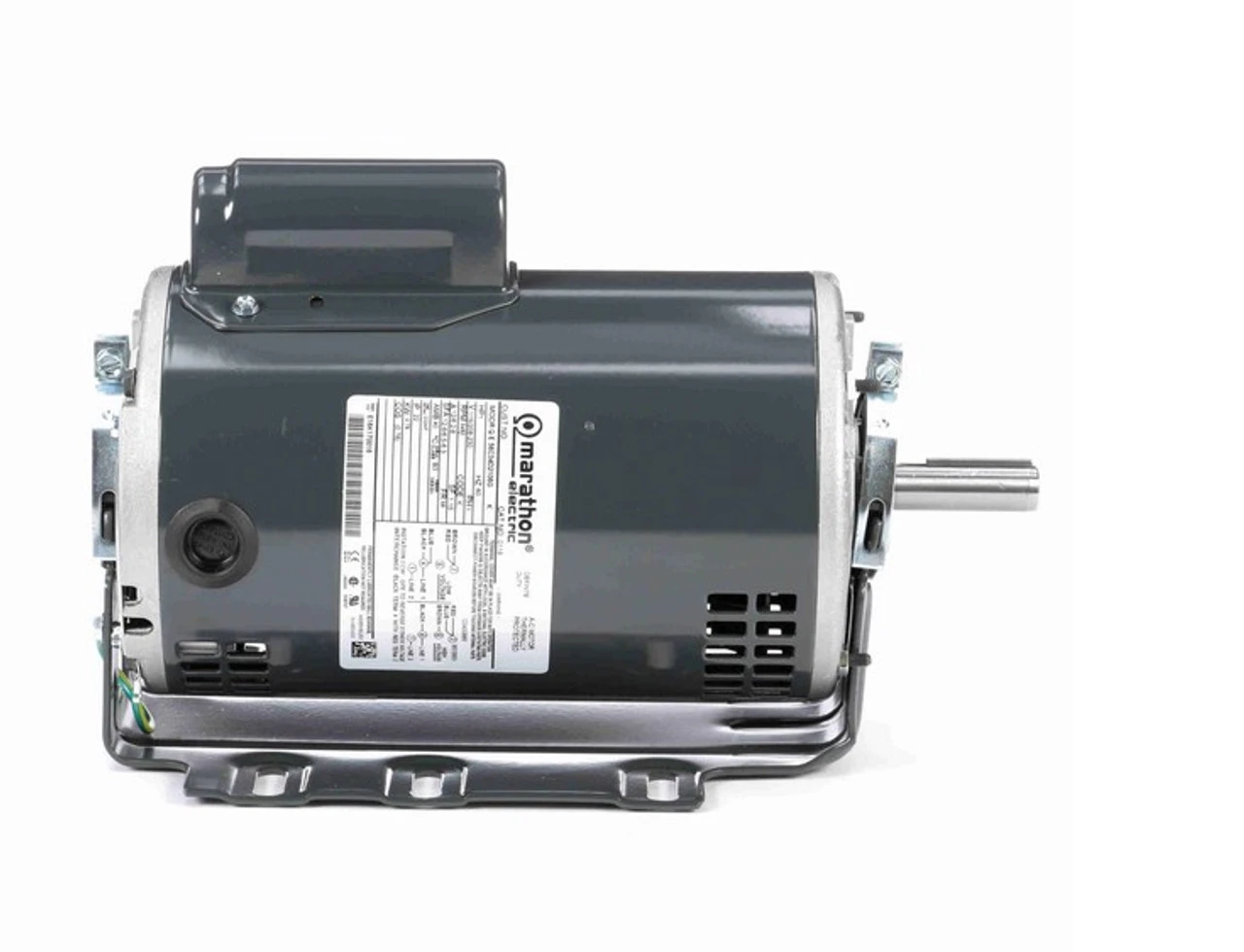

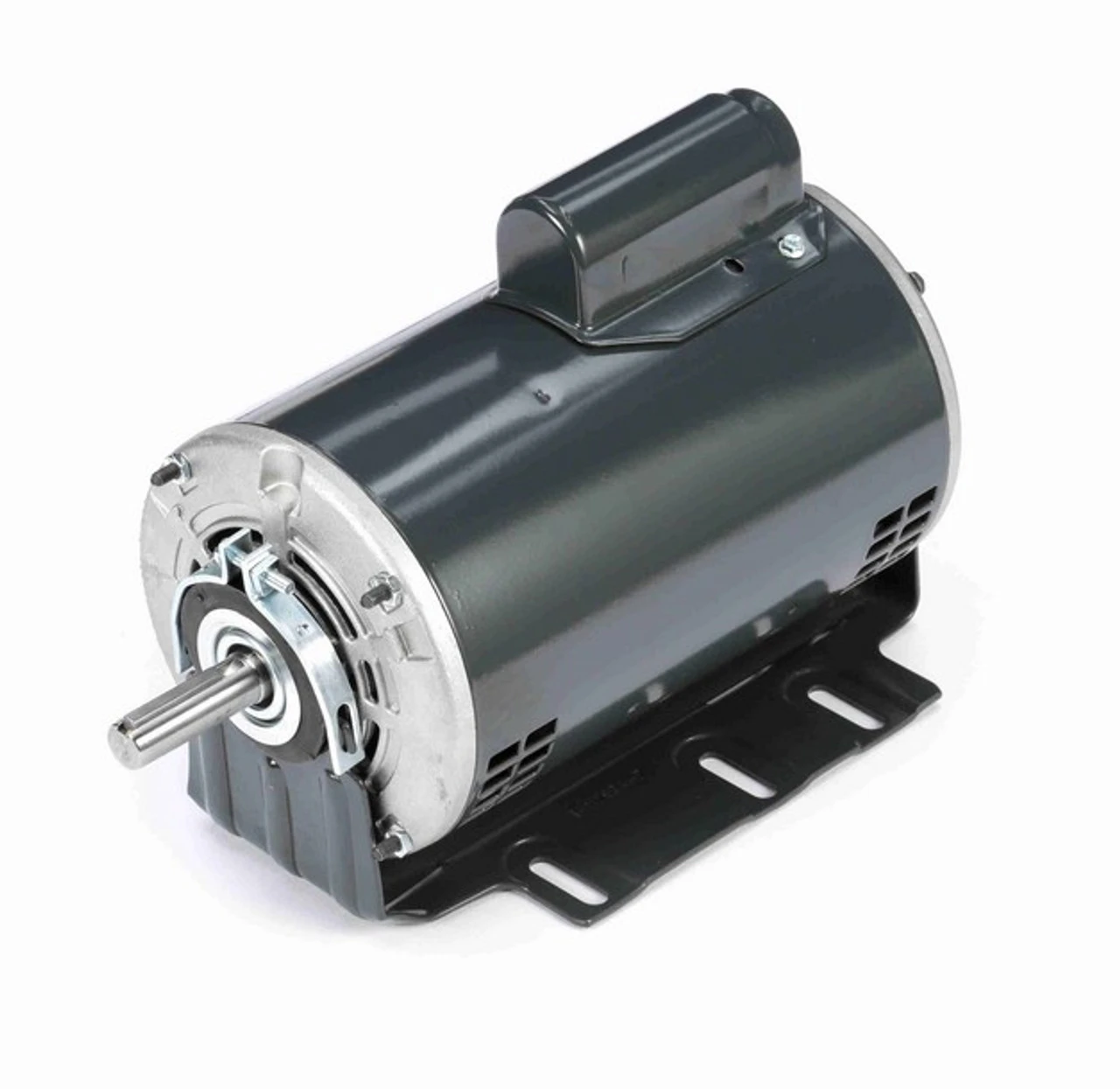

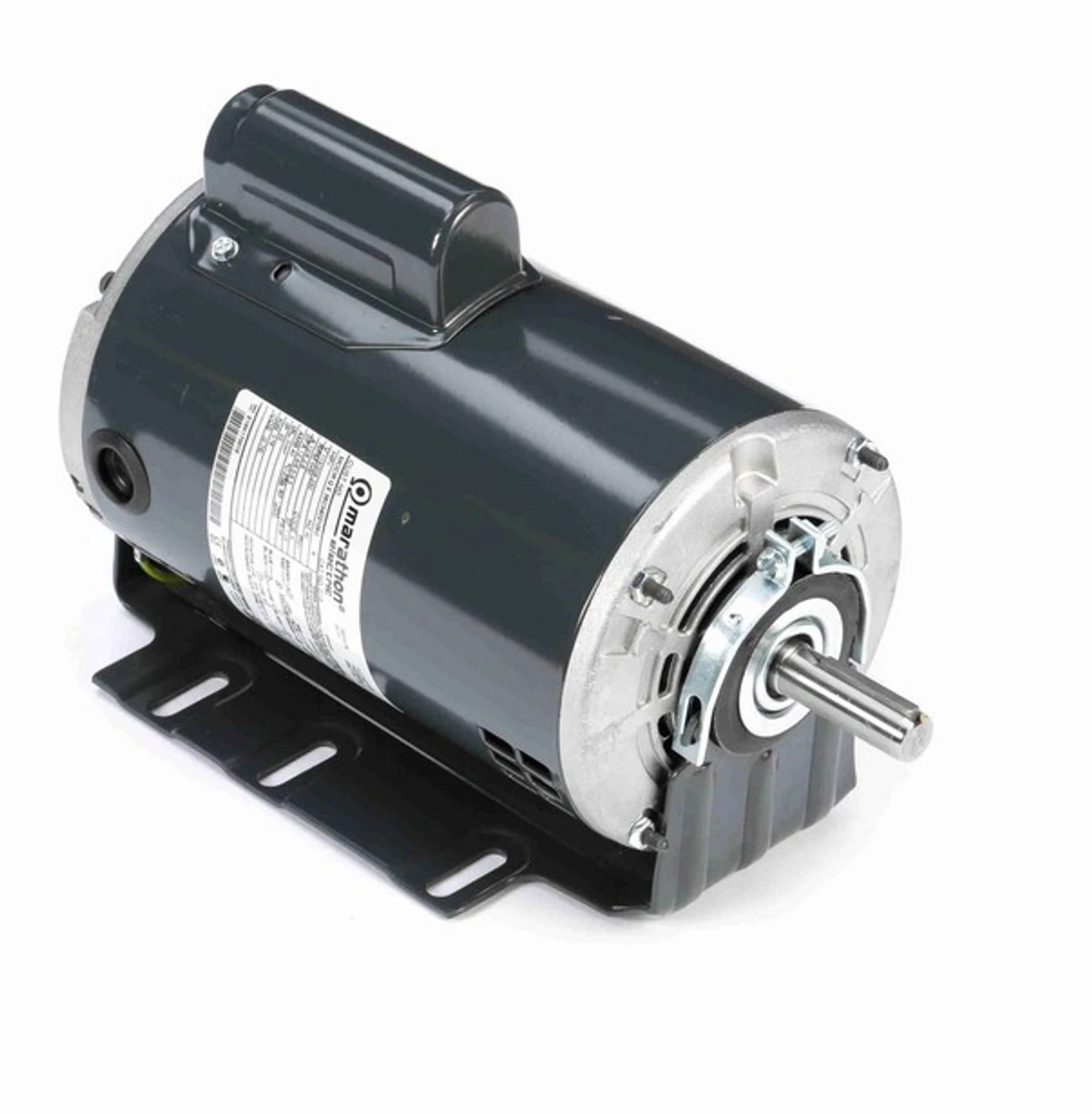

D118 Marathon 1 Hp (1 Speed) 115/208-230V 3600 RPM ODP 56 Frame Cap Start Resilient Base Motor
D118 Marathon 1 Hp (1 Speed) 115/208-230V 3600 RPM ODP 56 Frame Cap Start Resilient Base Motor - Image 2
D118 Marathon 1 Hp (1 Speed) 115/208-230V 3600 RPM ODP 56 Frame Cap Start Resilient Base Motor - Image 3
D118 Marathon 1 Hp (1 Speed) 115/208-230V 3600 RPM ODP 56 Frame Cap Start Resilient Base Motor - Image 4
D118 Marathon 1 Hp (1 Speed) 115/208-230V 3600 RPM ODP 56 Frame Cap Start Resilient Base Motor -MotorHub Shop 118 left 18075.1632417184
D118 Marathon 1 Hp (1 Speed) 115/208-230V 3600 RPM ODP 56 Frame Cap Start Resilient Base Motor -MotorHub Shop 118 side 49891.1632417189
D118 Marathon 1 Hp (1 Speed) 115/208-230V 3600 RPM ODP 56 Frame Cap Start Resilient Base Motor -MotorHub Shop 118 line 53995.1632417193

D118 Marathon 1 Hp (1 Speed) 115/208-230V 3600 RPM ODP 56 Frame Cap Start Resilient Base Motor

$358.10 Original price was: $358.10.$97.99Current price is: $97.99.

Buy Now
SKU: ZWXLY 1698654949 Categories: Electric Motors, Leeson/Marathon Electric Motors Tag: Marathon
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 1 hp 3600 RPM, 12.0/6.2-6.0 amps, 115/208-230 Volts 60 Hz, Capacitor Start

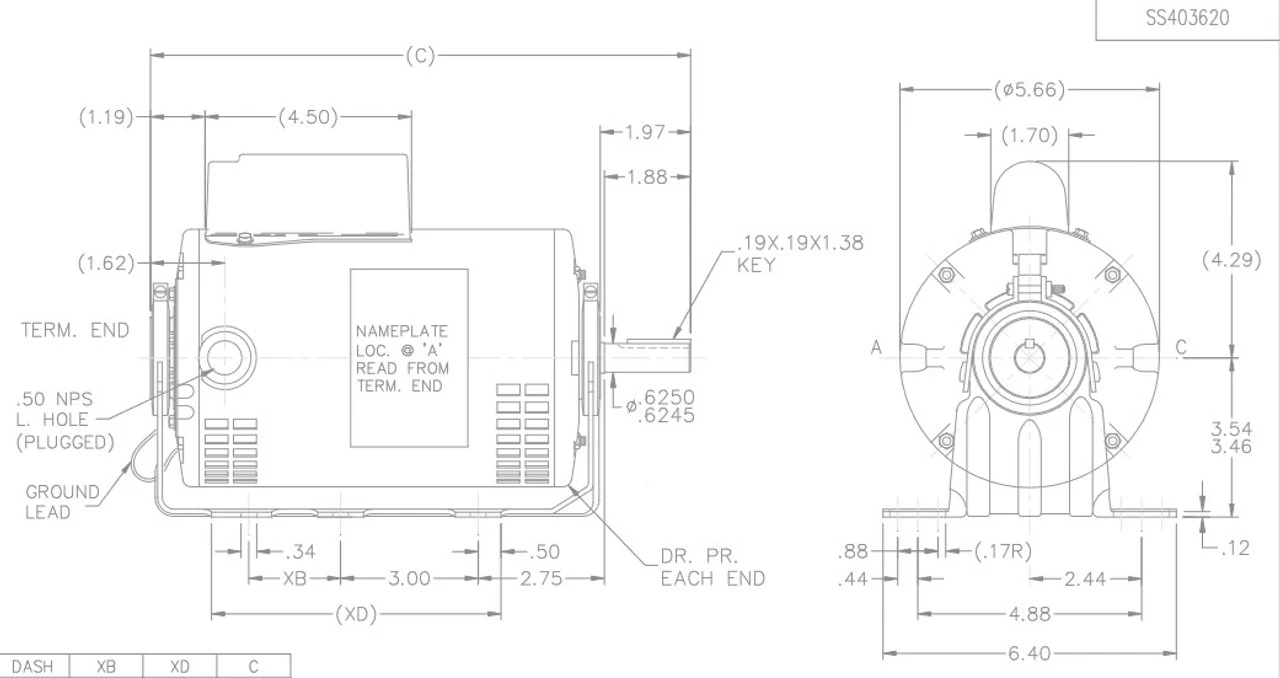

  • NEMA 56 Frame Keyed Shaft 1 7/8″ x 5/8″ Diameter, 1 speed
  • Service Factor = 1.15, Thermal Protection = Auto
  • Resilient Base, Reversible, Ball Bearings, Class B insulation
  • 1 Year Manufacture Warranty

Blower motors are used to blow air inside of buildings. Shaft may be vertical or horizontal. ODP = Open Drip Proof. 056C34D2106
