Home / Electric Motors / Air Compressor Motors
  • 110222.00 Leeson 3 Hp 3600 RPM 230V 56Y Frame (Rigid Base) ODP 1-Phase Compressor Motor -MotorHub Shop 22 front 29380.1646680583
  • 9035 Marathon 2 Hp (1 Speed) 115/230V 3600 RPM ODP 56 Frame Cap Start/Run Pressure Washer Motor -MotorHub Shop 9035 front 56133.1635349111
-43%

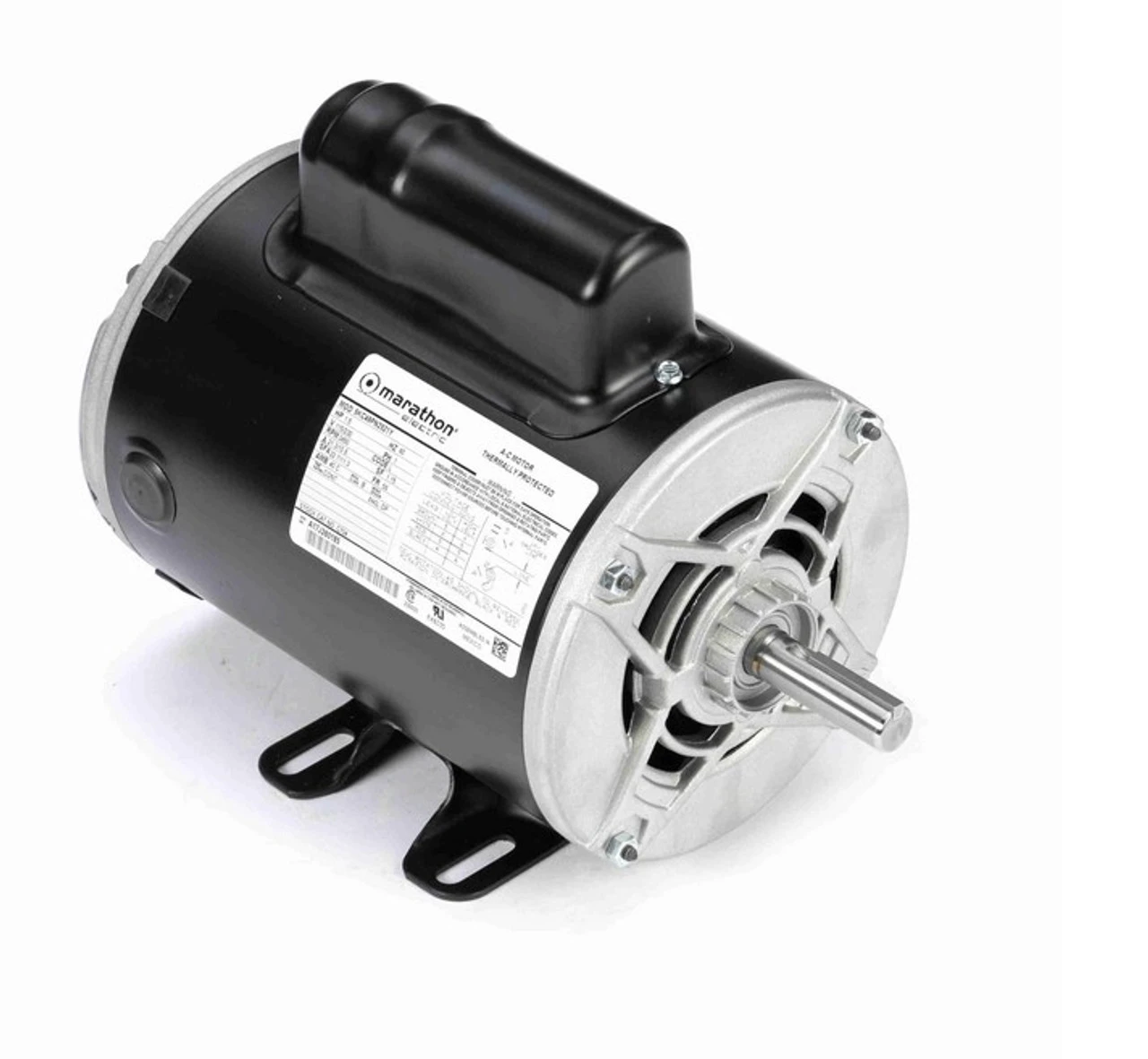

C704 Marathon 1 1/2 Hp (1 Speed) 115/230V 3600 RPM ODP 56 Frame Cap Start Pressure Washer Motor
C704 Marathon 1 1/2 Hp (1 Speed) 115/230V 3600 RPM ODP 56 Frame Cap Start Pressure Washer Motor - Image 2
C704 Marathon 1 1/2 Hp (1 Speed) 115/230V 3600 RPM ODP 56 Frame Cap Start Pressure Washer Motor - Image 3
C704 Marathon 1 1/2 Hp (1 Speed) 115/230V 3600 RPM ODP 56 Frame Cap Start Pressure Washer Motor - Image 4

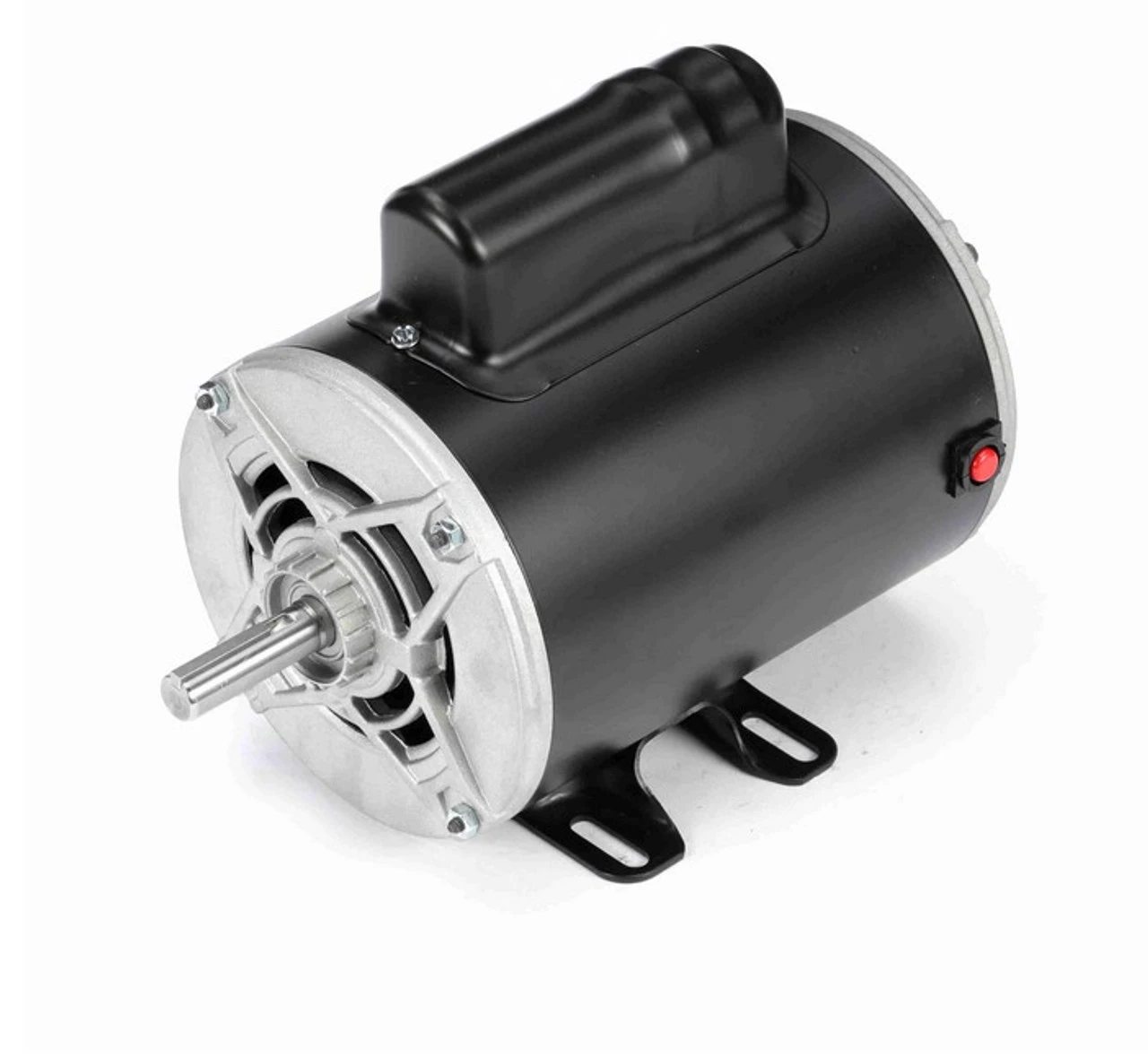

C704 Marathon 1 1/2 Hp (1 Speed) 115/230V 3600 RPM ODP 56 Frame Cap Start Pressure Washer Motor -MotorHub Shop 704 left 64169.1635275430

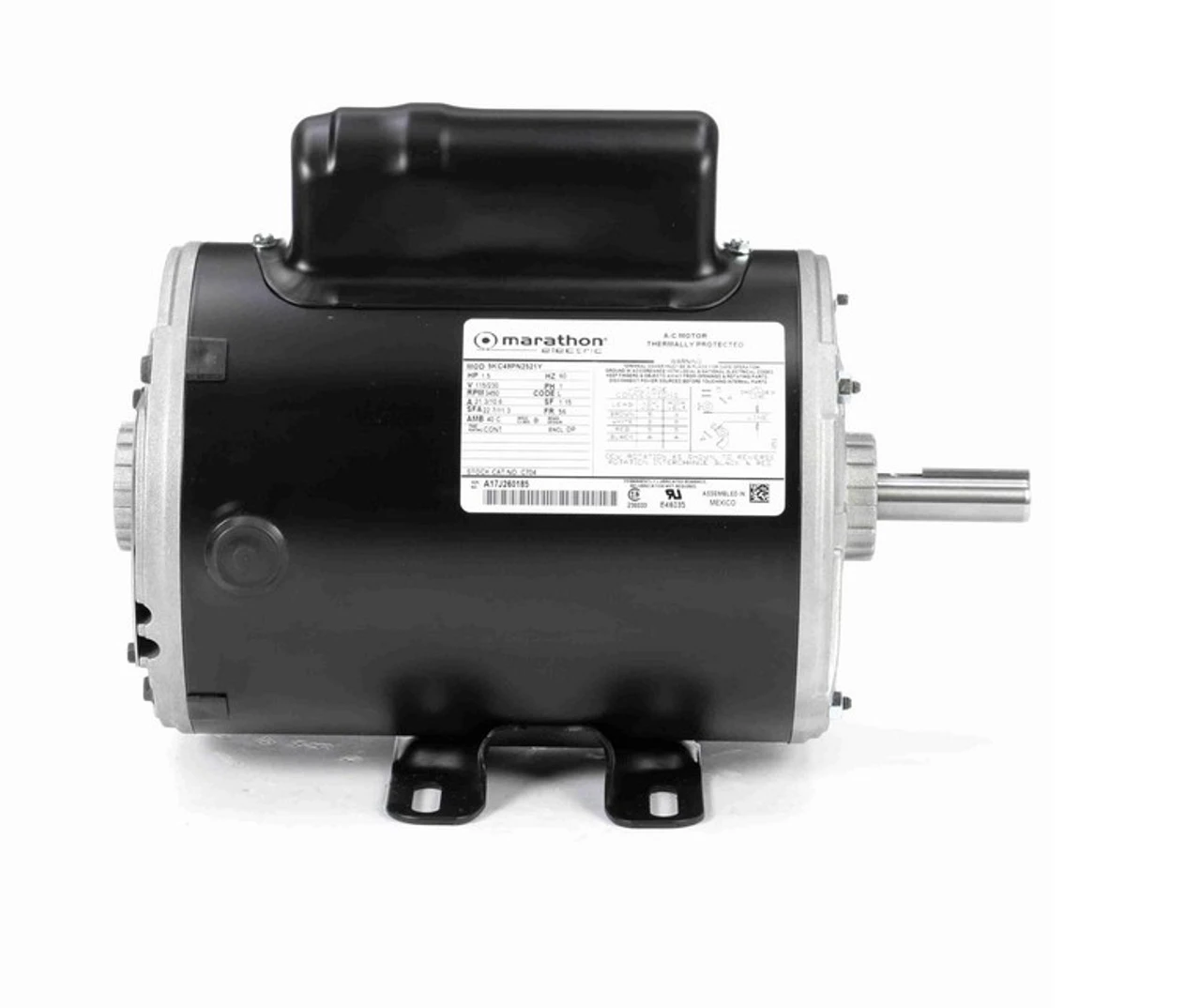

C704 Marathon 1 1/2 Hp (1 Speed) 115/230V 3600 RPM ODP 56 Frame Cap Start Pressure Washer Motor -MotorHub Shop 704 side 26507.1635275434

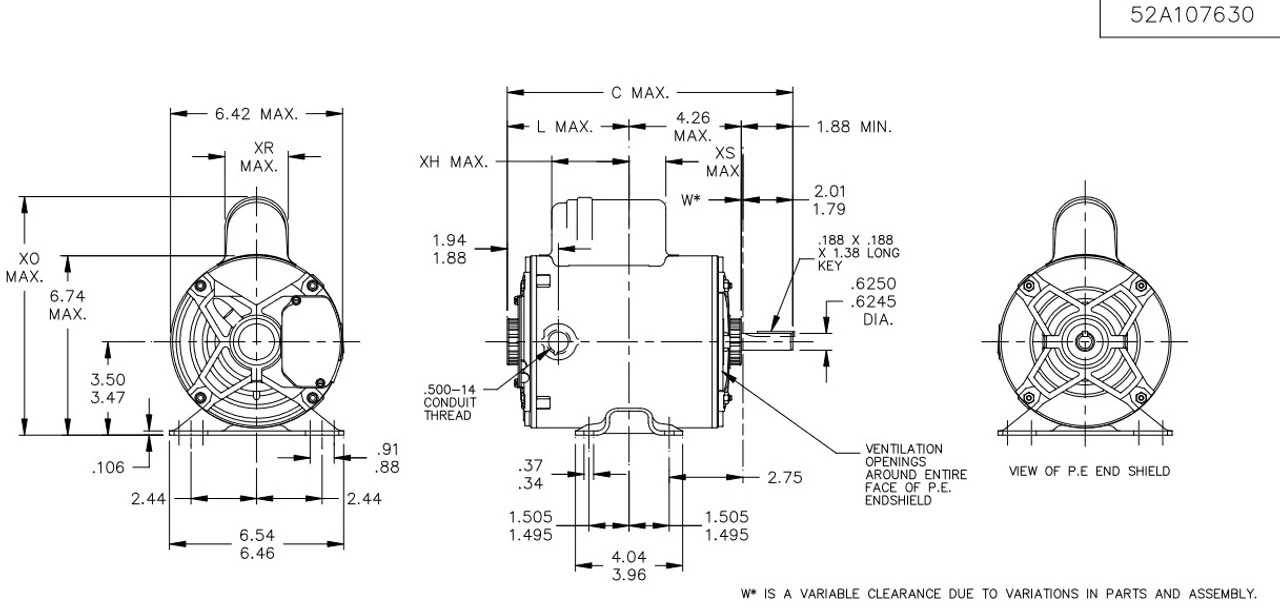

C704 Marathon 1 1/2 Hp (1 Speed) 115/230V 3600 RPM ODP 56 Frame Cap Start Pressure Washer Motor -MotorHub Shop 704 line 25261.1635275439

C704 Marathon 1 1/2 Hp (1 Speed) 115/230V 3600 RPM ODP 56 Frame Cap Start Pressure Washer Motor

$175.00 Original price was: $175.00.$98.99Current price is: $98.99.

Buy Now
SKU: ZWXLY 1698662499 Categories: Air Compressor Motors, Electric Motors Tag: Marathon
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 1 1/2 hp 3600 RPM, 21.3/10.6 amps, 115/230 Volts 60 Hz, Capacitor Start
  • NEMA 56 Frame, Shaft 1 7/8″ x 5/8″ Diameter, 1 speed
  • Service Factor = 1.15, Thermal Protection = Manual
  • Rigid Base, Reversible rotation, Ball Bearings, Class B insulation
  • 1 Year Manufacture Warranty

For use on air compressors found in pressure washer units. Shaft may be horizontal. ODP = Open Drip Proof. 5KC49PN2521Y
