Home / Electric Motors / Leeson/Marathon Electric Motors
  • 194005.00 Leeson SST Duck 7 1/2 Hp 1800 RPM 230/460V 3-Phase 213TC Frame TEFC (base) Motor -MotorHub Shop 1905 front 92782.1691086905
  • GT0312 Marathon 5 HP 3600 RPM 230/460V 182TC Frame 3-Phase ODP Motor -MotorHub Shop gt0312 front 40389.1678821756
-72%

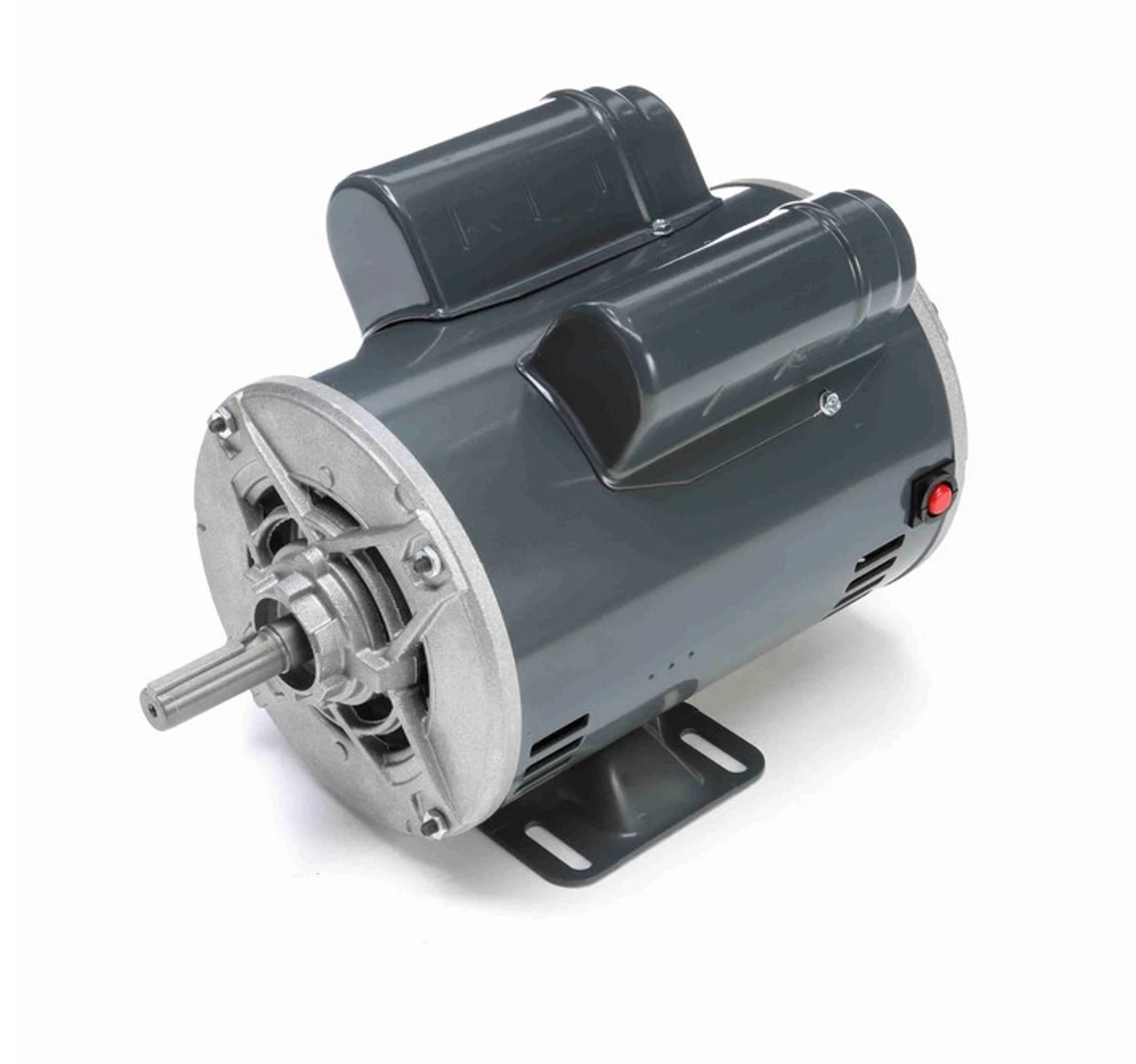

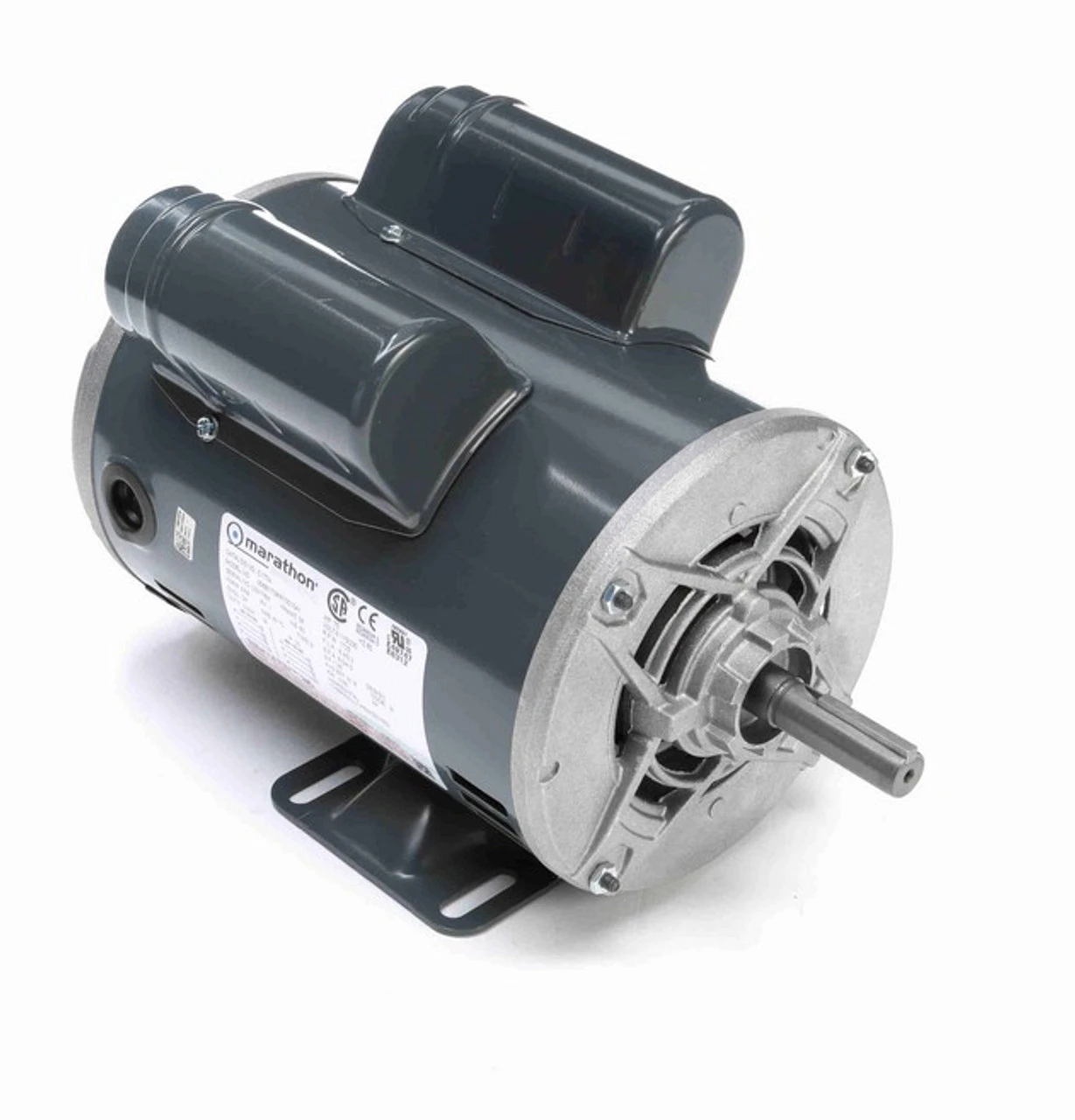

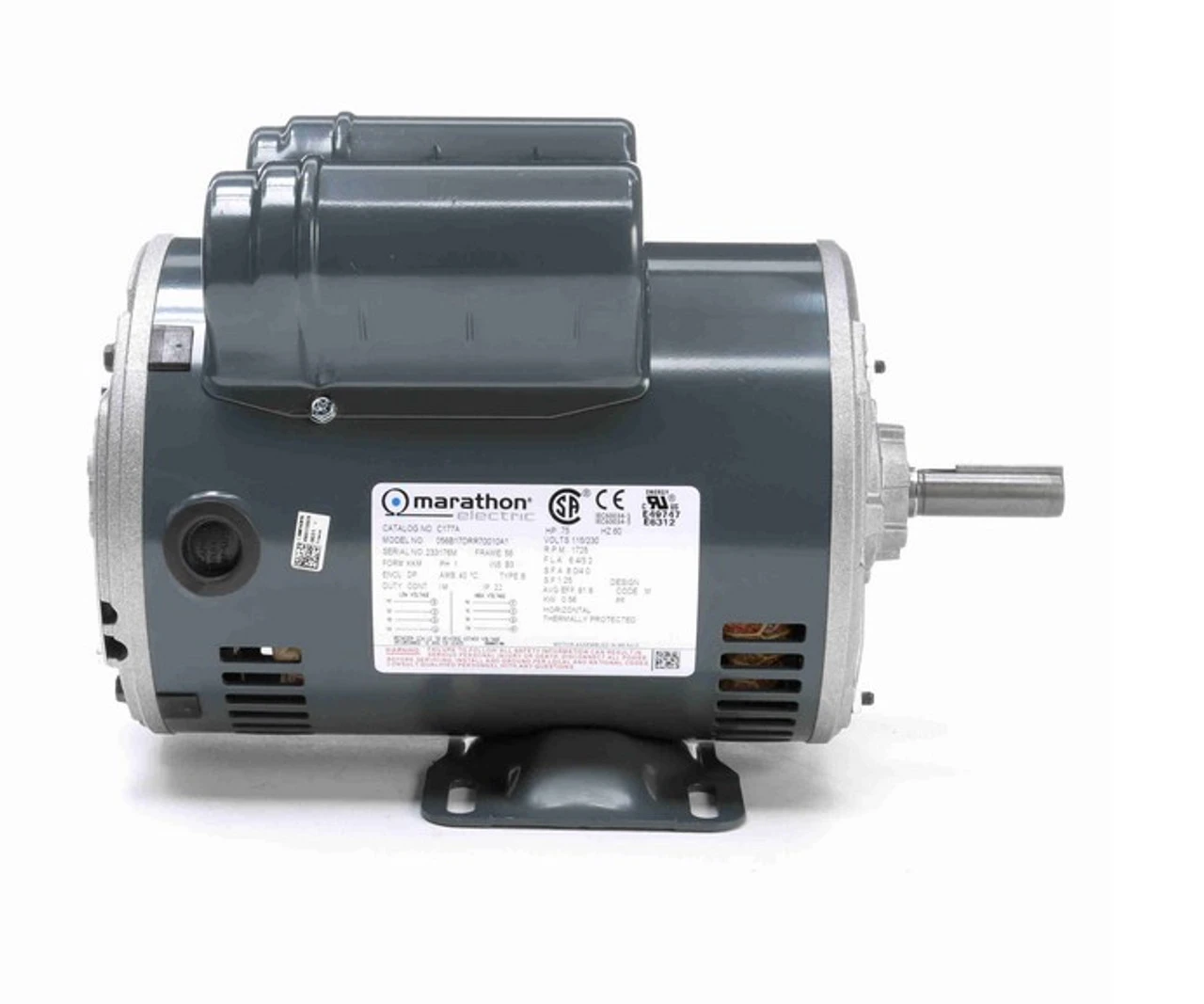

C177A Marathon 3/4 Hp 115/208-230V 1800 RPM ODP 56 Frame Cap Start/Run Motor
C177A Marathon 3/4 Hp 115/208-230V 1800 RPM ODP 56 Frame Cap Start/Run Motor - Image 2
C177A Marathon 3/4 Hp 115/208-230V 1800 RPM ODP 56 Frame Cap Start/Run Motor - Image 3
C177A Marathon 3/4 Hp 115/208-230V 1800 RPM ODP 56 Frame Cap Start/Run Motor - Image 4
C177A Marathon 3/4 Hp 115/208-230V 1800 RPM ODP 56 Frame Cap Start/Run Motor -MotorHub Shop 177 left 24414.1638213300
C177A Marathon 3/4 Hp 115/208-230V 1800 RPM ODP 56 Frame Cap Start/Run Motor -MotorHub Shop 177 side 88694.1638213318
C177A Marathon 3/4 Hp 115/208-230V 1800 RPM ODP 56 Frame Cap Start/Run Motor -MotorHub Shop 177 line 97472.1638213323

C177A Marathon 3/4 Hp 115/208-230V 1800 RPM ODP 56 Frame Cap Start/Run Motor

$357.00 Original price was: $357.00.$98.99Current price is: $98.99.

Buy Now
SKU: ZWXLY 1698654618 Categories: Electric Motors, Leeson/Marathon Electric Motors Tag: Marathon
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 3/4 hp 1800 RPM, 6.6/3.5-3.3 amps, 115/208-230 Volts 60 Hz, Capacitor Start / Capacitor Run Motor

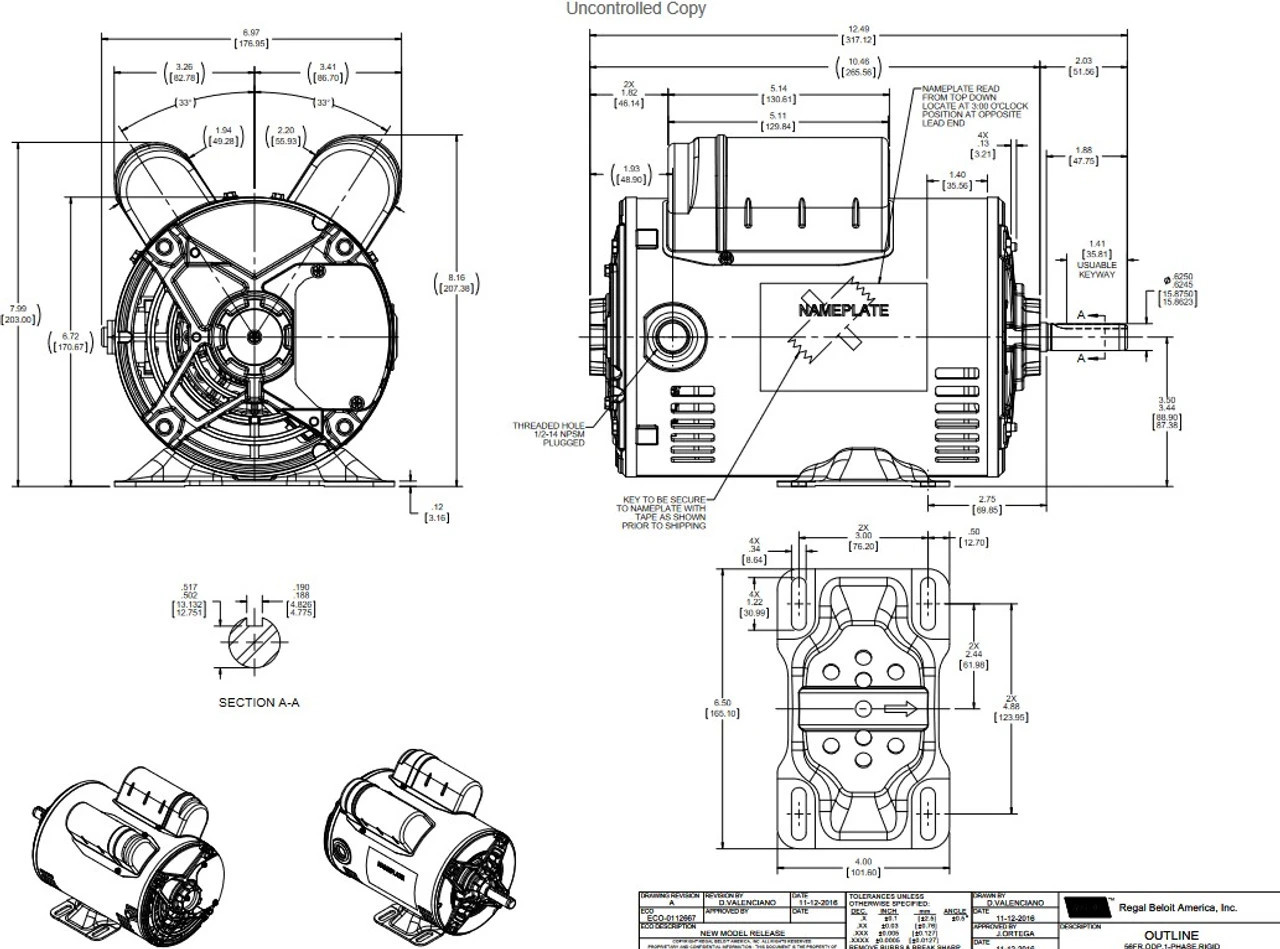

  • NEMA 56 Frame, Shaft 1 7/8″ x 5/8″ Diameter, 1 speed
  • Service Factor = 1.25, Thermal Protection = Manual
  • Rigid Base, Reversible rotation, Ball Bearings, Class B insulation
  • 1 Year Manufacture Warranty

For general purpose indoor applications requiring high efficiency and high starting torque . Shaft should be horizontal. ODP = Open Drip Proof.

Marathon Model: 5KCP35NNA670T
Replaces Leeson M56B17DRR70014A3A, E119855.00, 100005.00
