Home / Pool & Spa Motors / Marathon/Leeson Jet Pump Motors
  • B2973 Century 3/4 Hp 2-Speed 56J Frame 115V; 2 Speed Swimming Pool Motor Century # B2973 -MotorHub Shop B2973 82223.1652797643
  • J063A Marathon 1 Hp 3-Phase Jet Pump Motor 3600 RPM 230/460V TEFC 56J Frame (rigid Base) -MotorHub Shop 63 front 61894.1606159985
-57%

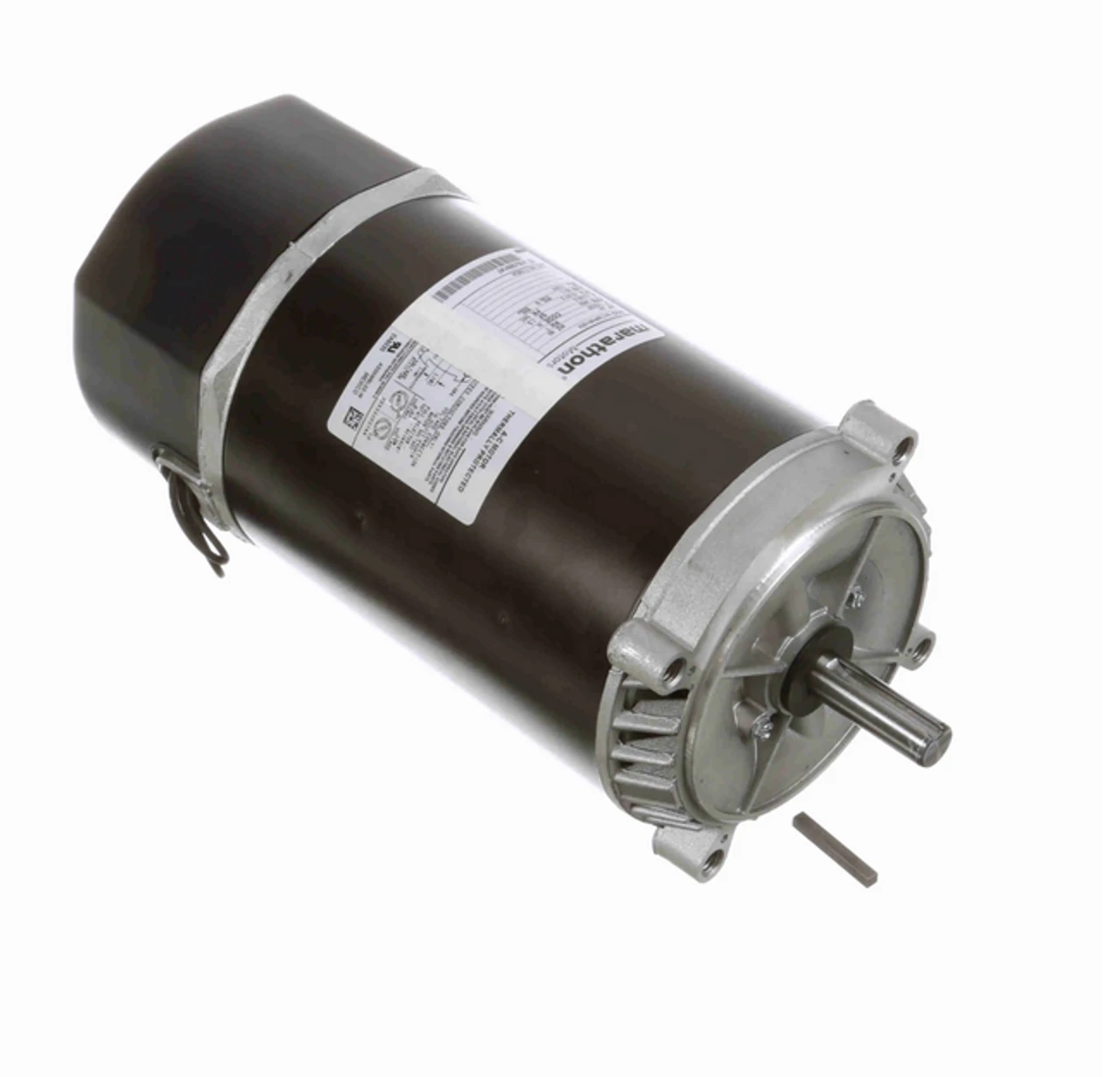

C1083A Marathon 3/4 Hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56C Frame (no Base)
C1083A Marathon 3/4 Hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56C Frame (no Base) - Image 2
C1083A Marathon 3/4 Hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56C Frame (no Base) - Image 3
C1083A Marathon 3/4 Hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56C Frame (no Base) - Image 4

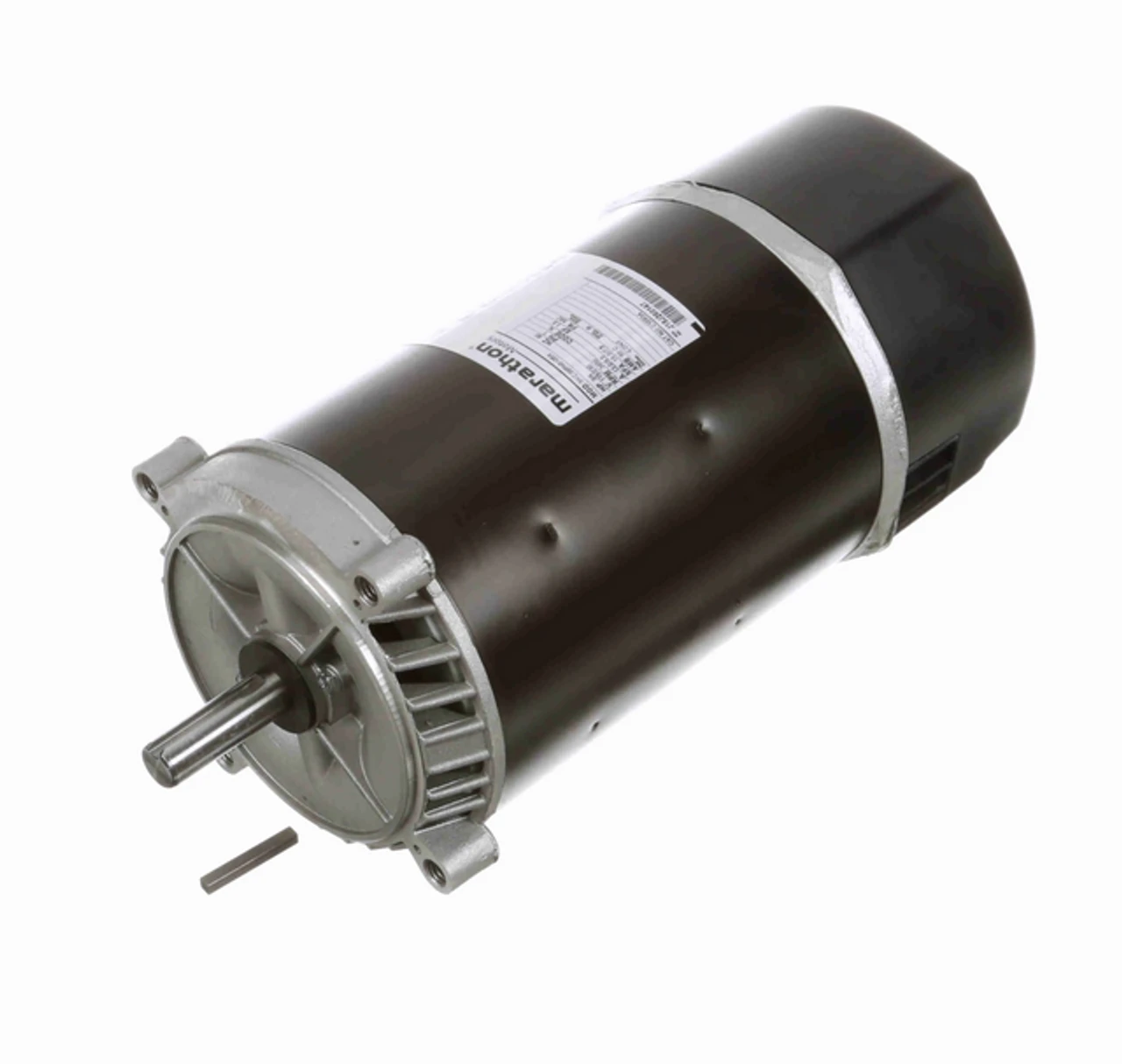

C1083A Marathon 3/4 Hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56C Frame (no Base) -MotorHub Shop 1083 left 57264.1604690725

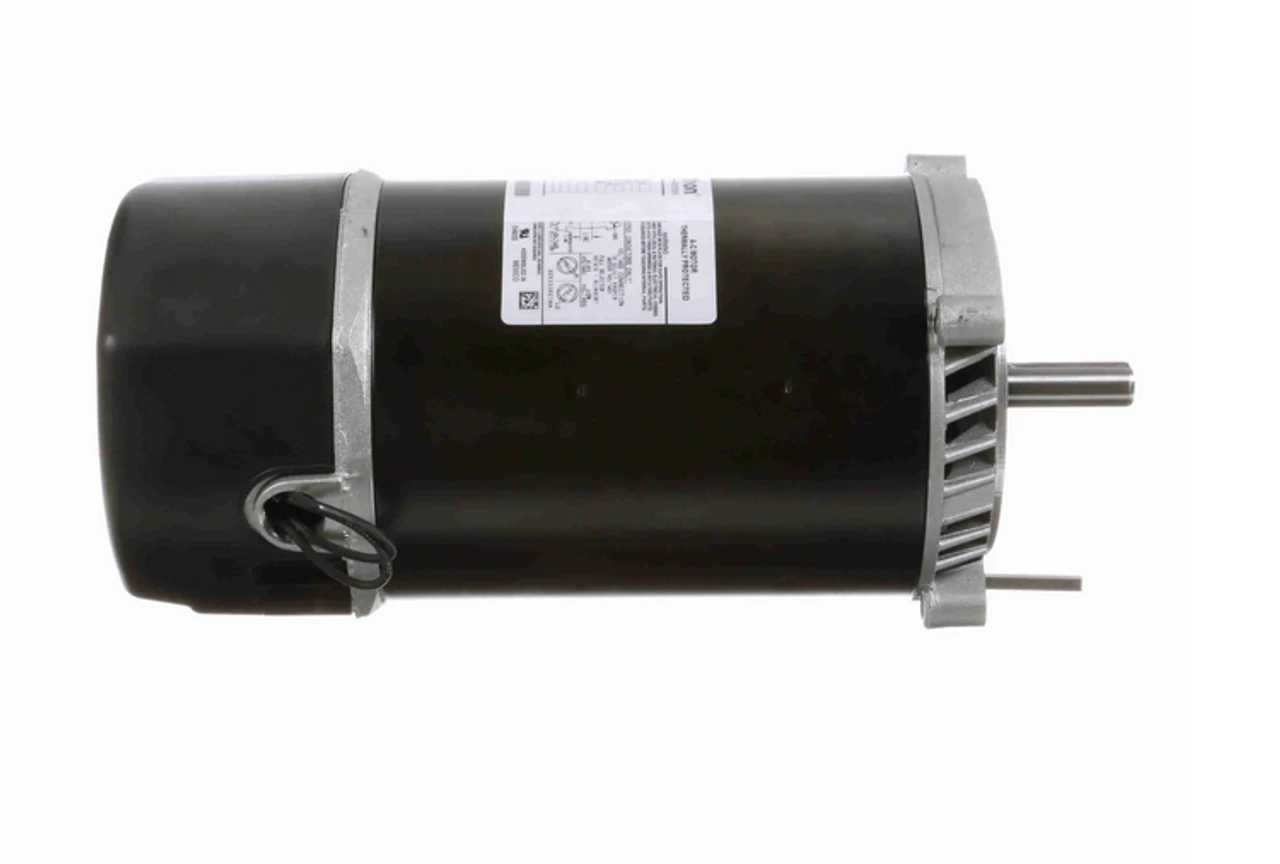

C1083A Marathon 3/4 Hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56C Frame (no Base) -MotorHub Shop 1083 side 67704.1604690731

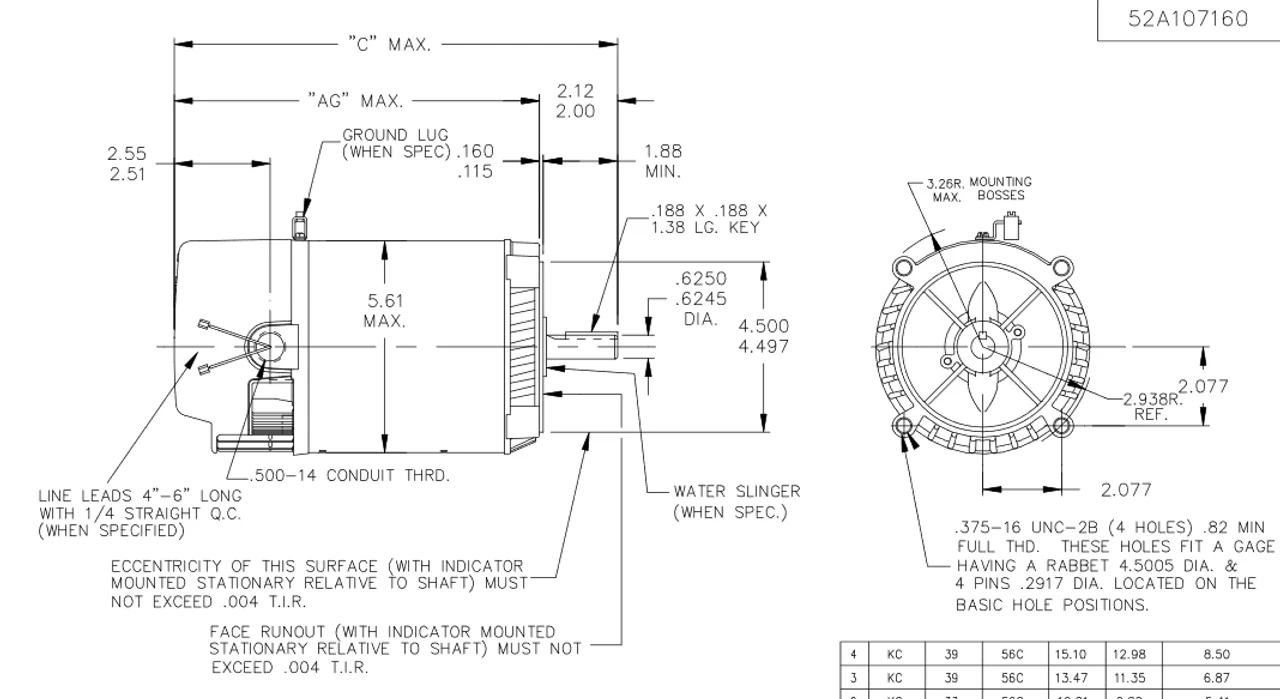

C1083A Marathon 3/4 Hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56C Frame (no Base) -MotorHub Shop 1083 line 95353.1604690737

C1083A Marathon 3/4 Hp 2-Compartment Jet Pump Motor 3600 RPM 115/230V ODP 56C Frame (no Base)

$223.60 Original price was: $223.60.$95.99Current price is: $95.99.

SKU: ZWXLY 1698655381 Categories: Marathon/Leeson Jet Pump Motors, Pool & Spa Motors Tag: Marathon
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 3/4 hp 3600 RPM, 13.0/6.5 amps, 115/230 volts, Capacitor start / Induction run
  • NEMA 56C Frame, 5’8″ dia. by 1-5/8″ long keyed shaft, 60 Hz
  • Service Factor: 1.5, Overload protection: Auto
  • No base, CW rotation viewed opposite shaft end, Ball Bearings; Class B Insulation
  • 1 Year Manufacture Warranty

Spa pump motor having two compartments for easy servicing. Not for pool use due to lack of suction cut-off. ODP = Open Drip Proof, 5KC39PN5105X
