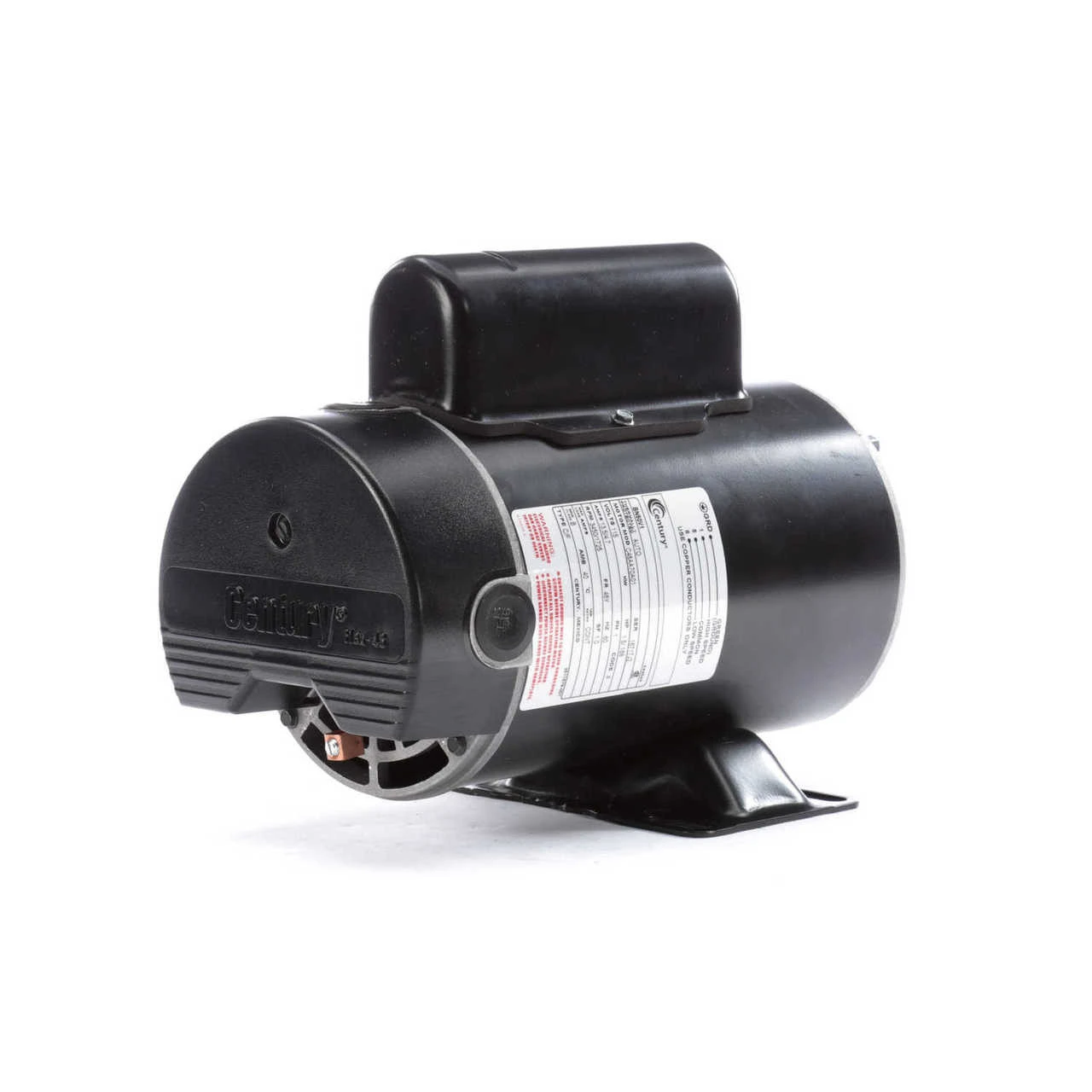

BN50V1 Century 1.5 Hp 3450/1725 RPM 48Y Frame 115V 2-Speed Pool & Spa Electric Motor Century # BN50V1

Original price was: $328.40.Current price is: $97.99.

Protect Your Information, Shop with Safe Payments

Buy quality, buy with us.

Efficiency meets excellence in customer care.

Top-Notch Quality

1.5 HP 3450/1725 RPM, 16.4/4.4 amps, 115V 60hz.; 2-Speed
Auto Overload Protection
Non-Reversible -CCW Facing the Shaft
Ball Bearings
48Y Frame; Thru-Bolt mount -Rigid Base
One Year Manufacture Warranty

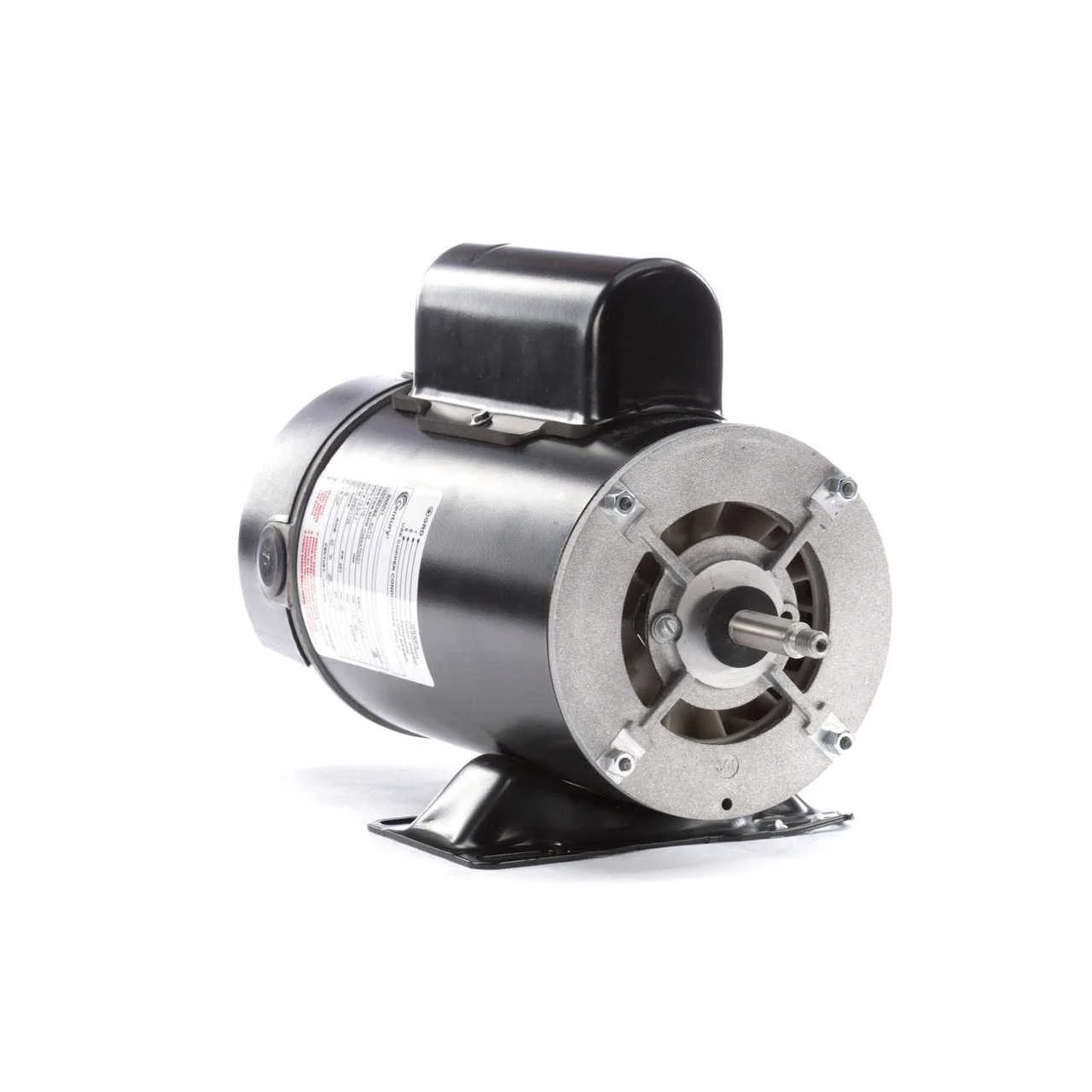

Above ground swimming pool and spa motors. These are called Thru-Bolt mount motors as the pump mounts to the face of the motor with the motor thru bolts. 48Y frame motors thru bolt dimension is 5 1/8″ on center measured across the shaft. Shaft is 1/2″ diameter with threads on end. Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps. 1 Year Manufacture Warranty. Replaces BN50. US Electric Equivalent EZBN50, Dayton 12N867
