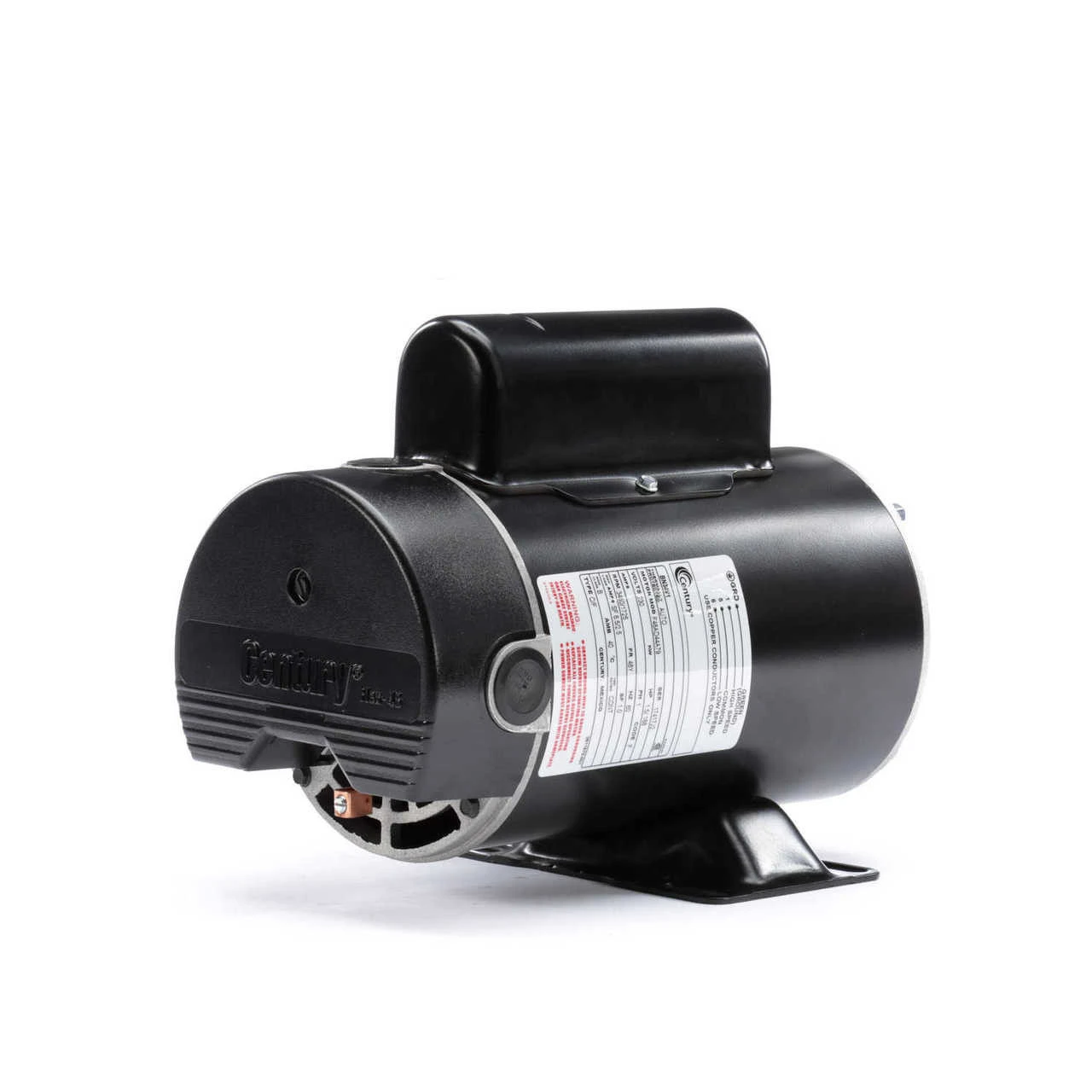

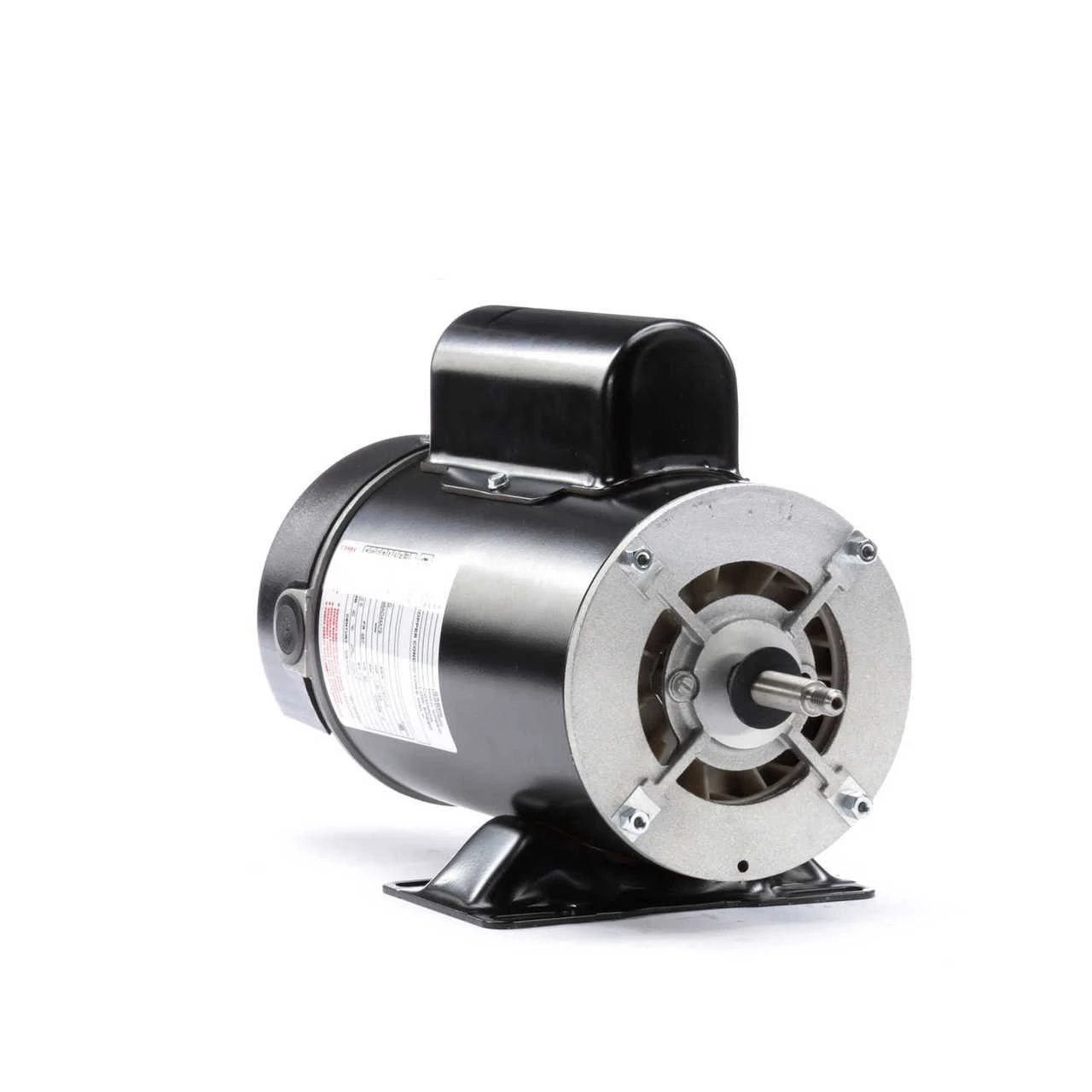

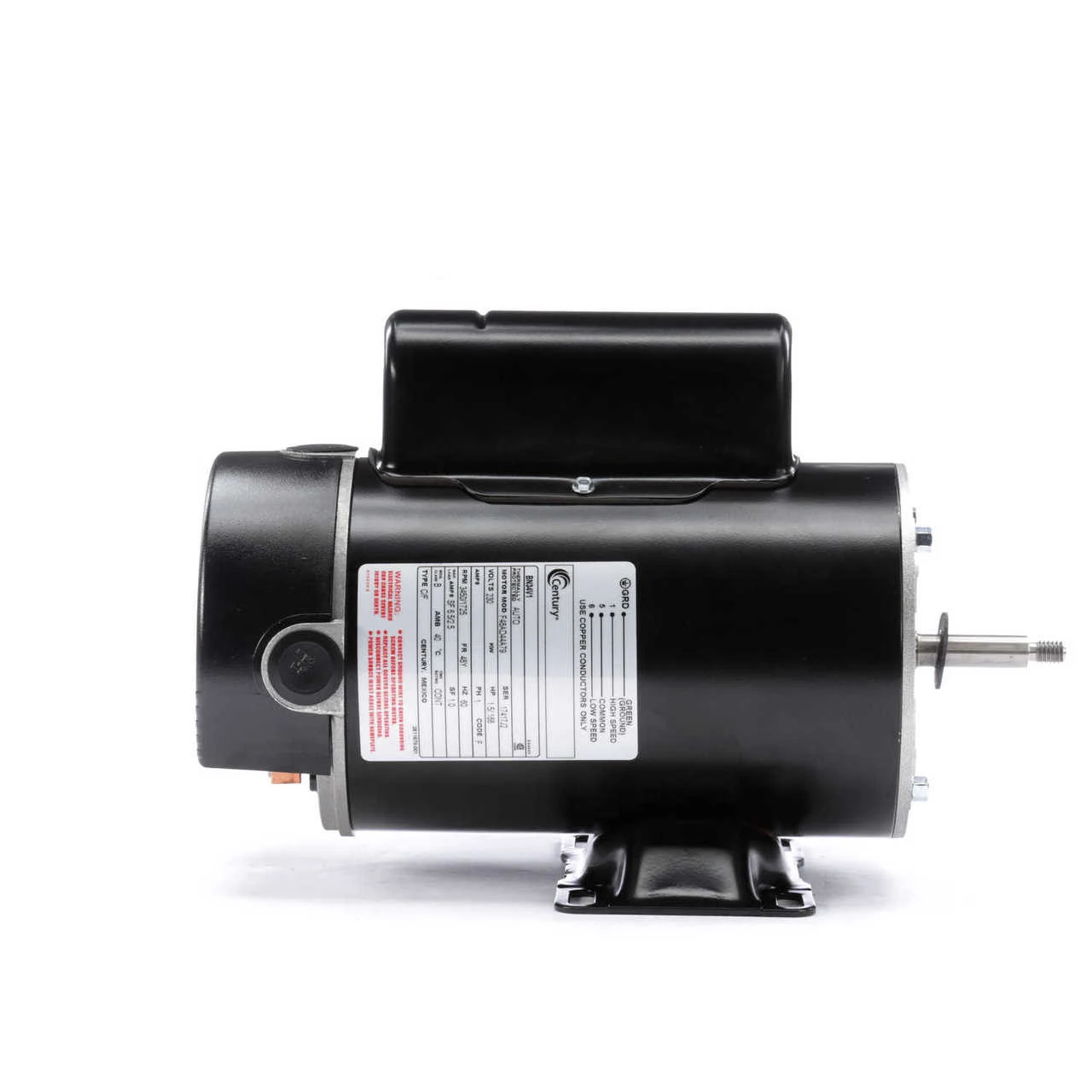

BN34V1 Century 1.5 Hp 3450/1725 RPM 48Y Frame 230V 2-Speed Pool & Spa Electric Motor Century # BN34V1

Original price was: $322.50.Current price is: $95.99.

Protect Your Information, Shop with Safe Payments

Buy quality, buy with us.

Efficiency meets excellence in customer care.

Top-Notch Quality

1.5 HP 3450/1725 RPM, 6.5/2.5 amps, 230V 60hz.; 2-Speed
Auto Overload Protection
Non-Reversible -CCW Facing the Shaft
Ball Bearings
48Y Frame; Thru-Bolt mount -Rigid Base
One Year Manufacture Warranty

Above ground swimming pool and spa motors. These are called Thru-Bolt mount motors as the pump mounts to the face of the motor with the motor thru bolts. 48Y frame motors thru bolt dimension is 5 1/8″ on center measured across the shaft. Shaft is 1/2″ diameter with threads on end. Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate. These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps. 1 Year Manufacture Warranty. Replaces BN34. US Electric Equivalent AGH15FL2CS, Dayton 14L701
