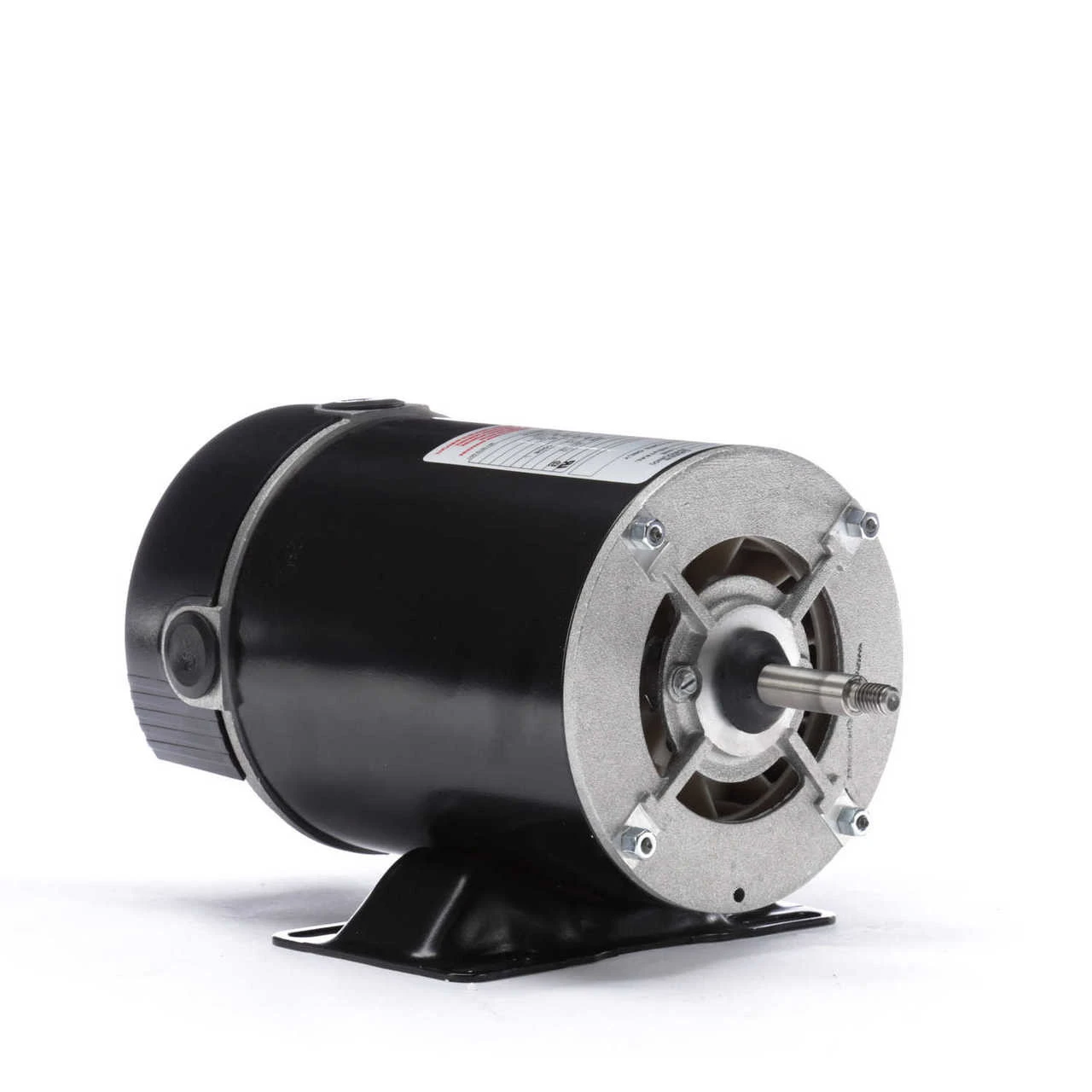

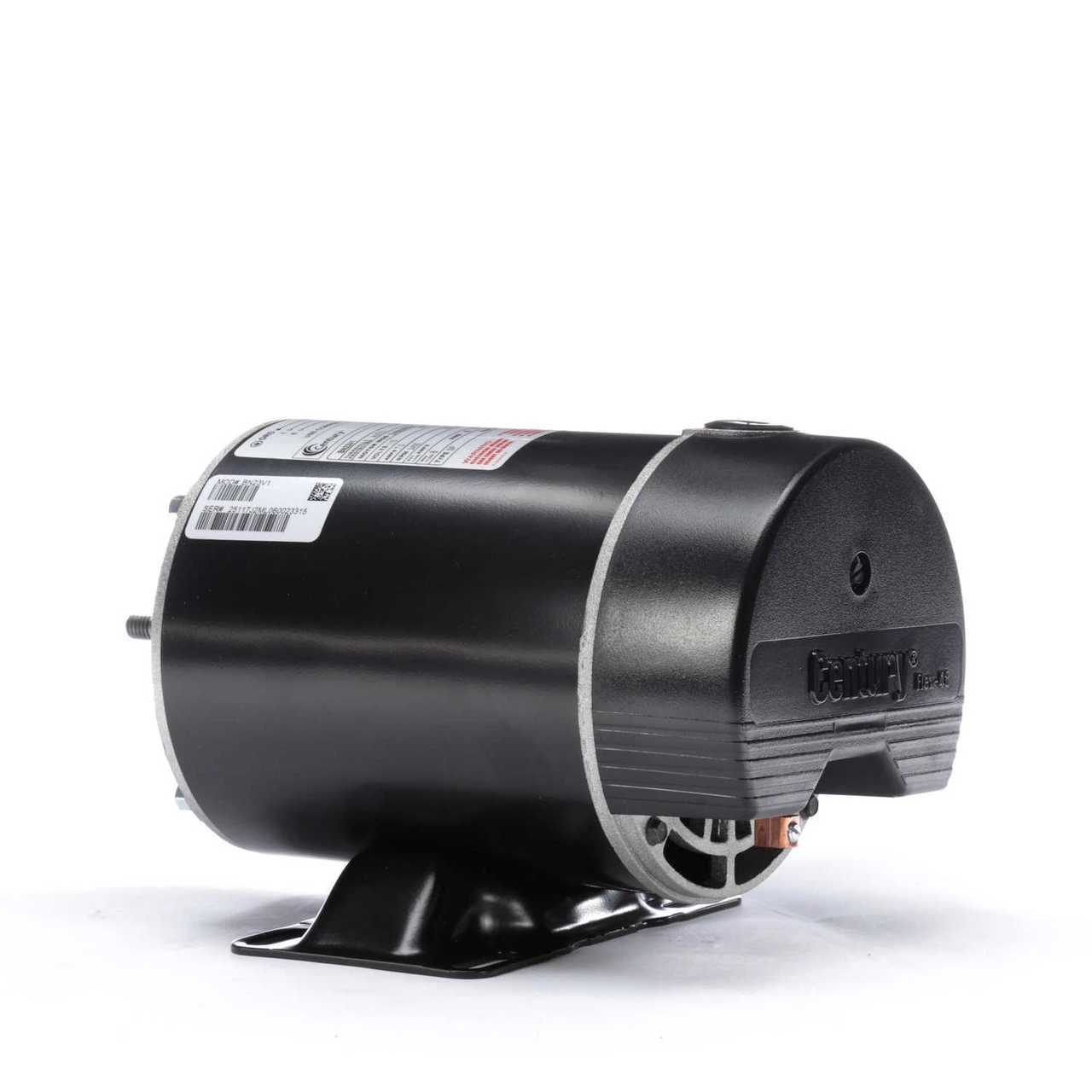

BN25V1 Century 1 Hp 3450 RPM 48Y Frame 115V Pool & Spa Electric Motor

Original price was: $184.00.Current price is: $98.99.

Protect Your Information, Shop with Safe Payments

Buy quality, buy with us.

Efficiency meets excellence in customer care.

Top-Notch Quality

Above ground swimming pool and spa motor

1 HP 115 Volts 11.8 amps 60hz.
3450 RPM – SINGLE SPEED
Auto Overload Protection
Non-Reversible – CCW Facing the Shaft
Stainless Steel Shaft
Ball Bearings
48Y Frame; Thru-Bolt mount -Rigid Base
One Year Manufacture Warranty

These are called Thru-Bolt mount motors, as the pump mounts to the face of the motor with the motor thru bolts.
48Y frame motors thru bolt dimension is 5 1/8″ on center measured across the shaft. Shaft is 1/2″ diameter with threads on end.
Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate.

These motors are found on the Hayward Powerflo, Waterway, Aquaflo, Dynamo and many other above ground pool and spa pumps.
Replaces AO Smith/Century BN25, BN25SS, S48AA11A01
US Electric Motor Equivalent EZBN25
Dayton 6PWA4
