Bison Direct Mount Gear Motor Speed Controller 1/35-1/6HP, 90VDC # 170-113-0003

Original price was: $355.00.Current price is: $99.99.

Protect Your Information, Shop with Safe Payments

Buy quality, buy with us.

Efficiency meets excellence in customer care.

Top-Notch Quality

IP30 Enclosure, Speed Range 15:01
Speed Regulation 10-30%
Accepts Tach Feedback
Max Amps 4A, Display Type None
Protection Type None, IR Compensation None
Follower Circuit None

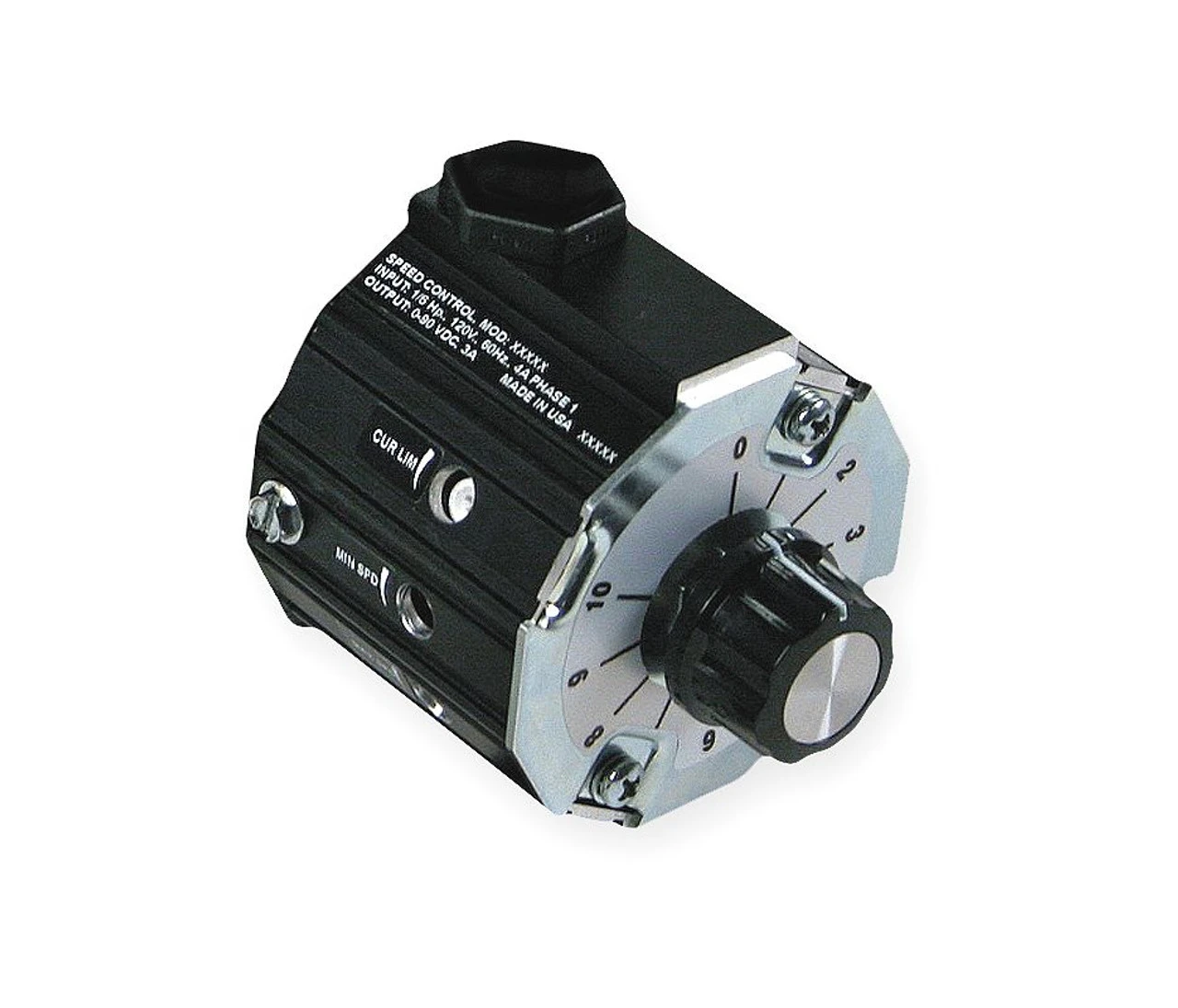

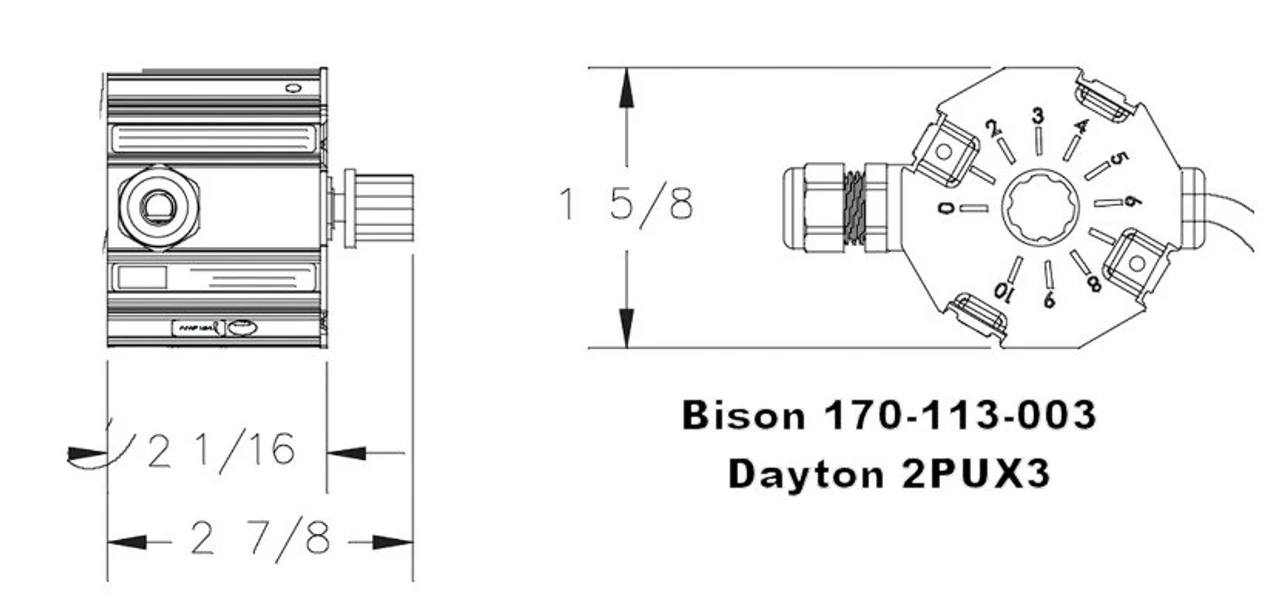

For 90VDC permanent magnet motors and gearmotors up to 1/6 HP. SCR controller direct-mounts to motor endbell. Provides a compact drive package that is great for applications that require speed adjustment at the gearmotor. Features adjustable current/torque limit and maximum and minimum speed pots. Easy assembly. SCR PMDC Speed Control Style Height 3.6 In, Depth 3.19 In, Width 2.61 In (old Model Dayton 6A191). Same as Dayton 2PUX3.
