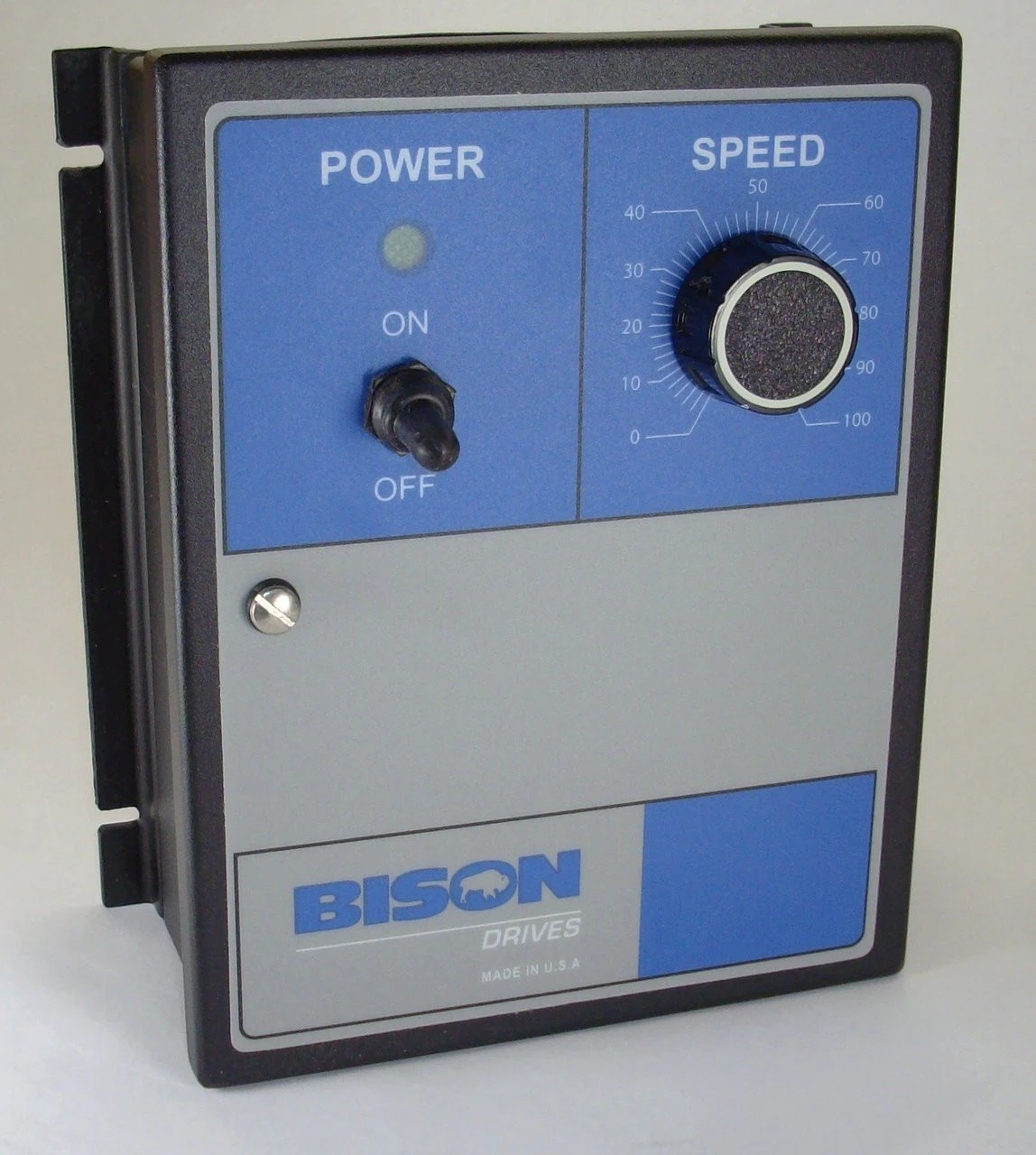

Bison 170-343-0003 PWM Speed Control NEMA 4X; 90/180VDC

Original price was: $347.00.Current price is: $96.99.

Protect Your Information, Shop with Safe Payments

Buy quality, buy with us.

Efficiency meets excellence in customer care.

Top-Notch Quality

120V: 1/20hp to 1/3 hp; 240V: 1/8 hp to 1/2 hp; Output amps: 3.0 DC
4 Quadrant reversing
Cage Clamp terminal block: Quick and easy wire terminations.
Ob board fusing: No need to add external fusing for protection of your motor or drive.
One Year Manufacture Warranty

Speed range and regulation: 1% regulation over 50:1 speed range. 1% regulation over 60:1 speed range with the addition of a tachometer for feedback. 4 Quadrant reversing: Regenerative / 4 quadrant drives have the ability to perform quick, contactorless, reversing on-the-fly. Stopping modes: User can decelerate (N.O.), regeneratively brake (N.O.) or coast the motor to a stop (N.O.). User can also decelerate t minimum speed (N.O.). Cage Clamp terminal block: Quick and easy wire terminations. User Adjustable calibration pots: IR compensation, forward torque, reverse torque, tachometer, min speed, max speed, forward acceleration, reverse acceleration, and deadband. Additional Features: Dual voltage AC input, switch selectable armature or tachometer feedback mode and field supply for shunt wound motors. Ob board fusing: No need to add external fusing for protection of your motor or drive. Heatsink part-number 170-990-0200 required above 7 amp DC.
