Home / Electric Motors / Bison Gear Motors
  • Bison 170-543-0004 Isolated PWM AC NEMA 4X VFD -MotorHub Shop 170 543 0004 03488.1475692158
  • Bison 016-246-4015 Gear Motor 1/4 Hp 113 RPM 115/230V 60/50 HZ. -MotorHub Shop 200 series lg 81493.1435082401
-75%

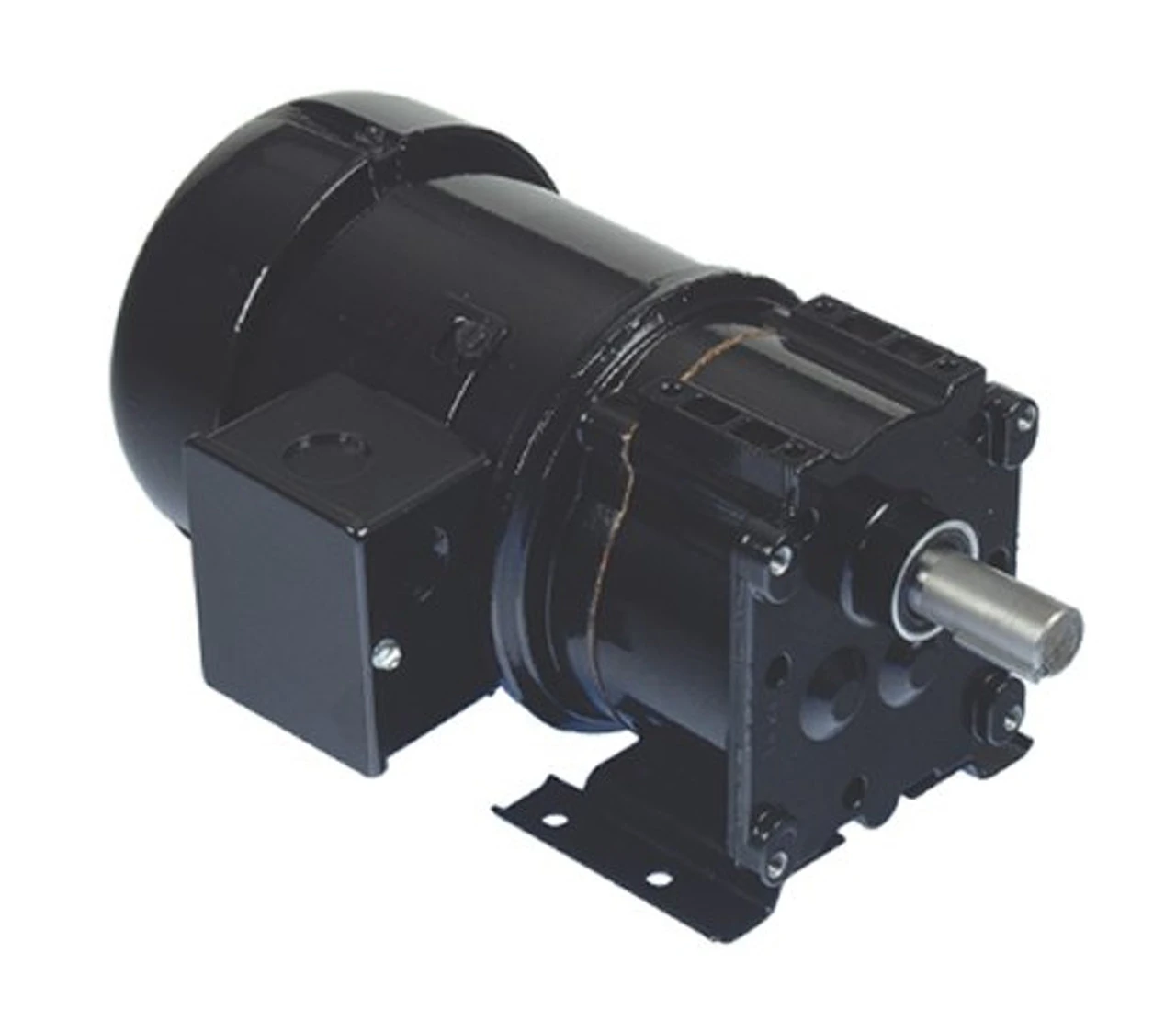

Bison 016-200-8100 Gear Motor 1/15 Hp 15 RPM 115/230V 60 HZ.
Bison 016-200-8100 Gear Motor 1/15 Hp 15 RPM 115/230V 60 HZ. - Image 2
Bison 016-200-8100 Gear Motor 1/15 Hp 15 RPM 115/230V 60 HZ. -MotorHub Shop 200AC 1 15 draw lg 45593.1435082375

Bison 016-200-8100 Gear Motor 1/15 Hp 15 RPM 115/230V 60 HZ.

$392.00 Original price was: $392.00.$96.99Current price is: $96.99.

Buy Now
SKU: ZWXLY 1698664379 Categories: Bison Gear Motors, Electric Motors Tag: Bison Gear Motors
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 200 Series AC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
  • Torque 202 inch pounds; Over Hung lbs. = 175
  • Rotation = Reversible
  • 1/15 hp 15 RPM, 1.2/.63 amps, 115/230 VAC
  • TEFC Enclosure, Keyed Shaft, Ball Bearings

Motor Type: Permanent Split Capacitor. Gearhead Specifications: Precision machined die cast aluminum. Lubrication: Lifetime oil bath, sealed and gasketed. Shafts: Hardened steel. Mounting: Face (any angle) or footplate. Gearing: AGMA class 9 heat treated steel. 1st stage helical metal, balance spur metal. Bearings: Needle with thrust ball. Dayton Equivalent = 4Z518. One Year Manufacture Warranty. Opening motor voids the warranty.
