Home / Electric Motors / Bison Gear Motors
  • Bison 017-482-0029 Gear Motor 1/2 Hp 60 RPM 230/460V -MotorHub Shop 6Z399 20247.1435082439
  • Bison 016-200-8017 Gear Motor 1/15 Hp 97 RPM 115/230V 60 HZ. -MotorHub Shop 200 series lg 68161.1435082383
-71%
Bison 016-175-0025 Gear Motor 1/10 Hp 63 RPM 115V 60/50HZ.
Bison 016-175-0025 Gear Motor 1/10 Hp 63 RPM 115V 60/50HZ. - Image 2
Bison 016-175-0025 Gear Motor 1/10 Hp 63 RPM 115V 60/50HZ. - Image 3
Bison 016-175-0025 Gear Motor 1/10 Hp 63 RPM 115V 60/50HZ. -MotorHub Shop 175 series back 31816.1533815512

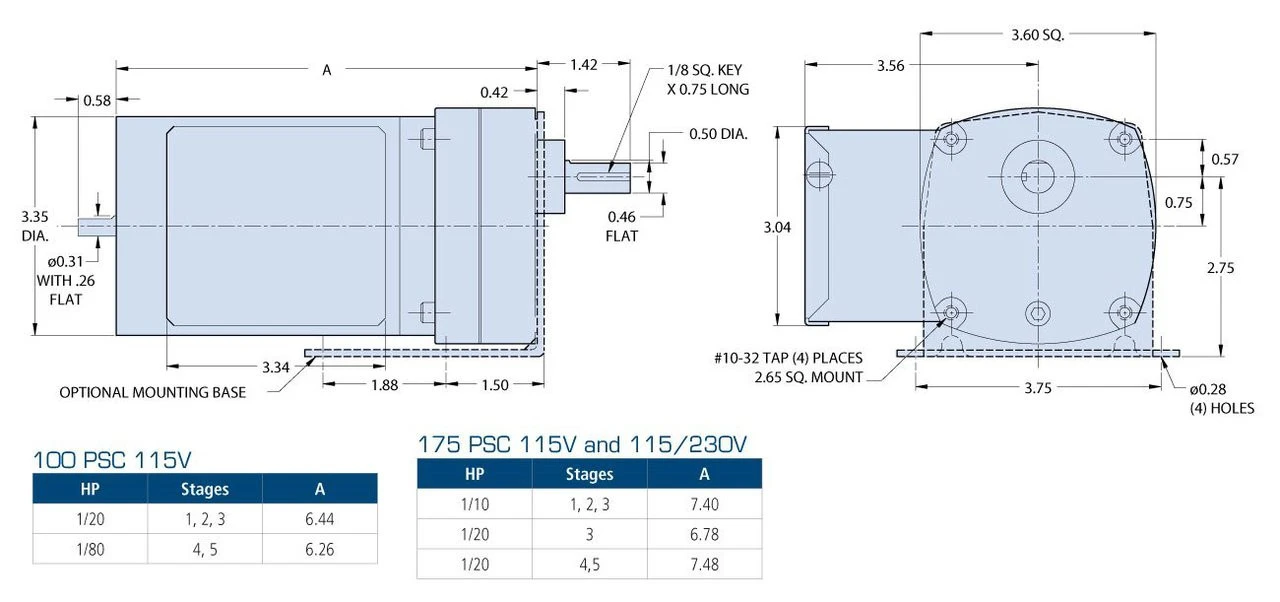

Bison 016-175-0025 Gear Motor 1/10 Hp 63 RPM 115V 60/50HZ. -MotorHub Shop 100AC 1 20 draw lg 12587.1435082363

Bison 016-175-0025 Gear Motor 1/10 Hp 63 RPM 115V 60/50HZ.

$330.00 Original price was: $330.00.$95.99Current price is: $95.99.

Buy Now
SKU: ZWXLY 1698664821 Categories: Bison Gear Motors, Electric Motors Tag: Bison Gear Motors
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 175 Series AC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
  • Torque 90 inch pounds; Over Hung lbs. = 230
  • Rotation = Reversible; Junction Box Included
  • 1/10 hp 63 RPM, 1.05 amps, 115 VAC
  • OPD Enclosure, Keyed Shaft, Ball Bearings

Gearhead Specifications: Housing: Precision machined die cast aluminum. Lubrication: Lifetime oil bath, sealed and gasketed. Shafts: Hardened steel. Mounting: Face (any angle) or optional footplate. Gearing: 1st stage helical metal, balance spur metal. Bearings: Needle bearings on output shaft. P125-100-9998 Optional Bison Gearmotor Mounting Bracket. One Year Manufacture Warranty. Opening motor voids the warranty.
