Home / Electric Motors / Bison Gear Motors
  • Bison 016-102-1369 Gear Motor 1/80 Hp 1.2 RPM 115V 60/50HZ. -MotorHub Shop 100 series 115v lg 46225.1435082313
  • Bison 011-175-0271 Gear Motor 1/20 Hp 6.6 RPM 90/130VDC -MotorHub Shop 100 series LG 44312.1435082522
-74%

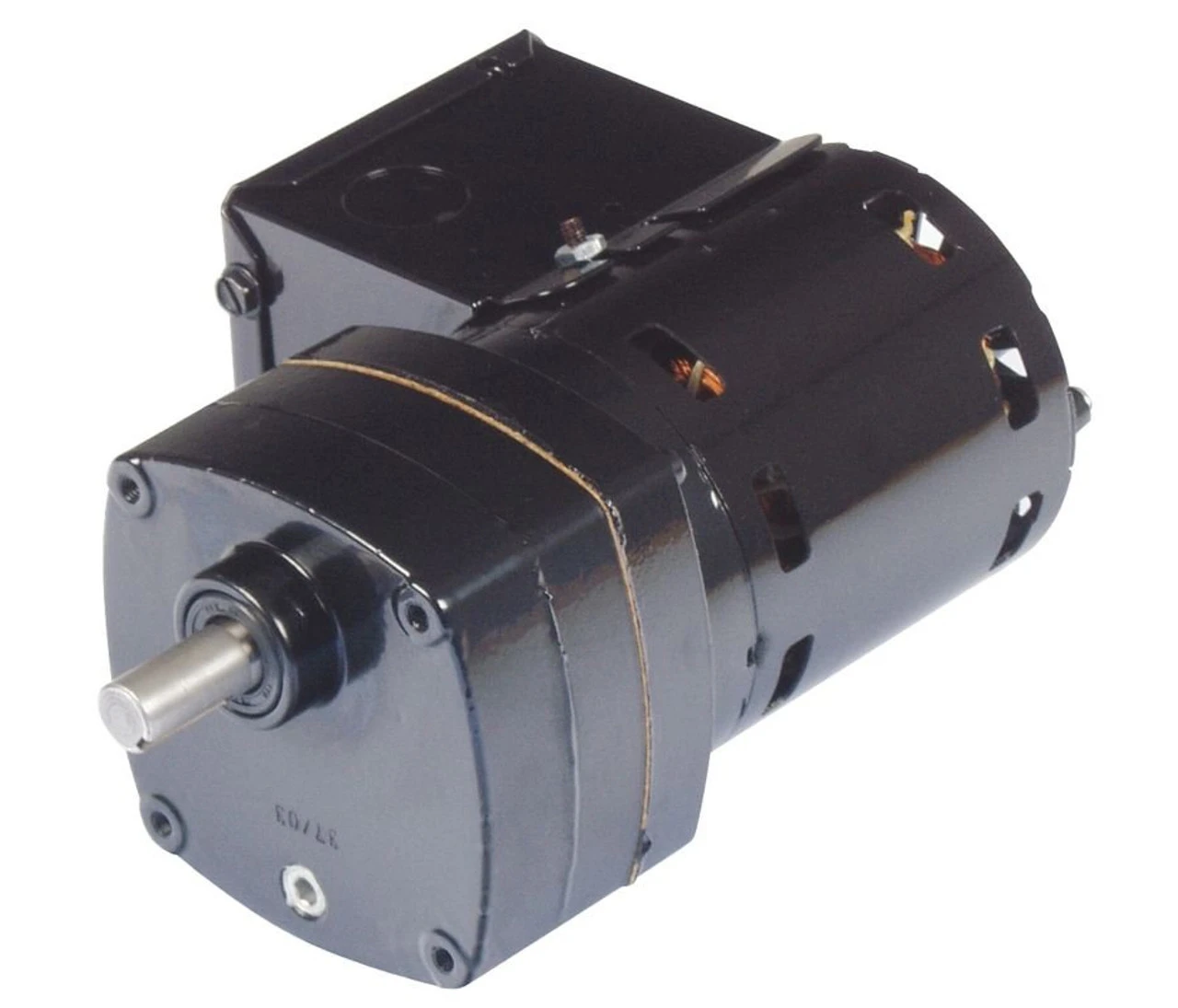

Bison 016-101-0037 Gear Motor 1/20 Hp 43 RPM 115V 60HZ.
Bison 016-101-0037 Gear Motor 1/20 Hp 43 RPM 115V 60HZ. - Image 2
Bison 016-101-0037 Gear Motor 1/20 Hp 43 RPM 115V 60HZ. - Image 3

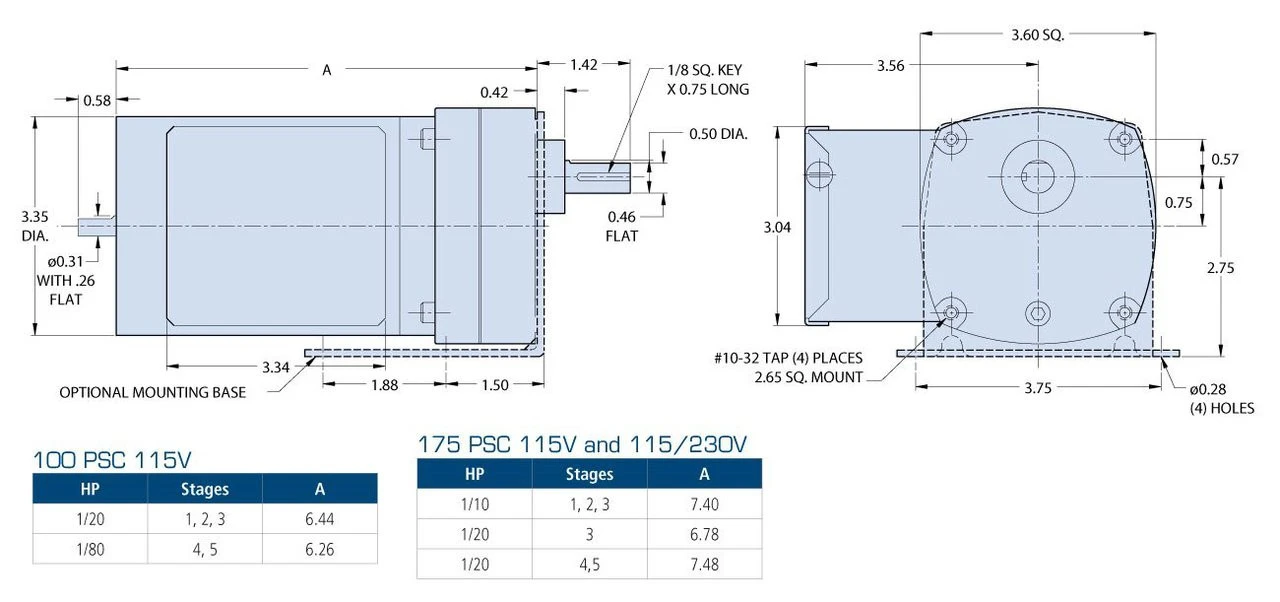

Bison 016-101-0037 Gear Motor 1/20 Hp 43 RPM 115V 60HZ. -MotorHub Shop 100AC 1 20 draw lg 94450.1435082332

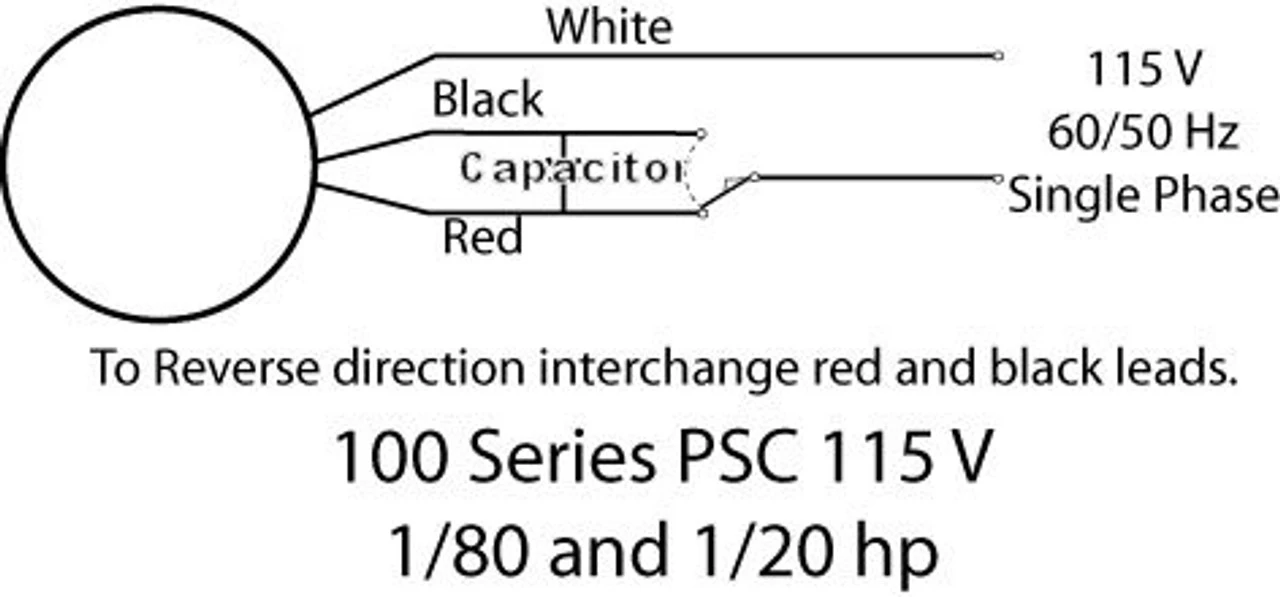

Bison 016-101-0037 Gear Motor 1/20 Hp 43 RPM 115V 60HZ. -MotorHub Shop 100series wire diag 06913.1435082332

Bison 016-101-0037 Gear Motor 1/20 Hp 43 RPM 115V 60HZ.

$389.55 Original price was: $389.55.$99.99Current price is: $99.99.

Buy Now
SKU: ZWXLY 1698664436 Categories: Bison Gear Motors, Electric Motors Tag: Bison Gear Motors
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 100 Series AC Parallel Shaft Gear Motor – Subject to factory availability-email or call for availability
  • Torque 62 inch pounds; Over Hung lbs. = 160
  • Rotation = Reversible; Junction Box Included
  • 1/20 hp 43 RPM, .62 amps, 115 VAC
  • TENV Enclosure, Keyed Shaft, Ball Bearings

Gearhead Specifications: Housing: Precision machined die cast aluminum. Lubrication: Lifetime oil bath, sealed and gasketed. Shafts: Hardened steel. Mounting: Face (any angle) or optional footplate. Gearing: 1st stage helical metal, balance spur metal. Bearings: Needle bearings on output shaft. P125-100-9998 Optional Bison Gearmotor Mounting Bracket. One Year Manufacture Warranty. Opening motor voids the warranty. Baldor equivilent GCP24134.

Reviews

There are no reviews yet.

Be the first to review “Bison 016-101-0037 Gear Motor 1/20 Hp 43 RPM 115V 60HZ.” Cancel reply
