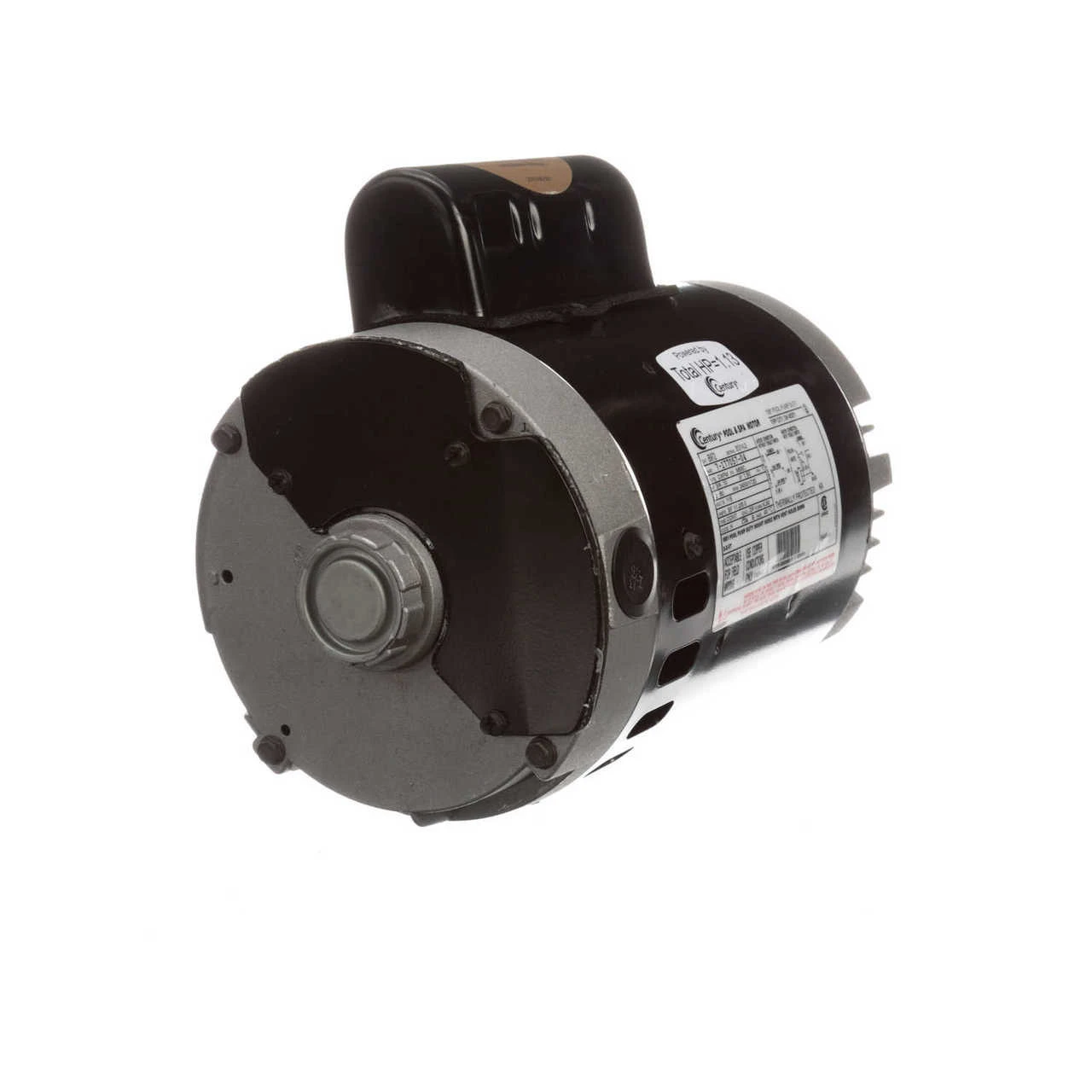

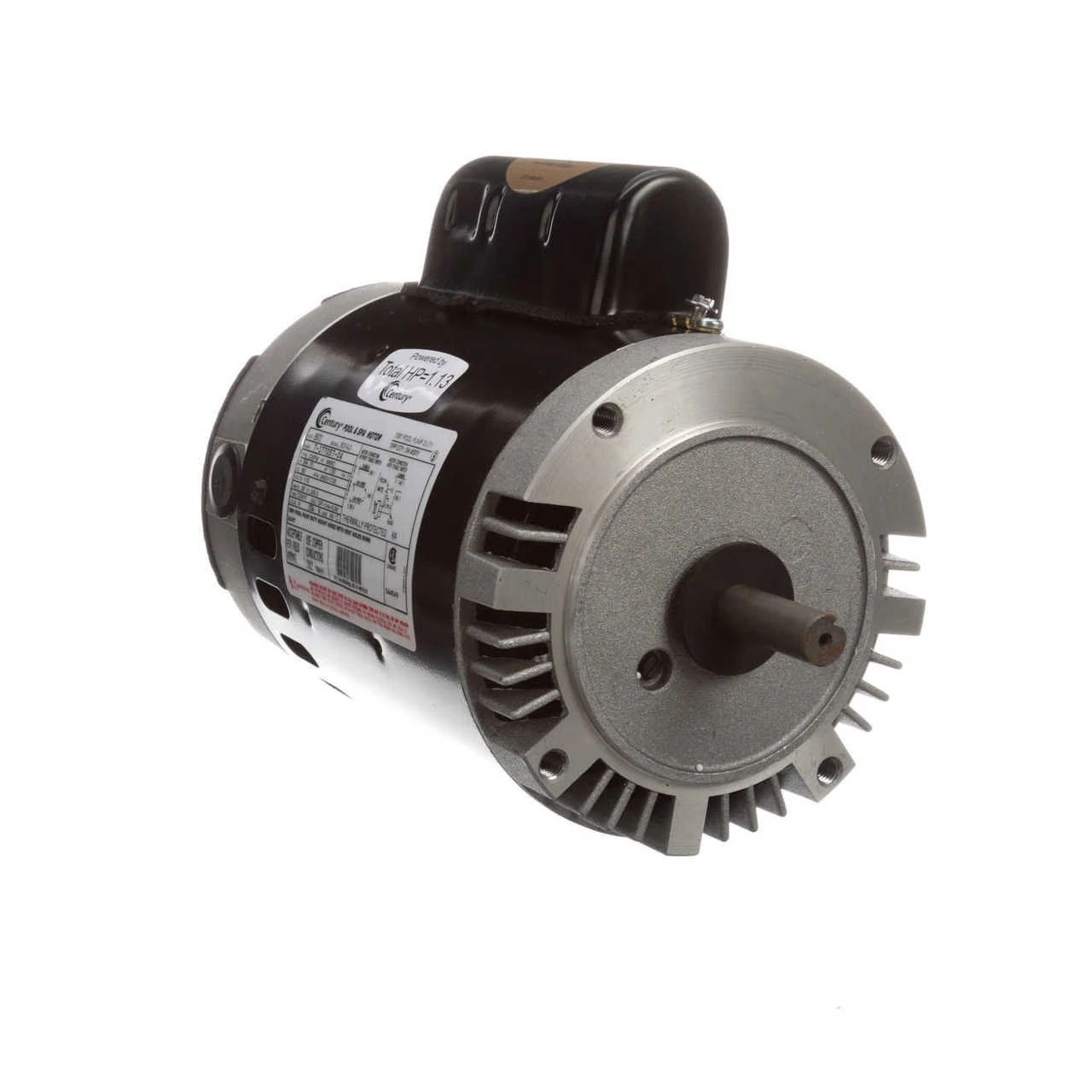

B972 Century 3/4 Hp 2-Speed 56C Frame 115V; 2 Speed Swimming Pool Motor Century # B972

Century 56C Full Rate, High Service Factor Pump Motor
Energy Efficient Two Speed Motor

• 3/4 HP 3450/1725 RPM – High/Low Speed
• 11.2/5.0 amps, 115V 60hz
• Automatic Overload Protection – Service Factor 1.50
• Non-Reversible – CCW Rotation facing the shaft
• 56C Frame size
• C-Face Mount, Round Body-no base
• 5/8″ diameter shaft with Keyway – Non Treaded
• 1 year warranty

Jet Pump and pool pump motor.
Sealed ball bearings.
Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Bolt holes are 5 7/8″ on center measured across the shaft.

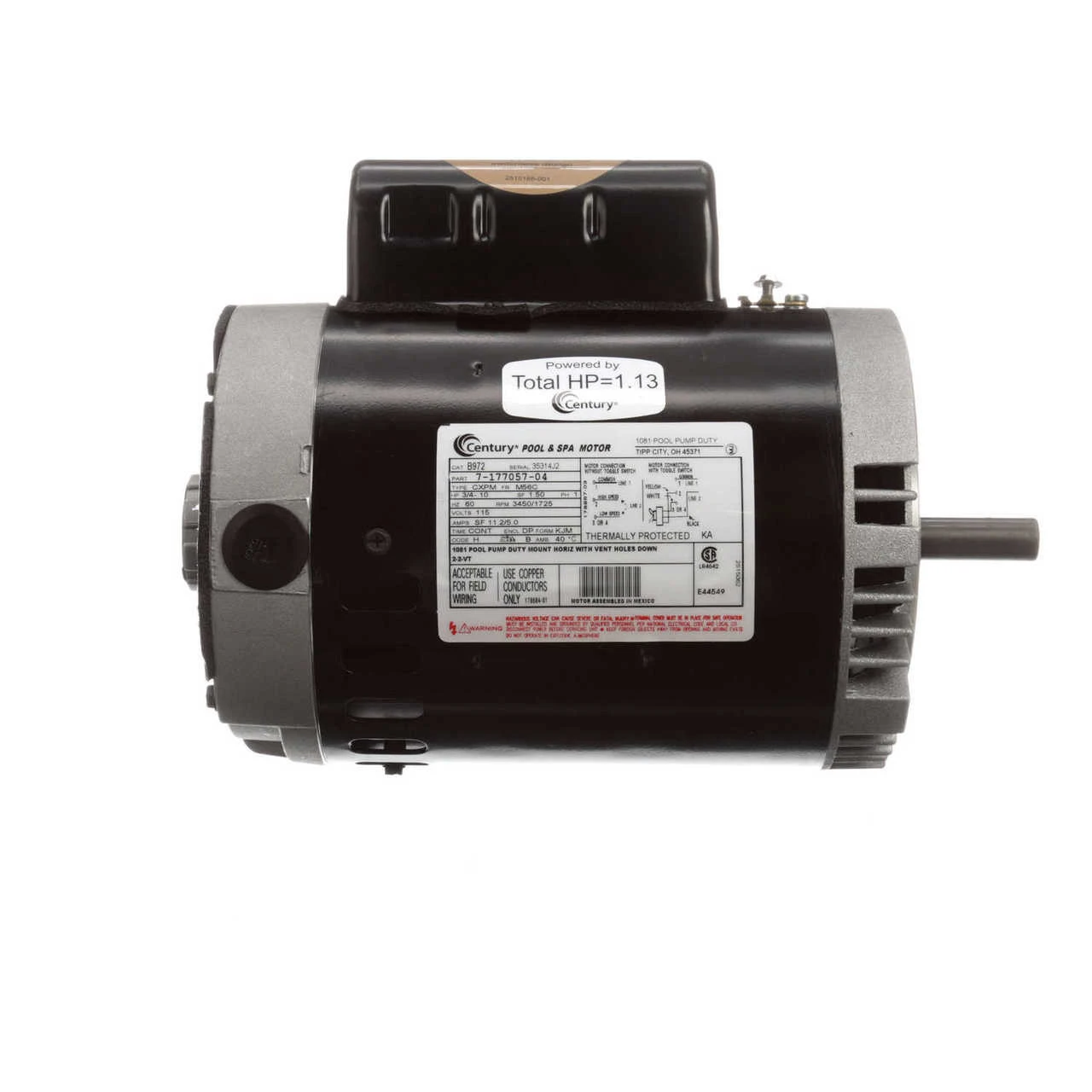

Wiring diagram on motor name plate.

Century Part No. 7-177057-04, 177057
