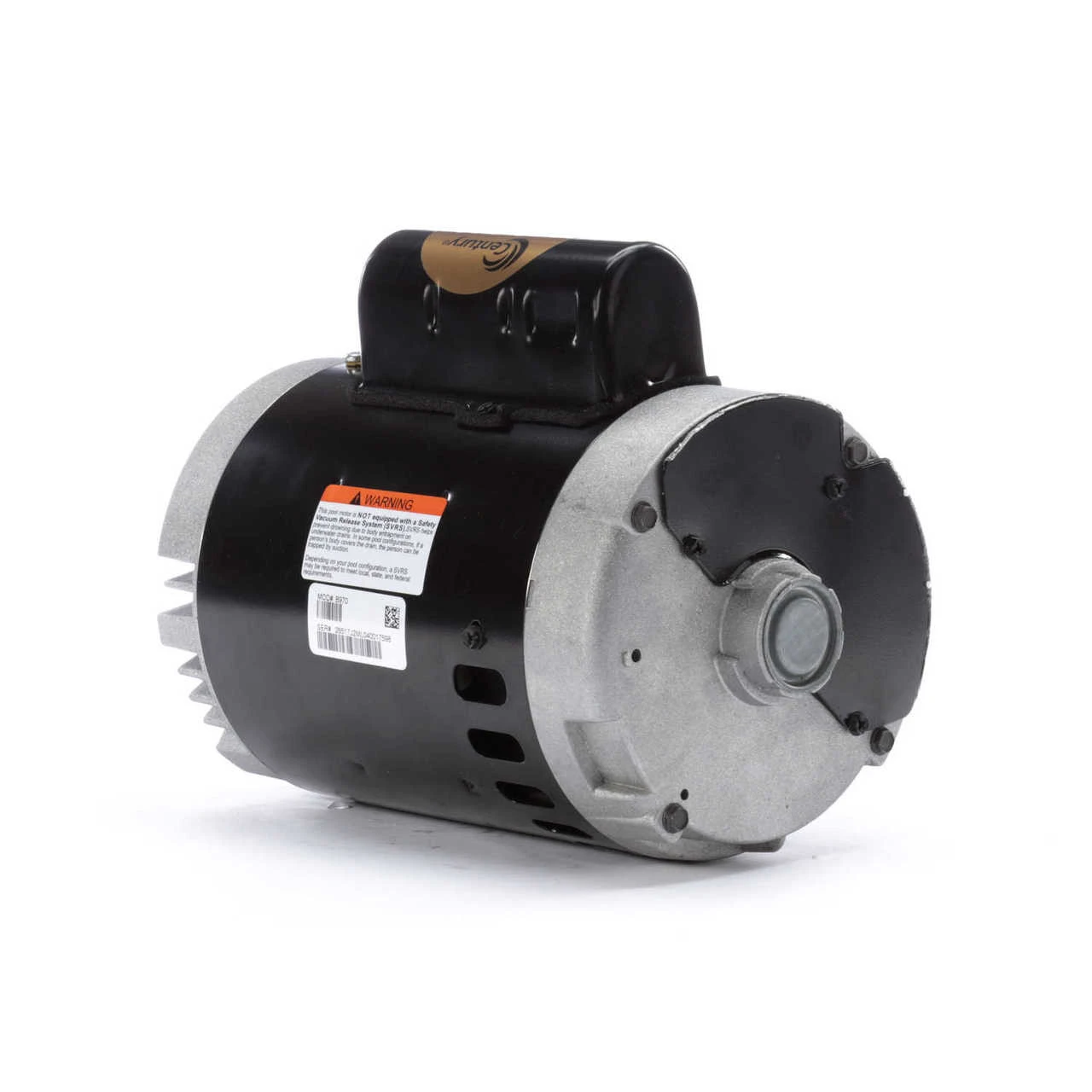

B970 Century 1/2 Hp 2-Speed 56C Frame 115V; 2 Speed Swimming Pool Motor Century # B970

Century 56C Full Rate, High Service Factor Pump Motor
Energy Efficient Two Speed Motor

• 1/2 HP 3450/1725 RPM – High/Low Speed
• 8.8/3.55 amps, 115V 60hz
• Automatic Overload Protection – Service Factor 1.6
• Non-Reversible – CCW Rotation facing the shaft
• 56C Frame size
• C-Face Mount, Round Body-no base
• 5/8″ diameter shaft with Keyway – Non Treaded
• 1 year warranty

Jet Pump and pool pump motor.
Sealed ball bearings.

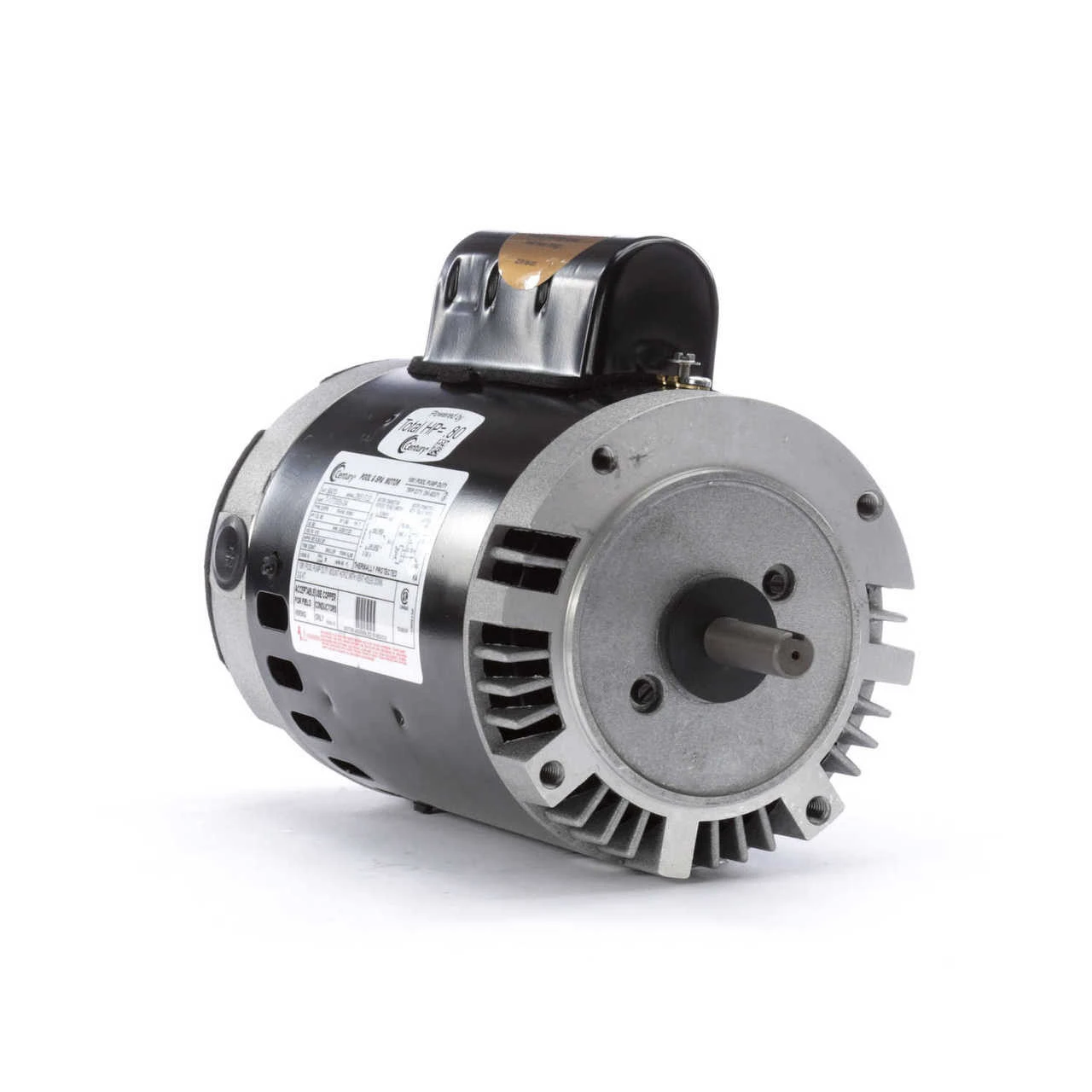

Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Bolt holes are 5 7/8″ on center measured across the shaft.

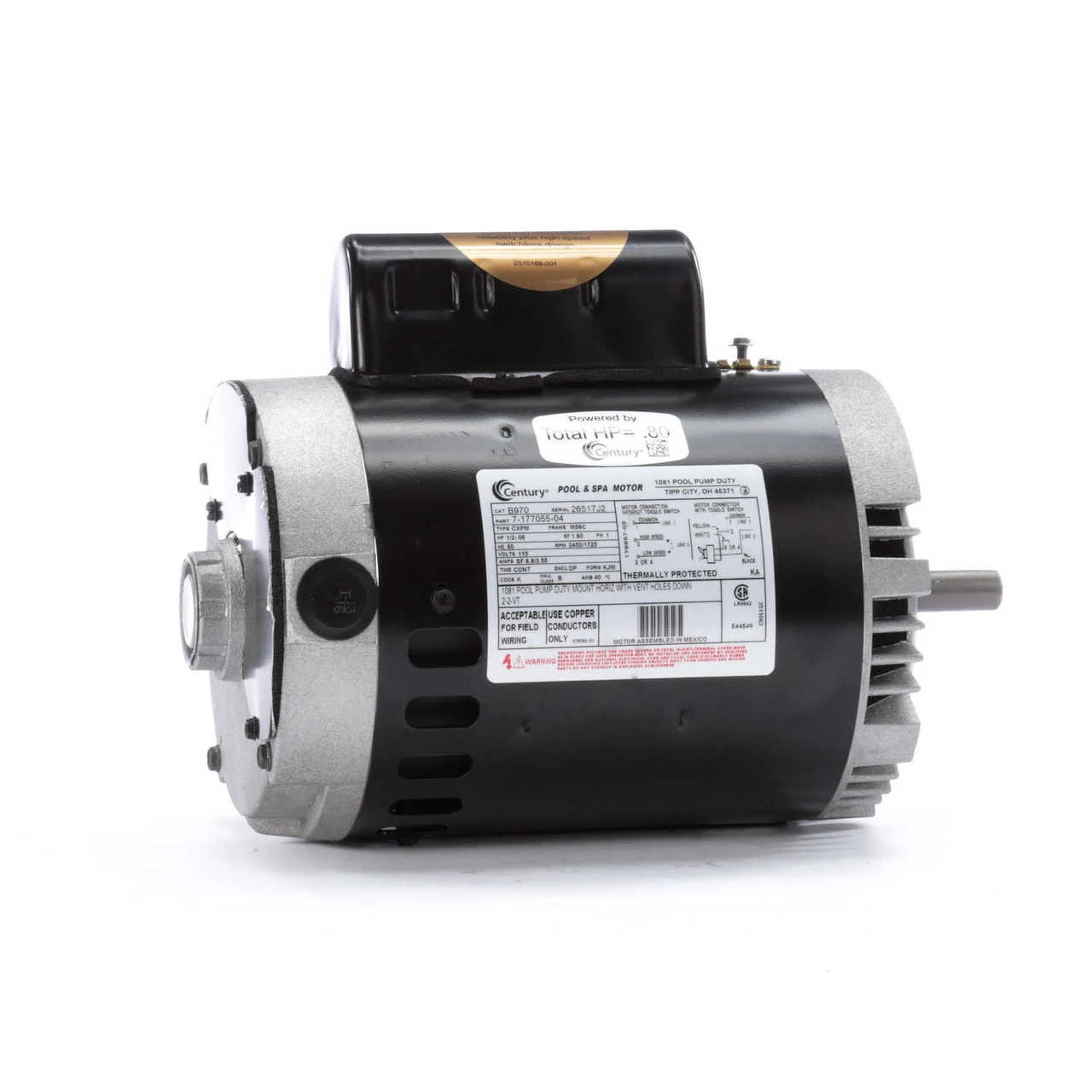

Wiring diagram on motor name plate.

Century Part No. 7-177055-04, 177055
