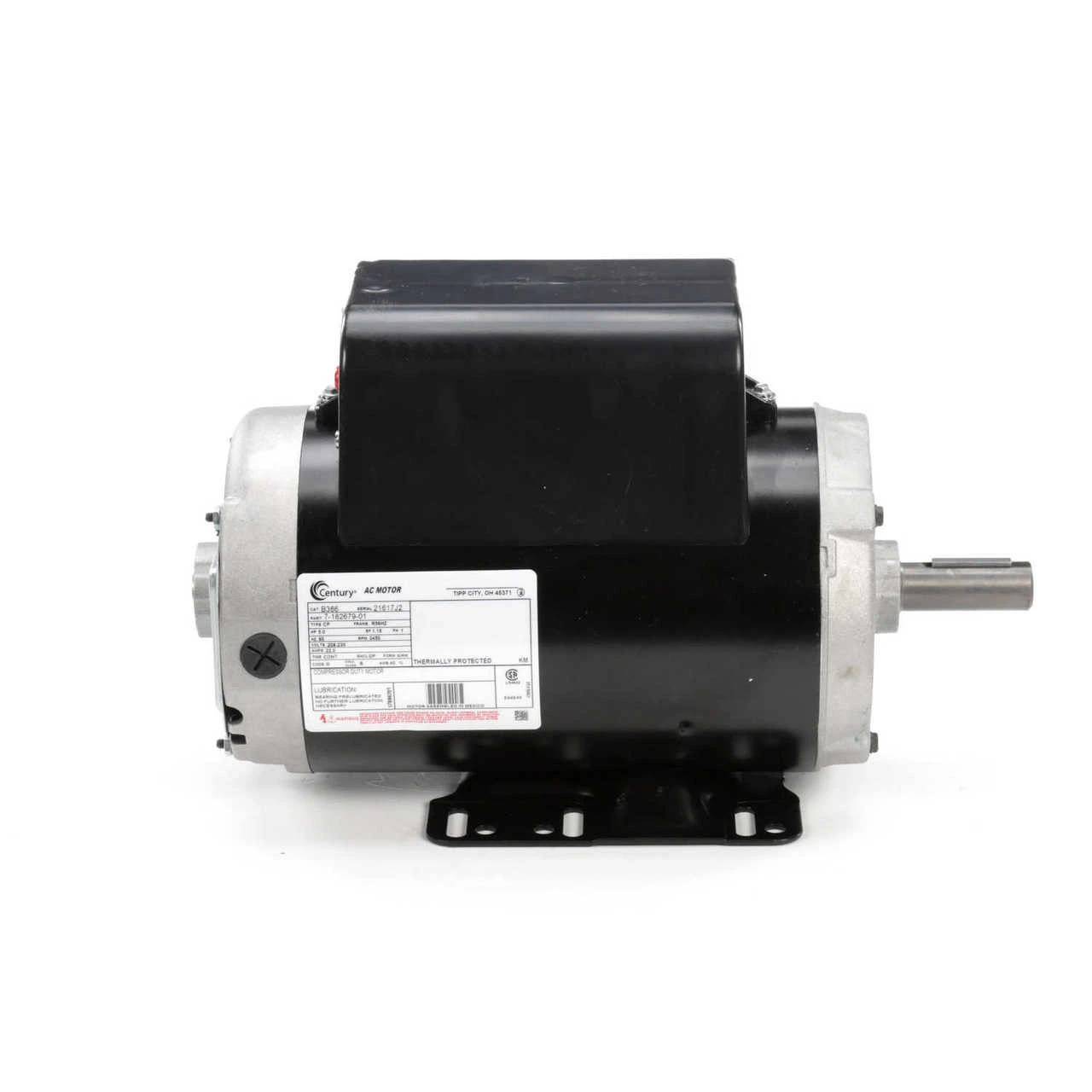

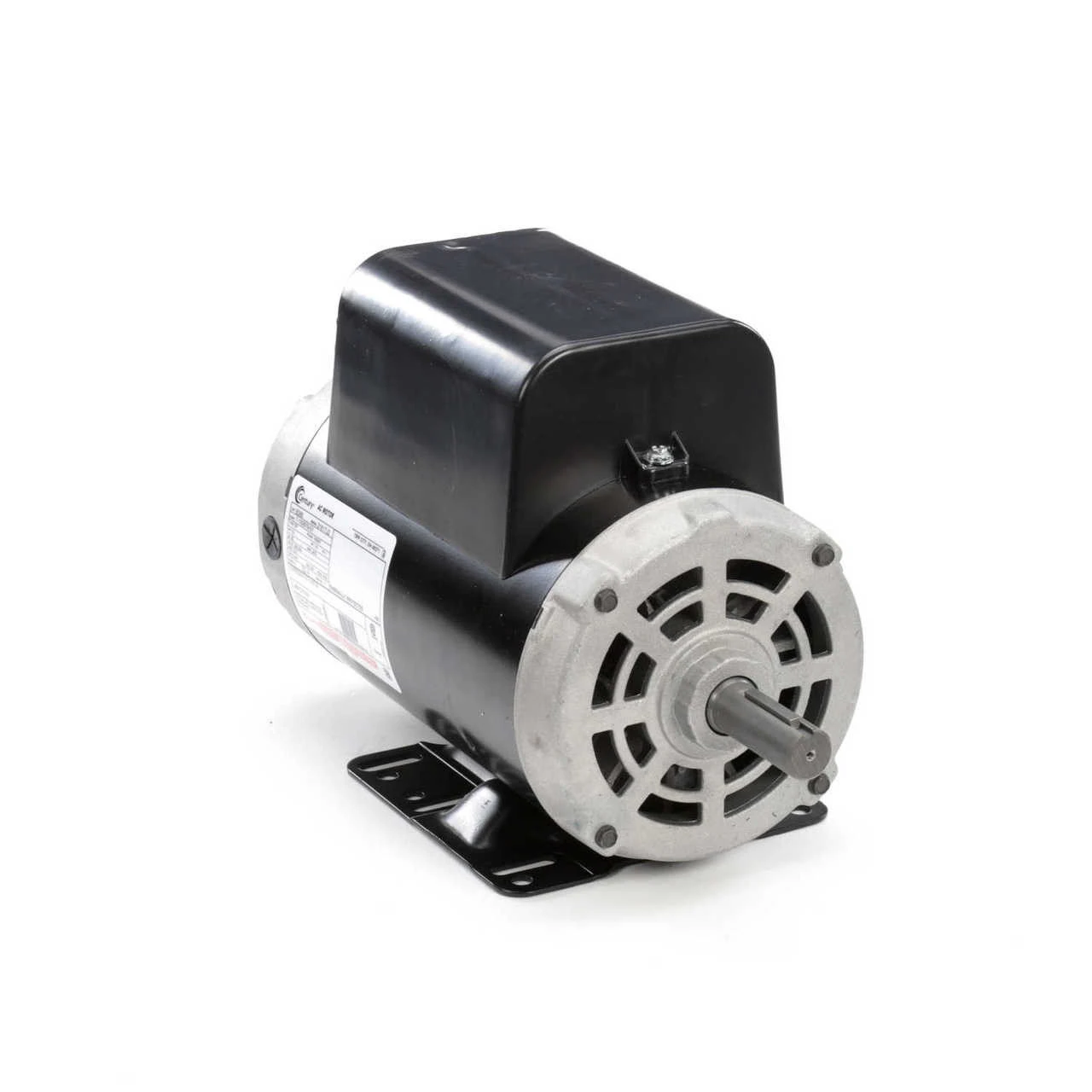

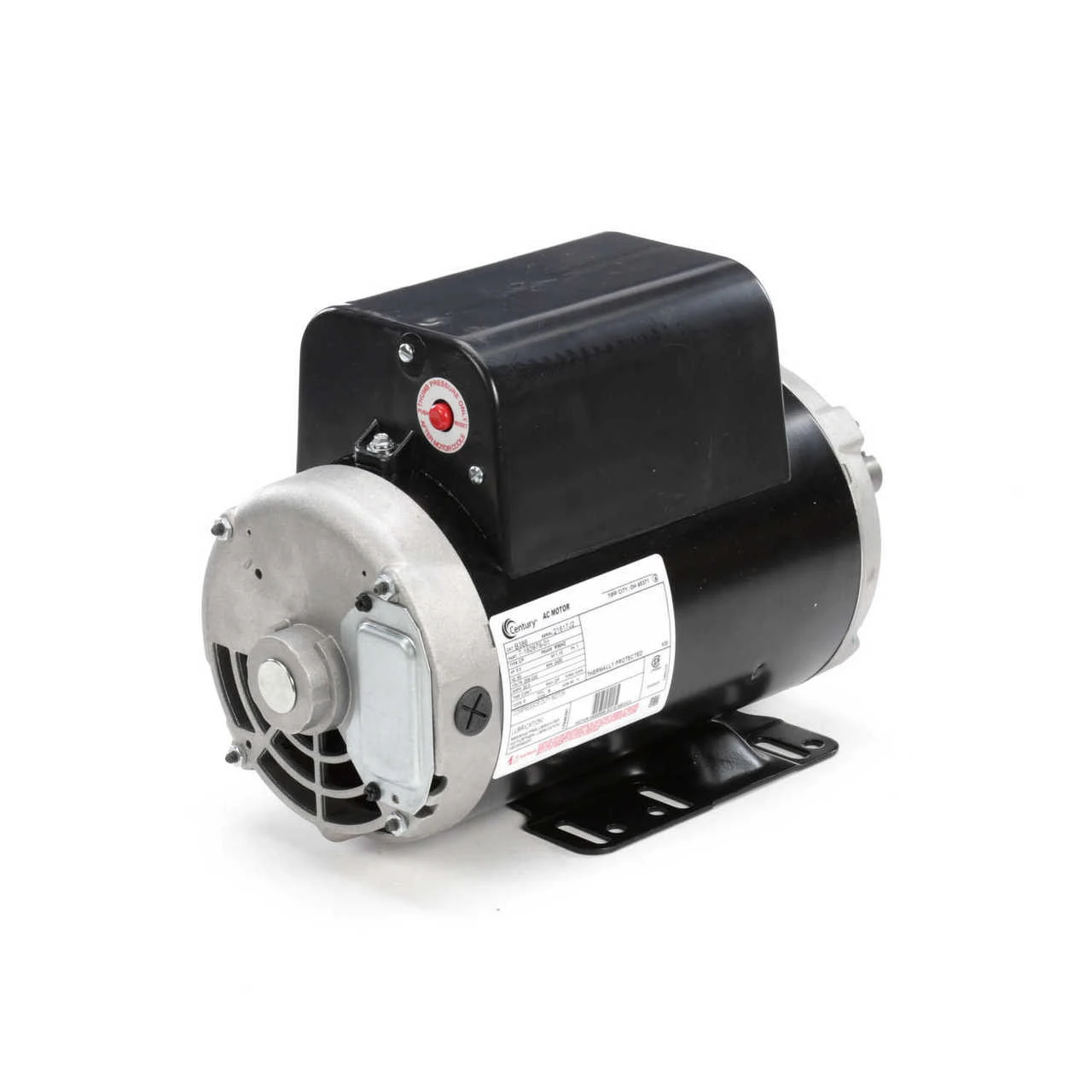

CENTURY AIR COMPRESSOR – 5 SPL HP – R56HZ Frame – REPLACEMENT MOTOR

5 HP SPL 3450 RPM, 22.0 amps, 208-230V 60hz
Open Drip Proof – Ball Bearings – Service Factor 1.15
Non-Reversible – CCW Rotation facing the shaft
R56HZ Frame – Shaft: 7/8″ diameter x 2 1/4″
Flat Rigid Base Mount
Manual Overload Protection

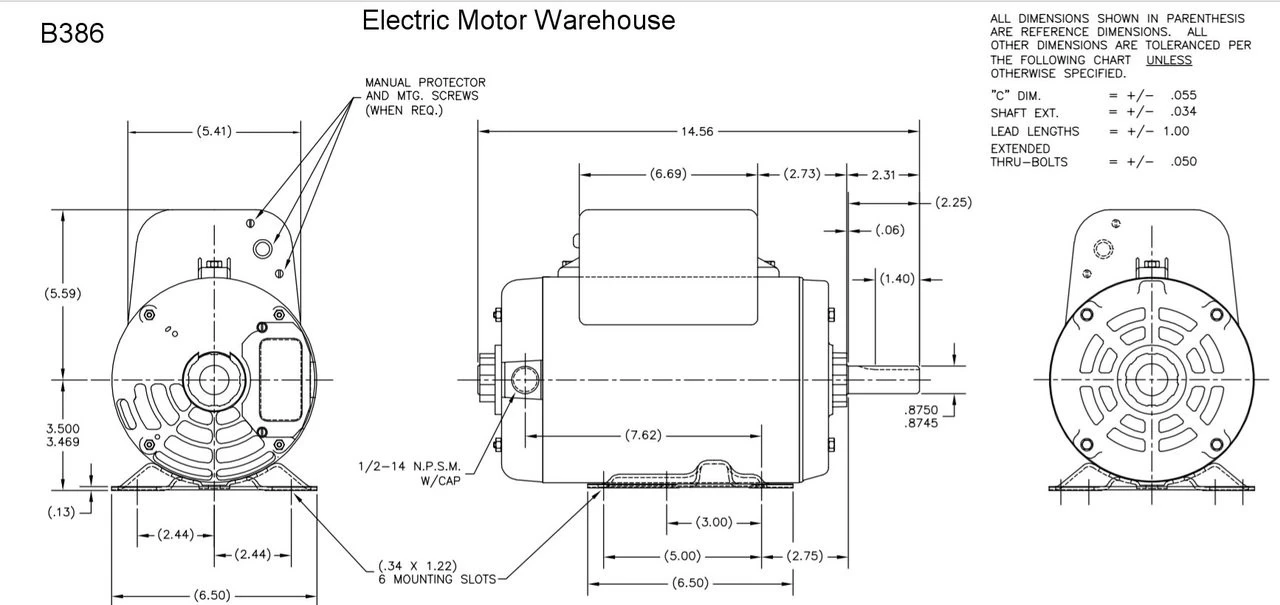

Overall motor length is 14.56″

Replacement compressor motor. Motor is designed to be used with a belt driven compressor. Not to be used where the motor is part of the compressor head. Not to be used where the mount is a pivot type mount. 56HZ frame is a non standard shaft. Shaft is 7/8″ diameter x 2 1/4″ with keyway. Shaft height to center of shaft is 3.5″ Rigid base mount is standard 56 frame, 3″ x 5″ bolt holes. Motor connection diagram is on motor name plate. Capacitor Start/Capacitor Run.

Century Part No. 7-182679-01, 182679
Dayton 48Y636
