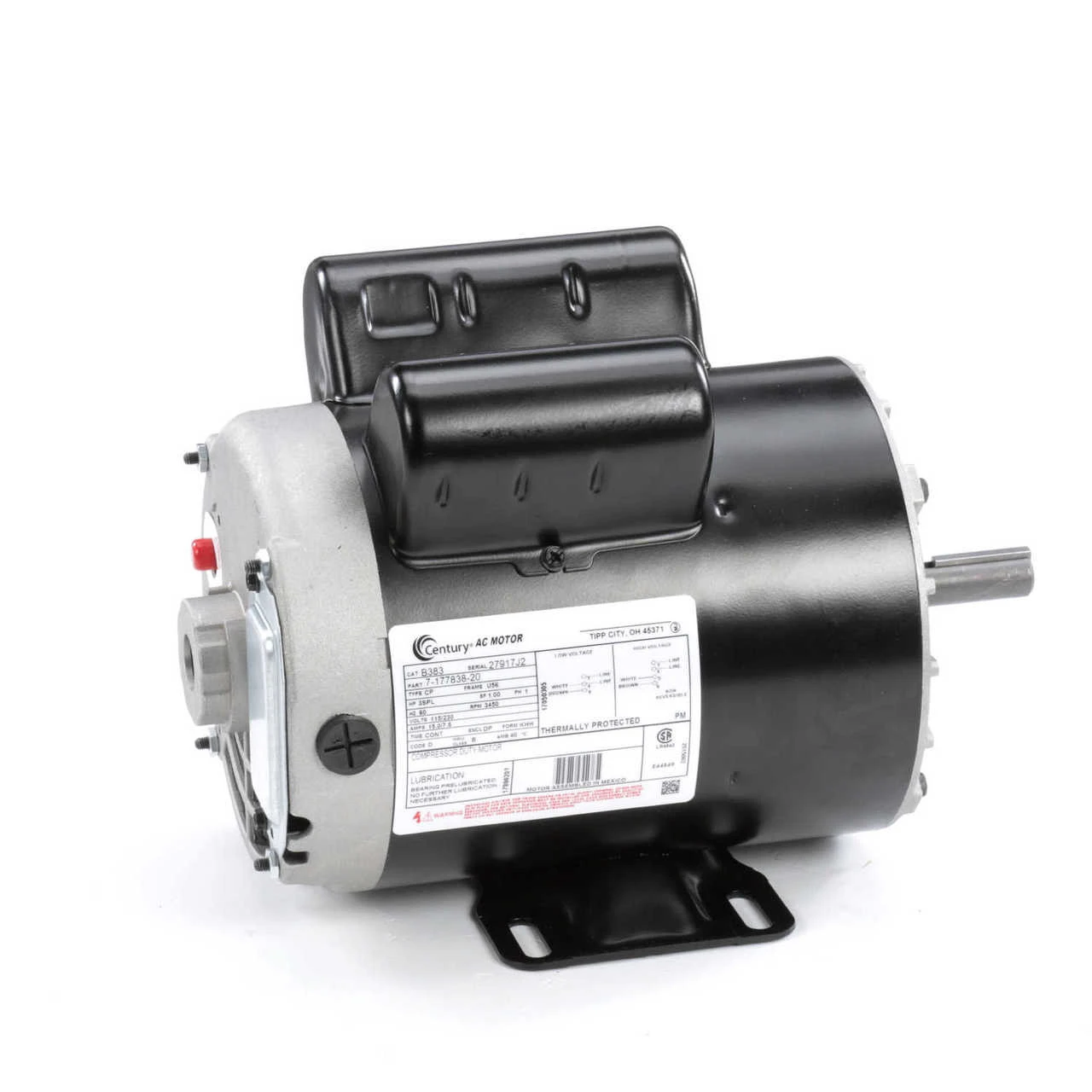

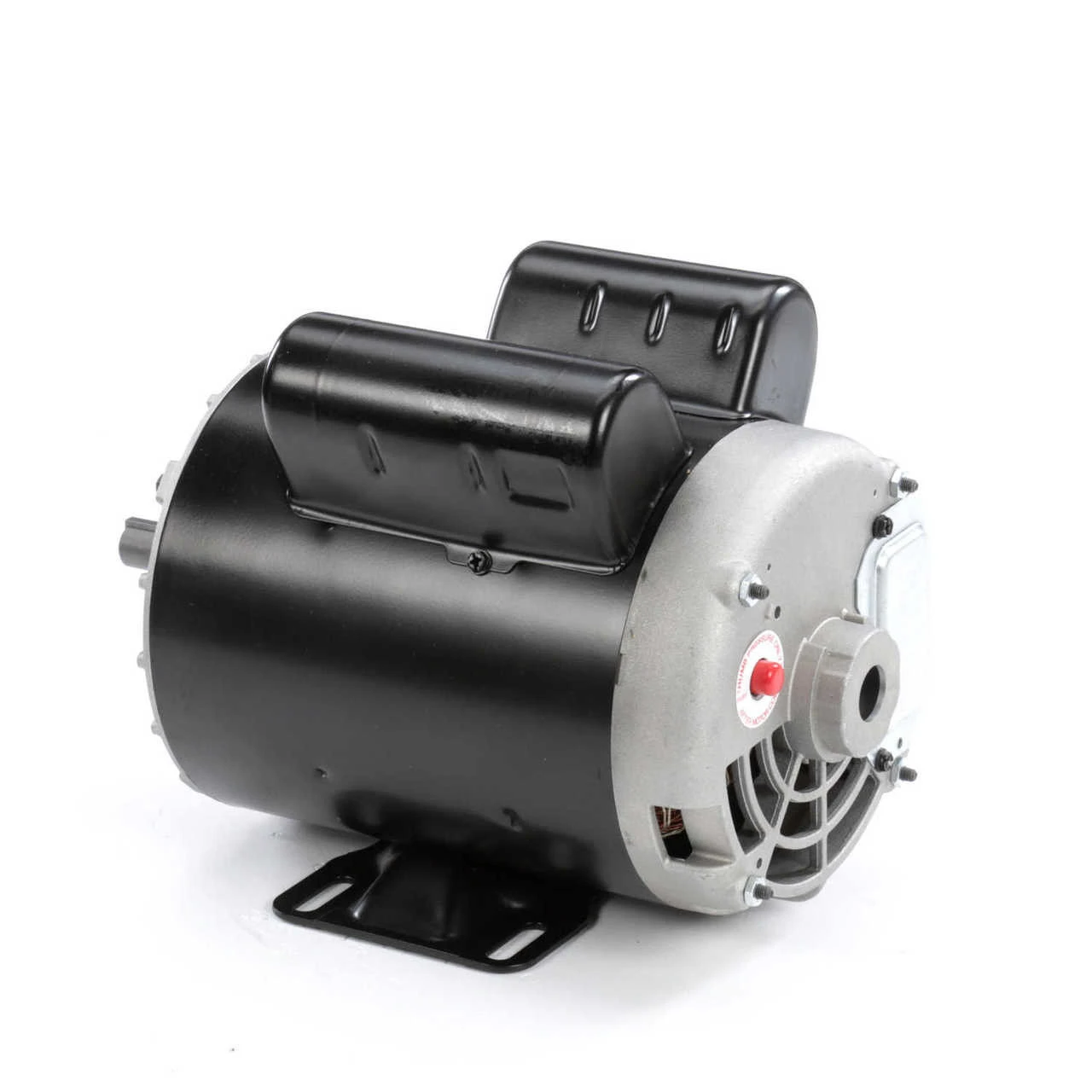

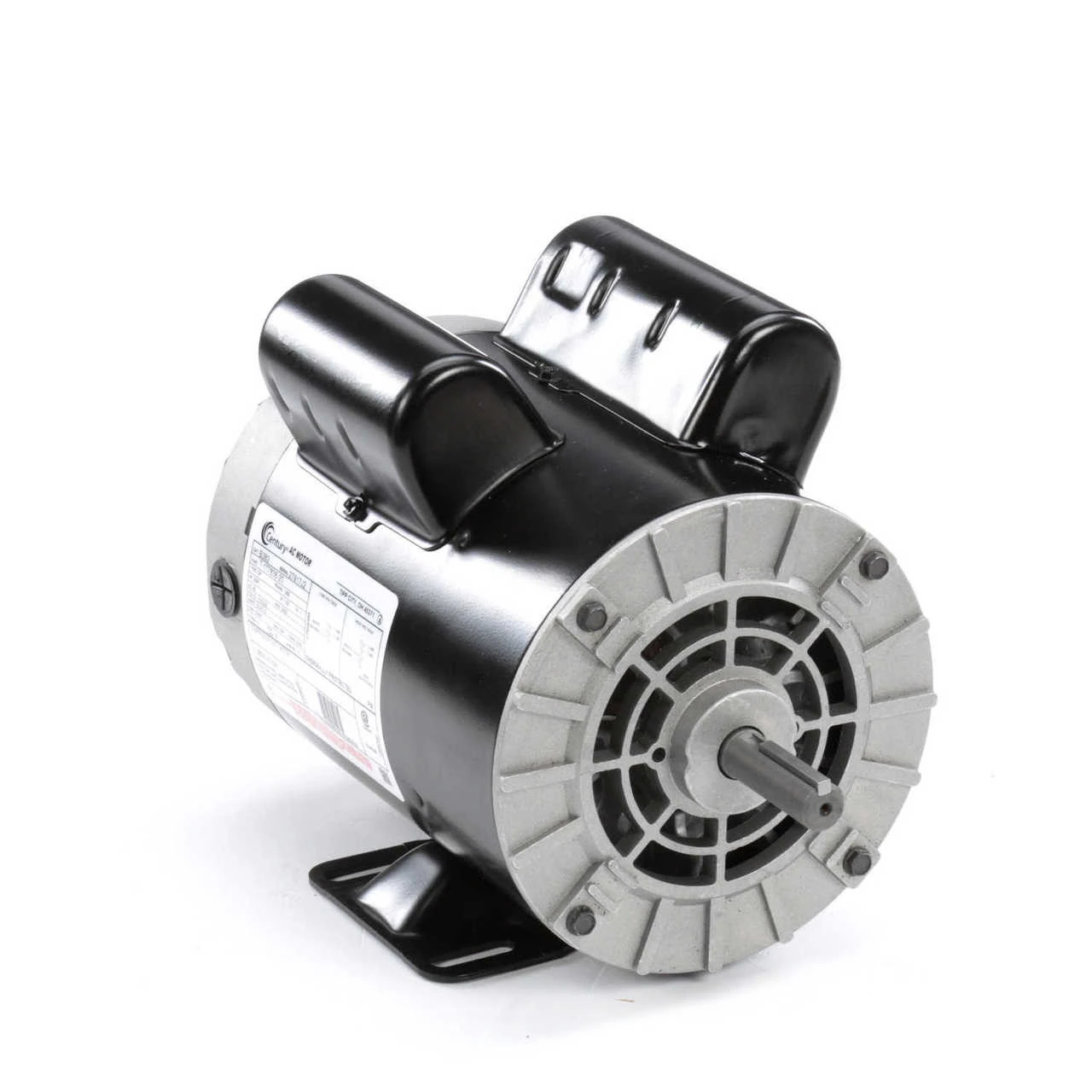

B383 Century 3 HP SPL 3450 RPM U56 Frame 115/230V Air Compressor Motor – Century # B383

Original price was: $373.70.Current price is: $98.99.

Protect Your Information, Shop with Safe Payments

Buy quality, buy with us.

Efficiency meets excellence in customer care.

Top-Notch Quality

CENTURY AIR COMPRESSOR 3 SPL HP REPLACEMENT MOTOR

3 HP SPL 3450 RPM, 15.0/7.5 amps, 115/230V 60hz.
Open Drip Proof – Ball Bearings – Service Factor 1.0
Non-Reversible – CCW Rotation facing the shaft

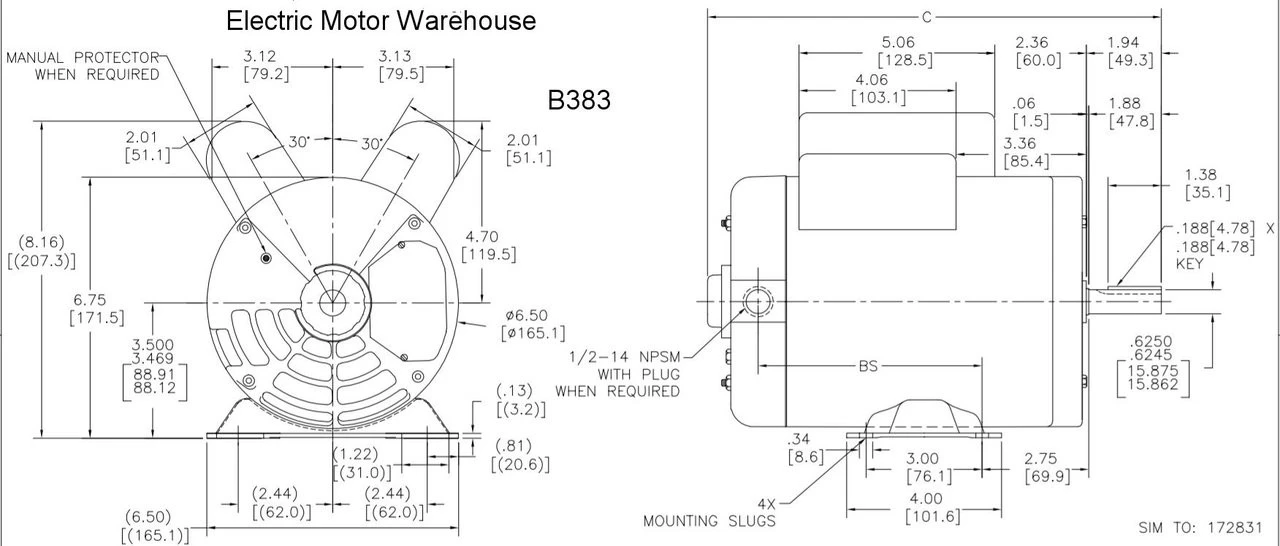

U56 Frame; NEMA 56 Frame – Flat Rigid base mount
Shaft: 5/8″ diameter x 1 7/8″
Overall motor length 11.59″

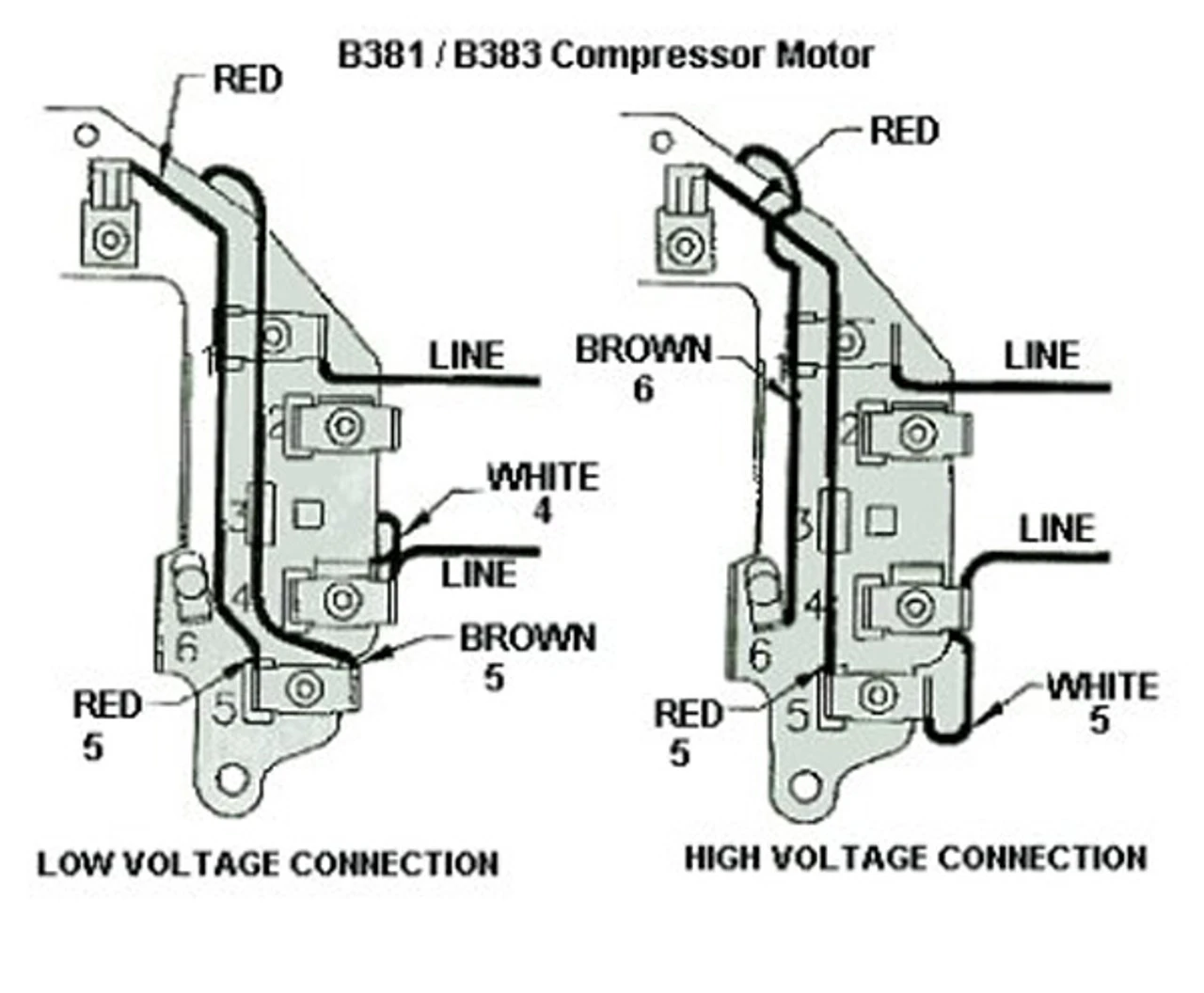

This replacement compressor motor is commonly used on the small “home/shop” air compressors. The motor is designed to be used with a belt driven compressor. Not to be used where the motor is part of the compressor head. 56 Frame motor has a standard 3″ x 5″ bolt mounting pattern. Horsepower is designated as SPL. Not to be used where the mount is a pivot type mount. Motor connection diagram on motor name plate. Capacitor Start/Capacitor Run.

Century Part No. 7-177838-20, 177838
Dayton 48Y359
