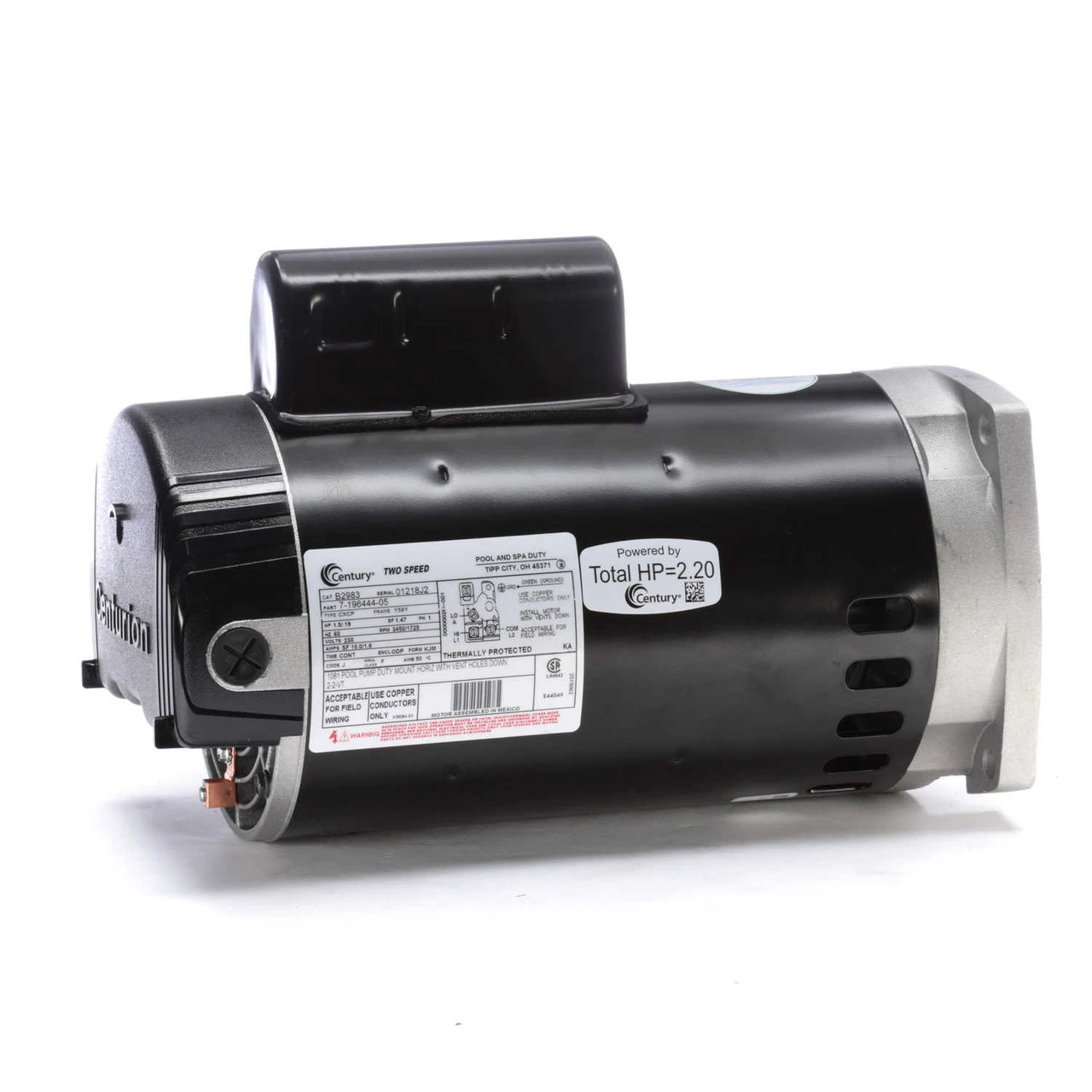

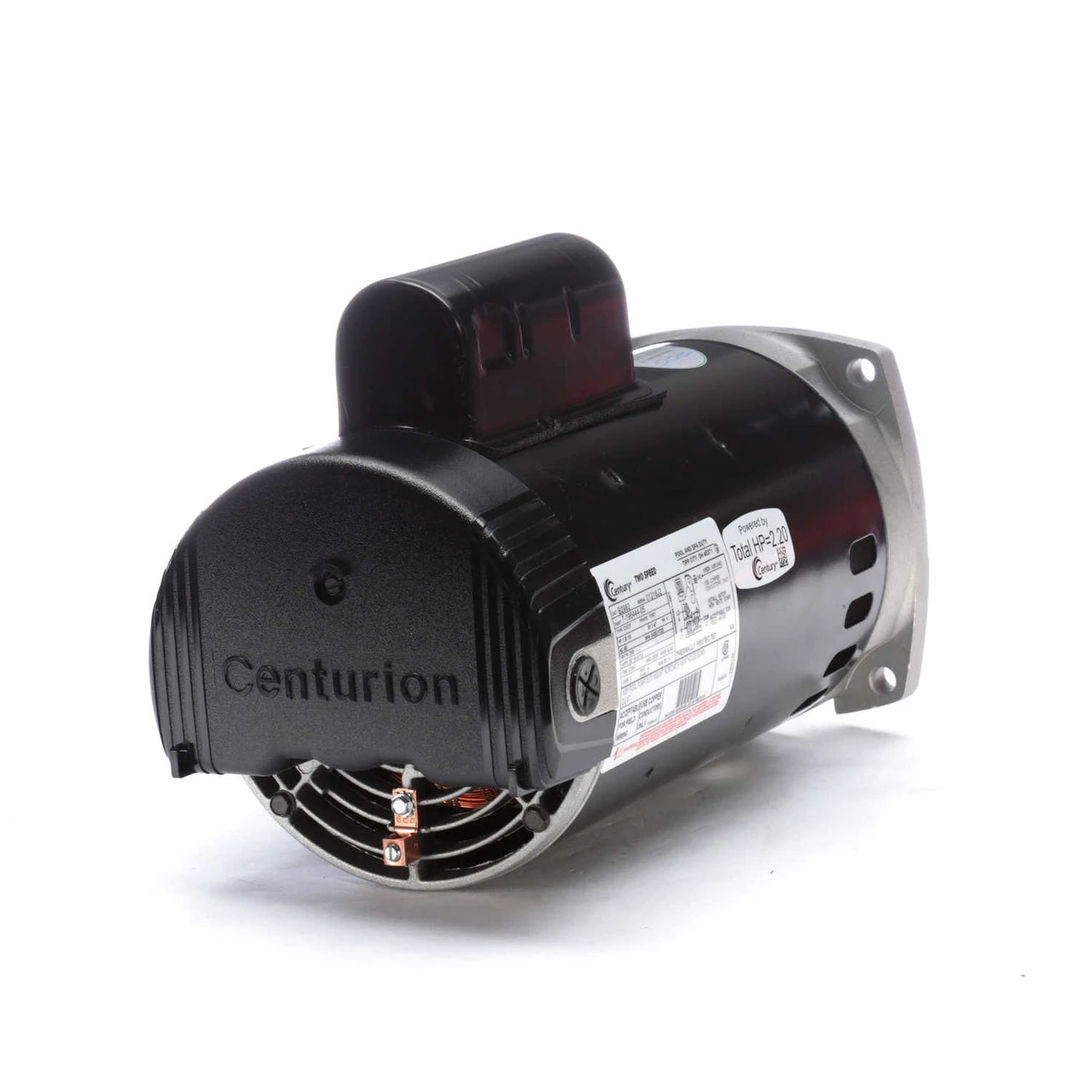

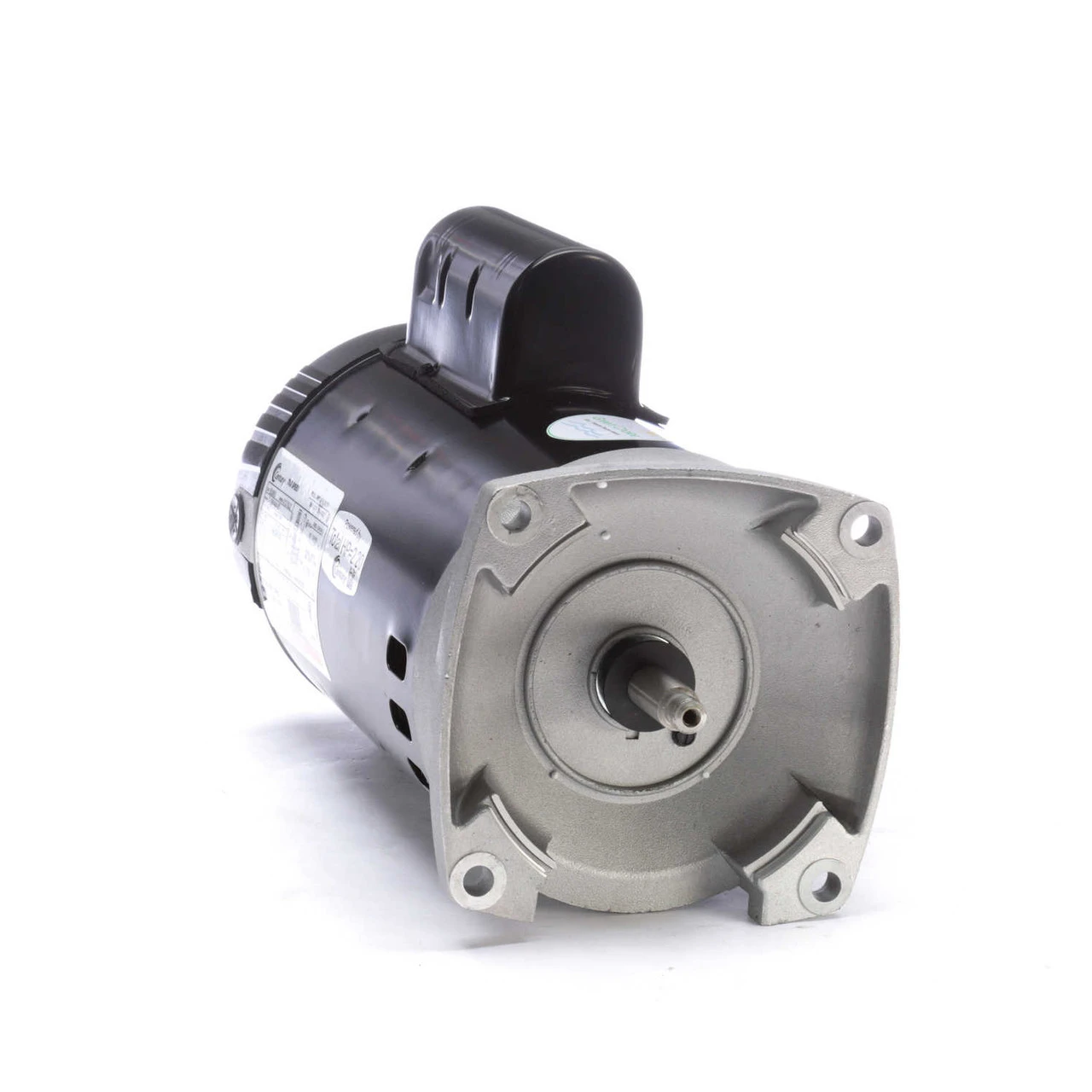

B2983 Century 1.5 Hp 2-Speed 56Y Frame 230V Square Flange Pool Motor Century # B2983

Centurion® Century 56Y Square Flange – 2 Speed Energy Efficient

• 1.5 HP 3450/1725 RPM – High/Low Speed
• 10.0/1.6 amps, 230 Volts, Single Phase, 60hz
• Automatic Overload Protection – Service Factor 1.47
• Energy Efficient High and Low Speed
• Non-Reversible – CCW Rotation facing the shaft
• Open Drip Proof – Ball Bearings
• 5/8″ diameter threaded stainless steel shaft
• Meets California Energy Commission Appliance Regulations 2008

Does Not come with power cord or High/Low toggle switch

Square Flange replacement inground pool pump motor. This is a 2 speed motor. Motor fits many in ground pool pumps such as PacFab Challenger, Whisperflo, Pentair
Wiring diagram on motor name plate
1 year warranty

Replaces Century B983
Century Part No. 7-196444-05, 196444
US Electric Equivalent EB983
