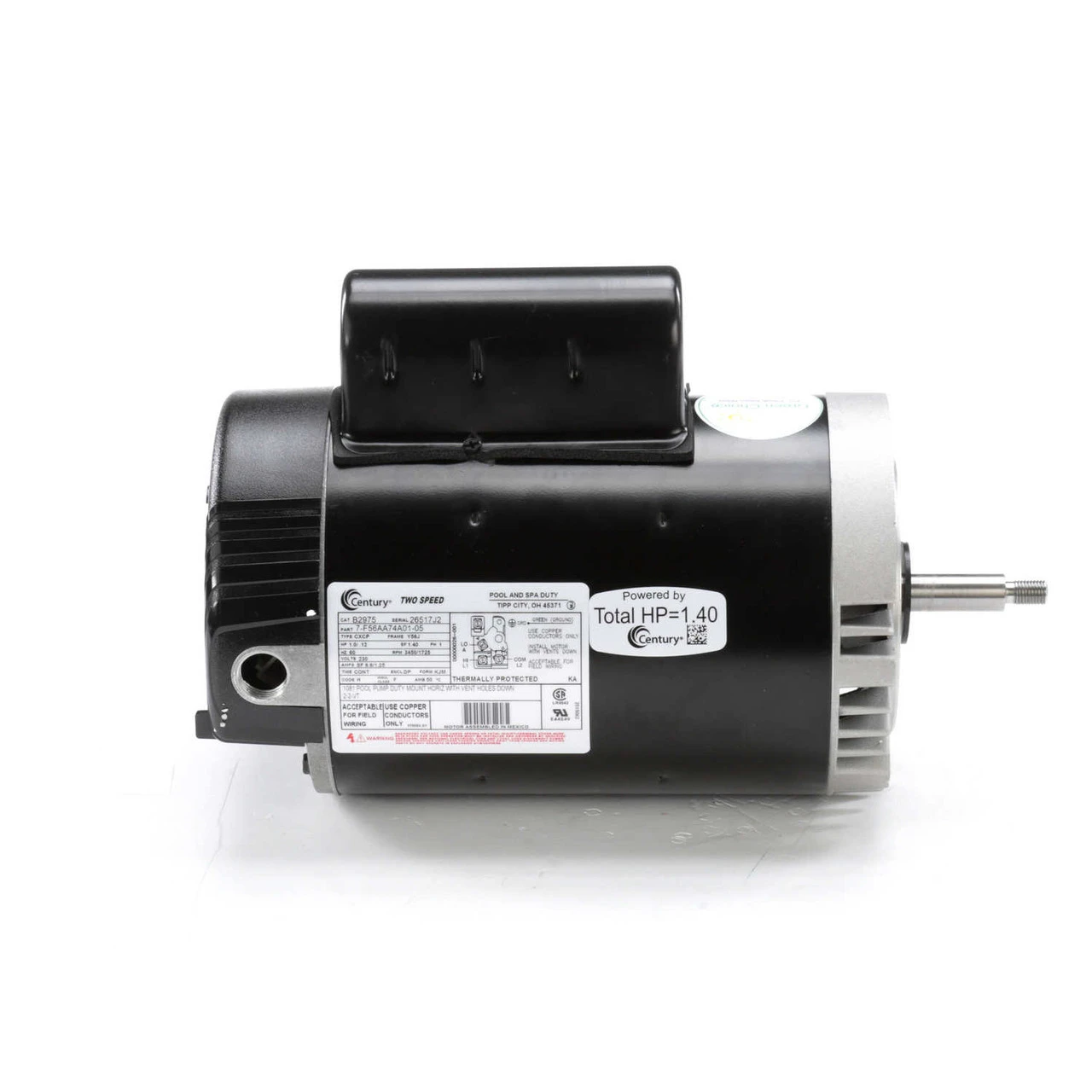

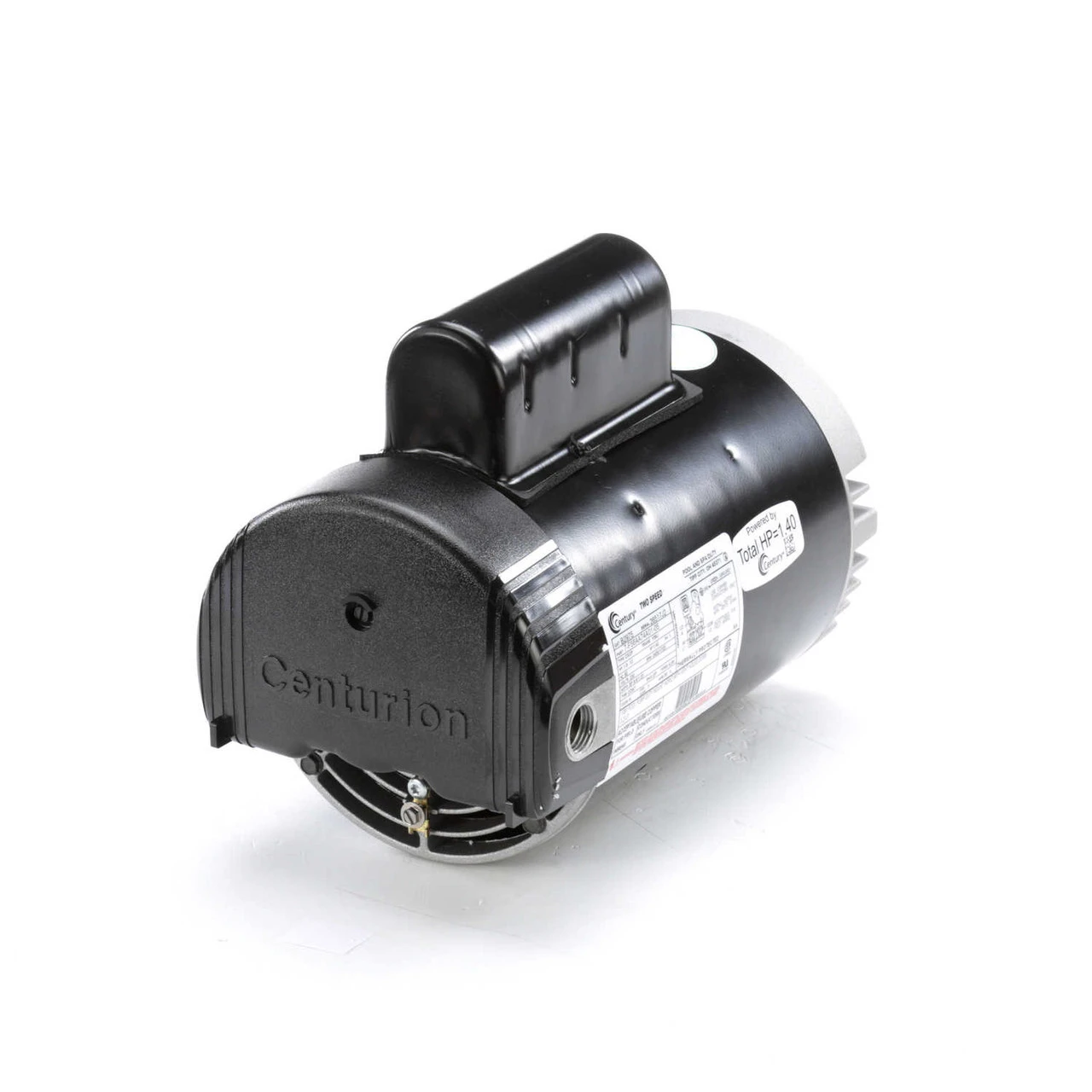

B2975 Century 1 Hp 2-Speed 56J Frame 230V; 2 Speed Swimming Pool Motor Century # B2975

Original price was: $317.00.Current price is: $95.99.

Protect Your Information, Shop with Safe Payments

Buy quality, buy with us.

Efficiency meets excellence in customer care.

Top-Notch Quality

Century 56J Full Rate, High Service Factor Pump Motor
Energy Efficient Two Speed Motor

1 HP 3450/1725 RPM – High/Low Speed
6.6/1.5 amps, 230 Volts, Single Phase, 60hz
Automatic Overload Protection – Service Factor 1.25
Energy Efficient High and Low Speed
Non-Reversible – CCW Rotation facing the shaft
Open Drip Proof – Ball Bearings
5/8″ diameter threaded stainless steel shaft
Meets California Energy Commission Appliance Regulations 2008

Does Not come with power cord or High/Low toggle switch

Swimming pool pump motor. Commonly found on inground pool pumps such as Hayward Super Pump, Maxflo, Super II and many other pumps requiring a 56J frame motor.
Century motors are found on most swimming pool pumps. Standard 1081 pump duty motor. Stainless steel shaft. Sealed ball bearings.

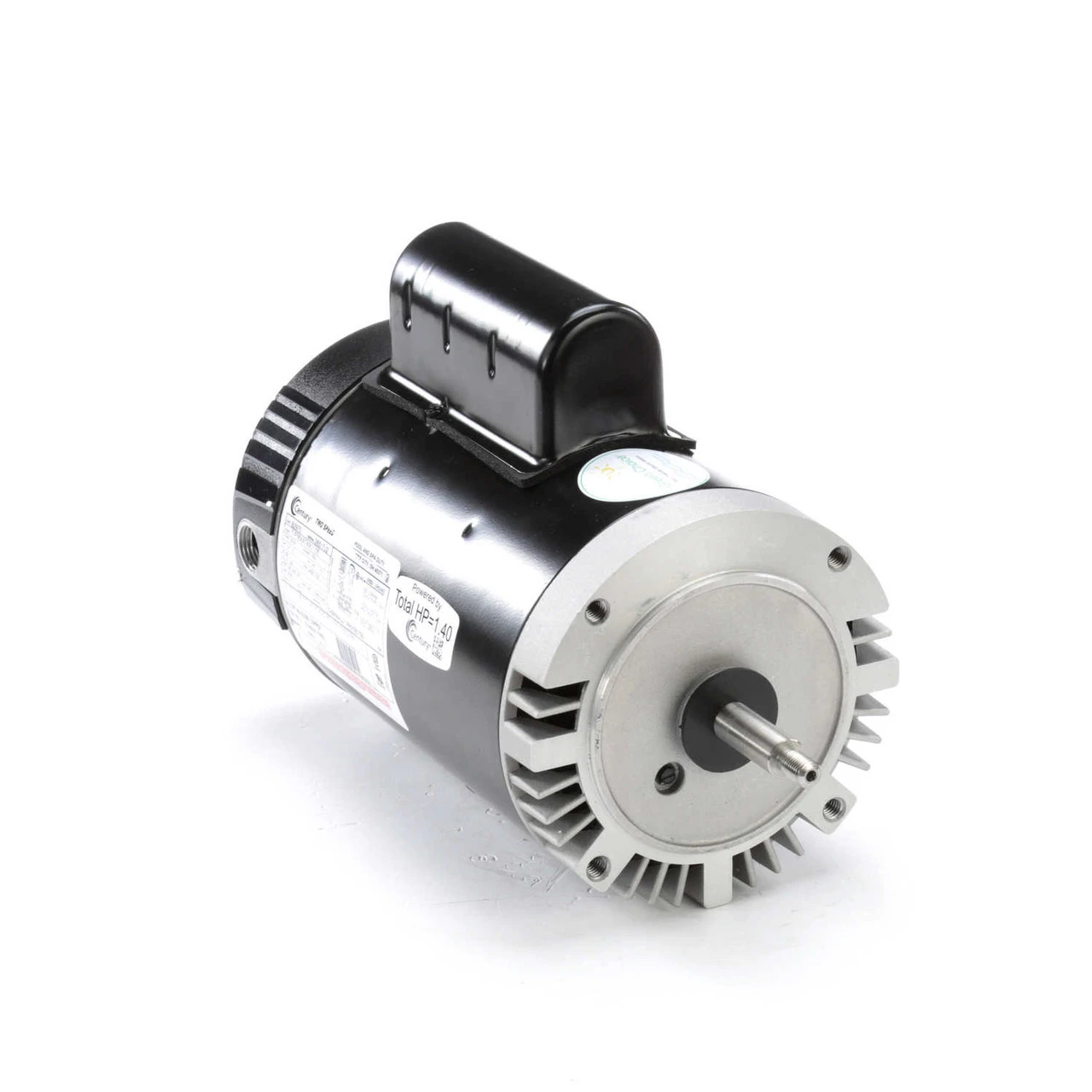

Motor has 4 threaded bolt holes on face for mounting the pump to the motor. Bolt holes are 5 7/8″ on center measured across the shaft. Wiring diagram on motor name plate.
1 year warranty

Replaces Century B975
Century Part No. F56AA74A01, 7-F56AA74A01-05
US Electric Equivalent EB975
