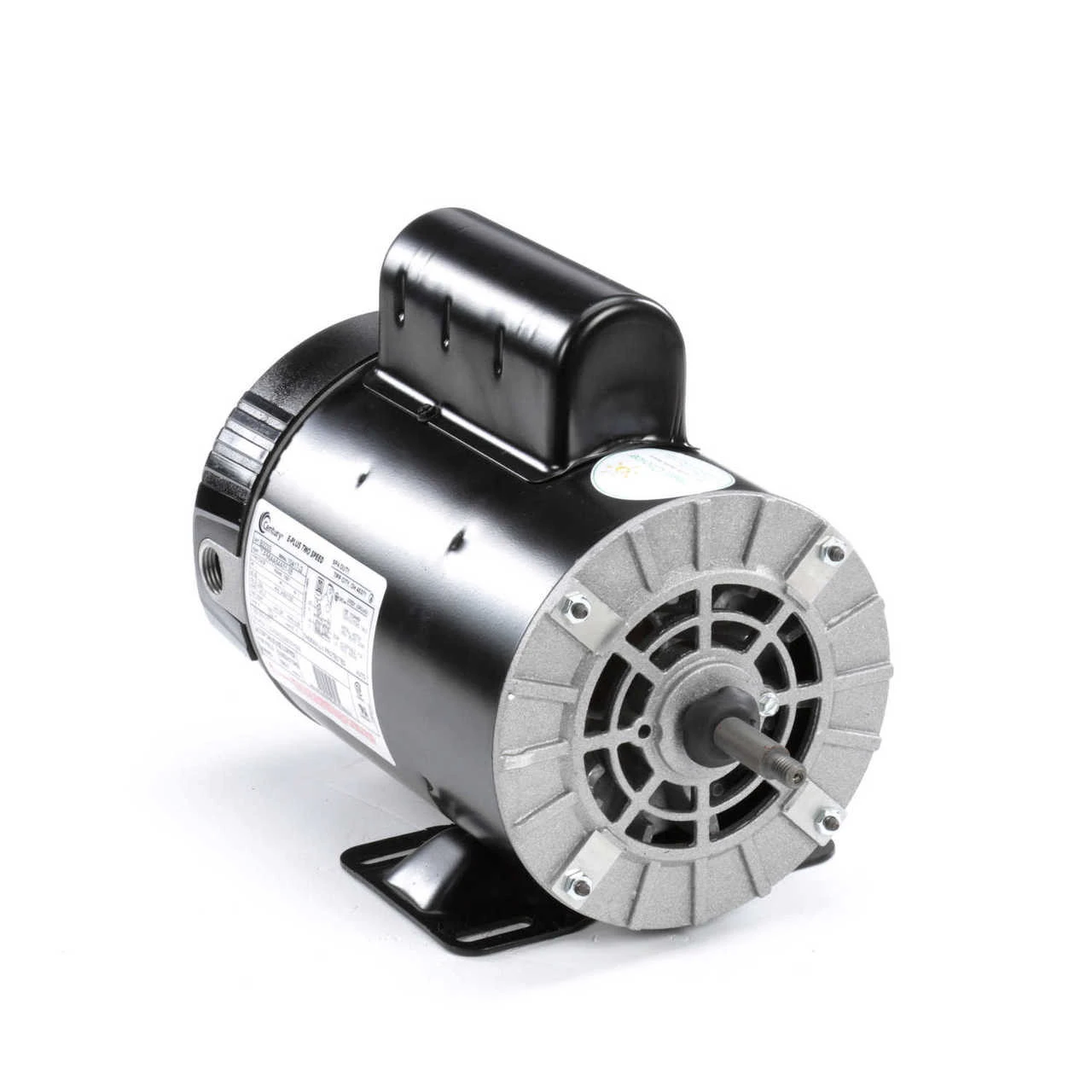

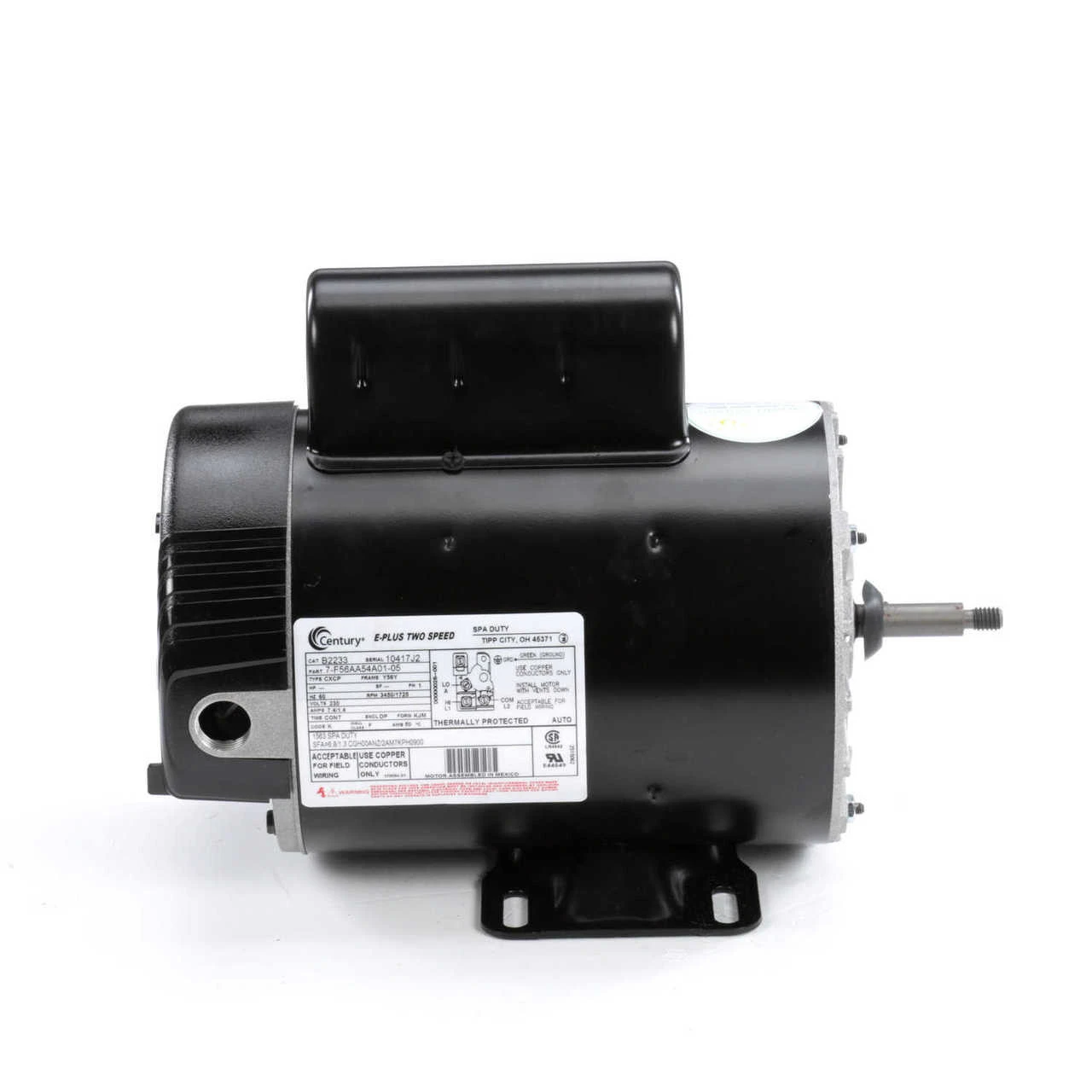

B2233 Century 2 Hp 3450/1725 RPM 56Y Frame 230V 2-Speed Pool & Spa Electric Motor Century # B2233

Original price was: $395.00.Current price is: $99.99.

Protect Your Information, Shop with Safe Payments

Buy quality, buy with us.

Efficiency meets excellence in customer care.

Top-Notch Quality

2 HP 3450/1725 RPM, 8.0/3.0 amps, 230V 60hz.; 2-Speed
Auto Overload Protection
Non-Reversible -CCW Facing the Shaft
Ball Bearings
56Y Frame; Thru-Bolt mount -Rigid Base
One Year Manufacture Warranty

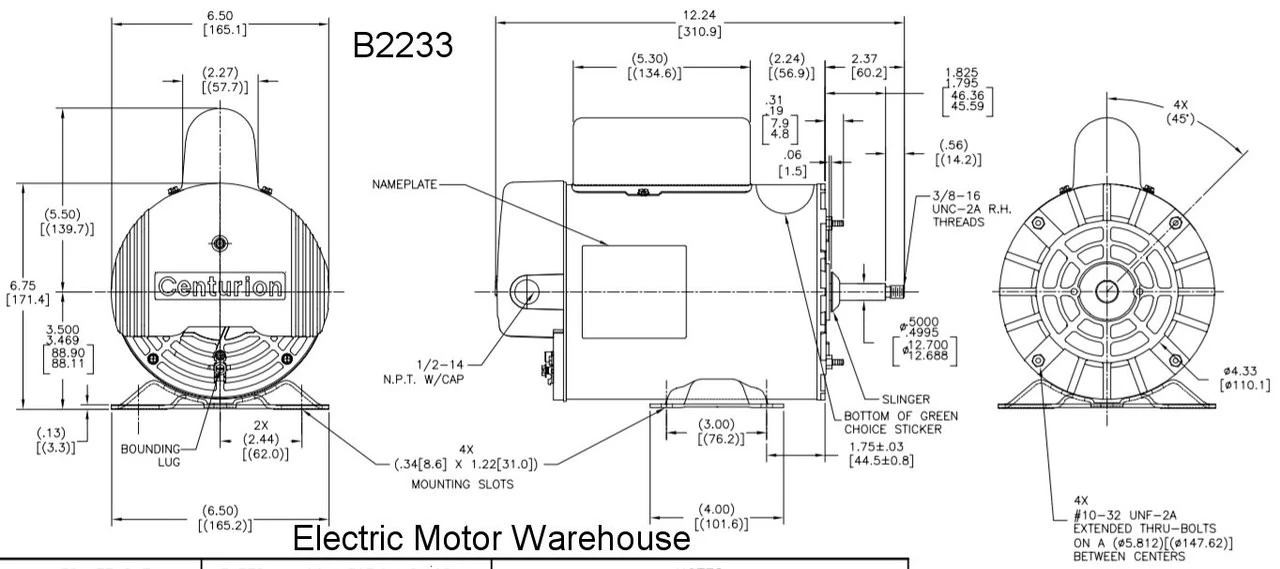

Above ground swimming pool and spa motors. These are called Thru-Bolt mount motors as the pump mounts to the face of the motor with the motor thru bolts. 56Y frame motors thru bolt dimension is 5 13/16″ on center measured across the shaft. Shaft is 1/2″ diameter with threads on end. Motor has flat-rigid base welded to motor case. Wiring connection diagram on motor name plate. These motors are found on the Waterway and many other above ground pool and spa pumps. 1 Year Manufacture Warranty. Replaces Century B233. US Electric Equivalent TT502, Dayton 16U412
