ASB818 | 3 Hp 3450 RPM 56J 230V (ODP) Switchless Pool Pump Motor

Original price was: $345.00.Current price is: $95.99.

Protect Your Information, Shop with Safe Payments

Buy quality, buy with us.

Efficiency meets excellence in customer care.

Top-Notch Quality

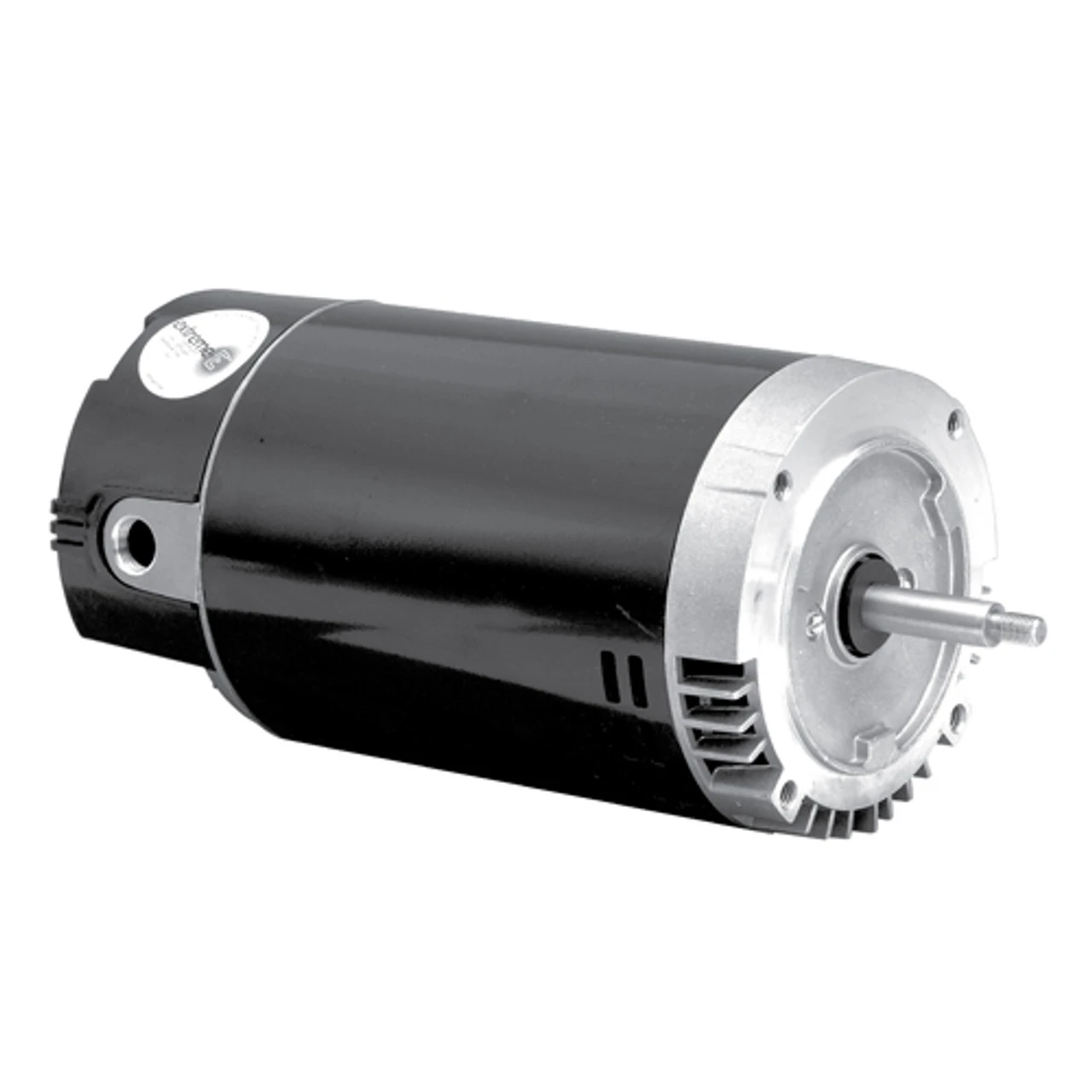

US Motor Premium Energy Efficient 56J Pool Motor

3.45 THP (Total Horsepower)
3450 RPM, 14.8-13.5 amps, 208-230V 60hz. Single Phase
NEMA 56J frame (no base), 5/8″ diameter threaded stainless steel shaft
Overload Protection: Auto. Class B insulation, 6.5″ body dia.
Non-Reversible – CCW Rotation facing the shaft
C-Face Mount, Ball Bearings, Open Drip Proof (ODP)
Sealed ball bearings

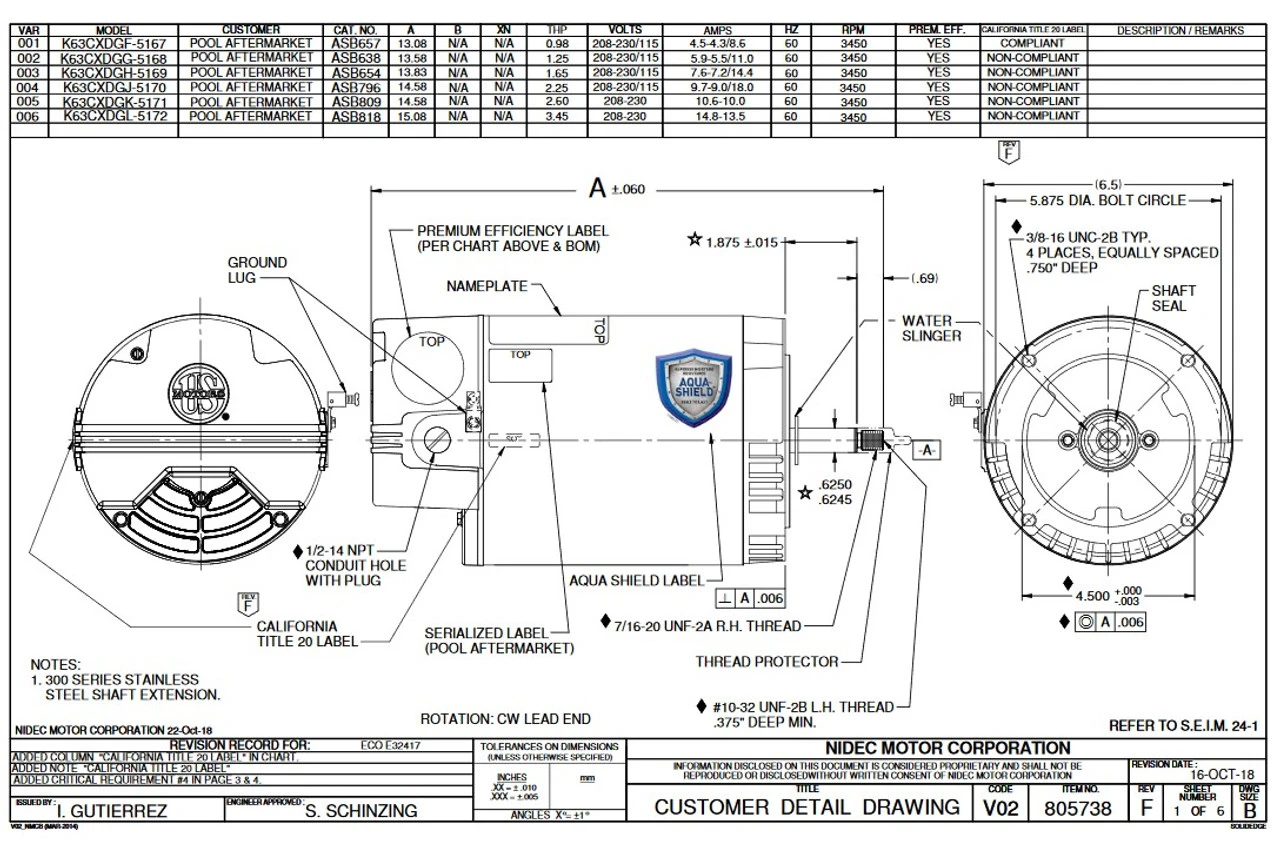

Wiring diagram on motor name plate
1 year warranty

Swimming pool pump motor. Commonly found on in-ground pool pumps such as Hayward Super Pump, Maxflo, Super II and many other pumps requiring a 56J frame motor.

US Model K063DGL5172023J

ATTENTION CALIFORNIA CUSTOMERS: This pump/motor does not comply with California’s Efficiency Regulations. These regulations can be found in Title 20, in the California Code of Regulations (CCR) sections 1601-1609. To meet California’s requirement, the pump/motor must be a 2 speed. So, it’s illegal to ship this pump/motor to California as it’s in violation of their regulations.
