Home / Electric Motors / Modine Replacement Motors
  • 9F10247 Aftermarket Modine 7163-3529 Replacement Motor 115V -MotorHub Shop 9F10247A a 62881.1542307014
  • Modine 9F030227 Aftermarket Replacement Motor 115V -MotorHub Shop 9F030227 97592.1435083118
-58%
9F30212 Modine 9F0302120000 Aftermarket Replacement Motor 115V
9F30212 Modine 9F0302120000 Aftermarket Replacement Motor 115V - Image 2
9F30212 Modine 9F0302120000 Aftermarket Replacement Motor 115V -MotorHub Shop 9F30212M BACK 90278.1613420629

9F30212 Modine 9F0302120000 Aftermarket Replacement Motor 115V

$237.99 Original price was: $237.99.$99.99Current price is: $99.99.

Buy Now
SKU: ZWXLY 1698665870 Categories: Electric Motors, Modine Replacement Motors Tag: PEMS
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)

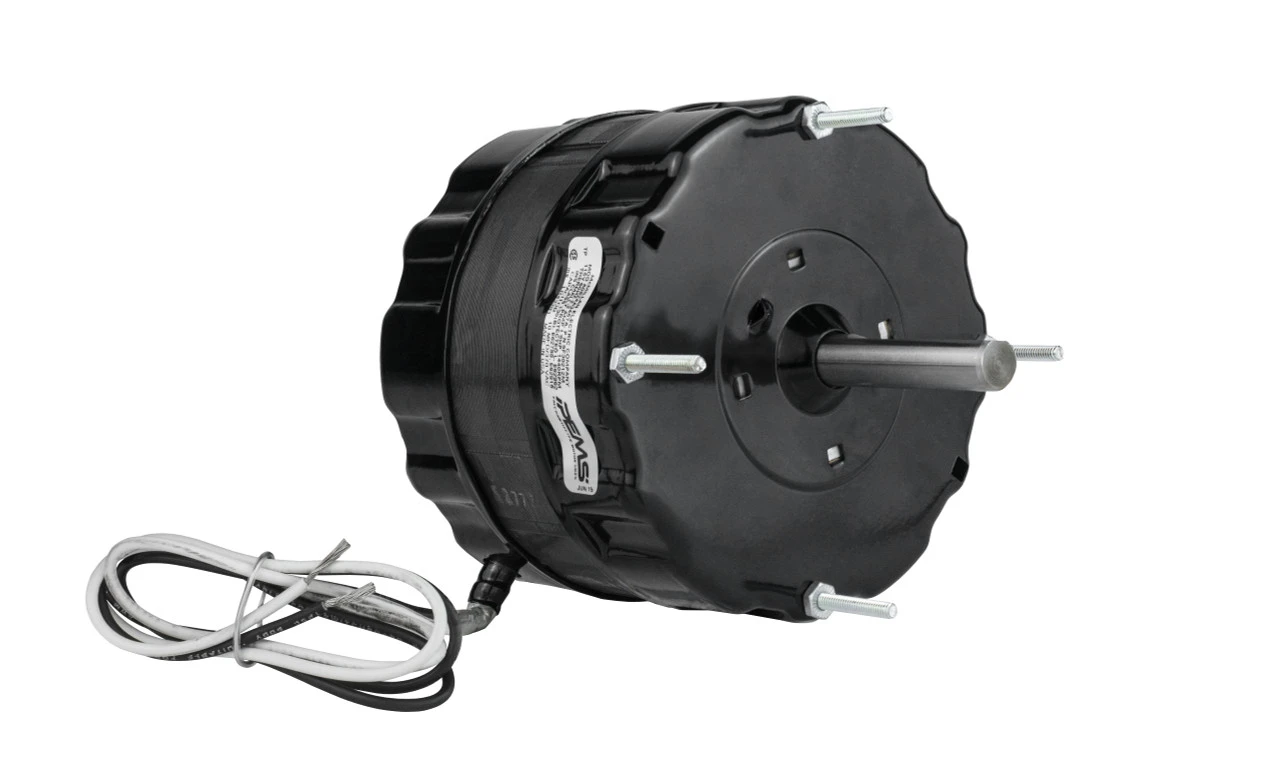

Direct Modine 9F302120000 Aftermarket Replacement Motor

  • 2.2 amps, 115V 60hz; 1440 RPM
  • Rotation = CW; 5″ Diameter
  • Shaft: 1/2″ X 2-1/8″; Case length 3-7/8″
  • 4 studs-shaft end; 4-5/8″ O.C.

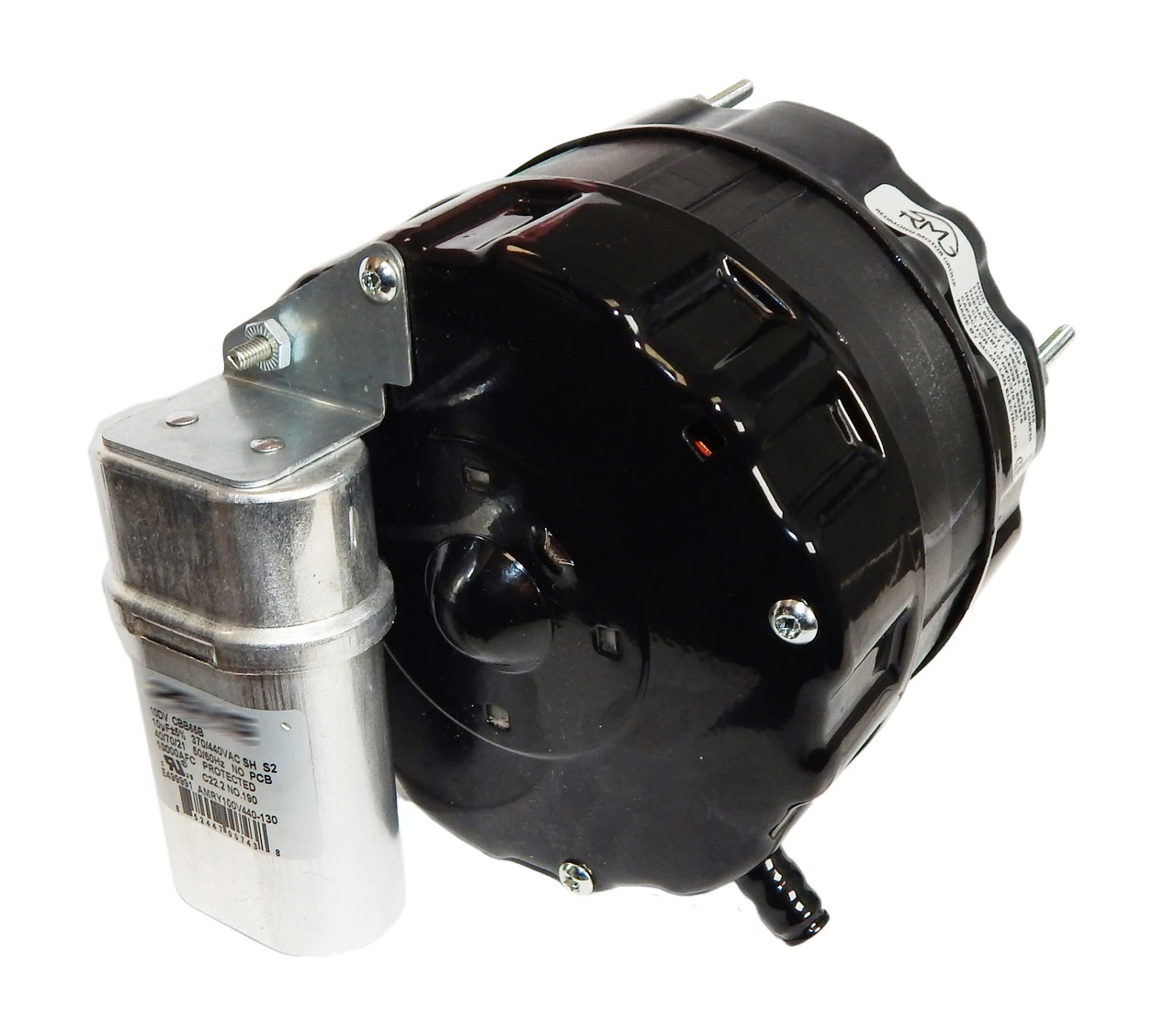

  • Includes 10mfd/370VAC Run Capacitor
  • 2 wire leads 36″; One Year Warranty

Aftermarket direct replacement

Reference: A0824A3457, 9F0302120000, 9F30212, 9F30190, 9F030212000, FP37569, FP53830, 8733610101, DE2H017,DE2H040, HE2E018
Fits Models: HC86, HC108, HSB86, HSB108, PDP125, PDP150, 9D125, 9D150; (Check Amps & Voltage)
