9F10247 Aftermarket Modine 7163-3529 Replacement Motor 115V
9F10247 Aftermarket Modine 7163-3529 Replacement Motor 115V - Image 2
9F10247 Aftermarket Modine 7163-3529 Replacement Motor 115V -MotorHub Shop 9F10247A b 28497.1542306982

9F10247 Aftermarket Modine 7163-3529 Replacement Motor 115V

$108.99 Original price was: $108.99.$76.29Current price is: $76.29.

Buy Now
SKU: ZWXLY 1698665873 Categories: Electric Motors, Modine Replacement Motors Tag: Modine
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)

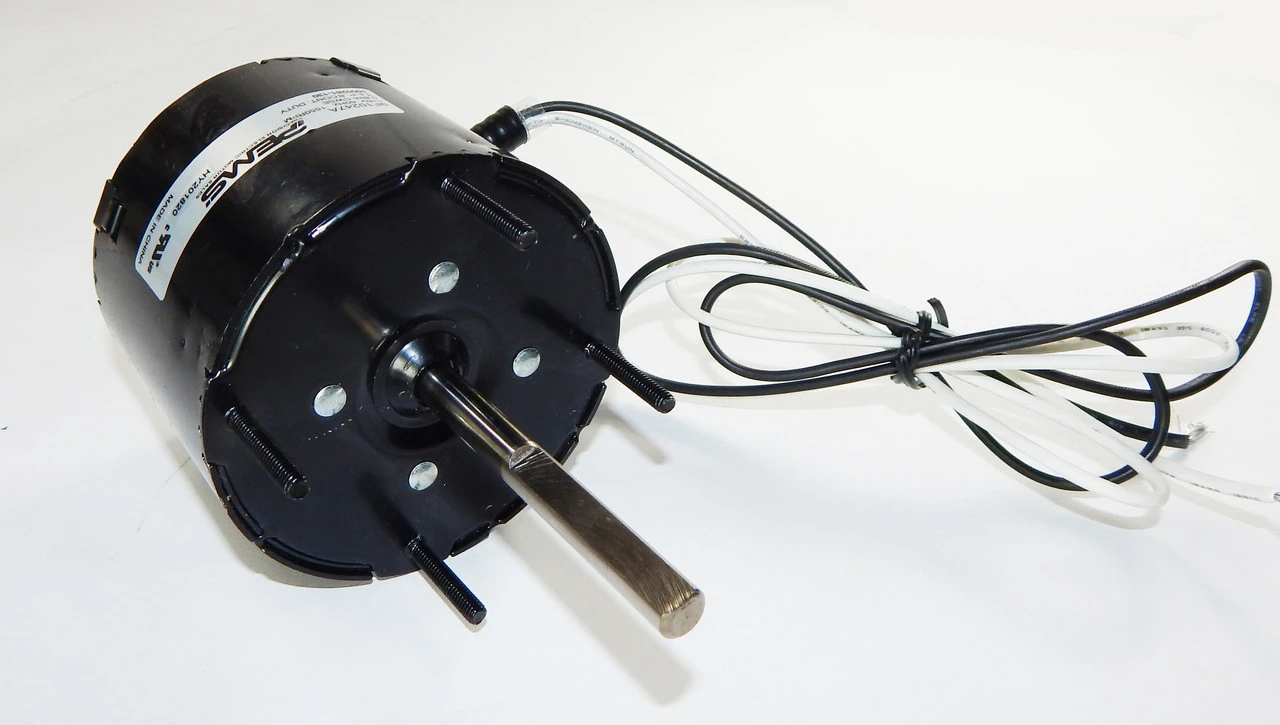

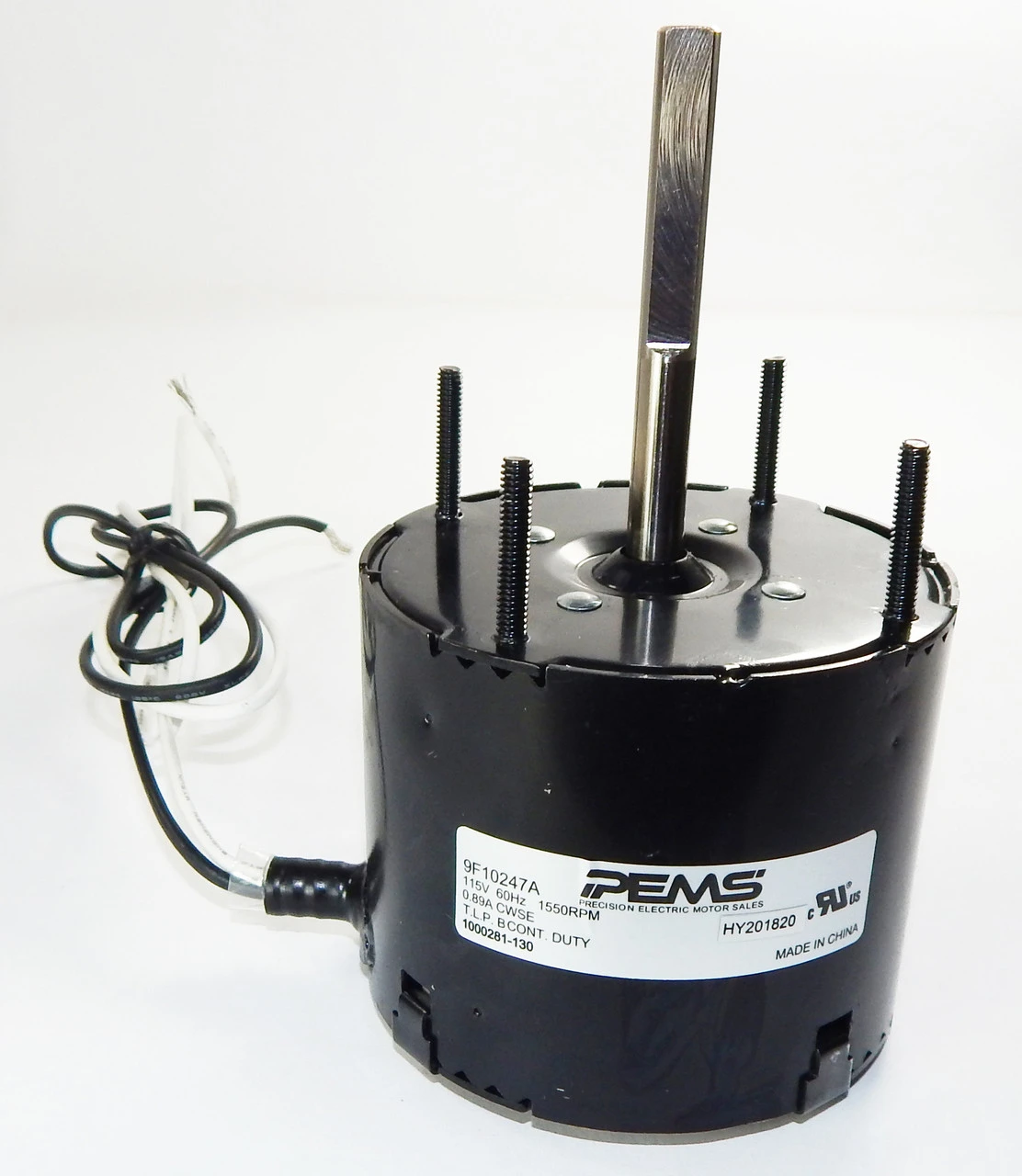

Direct Modine 9F10247 Aftermarket Replacement Motor

  • 0.89 amps, 115V 60hz.; 1550 RPM
  • Rotation = CW Shaft End
  • 3.3″ Diameter
  • Shaft: 5/16″ x 2.5″; Case Length 2.75″
  • 4 studs-shaft end; 2-7/8″ O.C.
  • 2 wire leads 36″
  • Sleeve Bearings
  • One Year Warranty

Reference: 9F102470000, 7163-3529, 71633529. Used In (Check Amps & Voltage): PD30, PD50, PDP30, PDP50, PAE30, PAE50, PA30, PA50, PA75, PV30, PV50
