Home / HVAC Motors & Draft Inducers / Air Condenser Fan Motor
  • 1989P Nidec | 1/20 Hp 1625 RPM 1-Speed 230V; 5.0" Condenser Motor -MotorHub Shop 1989pbbb 16192.1568739656
  • X429 Marathon 1/6 Hp 208-230V 1075 RPM TENV 48Y Frame Condenser Fan Motor -MotorHub Shop 429 front 34572.1625756246
-42%

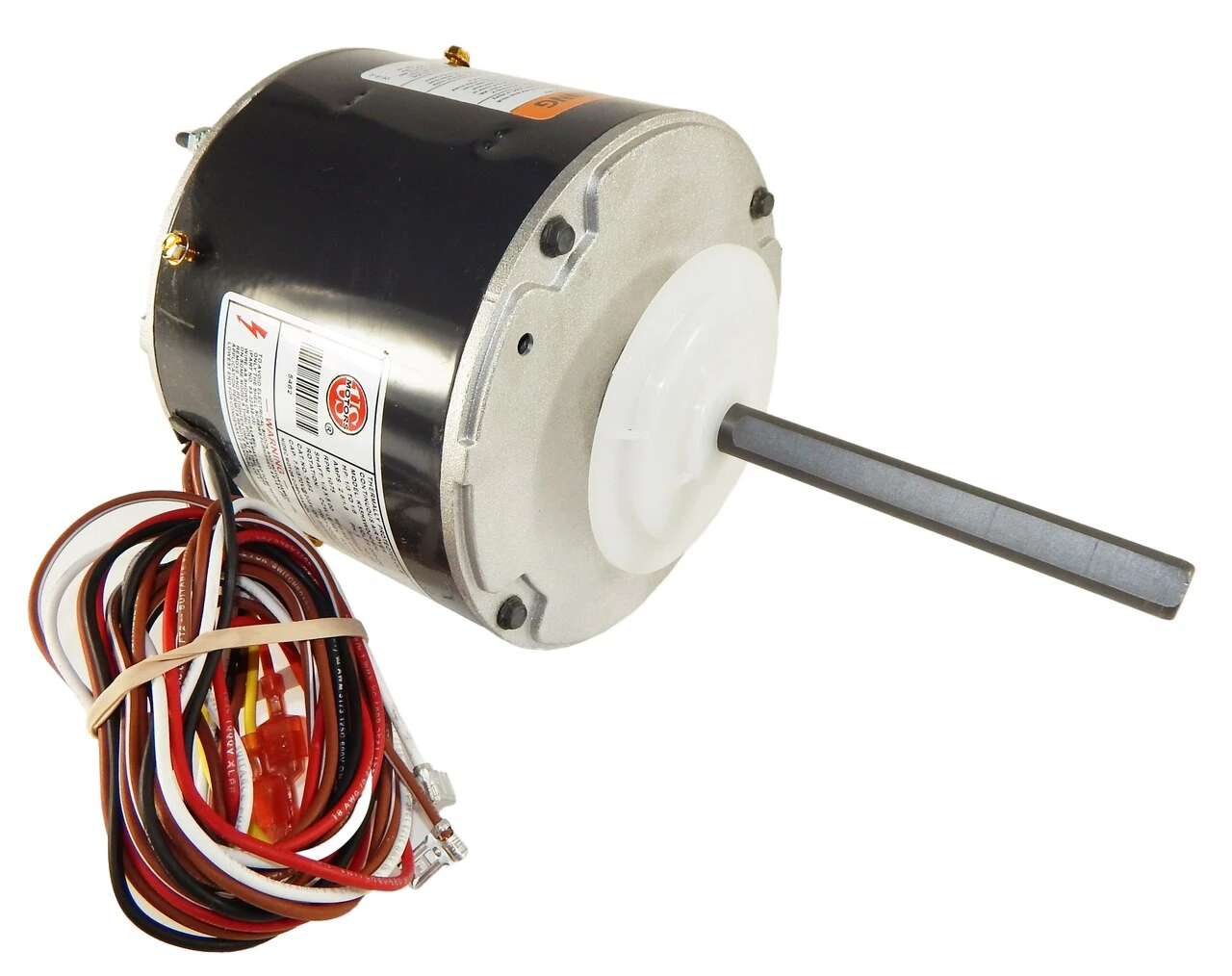

5464 Nidec | 1/3 Hp 825 RPM 2-Speed 208-230V; 5.6" Condenser Motor
5464 Nidec | 1/3 Hp 825 RPM 2-Speed 208-230V; 5.6" Condenser Motor - Image 2
5464 Nidec | 1/3 Hp 825 RPM 2-Speed 208-230V; 5.6" Condenser Motor - Image 3
5464 Nidec | 1/3 Hp 825 RPM 2-Speed 208-230V; 5.6" Condenser Motor -MotorHub Shop 5462back rheem holes 52722.1572376844
5464 Nidec | 1/3 Hp 825 RPM 2-Speed 208-230V; 5.6" Condenser Motor -MotorHub Shop Nidec 5464 Line 30918.1571848242

5464 Nidec | 1/3 Hp 825 RPM 2-Speed 208-230V; 5.6″ Condenser Motor

$165.60 Original price was: $165.60.$95.99Current price is: $95.99.

Buy Now
SKU: ZWXLY 1698667368 Categories: Air Condenser Fan Motor, HVAC Motors & Draft Inducers Tag: Nidec
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 1/3 hp 825 RPM 2-Speed 208-230V 1.9-1.2 amps
  • Shaft 1/2″ x 5″
  • Rotation = Reversible
  • 5.6″ Diameter
  • Motor case length 5.312″
  • Ball bearings
  • Includes 7.5 MFD 2-prong capacitor

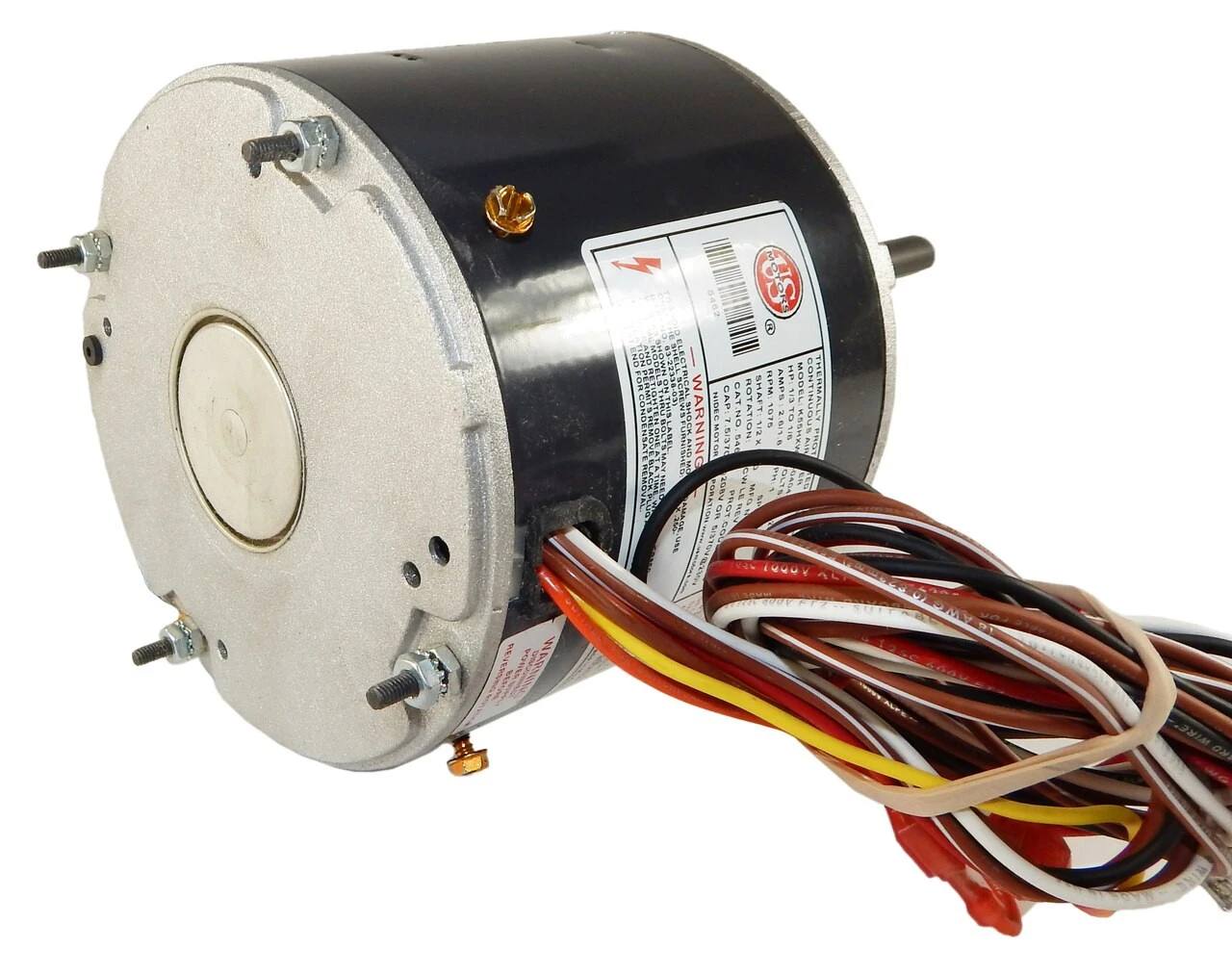

  • 4 holes in case for Rheem mounting
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Totally Enclosed Air Over Enclosure; Class B Insulation; 60C Ambient Temperature; 48″ Leads, K055CLN1469012B
