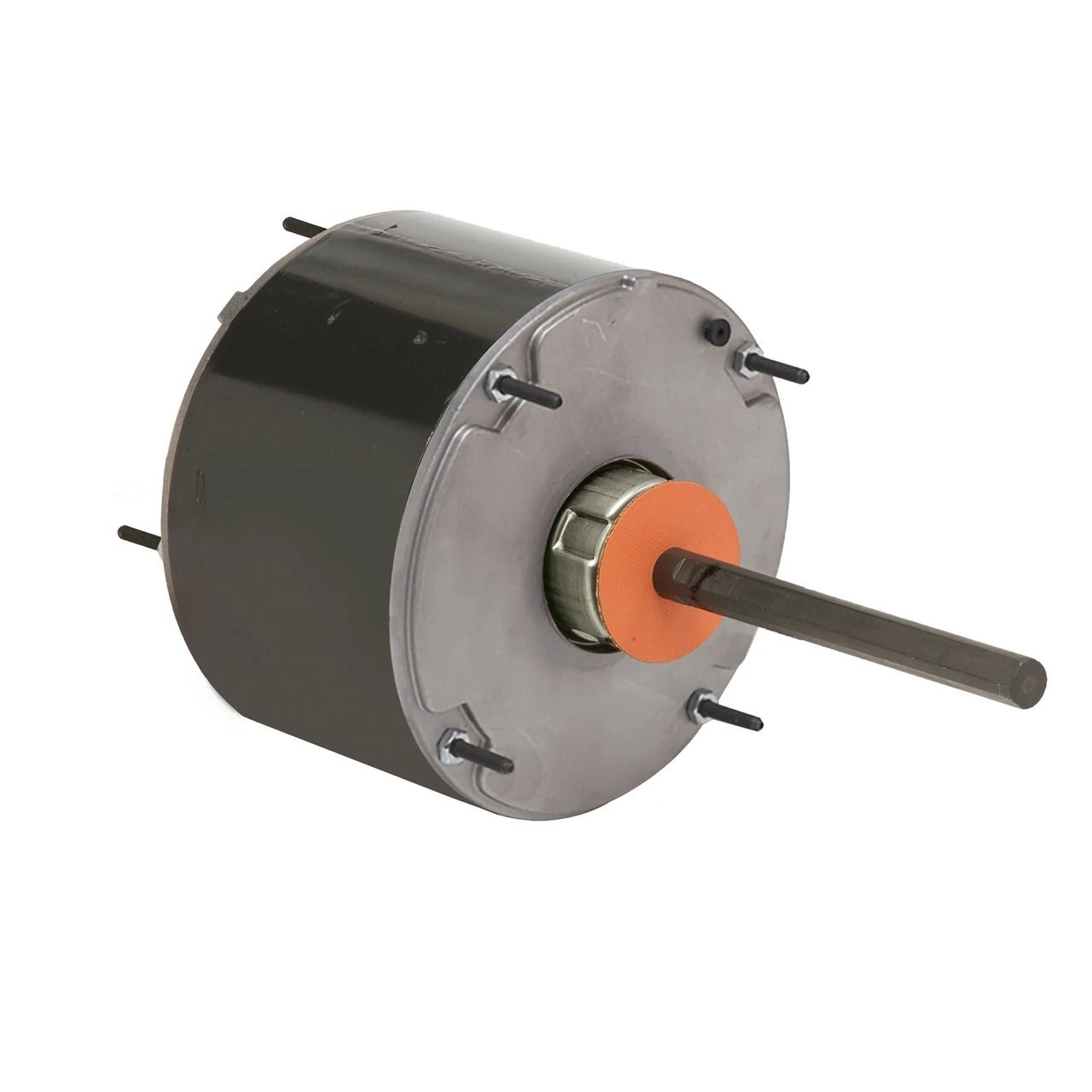

5456 Nidec | 1/8 Hp 825 RPM 1-Speed 208-230V; 5.6" Condenser Motor
5456 Nidec | 1/8 Hp 825 RPM 1-Speed 208-230V; 5.6" Condenser Motor - Image 2

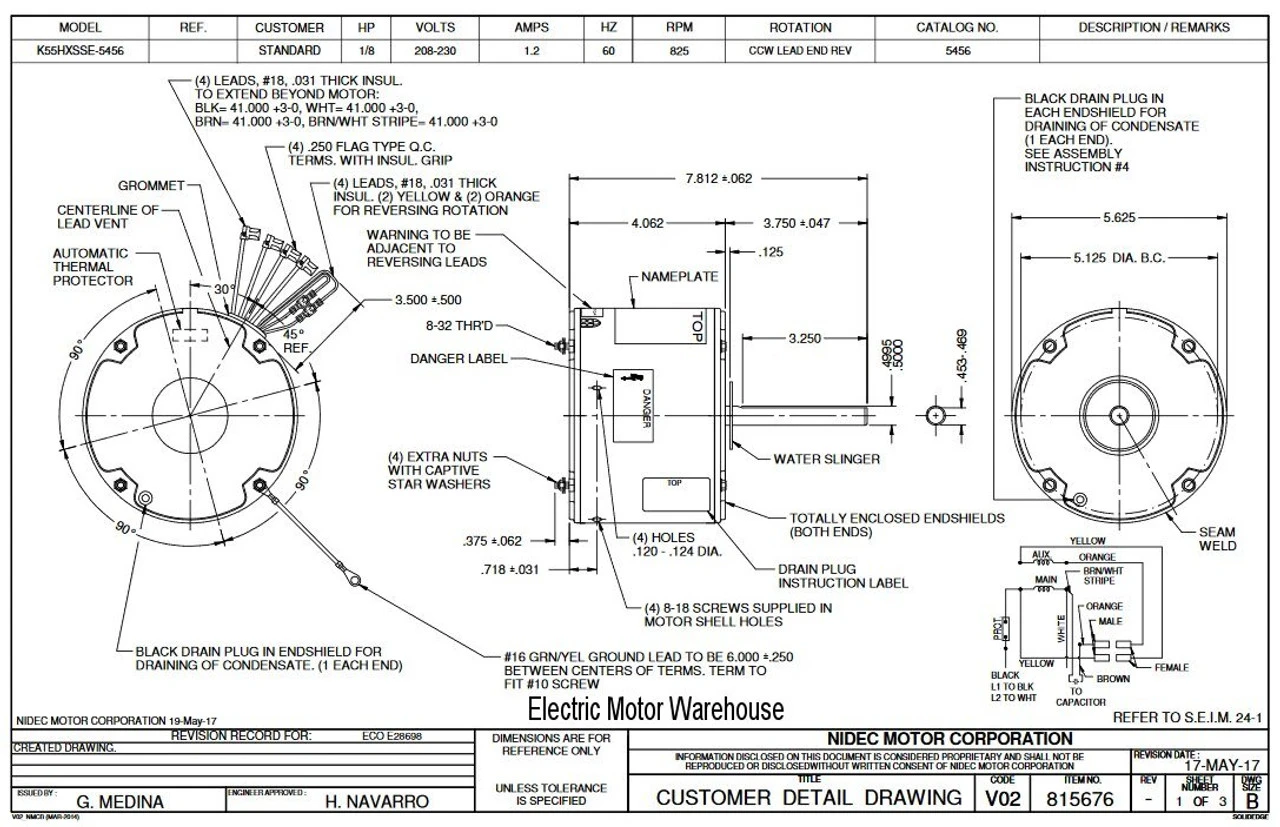

5456 Nidec | 1/8 Hp 825 RPM 1-Speed 208-230V; 5.6" Condenser Motor -MotorHub Shop 5456 dim 37643.1568724432

5456 Nidec | 1/8 Hp 825 RPM 1-Speed 208-230V; 5.6″ Condenser Motor

$179.20 Original price was: $179.20.$98.99Current price is: $98.99.

Buy Now
SKU: ZWXLY 1698669876 Categories: HVAC Motors & Draft Inducers, HVAC-OEM Blower Motors Tag: Nidec
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 1/8 hp 825 RPM 1-Speed 208-230V 1.2 amps
  • Shaft 1/2″ x 3.75″
  • Rotation = Reversible
  • 5.6″ Diameter
  • Motor case length 4.062″
  • Sleeve bearings
  • Water slinger on shaft
  • Includes 2-prong 5 MFD capacitor
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Totally Enclosed; Class B Insulation; 40C Ambient Temperature; 41″ Leads.  Suggested after market replacement for Rheem Condenser fan motor 51-20761-91, K055SSE5456862B.
