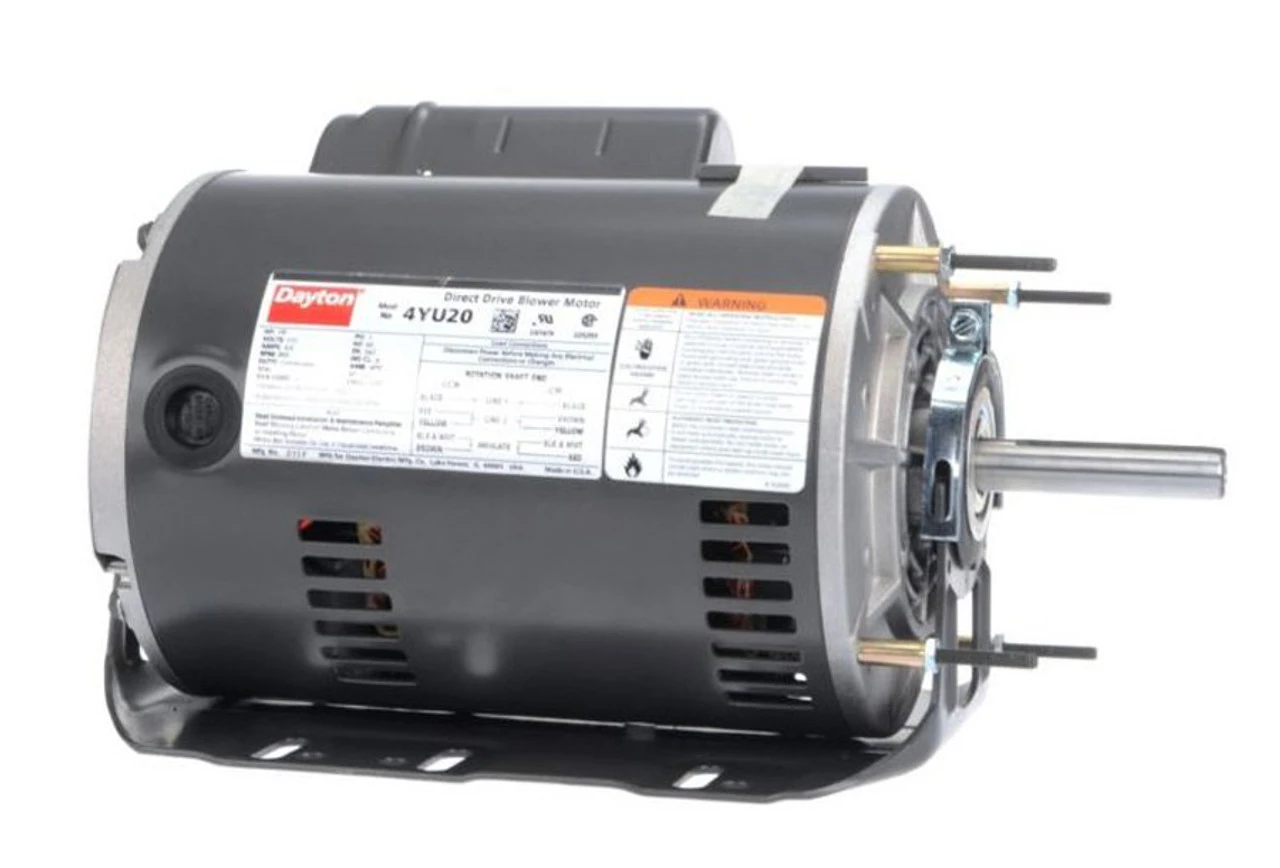

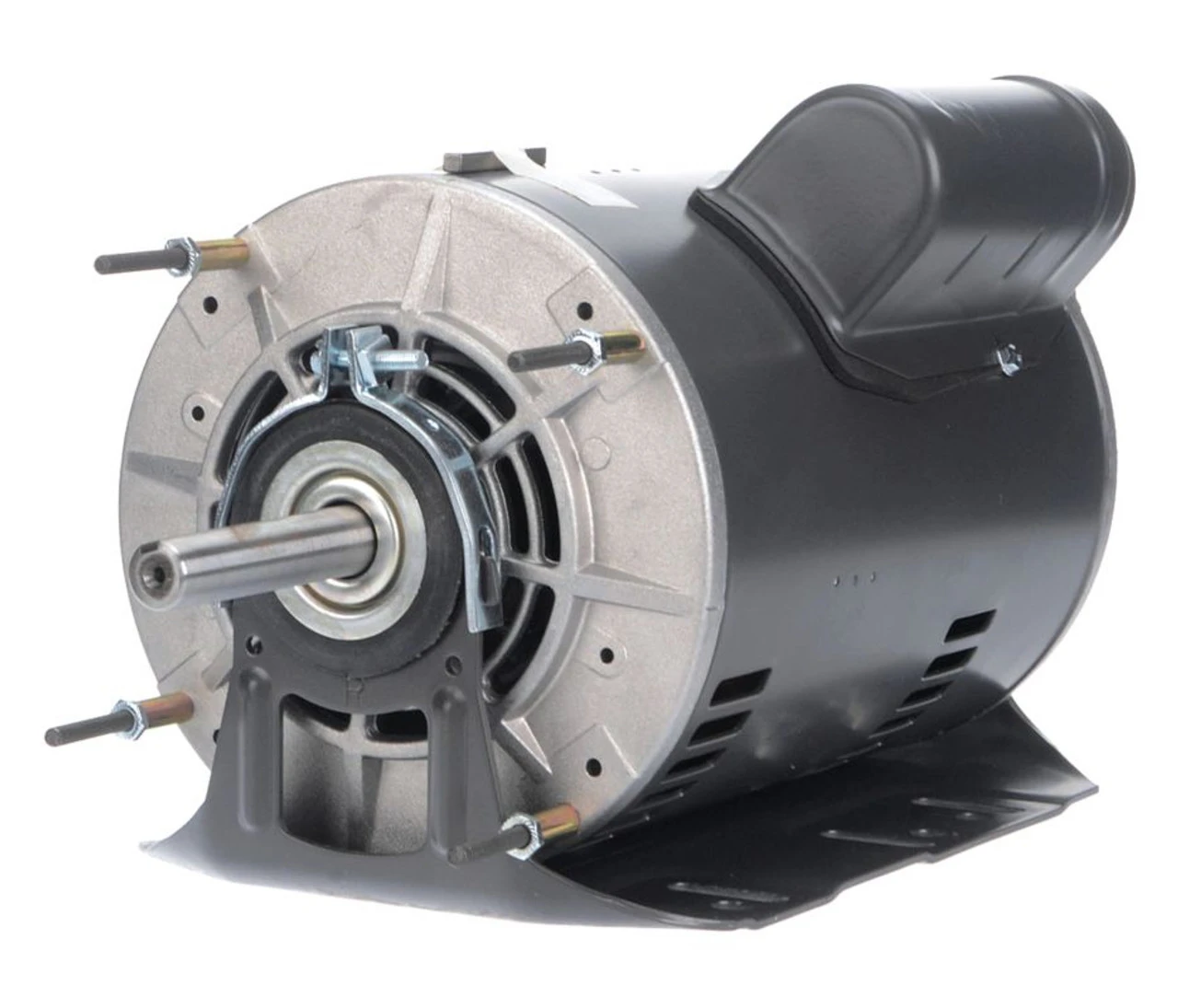

4YU20 Dayton 1/4 HP Direct Drive Blower Motor 860 RPM 115V
4YU20 Dayton 1/4 HP Direct Drive Blower Motor 860 RPM 115V - Image 2
4YU20 Dayton 1/4 HP Direct Drive Blower Motor 860 RPM 115V - Image 3
4YU20 Dayton 1/4 HP Direct Drive Blower Motor 860 RPM 115V - Image 4
4YU20 Dayton 1/4 HP Direct Drive Blower Motor 860 RPM 115V -MotorHub Shop 4YU20 55701.1461692893

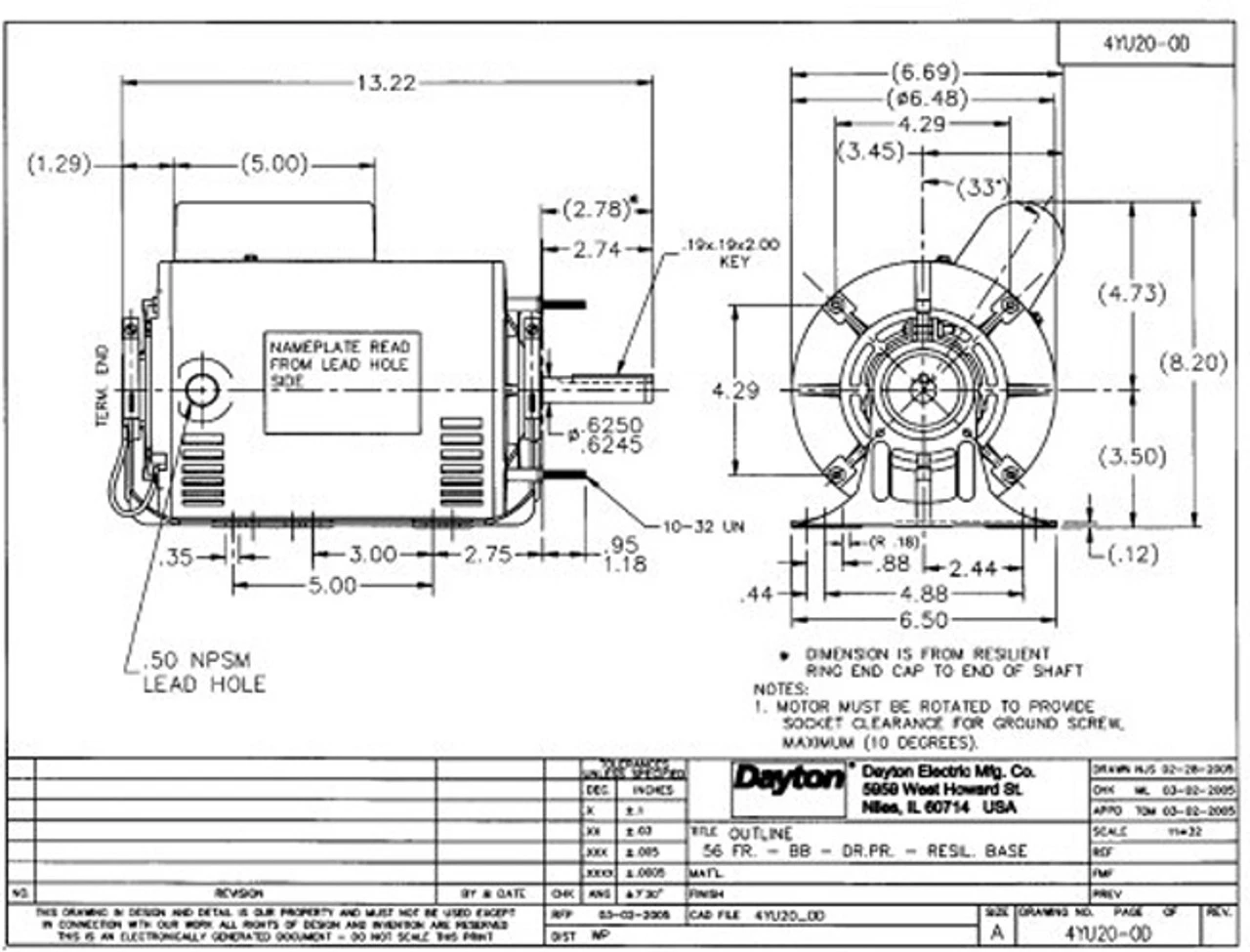

4YU20 Dayton 1/4 HP Direct Drive Blower Motor 860 RPM 115V -MotorHub Shop 4YU20dim 66090.1461692897

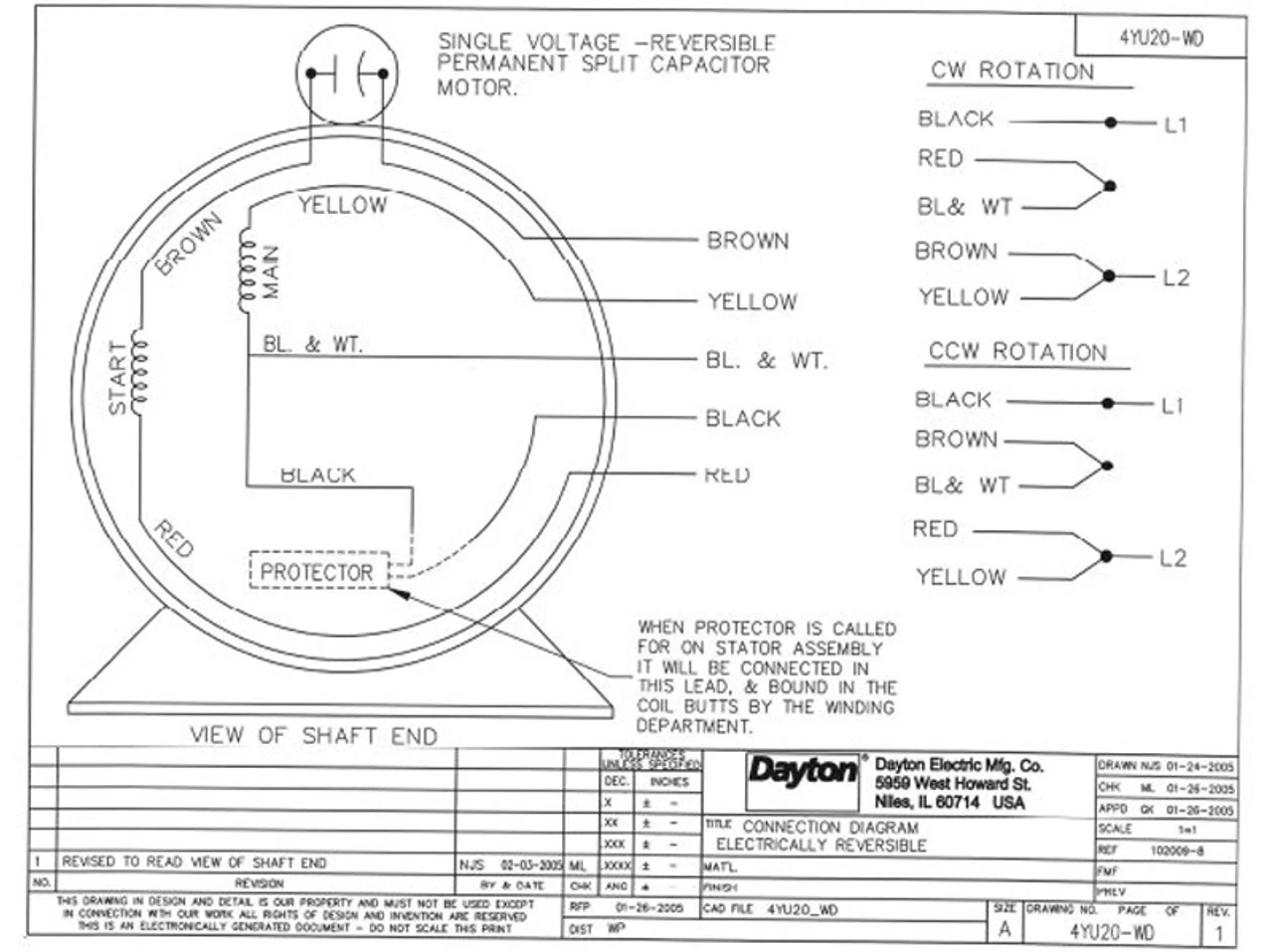

4YU20 Dayton 1/4 HP Direct Drive Blower Motor 860 RPM 115V -MotorHub Shop 4YU20wire 45131.1461692902

4YU20 Dayton 1/4 HP Direct Drive Blower Motor 860 RPM 115V

$322.00 Original price was: $322.00.$99.99Current price is: $99.99.

SKU: ZWXLY 1698668244 Categories: Dayton Ventilator Replacement Motors, HVAC Motors & Draft Inducers Tag: Dayton
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 1/4 hp 860 RPM, 4.8 amps, 115 Volts 60 hz.
  • 1-Speed, PSC Motor
  • 6 1/2″ Diameter Motor
  • Shaft 5/8″ x 2.75″
  • Rotation = Reversible
  • Ball Bearings
  • Length less shaft 10.5″
  • Automatic Overload Protection
  • Resilient Ring Dia. 2-1/2″; Ring to Ring Center 10-1/8″
  • 4 studs opposite shaft end
  • Service Factor 1.0
  • CSA Certified, UL Recognized
  • 1 Year Manufacture Warranty.

Continuous Duty, Open drip proof, Class B Insulation. Replacement Motor for 4HZ52, 4HZ54, 4YC73 Dayton Ventilators
