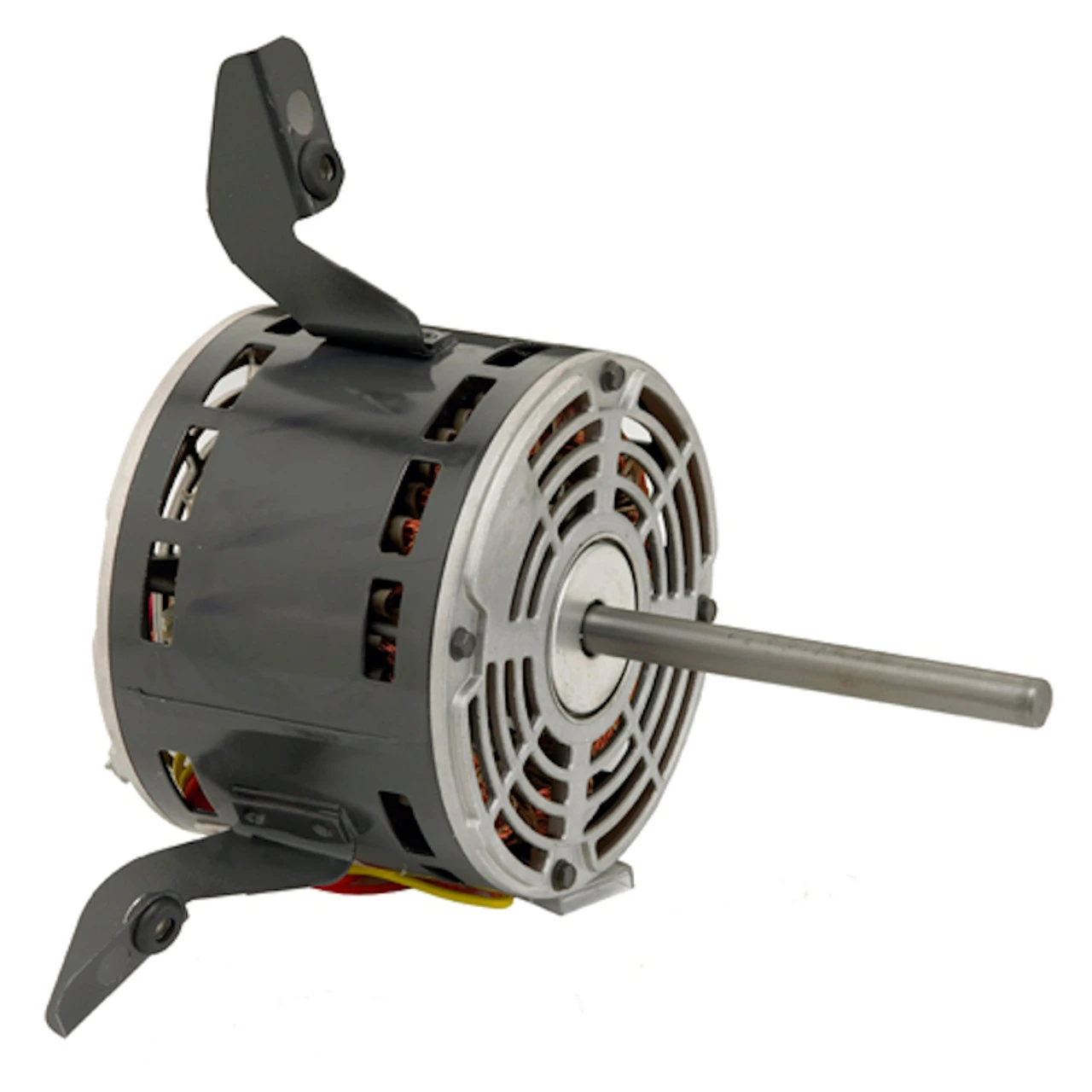

3785 Nidec | 1/3 Hp 1075 RPM 3-Speed 115V; 5.6" Blower Motor
3785 Nidec | 1/3 Hp 1075 RPM 3-Speed 115V; 5.6" Blower Motor - Image 2

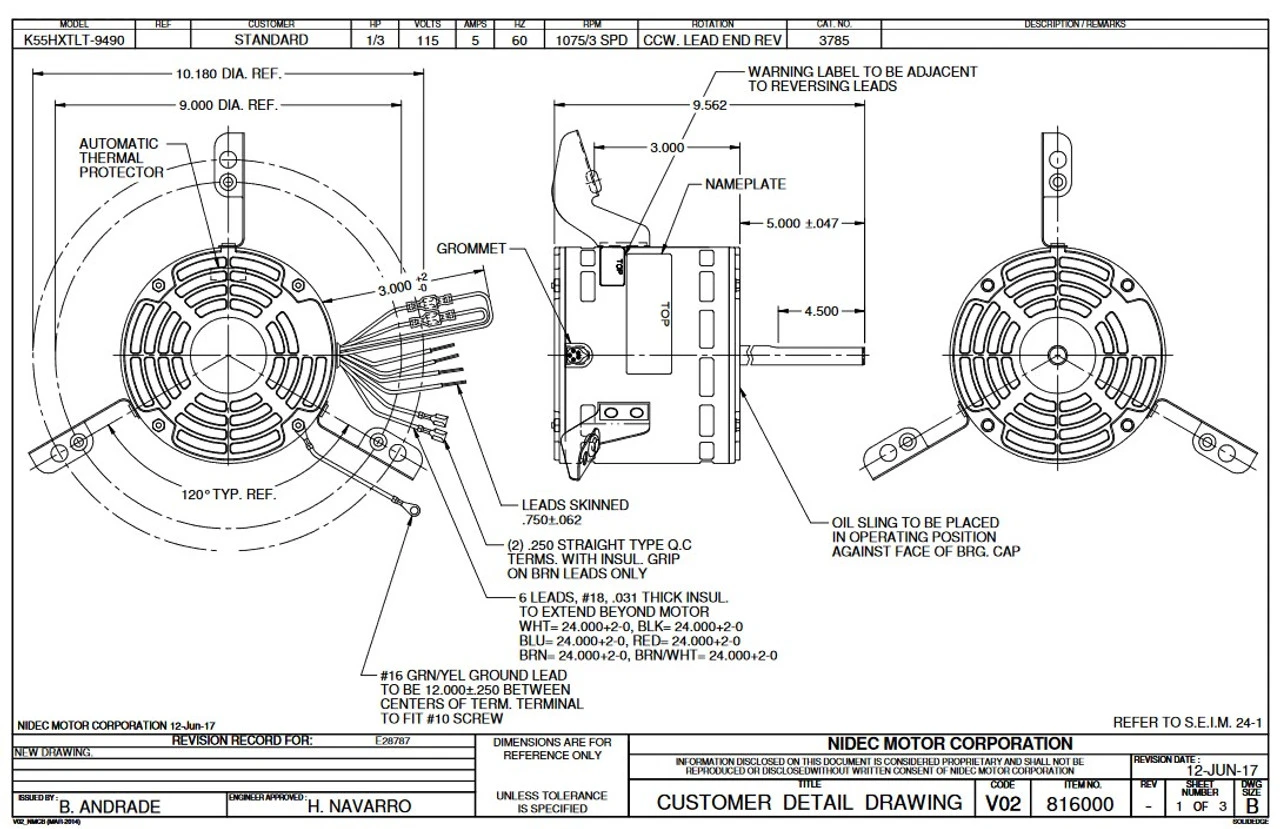

3785 Nidec | 1/3 Hp 1075 RPM 3-Speed 115V; 5.6" Blower Motor -MotorHub Shop Nidec 3785 Line 60100.1569358128

3785 Nidec | 1/3 Hp 1075 RPM 3-Speed 115V; 5.6″ Blower Motor

$206.80 Original price was: $206.80.$99.99Current price is: $99.99.

Buy Now
SKU: ZWXLY 1698669349 Categories: Furnace Motors, HVAC Motors & Draft Inducers Tag: Nidec
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 1/3 hp 1075 RPM 3-Speed 115V 5.0 amps
  • Shaft 0.5″ x 5.0″
  • Rotation: reversible
  • 5.6″ Diameter
  • Motor case length 4.56″
  • Sleeve Bearings
  • Flex Bracket Mount
  • Includes 7.5 MFD capacitor
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Open Air Over Enclosure; Class B Insulation; 40C Ambient Temperature; 24″ Leads, 60 Hertz. K055TLT9490012B.
