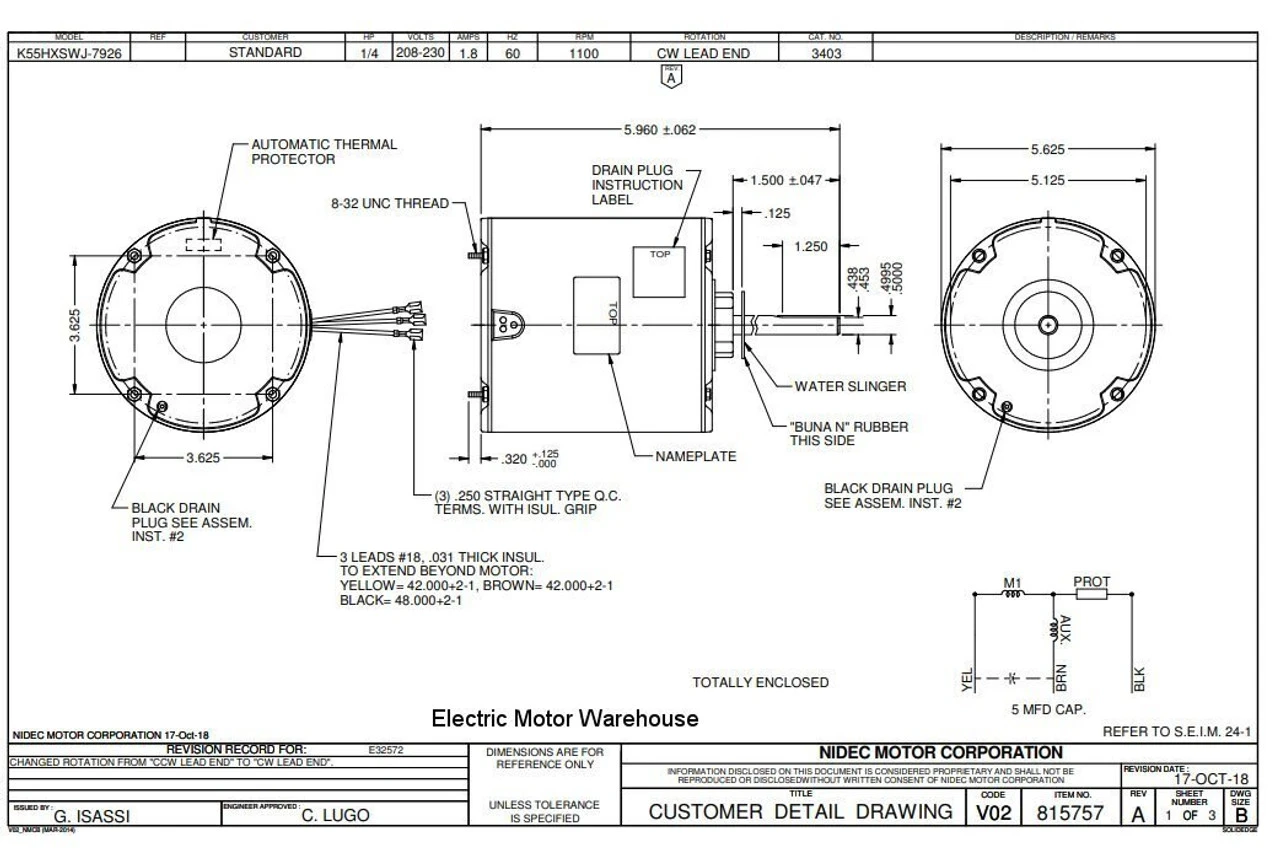

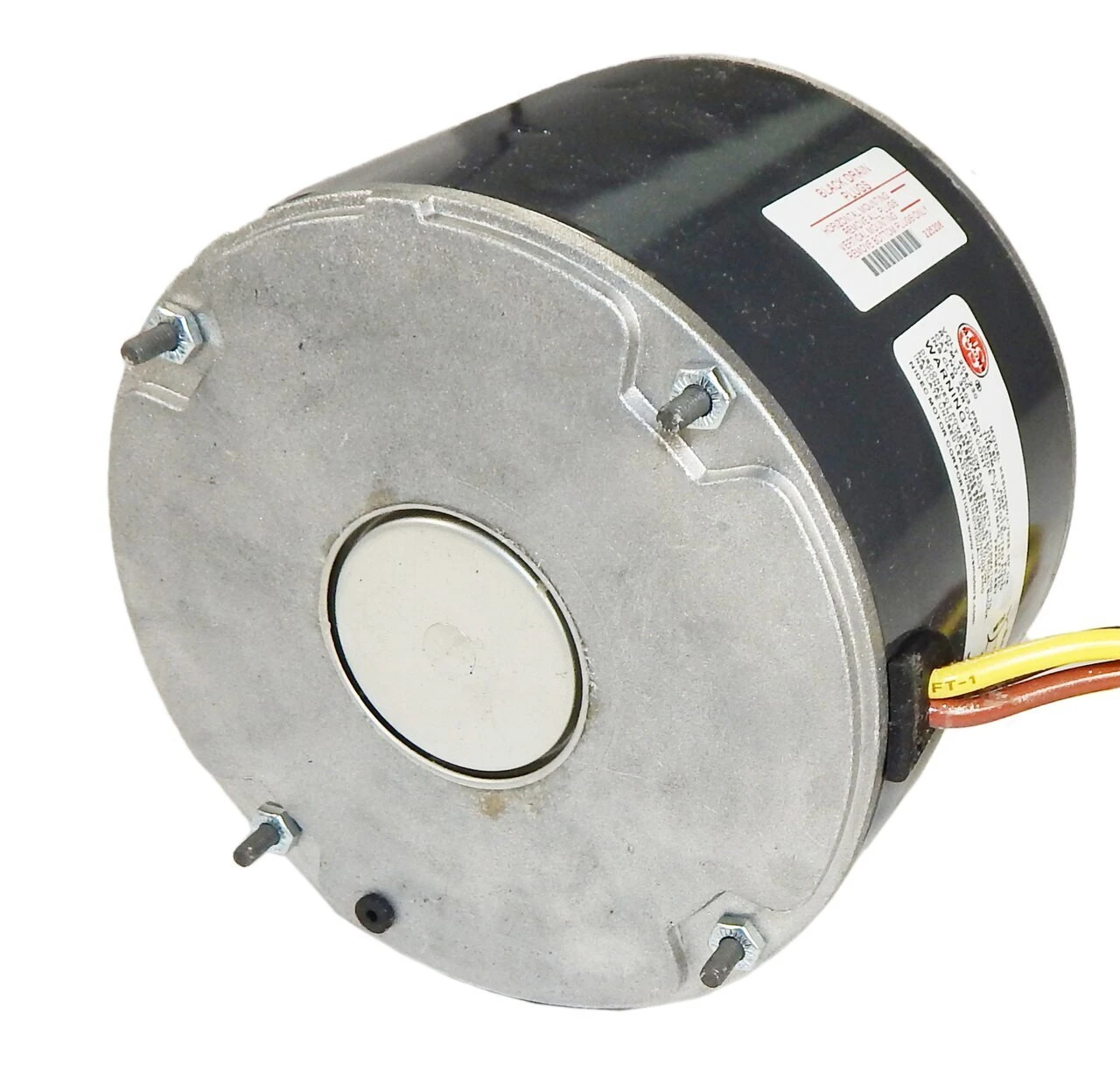

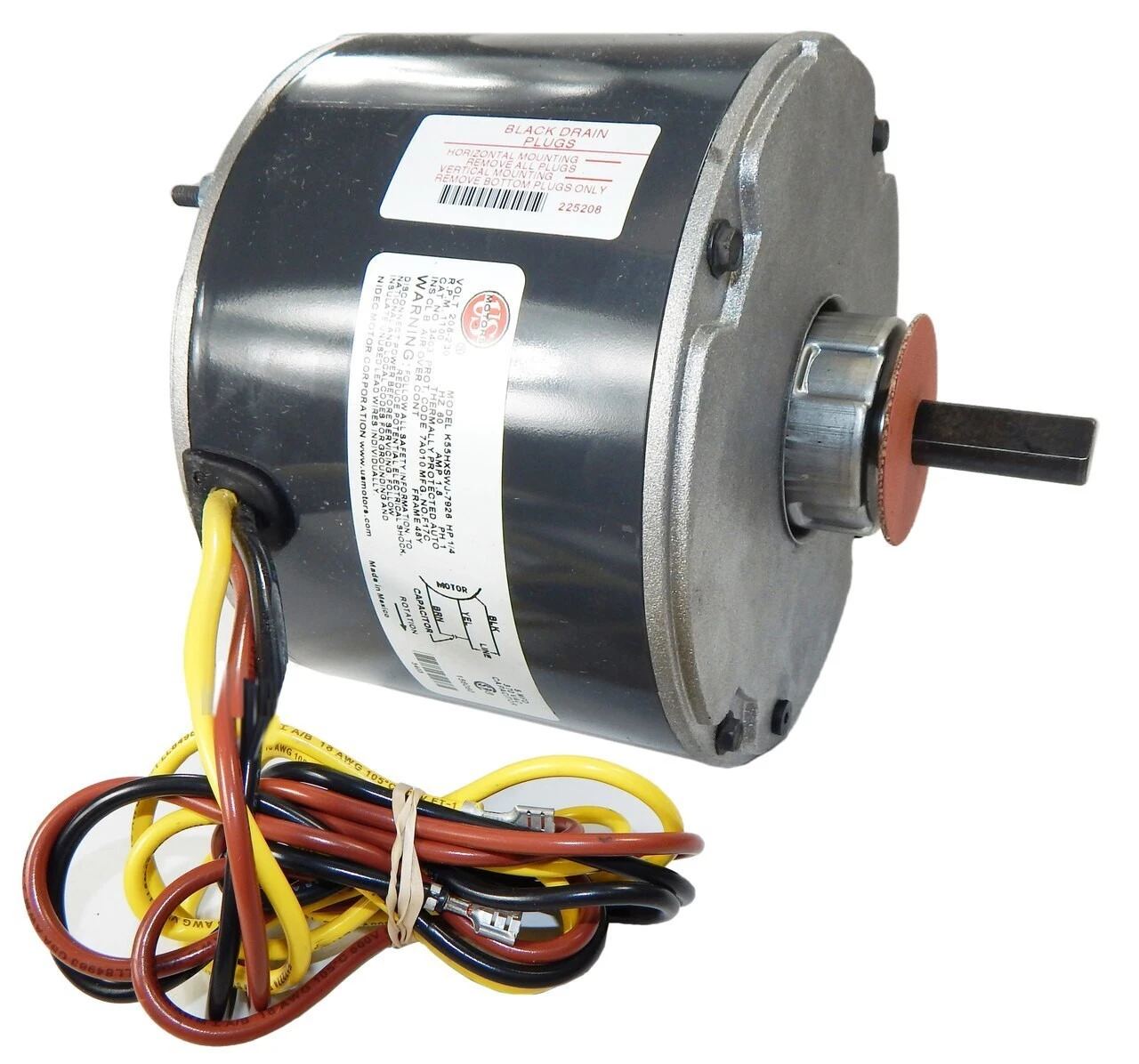

3403 Nidec | 1/4 Hp 1100 RPM 1-Speed 208-230V; 5.6" Blower Motor
3403 Nidec | 1/4 Hp 1100 RPM 1-Speed 208-230V; 5.6" Blower Motor - Image 2
3403 Nidec | 1/4 Hp 1100 RPM 1-Speed 208-230V; 5.6" Blower Motor - Image 3
3403 Nidec | 1/4 Hp 1100 RPM 1-Speed 208-230V; 5.6" Blower Motor -MotorHub Shop 3403wwww 11432.1568738842
3403 Nidec | 1/4 Hp 1100 RPM 1-Speed 208-230V; 5.6" Blower Motor -MotorHub Shop 3403ddd 29673.1568738849

3403 Nidec | 1/4 Hp 1100 RPM 1-Speed 208-230V; 5.6″ Blower Motor

$190.30 Original price was: $190.30.$97.99Current price is: $97.99.

Buy Now
SKU: ZWXLY 1698667201 Category: HVAC Motors & Draft Inducers Tag: Nidec
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 1/4 hp 1100 RPM 1-Speed 208-230V 1.8 amps
  • Shaft 1/2″ x 1.6″
  • Rotation CW lead end
  • 5.6″ Diameter
  • Motor case length 4.3″
  • Sleeve bearings
  • Stud Mounting
  • Includes 2-prong 5 MFD capacitor
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Totally Enclosed Air Over; Class B Insulation; 40C Ambient Temperature; 42″ Leads. Suggested aftermarket replacement for Carrier condenser fan motor HC39GE237, 5KCP39EGS070S, K055SWJ7926013B, K55HXSWJ-7926
