Home / HVAC Motors & Draft Inducers / Air Condenser Fan Motor
  • 5480H Nidec Rescue 1/2 Hp 1075 RPM 460V 5.6" Dia. (No Base) 2-Speed TEAO Condenser Motor -MotorHub Shop 5480h 53031.1675802502
  • 5464 Nidec | 1/3 Hp 825 RPM 2-Speed 208-230V; 5.6" Condenser Motor -MotorHub Shop 5462 11667.1572376842
-58%

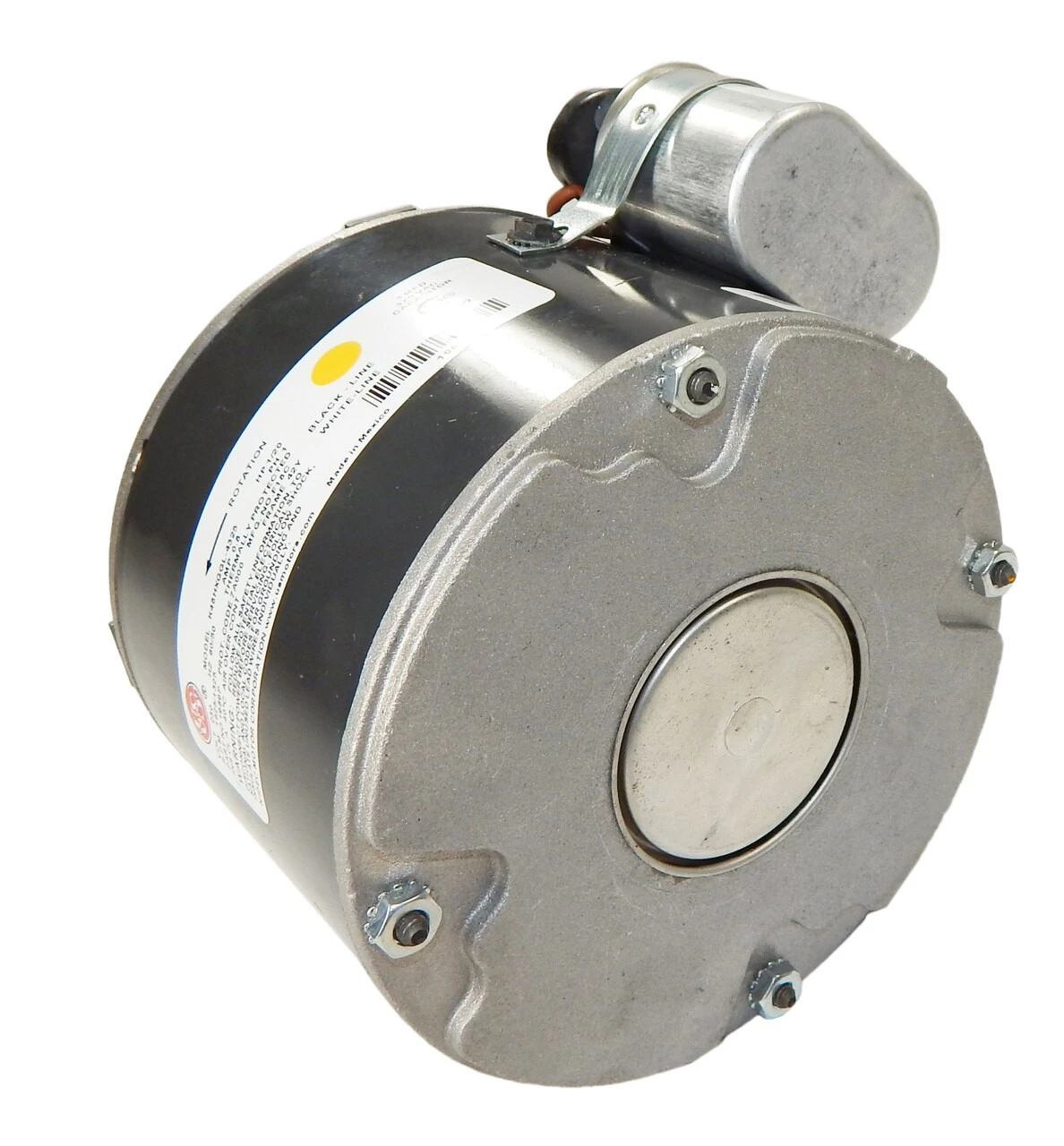

1989P Nidec | 1/20 Hp 1625 RPM 1-Speed 230V; 5.0" Condenser Motor
1989P Nidec | 1/20 Hp 1625 RPM 1-Speed 230V; 5.0" Condenser Motor - Image 2
1989P Nidec | 1/20 Hp 1625 RPM 1-Speed 230V; 5.0" Condenser Motor - Image 3
1989P Nidec | 1/20 Hp 1625 RPM 1-Speed 230V; 5.0" Condenser Motor -MotorHub Shop 1989P222 86137.1568739662
1989P Nidec | 1/20 Hp 1625 RPM 1-Speed 230V; 5.0" Condenser Motor -MotorHub Shop 1989Pdimaaa 19957.1568739669

1989P Nidec | 1/20 Hp 1625 RPM 1-Speed 230V; 5.0″ Condenser Motor

$237.20 Original price was: $237.20.$99.99Current price is: $99.99.

Buy Now
SKU: ZWXLY 1698667473 Categories: Air Condenser Fan Motor, HVAC Motors & Draft Inducers Tag: Nidec
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 1/20 hp 1625 RPM 1-Speed 230V 0.8 amps
  • Shaft 1/2″ x 2.5″
  • Rotation CW shaft end
  • 5.0″ Diameter
  • Motor case length 3.81″
  • Sleeve bearings
  • Includes capacitor
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Open Enclosure; Class B Insulation; 40C Ambient Temperature; 48″ Leads. Application: Heat Pump, Furnace. K048GGL4325011B Suggested after market replacement for Copeland condenser motor 050-0167-002, F48BGP1092, 5KSP29BG5012S, 5KSP21DG2162, S81-171, S88-507, MOT06285

Reviews

There are no reviews yet.

Be the first to review “1989P Nidec | 1/20 Hp 1625 RPM 1-Speed 230V; 5.0″ Condenser Motor” Cancel reply
