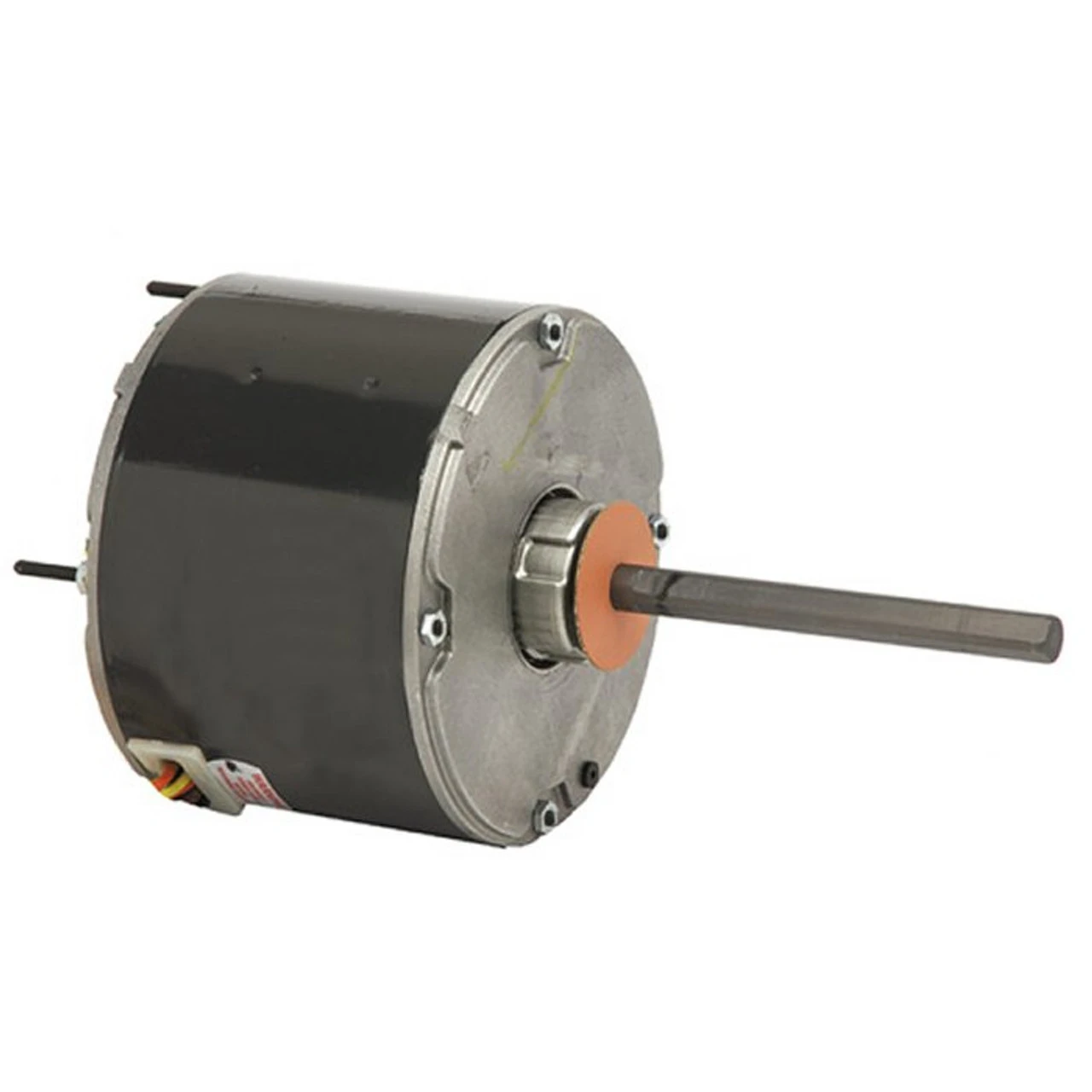

1890 Nidec | 1/4 Hp 1625 RPM 1-Speed 208-230V; 5.6" Condenser Motor
1890 Nidec | 1/4 Hp 1625 RPM 1-Speed 208-230V; 5.6" Condenser Motor - Image 2
1890 Nidec | 1/4 Hp 1625 RPM 1-Speed 208-230V; 5.6" Condenser Motor -MotorHub Shop 1890 85642.1569321867

1890 Nidec | 1/4 Hp 1625 RPM 1-Speed 208-230V; 5.6″ Condenser Motor

$254.10 Original price was: $254.10.$97.99Current price is: $97.99.

Buy Now
SKU: ZWXLY 1698667215 Categories: Air Condenser Fan Motor, HVAC Motors & Draft Inducers Tag: Nidec
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 1/4 hp 1625 RPM 1-Speed 208-230V 1.4 amps
  • Shaft 1/2″ x 5″
  • Rotation = Reversible
  • 5.6″ Diameter
  • Motor case length 4.3″
  • Sleeve bearings
  • Includes 5 MFD 2-prong capacitor
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Totally Enclosed Air Over Enclosure; Class B Insulation; 60C Ambient Temperature; 30″ Leads, K055TFP8715012B
