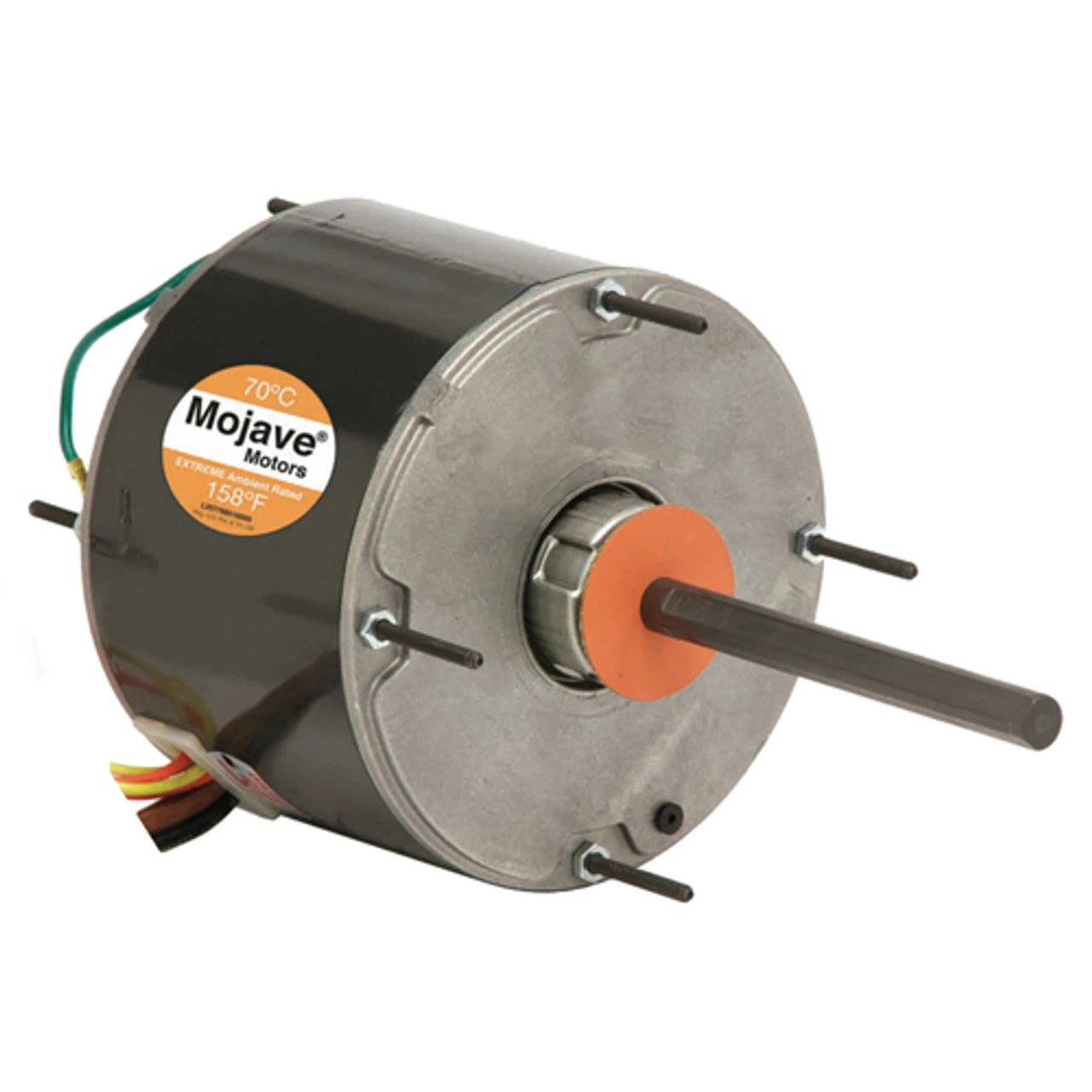

1860H Nidec 1/4 Hp 1075 RPM 208-230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor
1860H Nidec 1/4 Hp 1075 RPM 208-230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor - Image 2
1860H Nidec 1/4 Hp 1075 RPM 208-230V 5.6" Dia. (No Base) 1-Speed TEAO Condenser Motor -MotorHub Shop 1860H line 55866.1675887227

1860H Nidec 1/4 Hp 1075 RPM 208-230V 5.6″ Dia. (No Base) 1-Speed TEAO Condenser Motor

$110.80 Original price was: $110.80.$77.56Current price is: $77.56.

Buy Now
SKU: ZWXLY 1698667637 Categories: Air Condenser Fan Motor, HVAC Motors & Draft Inducers Tag: Nidec
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 1/4 hp 1075 RPM, 1.7 amps 208-230V Volts 60 Hz PSC Motor
  • NEMA 5.6″ Dia. Frame, Rolled Steel, Flat Shaft 1/2″ Diameter x 4 1/2″
  • Overload Protection: Auto
  • Stud Mount, Ball Bearings, Class F Insulation, Rev
  • 1 Year Manufacture Warranty

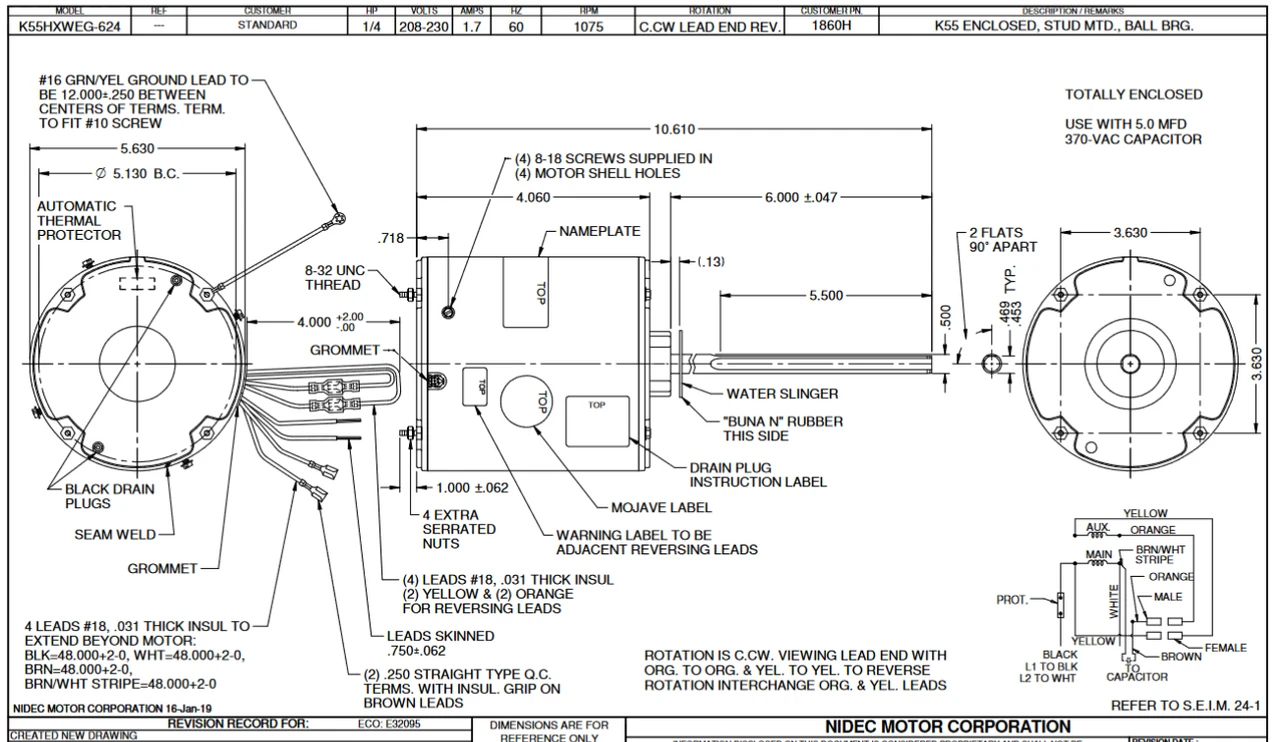

Condenser Fan Motor for hot environments. Wiring diagram on motor name plate. TEAO = Open Drip Proof, K055WEG0624012B
