Home / HVAC Motors & Draft Inducers
  • Fasco D404 Motor | 1/10 Hp 3200 RPM 3.3" Diameter 208-230 Volts (ITT Reznor) -MotorHub Shop D404 17290.1490558774
  • FB-RFB654 | York Draft Inducer (024-24115-017, 024-24115-018, 024-24115-020, 024-24115-713) -MotorHub Shop FB RFB654 69859.1435072398
-74%
1816 Nidec | 1 Hp 1140 RPM, 200-230/460V; 6.5" Condenser Motor
1816 Nidec | 1 Hp 1140 RPM, 200-230/460V; 6.5" Condenser Motor - Image 2

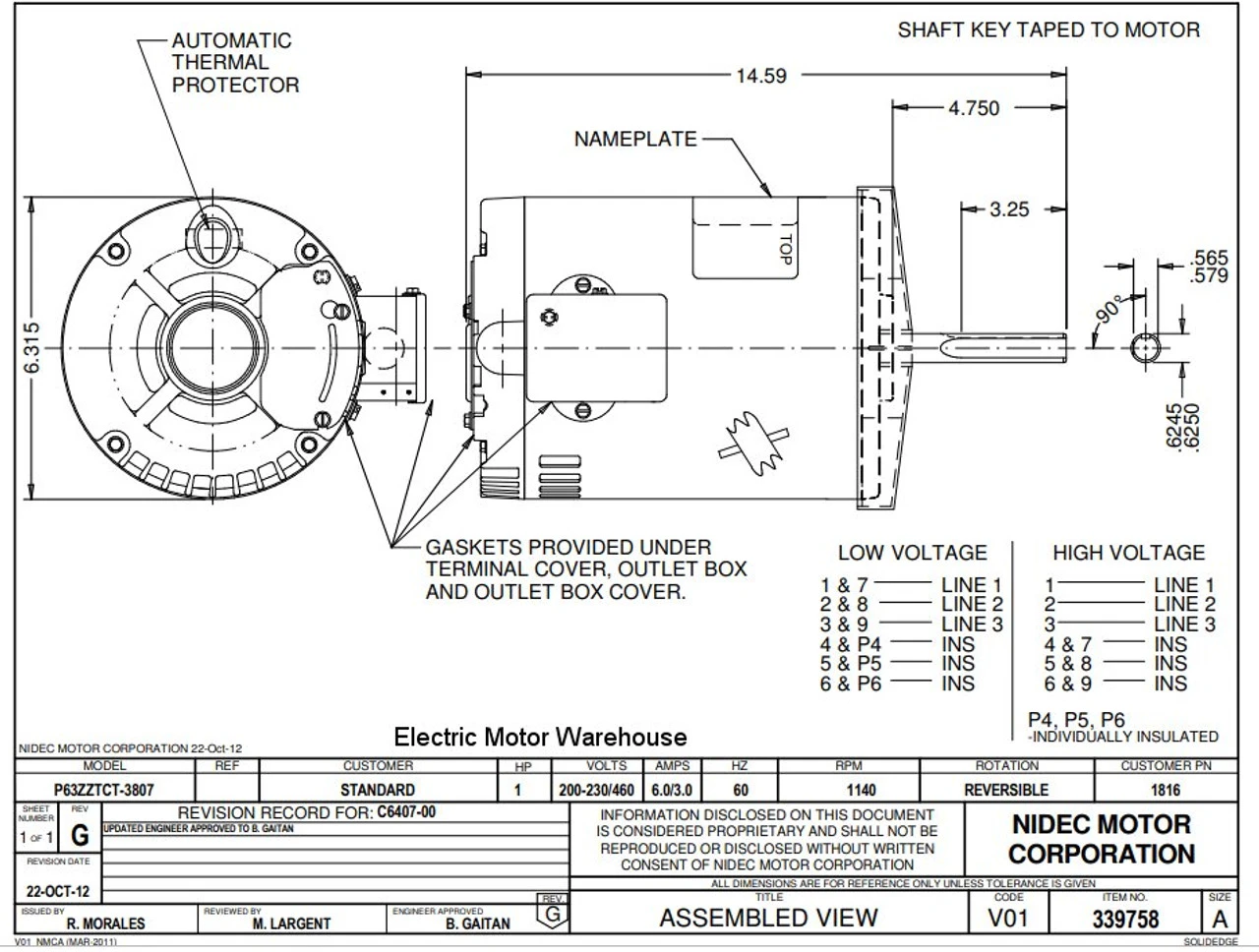

1816 Nidec | 1 Hp 1140 RPM, 200-230/460V; 6.5" Condenser Motor -MotorHub Shop 1816 dim 87525.1569774447

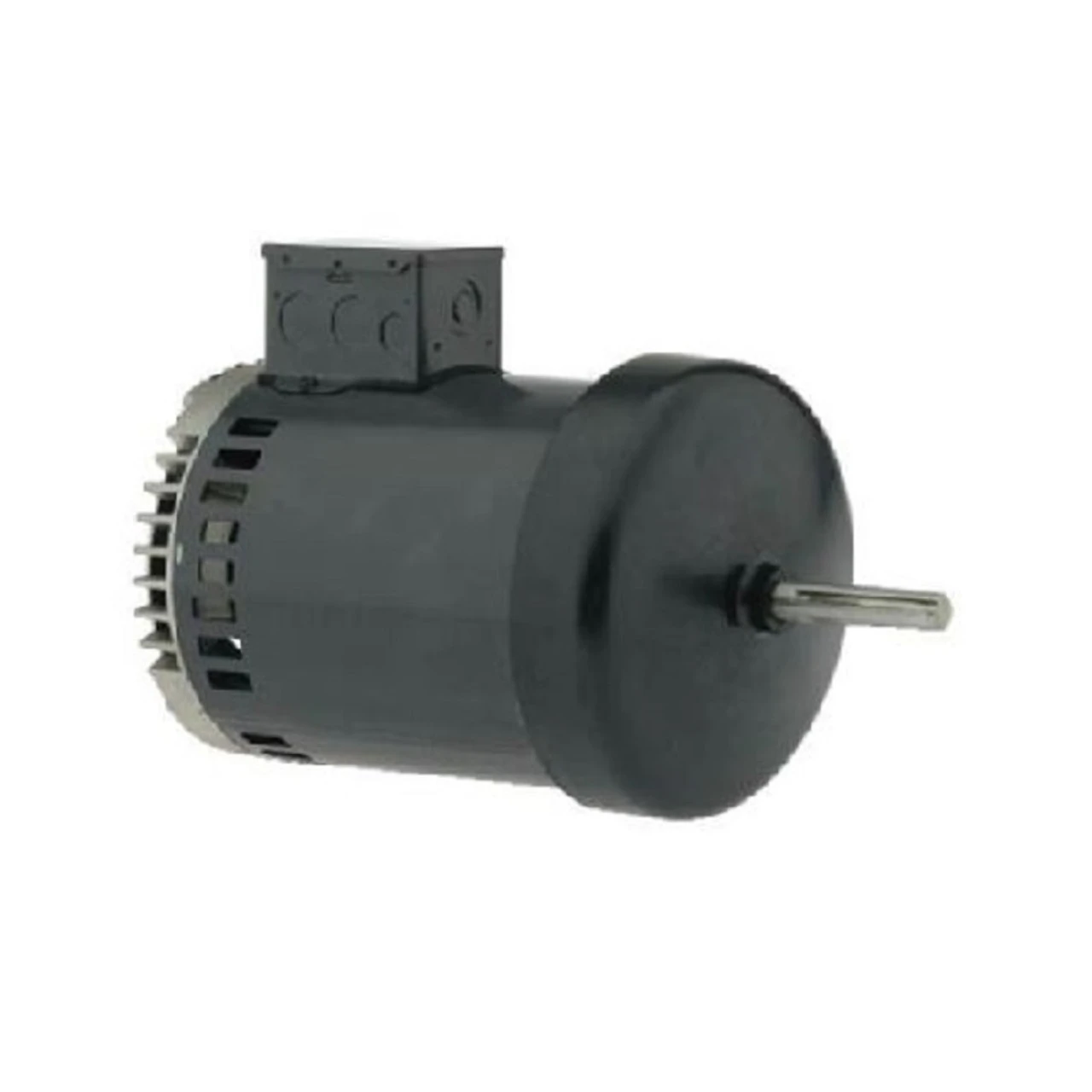

1816 Nidec | 1 Hp 1140 RPM, 200-230/460V; 6.5″ Condenser Motor

$376.00 Original price was: $376.00.$96.99Current price is: $96.99.

Buy Now
SKU: ZWXLY 1698667282 Category: HVAC Motors & Draft Inducers Tag: Nidec
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
  • Description
  • Reviews (0)
  • 1 hp 1140 RPM 200-230V/460 6.0/3.0 amps
  • Three Phase
  • 1.0 Service Factor
  • Shaft 5/8″ x 3″
  • Rotation: Reversible
  • 6.5″ Diameter
  • Motor case length 10.6″
  • Ball Bearings
  • Vertical Shaft Up, belly band
  • Open Air Over Case
  • 1 Year mfg warranty

Three Phase Motor. Automatic Overload Protection. Continuous Duty; Rain Shield; Class B Insulation; 60C Ambient Temperature, flat & keyway on shaft. Condenser fan motor. Suggested replacement for Carrier HD52VE214, 5K49N6084S P063TCT3807015B
