Home / HVAC Motors & Draft Inducers / Furnace Motors
  • 1700 Nidec 1 Hp 1625 RPM 277V 5.6" Dia. (No Base) 3-Speed OAO Fan Motor -MotorHub Shop 5847 40074.1677514820
  • 1468P Nidec | 1/20 Hp 1550 RPM 1-Speed 115/208-230V; 5.6" Blower Motor -MotorHub Shop 1469P 75053.1569943900
-51%

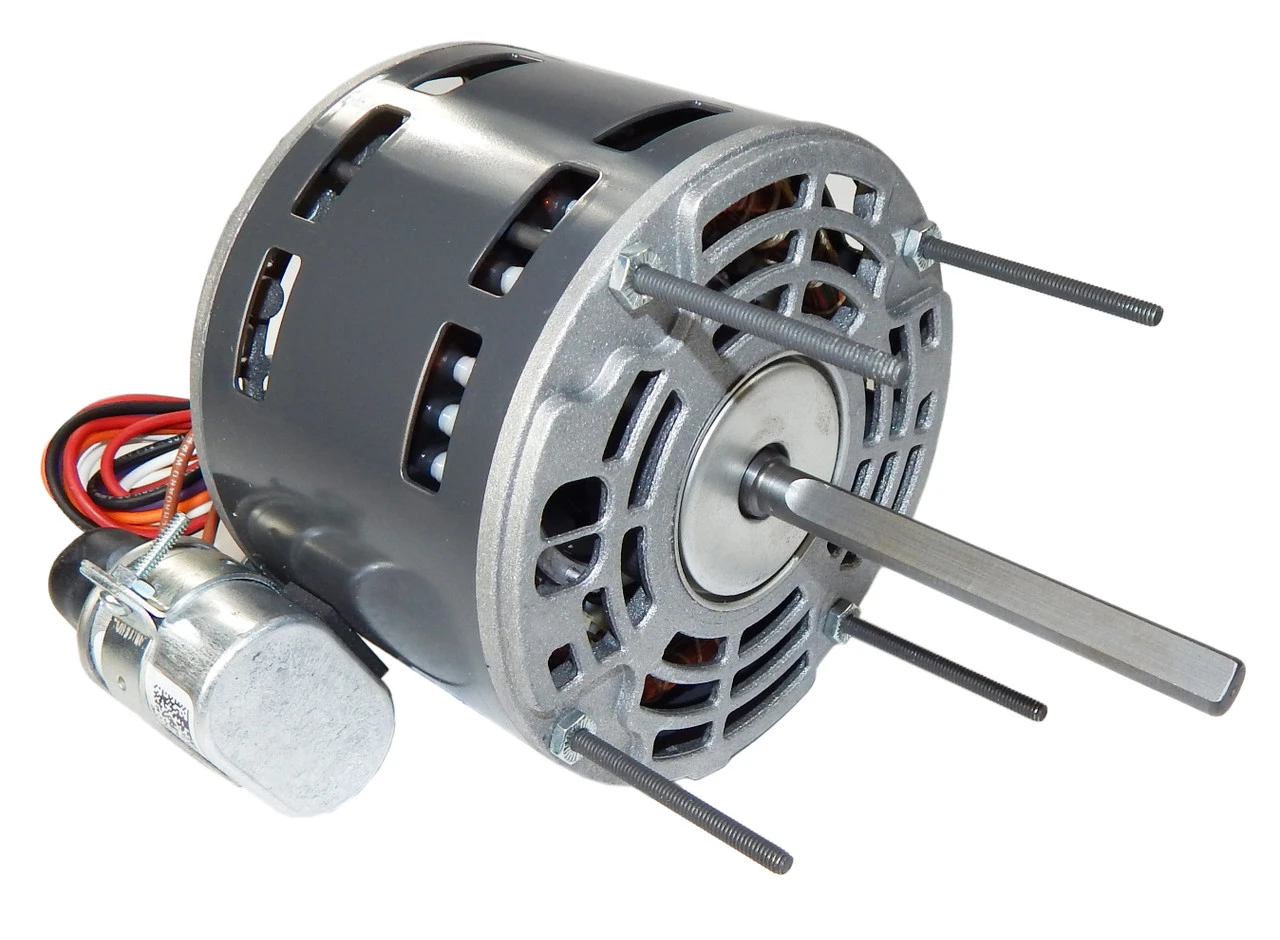

1471P Nidec | 1/10 Hp 1050 RPM 1-Speed 115/208-230V; 5.0" Blower Motor
1471P Nidec | 1/10 Hp 1050 RPM 1-Speed 115/208-230V; 5.0" Blower Motor - Image 2
1471P Nidec | 1/10 Hp 1050 RPM 1-Speed 115/208-230V; 5.0" Blower Motor - Image 3
1471P Nidec | 1/10 Hp 1050 RPM 1-Speed 115/208-230V; 5.0" Blower Motor - Image 4

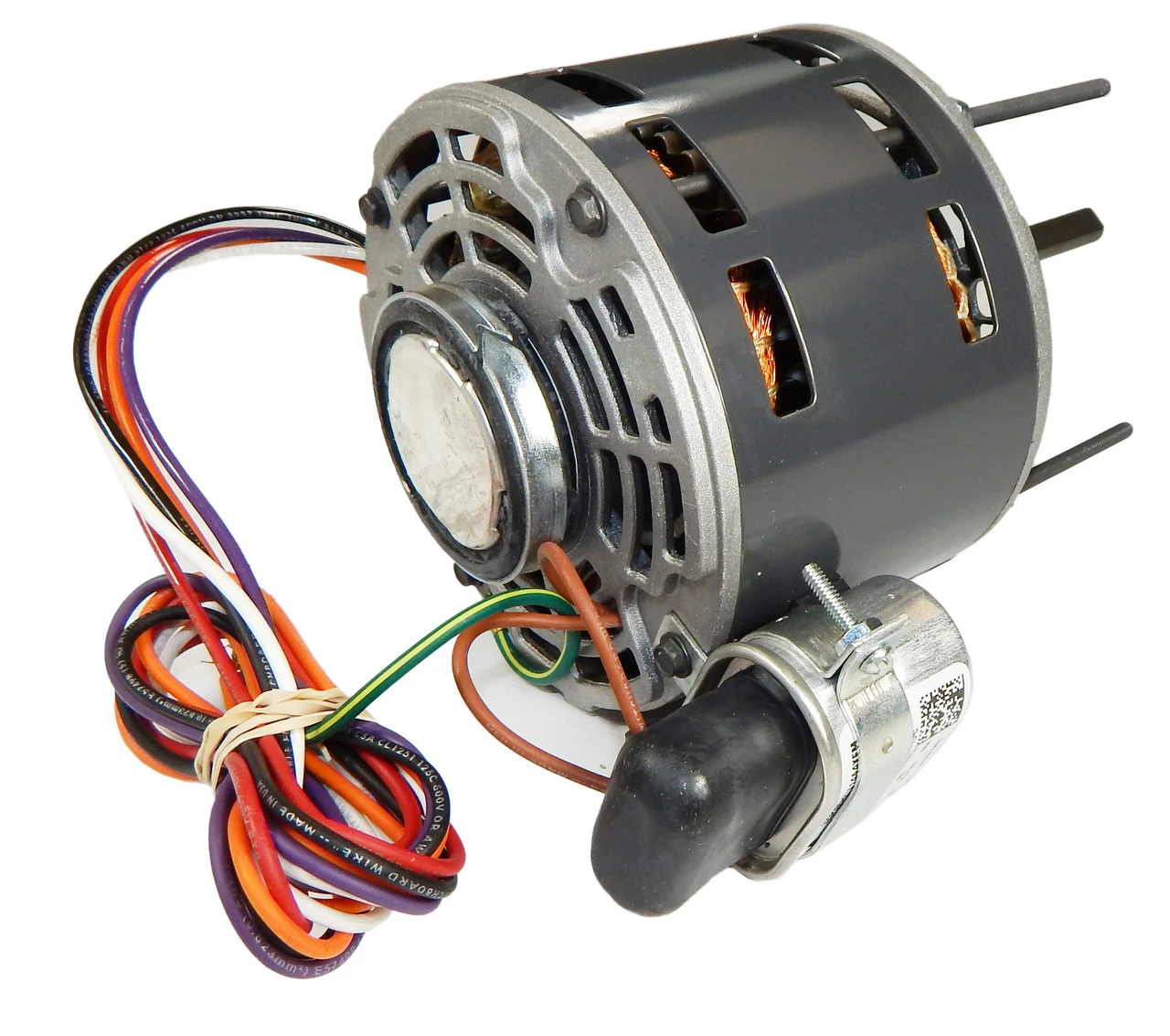

1471P Nidec | 1/10 Hp 1050 RPM 1-Speed 115/208-230V; 5.0" Blower Motor -MotorHub Shop 1469P back 16100.1569944063

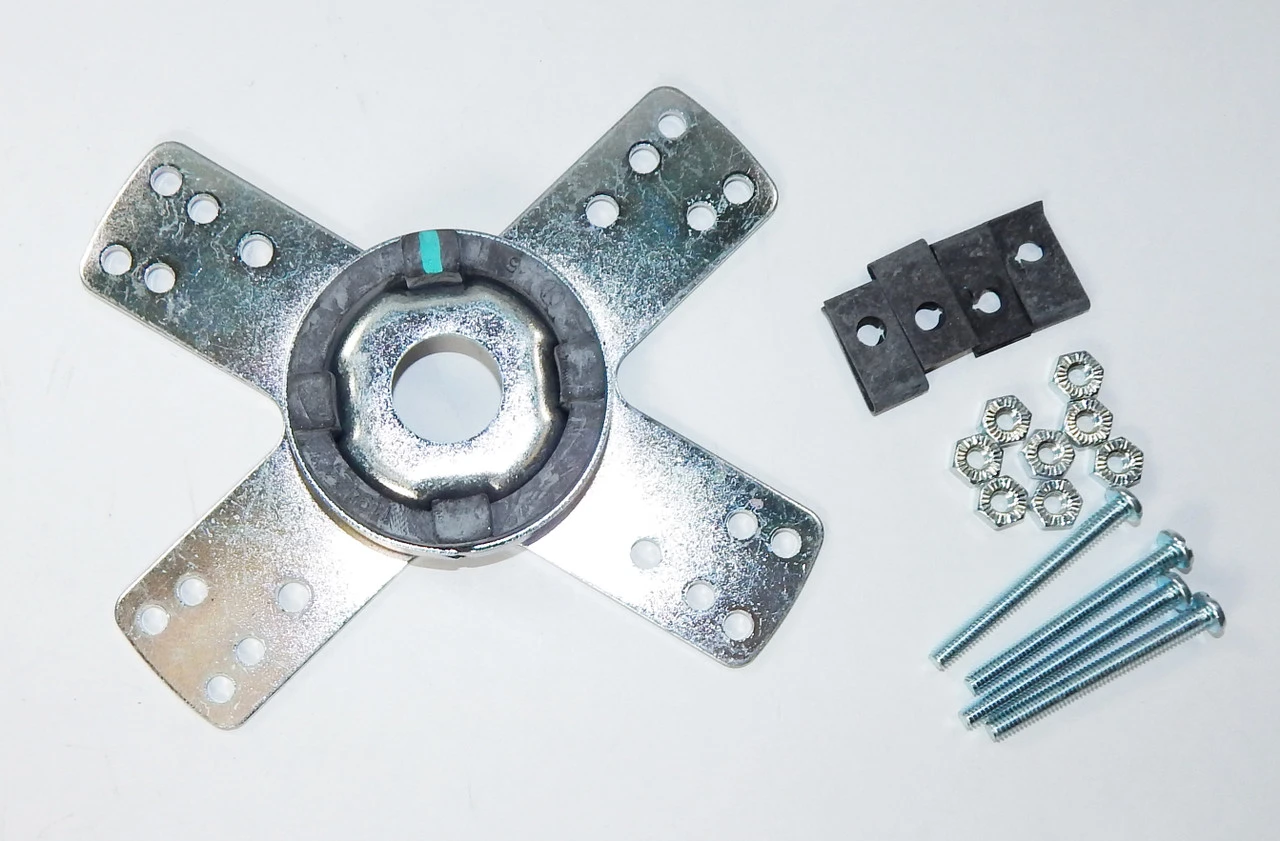

1471P Nidec | 1/10 Hp 1050 RPM 1-Speed 115/208-230V; 5.0" Blower Motor -MotorHub Shop 1469P extras 97383.1569944070

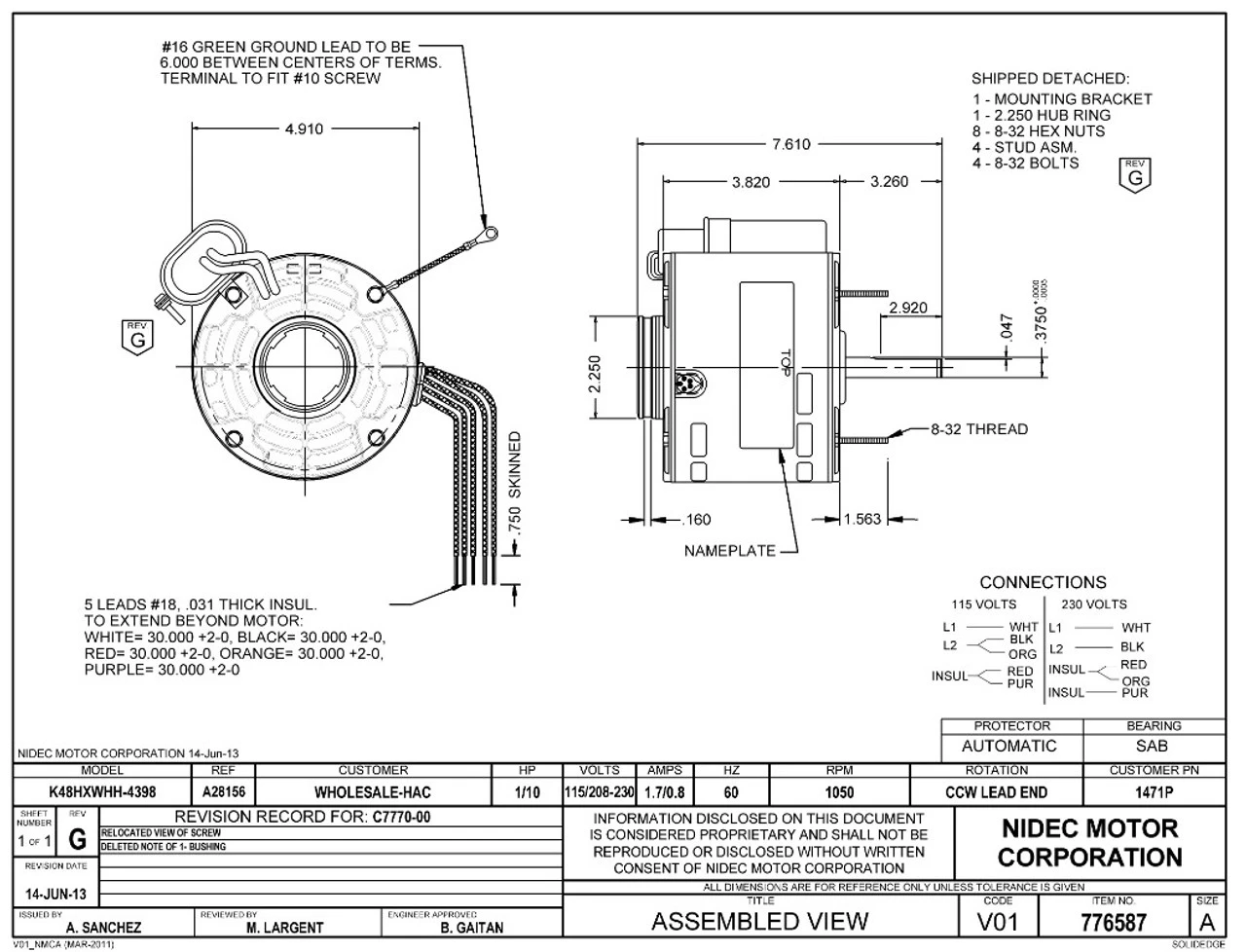

1471P Nidec | 1/10 Hp 1050 RPM 1-Speed 115/208-230V; 5.0" Blower Motor -MotorHub Shop Nidec 1471P Line 48201.1569944072

1471P Nidec | 1/10 Hp 1050 RPM 1-Speed 115/208-230V; 5.0″ Blower Motor

$203.50 Original price was: $203.50.$98.99Current price is: $98.99.

Buy Now
SKU: ZWXLY 1698669422 Categories: Furnace Motors, HVAC Motors & Draft Inducers Tag: Nidec
  • Protect Your Information, Shop with Safe Payments
  • Buy quality, buy with us.
  • Efficiency meets excellence in customer care.
  • Top-Notch Quality
Browse
  • Electric Motors
    • Air Compressor Motors
    • Ametek Lamb Vacuum Motors
    • Bison Gear Motors
    • Dayton Gear Motors
    • Fasco Motors
    • Leeson/Marathon Electric Motors
    • Modine Replacement Motors
    • Motor Controls
    • Unit Bearing Motors
  • HVAC Motors & Draft Inducers
    • Air Condenser Fan Motor
    • Dayton Ventilator Replacement Motors
    • Draft Inducer Venter Motors-Furnace
    • Dual Shaft Motors
    • Furnace Motors
    • Hanging Furnace Motors
    • HVAC-OEM Blower Motors
    • Penn Vent Motors
    • Water Heater Exhaust Blowers
  • Pool & Spa Motors
    • Century Pool & Spa Motors
    • Marathon/Leeson Jet Pump Motors
    • PENTAIR EQ Series Pump Motor
    • US Electric Motors
  • Pulleys and Sheaves
    • 3V Pulley
    • 5V Pulley
    • A/B Pulley
    • AK Sheaves
    • AK-H Pulleys-Bushing Required
    • BK Sheaves
    • BK-H Pulleys-Bushing Required
    • Bushing-Taper Lock
    • C Pulley
    • Die Cast-Fixed Bore
    • Variable Pitch-Fixed Bore
  • Uncategorized
Recently Viewed
  • 8052 Nidec | 1/3 Hp 825 RPM 1-Speed 208-230V; 5.6" Blower Motor 8052 Nidec | 1/3 Hp 825 RPM 1-Speed 208-230V; 5.6" Blower Motor $205.00 Original price was: $205.00.$95.99Current price is: $95.99.
  • Description
  • Reviews (0)
  • 1/10 hp 1050 RPM 1-Speed 115/208-230V 1.7/0.8 amps
  • 21/29 frame replacement
  • Shaft 3/8″ x 3.26″
  • Rotation CW shaft end
  • 5.0″ Diameter
  • Motor case length 3.82″
  • Sleeve bearings
  • Hub Mount bracket, 2.25″ ring dia.
  • Includes capacitor
  • 1 Year mfg warranty

Permanent Split Capacitor Motor. Automatic Overload Protection. Continuous Duty; Open Drip Proof Air Over Enclosure; Class B Insulation; 40C Ambient Temperature; 30″ Leads. K048WHH4398011B; Suggested after market replacement for GE HG3253, HG3254, HG3275, HG3263, HG3264
